7) PART LOCATION ACCORDING TO PART NUMBER
Ex.) C 1 0 2 ▶
C : Symbol character for connector -Symbol Character Description
C Connector (Connecting part that connects two wiring harness)
D Diode
G Ground
S Splice pack (Joint connector that connects various wiring harness)
1 : Part location number -
Part number according to locating section -
Part Numbe Location
□ 1□□Engine compartment
□ 2□□Instrument panel
□ 3□□Passenger compartment
□ 4□□Tailgate
□ 9□□Underbody
In the locating section, the assignment for part number startsfrom left bottom and
proceeds clockwise.
In the fuse and relay box or the instrument panel, the partnumber is assigned from left
top to light bottom. -
-
8) ELECTRIC SYMBOLS

3
4
5
8
11
1461-00/2820-00/1491-00/8210-00/3110-00/3410-00/4892-00/8810-00/8010-00/7410-100/8510-00/8710-00/8510-00/8610-00/
8730-00/7340-00/7632-00/8310-00/8610-00/8510-00/8320-00/8410-00/8210-00/8310-00/4810-00/7770-00/8910-00/8790-00/6810-00
ENGINE1461-00 STARTING / CHARGING.................
1413-00 GLOW CONTROL UNIT...................
1491-00 ECU (ENGINE CONTROL
UNIT - D20DTR EU-V).....................
1490-00 ECU (ENGINE CONTROL
UNIT - GSL G23)............................
8210-00 DIAGNOSIS CIRCUIT.....................CHASSIS3110-00 TCU (6-A/T)...................................
3410-00 TCCU............................................
4892-00 ABS/ESP........................................8730-00 IMMOBILIZER CIRCUIT................
7340-00 SUNROOF CIRCUIT.......................
7632-00 CIGAR LIGHTER / POWER
OUTLET CIRCUIT........................
8310-00 HEAD LAMP CIRCUIT..................
8610-00 DRL (DAY TIME RUNNING
LIGHT) UNIT CIRCUIT.................
8510-00 HLLD (HEAD LAMP LEVEL G
DEVICE) CIRCUIT.........................
8320-00 TAIL LAMP CIRCUIT....................
8410-00 TURN SIGNAL / HAZARD
LAMP CIRCUIT.............................
8210-00 TRAILER LAMP CIRCUIT.............
8310-00 FOG LAMP CIRCUIT.....................
4810-00 STOP / BACK-UP
LAMP CIRCUIT.............................
7770-00 INTERIOR LAMP CIRCUIT............
7770-00 AUTO DIMMING ROOM
MIRROR CIRCUT.........................
8910-00 AUDIO / CLOCK CIRCUIT..............
8790-00 PARKING AID CIRCUIT..................
6810-00 PTC HEATER (POSITIVE
TEMPERATURE COEFFICIENT).....
6810-00 FATC (FULL AUTO TEMP.
CONTROL) CIRCUIT....................
6810-00 AIR-CON (MANUAL) CIRCUIT......... 12
14
1533
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
52
'
ELECTRIC8810-00 AIR-BAG.......................................
8010-00 CLUSTER......................................
7410-00 POWER SEAT - DRIVER................
7410-00 POWER SEAT - PASSENGER.......
8510-00 ELECTRIC OUTSIDE MIRROR........
8510-00 SEAT WARMER.............................
8710-00 STICS.............................................
8510-00 POWER WINDOW CIRCUIT...........
8610-00 HORN............................................17
18
20
21
22
23
24
31
32

11-31461-01
1. SPECIFICATION
Description Specification
Capacity 12 V, 2.3 kW
Engagement Meshed type
Rotating direction Clockwise
Pinion gear manufacturing Cooled forging
Solenoid operating voltage Max. 8 V
Weight 2.5 kg
Bracket manufacturing Aluminum die casting

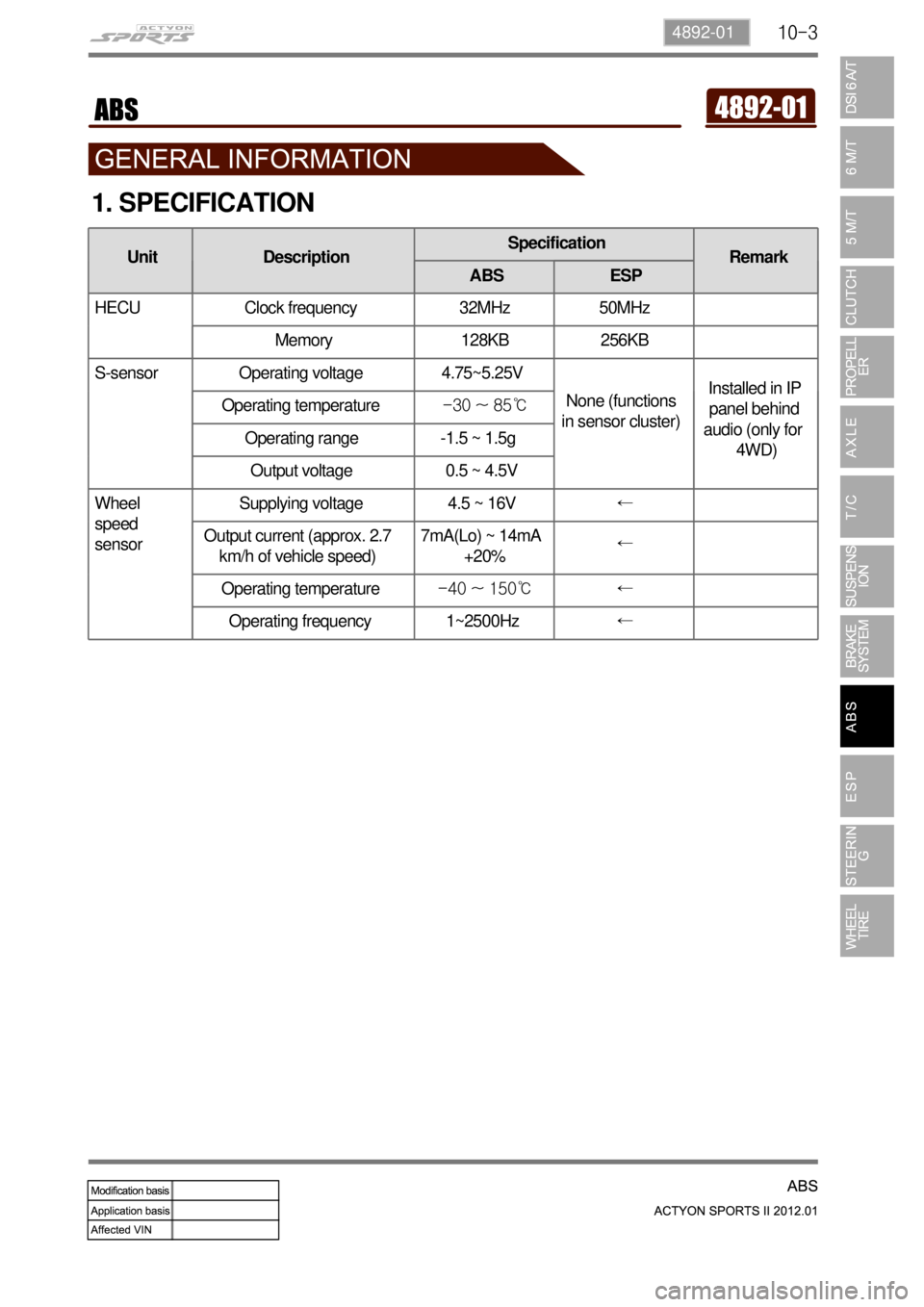

10-34892-01
1. SPECIFICATION
Unit DescriptionSpecification
Remark
ABS ESP
HECU Clock frequency 32MHz 50MHz
Memory 128KB 256KB
S-sensor Operating voltage 4.75~5.25V
None (functions
in sensor cluster)Installed in IP
panel behind
audio (only for
4WD) Operating temperature-30 ~ 85℃
Operating range -1.5 ~ 1.5g
Output voltage 0.5 ~ 4.5V
Wheel
speed
sensorSupplying voltage 4.5 ~ 16V←
Output current (approx. 2.7
km/h of vehicle speed)7mA(Lo) ~ 14mA
+20%←
Operating temperature-40 ~ 150℃ ←
Operating frequency 1~2500Hz←

11-34890-10
1. SPECIFICATION
1) Specification of Active Wheel Sensor
Description Specification Remark
Supplying voltage 4.5 ~ 16.0V
Output current (at 2.75 km/h of
vehicle speed)7mA(Lo) ~ 14mA(Hi)
Tightening torqueFront: 7.8 to 11.8 Nm
Rear: 7.8 to 11.8 Nm
Operating temperature-40 ~ 150℃
Operating frequency 1 ~ 2,500Hz
UnitDescription
Specification
ABS ESP
HECU Clock frequency: 32 MHz Clock frequency: 50 MHz
Memory: 128 KB Memory: 256 KB
Wheel speed
sensorActive type Active type Output: 7~14
mA
Steering wheel
angle sensorNone Max. detection angle speed:
1500 °/SecPulse duty:
50±10%
Operating voltage: 9 to 12 V
Sensor cluster None Yaw rate sensor + lateral G
sensor + longitudinal G sensor
(4WD)Mounting
direction should
be kept (CAN
communcation)
Longitudinal G
sensor4WD only None
Pressure
sensorNone HECU integrated
