Page 963 of 1082
11-110000-00
5. SYSTEM DESCRIPTION
1) Block Diagram of ESP HECU
Page 979 of 1082
11-270000-00
7. CIRCUIT DIAGRAM
Wheel speed sensor, Stop lamp switch, Self diagnostic connector, Warning lamp (ABS/ESP) ▶
Page 1000 of 1082
15-6
1) Sectional Diagram and Bolts for Front Sub Frame
Mounting nut
29.4 to 39.2 Nm
Bolt9.4 to 39.2 Nm
Installation Sectional diagram
1. Front
2. Rear
Mounting bracket Mounting bolt
3. Transaxle mounting (Front)
For manual transaxle For automatic transaxle
(diesel)
4. Transaxle mounting (Rear)
Page 1001 of 1082
15-74012-00

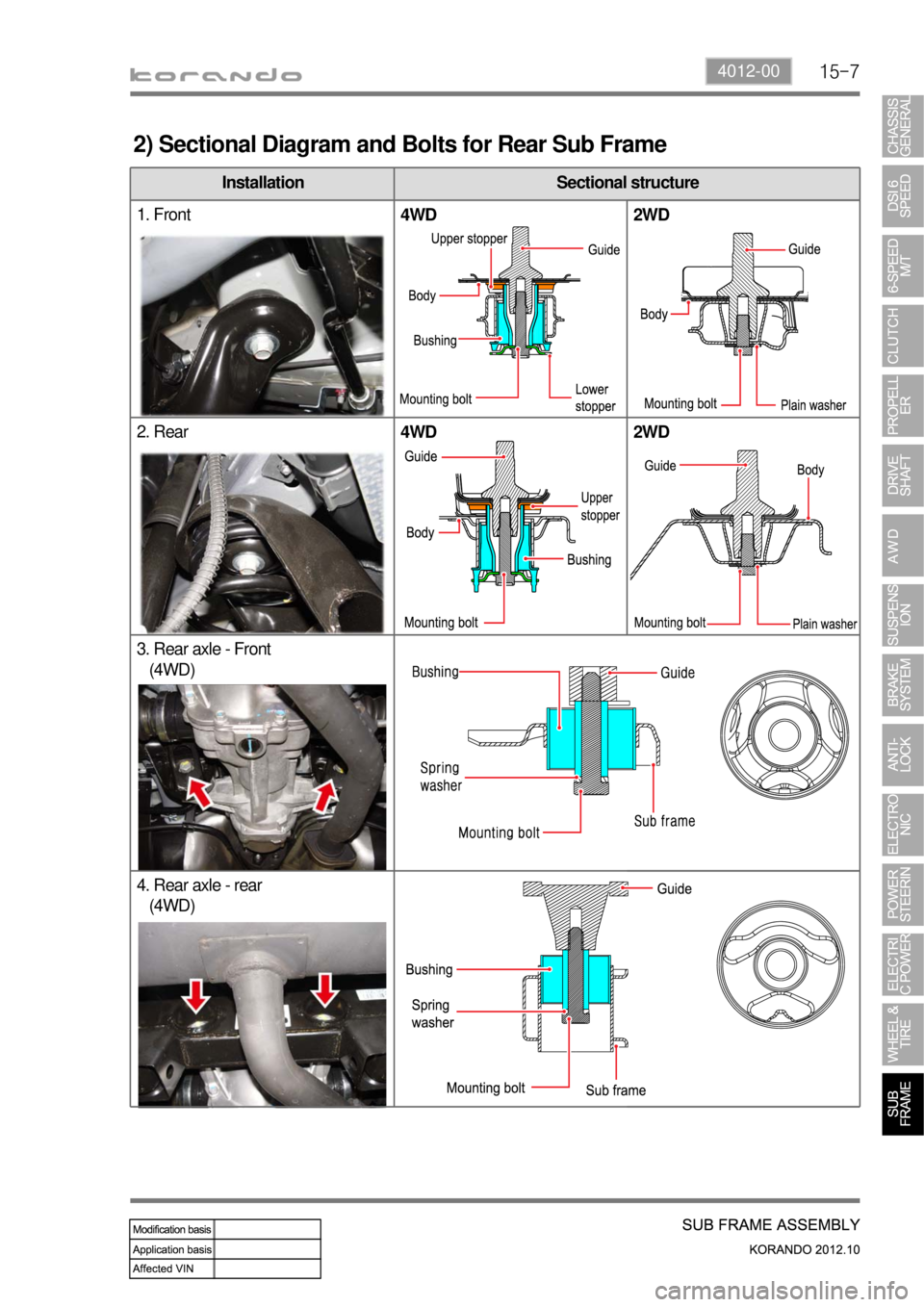

2) Sectional Diagram and Bolts for Rear Sub Frame
Installation Sectional structure
1. Front
4WD 2WD
2. Rear
4WD 2WD
3. Rear axle - Front
(4WD)
4. Rear axle - rear
(4WD)
Page 1017 of 1082
Page 1035 of 1082
02-198810-00
5. CIRCUIT DIAGRAM
8810-01 Air bag (Curtain air bag/Side air bag) ▶
Page 1048 of 1082
04-117340-00
5. CIRCUIT DIAGRAM
