■Settings - Sets the day and time when the vehicle is to be ready for use
■ Timer 1 - Sets the preset time 1
■ Timer 2 - Sets the preset time 2
■ Timer 3 - Sets the preset time 3
■ Set running time - Sets the time frame in which to run the device (10 - 60 mi-
nutes)
After setting the desired time, press the button BACK
to save the preset time.
Note
■
Only one preset time can be active. The activated preset time will be deactiva-
ted again after it has started automatically. For the next start, activate one of the preset times.■
In the selection of the day in the preset time, there is an option between Sun-
day and Monday without the specified day. If this setting is made, the vehicle will
be ready for use at the selected time, regardless of the current day.
■
The running system deactivates after expiration of the operating period or can
be deactivated earlier by pressing the button for directly switching on/off  on
the Climatronic control unit or by using the radio remote control.
■
If a different time is set » page 7, Unit system setup , the activated preset time is
automatically deactivated. The preset time must be reactivated.
Ð
Driving assistant
›
Press the button CAR
→ Assistants .
■ Front assist - Sets the assistant for distance monitoring to the vehicles ahead
■ Active - Assistant on/off
■ Advance warning - Advance warning on/off
■ Display distance warning - Distance display on/off
■ ACC (Adaptive Cruise Control) - Sets the adaptive cruise control
■ Distance - Sets the distance monitoring to the vehicles ahead
■ Very close - Very small distance
■ Close - Small distance
■ Medium - Medium distance
■ Far - Large distance
■ Very far - Very large distance
■ Last distance selected - Last selected distance on/off
■
Driving programme - Sets the vehicle acceleration when adaptive cruise con-
trol is active
■ Normal - Normal
■ Sport - Sports
■ Eco - Economical
■ Park Assist - Sets the park assist
■ Front volume - Adjusts the volume of the front sensors
■ Front tone setting - Adjusts the tone of the front sensors
■ Rear volume - Adjusts the volume of the rear sensors
■ Rear tone setting - Adjusts the tone of the rear sensors
■ Audio lowering - Lowers the volume
■ Off - No lowering of the volume
■ Weak - Weak lowering of the volume
■ Medium - Medium lowering of the volume
■ Strong - Strong lowering of the volume
■ ProActive passenger protection - Proactive passenger protection on/off
■ Fatigue detection - Fatigue detection on/offÐ
Lights
›
Press the button CAR
→ Lights .
■ Light Assist - Sets the light assist
■ Switch-on time - Sets the sensibility of the light sensor against the intensity
of the ambient light
■ Early - Low sensibility
■ Medium - Medium sensibility
■ Late - High sensibility
■ Head Light Assist - Automatic head light control on/off
■ Automatic headlight control (rain) - Automatic head light control in rain on/
off
■ Daytime running lights - Daytime running lights on/off
■ Lane change flash - Convenience flashing on/off
■ Travel mode - Travel mode on/off
■ Left-hand traffic - For left-hand traffic
■ Right-hand traffic - For right-hand traffic
■ Interior lighting - Sets the interior lighting
■ Instrument lighting - Sets the brightness of the instrument lighting
■ Footwell light - Sets the brightness of the footwell light
■ Coming home - COMING HOME function on/off, timer setting
■ Leaving home - LEAVING HOME function on/off, timer setting
Ð
15Vehicle systems setup

Vision›
Press the button CAR
→ Vision .
■ Mirrors - Adjusts the mirrors
■ Synchronous mirror adjustment - Synchronous mirror adjustment on/off
■ Lowering in reverse - Lowering of front passenger mirror in reverse on/off
■ Fold in while parking - Folding the mirrors after parking on/off
■ Wipers - Adjusts the windscreen wipers
■ Automatic wiping in rain - Automatic wiping in rain on/off
■ Automatic rear wiper - Automatic rear wiper on/off
Ð
Opening/closing
›
Press the button CAR
→ Opening/closing .
■ Windows - Sets the windows
■ Convenience opening - Sets the convenience opening
■ Off - No window
■ All windows - All windows
■ Driver - Driver's window only
■ Central locking - Sets the doors
■ Door unlocking - Sets the door unlocking
■ All - All doors
■ Single door - Single door
■ Driver side - Door on the driver's side
■ Automatic locking - Automatic locking on/off
■ Alarm system confirmation - Acoustic signals on/off when locking/unlocking a
vehicle with an anti-theft alarm system
Ð
Seats
›
Press the button CAR
→ Seats .
■ Store driver's seat position on key - Storing driver's seat position on key on/off
Ð
Driving data
›
Press the button CAR
→ Driving data .
■
Current consumption - Display of current fuel consumption on/off
■ Travelling time - Display of travelling time on/off
■ Distance travelled - Display of distance travelled on/off
■ Avg. speed - Display of average speed on/off
■ Avg. consumption - Display of average fuel consumption on/off
■ Digital speed - Display of current speed on/off
■ Oil temperature - Display of oil temperature on/off
■ Winter tyres warning - Winter tyres warning on/off
■ Coolant temperature - Coolant temperature on/off
■ Refuel quantity - Display of refuel quantity on/off
■ Eco tips - Display of tips for economical driving on/off
■ Convenience consumers - Display of fuel consumption of convenience consum-
ers on/off
■ Reset since “start driving data ” - Resets the single-trip memory
■ Reset “long-term driving data ” - Resets the long-term memoryÐ
Winter tyres limit
›
Press the button CAR
→ Winter tyres limit .
■ Winter tyres warning - Winter tyres warning on/off
■ Warning at: --- km/h - Sets the speed for the warning
Note
This function is, for example, used for winter tyres where the maximum permissi-
ble speed is lower than the maximum speed of the vehicle.Ð
Service
›
Press the button CAR
→ Service .
■ Oil change service - Oil change due
■ Oil change service due in … days / ... km - Displays the days and distance trav-
elled until the next engine oil change
■ Inspection - Mandatory inspection service
■ Inspection due in … days / ... km - Displays the day and distance travelled until
the mandatory inspection service
■ Vehicle ID - Displays the vehicle identification number
Ð
16Vehicle systems setup

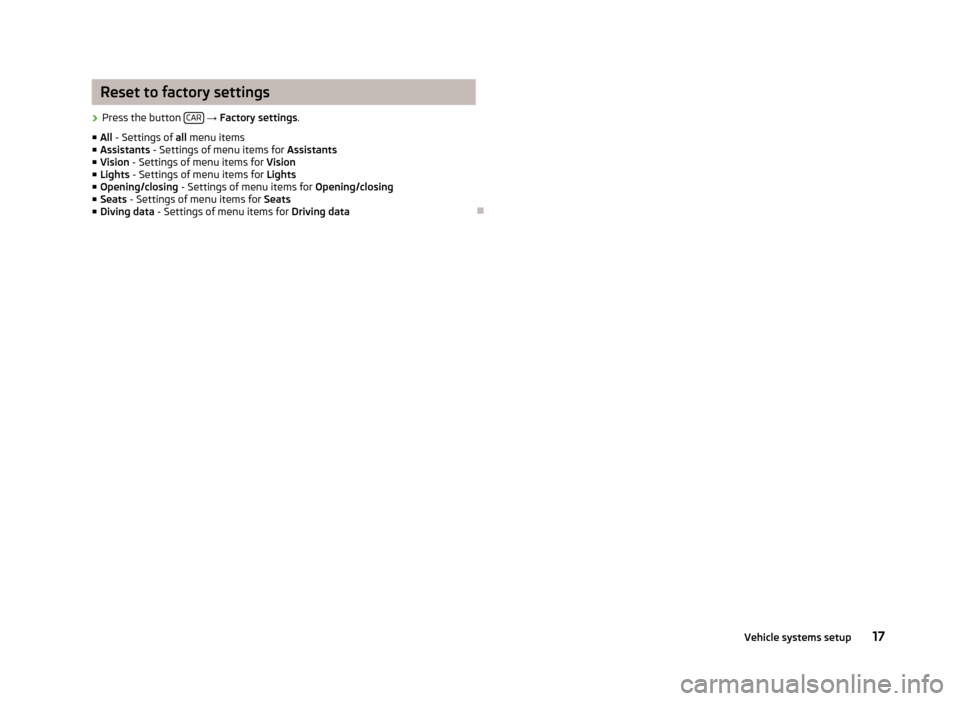

Reset to factory settings›
Press the button CAR
→ Factory settings .
■ All - Settings of all menu items
■ Assistants - Settings of menu items for Assistants
■ Vision - Settings of menu items for Vision
■ Lights - Settings of menu items for Lights
■ Opening/closing - Settings of menu items for Opening/closing
■ Seats - Settings of menu items for Seats
■ Diving data - Settings of menu items for Driving data
Ð
17Vehicle systems setup

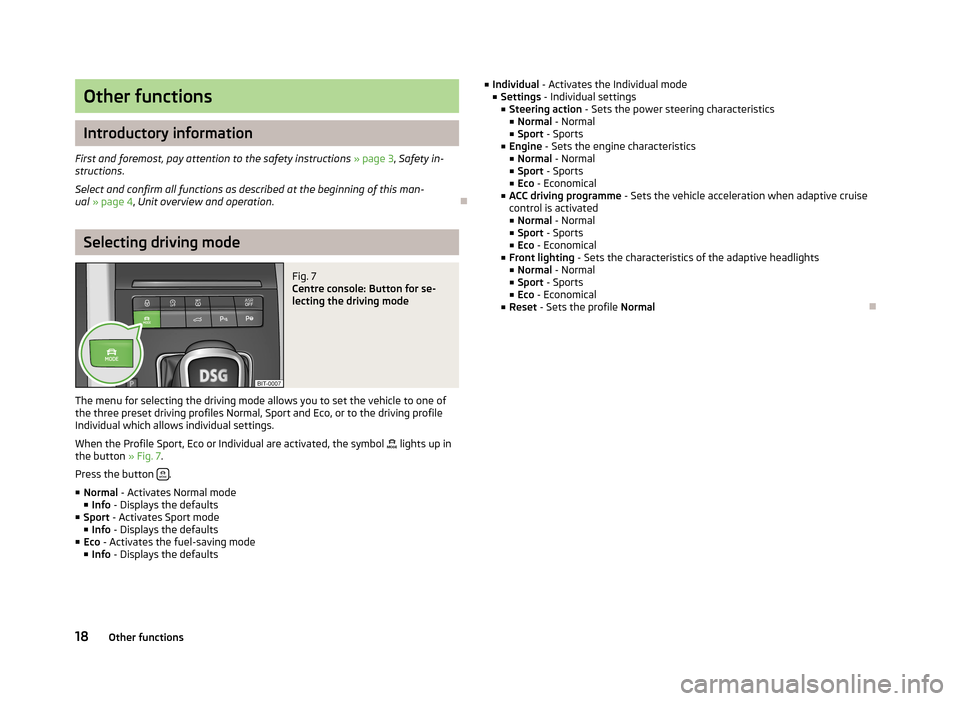

Other functions
Introductory information
First and foremost, pay attention to the safety instructions » page 3 , Safety in-
structions .
Select and confirm all functions as described at the beginning of this man-
ual » page 4 , Unit overview and operation .
Ð
Selecting driving mode
Fig. 7
Centre console: Button for se-
lecting the driving mode
The menu for selecting the driving mode allows you to set the vehicle to one of
the three preset driving profiles Normal, Sport and Eco, or to the driving profile Individual which allows individual settings.
When the Profile Sport, Eco or Individual are activated, the symbol 
lights up in
the button » Fig. 7.
Press the button 
.
■ Normal - Activates Normal mode
■ Info - Displays the defaults
■ Sport - Activates Sport mode
■ Info - Displays the defaults
■ Eco - Activates the fuel-saving mode
■ Info - Displays the defaults
■
Individual - Activates the Individual mode
■ Settings - Individual settings
■ Steering action - Sets the power steering characteristics
■ Normal - Normal
■ Sport - Sports
■ Engine - Sets the engine characteristics
■ Normal - Normal
■ Sport - Sports
■ Eco - Economical
■ ACC driving programme - Sets the vehicle acceleration when adaptive cruise
control is activated ■ Normal - Normal
■ Sport - Sports
■ Eco - Economical
■ Front lighting - Sets the characteristics of the adaptive headlights
■ Normal - Normal
■ Sport - Sports
■ Eco - Economical
■ Reset - Sets the profile NormalÐ
18Other functions

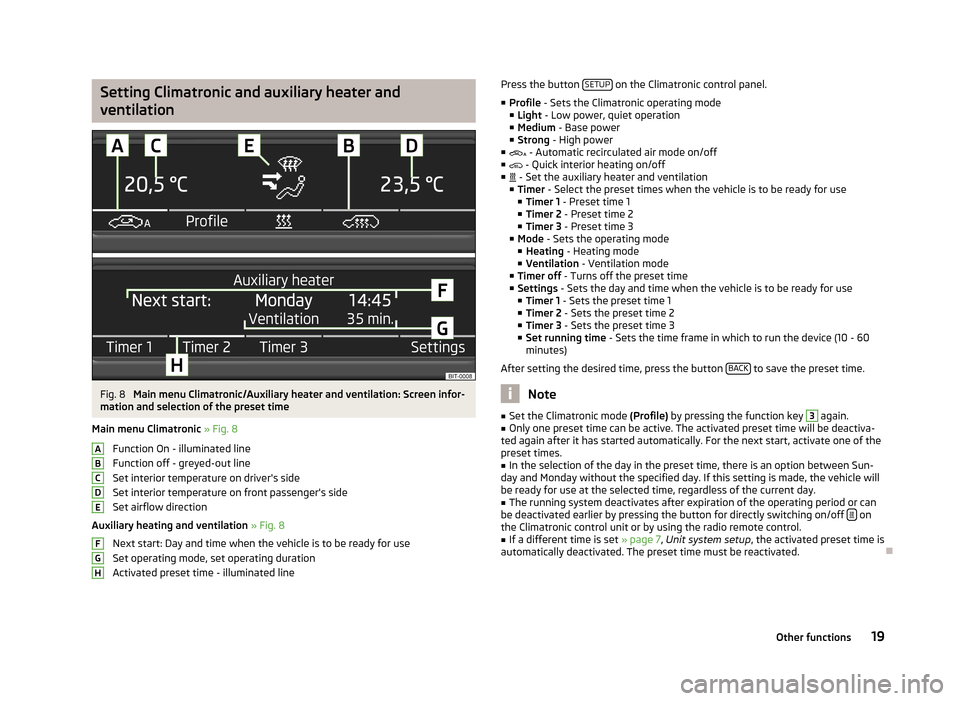

Setting Climatronic and auxiliary heater andventilationFig. 8
Main menu Climatronic/Auxiliary heater and ventilation: Screen infor-
mation and selection of the preset time
Main menu Climatronic » Fig. 8
Function On - illuminated line
Function off - greyed-out line
Set interior temperature on driver's side
Set interior temperature on front passenger's side Set airflow direction
Auxiliary heating and ventilation » Fig. 8
Next start: Day and time when the vehicle is to be ready for use
Set operating mode, set operating duration
Activated preset time - illuminated line
ABCDEFGHPress the button SETUP on the Climatronic control panel.
■ Profile - Sets the Climatronic operating mode
■ Light - Low power, quiet operation
■ Medium - Base power
■ Strong - High power
■  - Automatic recirculated air mode on/off
■  - Quick interior heating on/off
■  - Set the auxiliary heater and ventilation
■ Timer - Select the preset times when the vehicle is to be ready for use
■ Timer 1 - Preset time 1
■ Timer 2 - Preset time 2
■ Timer 3 - Preset time 3
■ Mode - Sets the operating mode
■ Heating - Heating mode
■ Ventilation - Ventilation mode
■ Timer off - Turns off the preset time
■ Settings - Sets the day and time when the vehicle is to be ready for use
■ Timer 1 - Sets the preset time 1
■ Timer 2 - Sets the preset time 2
■ Timer 3 - Sets the preset time 3
■ Set running time - Sets the time frame in which to run the device (10 - 60
minutes)
After setting the desired time, press the button BACK
to save the preset time.
Note
■
Set the Climatronic mode (Profile) by pressing the function key 3 again.■Only one preset time can be active. The activated preset time will be deactiva-
ted again after it has started automatically. For the next start, activate one of the preset times.■
In the selection of the day in the preset time, there is an option between Sun-
day and Monday without the specified day. If this setting is made, the vehicle will
be ready for use at the selected time, regardless of the current day.
■
The running system deactivates after expiration of the operating period or can
be deactivated earlier by pressing the button for directly switching on/off  on
the Climatronic control unit or by using the radio remote control.
■
If a different time is set » page 7, Unit system setup , the activated preset time is
automatically deactivated. The preset time must be reactivated.
Ð
19Other functions

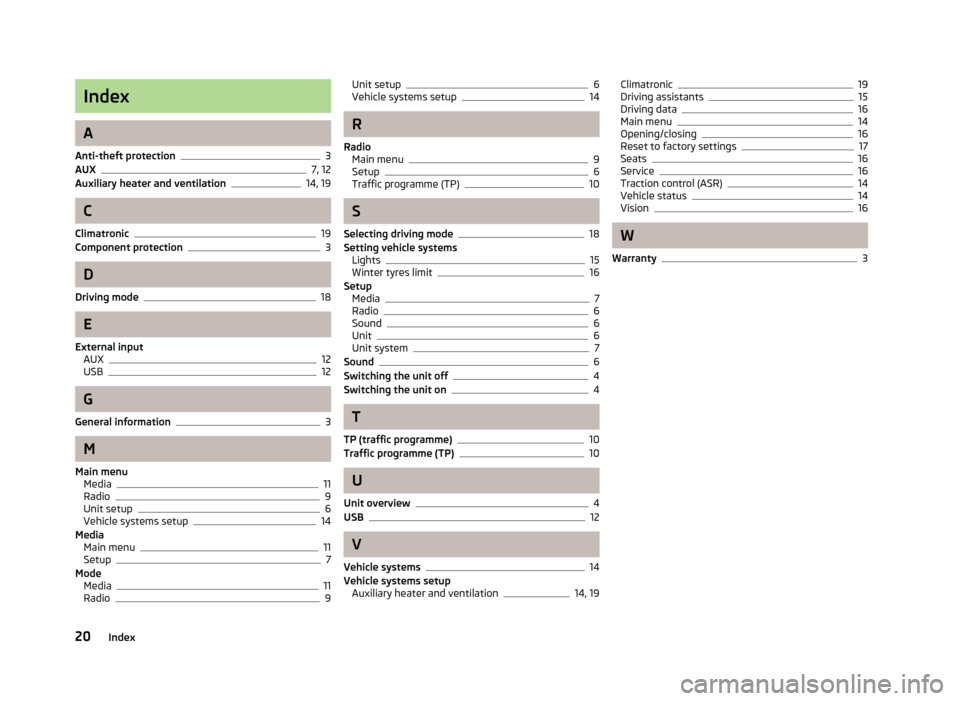

Index
A
Anti-theft protection
3
AUX7, 12
Auxiliary heater and ventilation14, 19
C
Climatronic
19
Component protection3
D
Driving mode
18
E
External input AUX
12
USB12
G
General information
3
M
Main menu Media
11
Radio9
Unit setup6
Vehicle systems setup14
Media Main menu
11
Setup7
Mode Media
11
Radio9
Unit setup6
Vehicle systems setup14
R
Radio Main menu
9
Setup6
Traffic programme (TP)10
S
Selecting driving mode
18
Setting vehicle systems Lights
15
Winter tyres limit16
Setup Media
7
Radio6
Sound6
Unit6
Unit system7
Sound6
Switching the unit off4
Switching the unit on4
T
TP (traffic programme)
10
Traffic programme (TP)10
U
Unit overview
4
USB12
V
Vehicle systems
14
Vehicle systems setup Auxiliary heater and ventilation
14, 19
Climatronic19
Driving assistants15
Driving data16
Main menu14
Opening/closing16
Reset to factory settings17
Seats16
Service16
Traction control (ASR)14
Vehicle status14
Vision16
W
Warranty
3
20Index

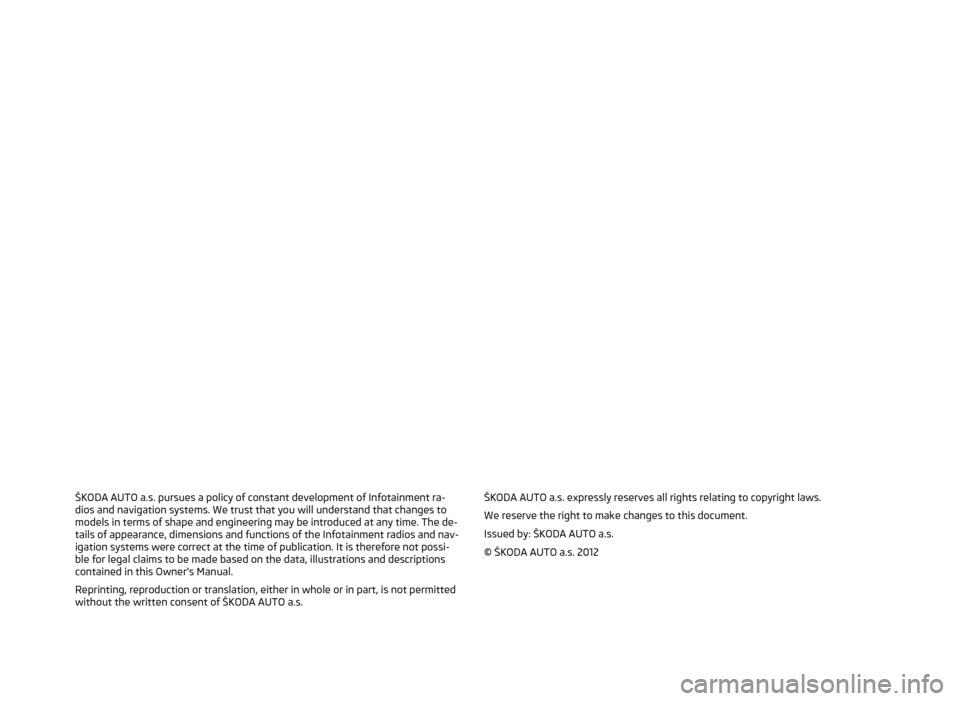

ŠKODA AUTO a.s. pursues a policy of constant development of Infotainment ra-
dios and navigation systems. We trust that you will understand that changes to
models in terms of shape and engineering may be introduced at any time. The de-
tails of appearance, dimensions and functions of the Infotainment radios and nav- igation systems were correct at the time of publication. It is therefore not possi-
ble for legal claims to be made based on the data, illustrations and descriptions
contained in this Owner's Manual.
Reprinting, reproduction or translation, either in whole or in part, is not permitted without the written consent of ŠKODA AUTO a.s.ŠKODA AUTO a.s. expressly reserves all rights relating to copyright laws.
We reserve the right to make changes to this document.Issued by: ŠKODA AUTO a.s.
© ŠKODA AUTO a.s. 2012

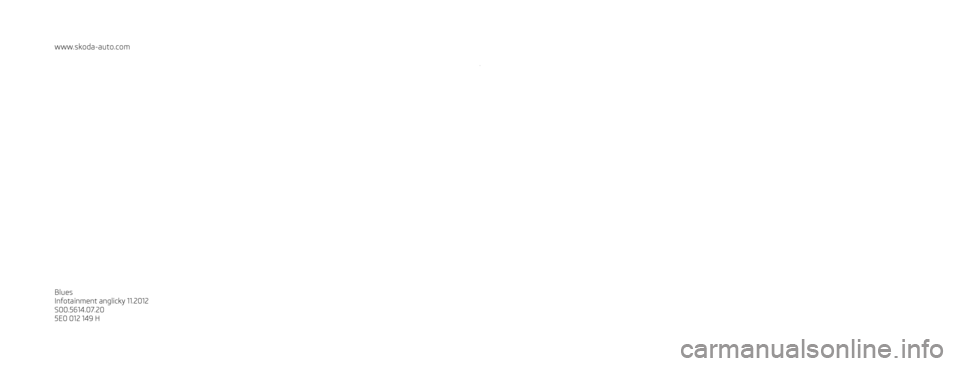

www.skoda-auto.com
Blues
Infotainment anglicky 11.2012
S00.5614.07.20
5E0 012 149 H
SIMPLY CLEVER
Infotainment Radio Blues
Owner's Manual
