2012 Seat Leon 5D SOUND SYSTEM 2.0

40Settings menus
System and function settings (SETUP)
Introduction
Additional information and warnings:
● Safety notes  ⇒ page 6
● Unit overview ⇒ page 8
● Basic information on use ⇒ page 10 
Modifying the settings
● Press the MENU ⇒ 
fig. 1 2 unit button in Radio or Media mode.
● Press the SETUP function button to open the SETUP menu ⇒ 
fig. 25.
● Pressing one of the function buttons displays the corresponding set-
tings menu.
● Press the function button 
or  to display other settings menus.
● Turn the setting knob ⇒ fig. 1 8 to change the displayed setting.
● Press the MENU unit button to close the
SETUP menu.
● Changes are applied automatically.
While you adjust volume settings, the currently active audio source is
played at the level of the setting as you change it. General system and function settings
Fig. 25 SETUP menu: define the selection of stations for the SEEK rocker switch.
Overview of available settings menus
The selection of the possible settings varies according to the country and
unit in question and depending on the vehicle features.
Function button: functionSEEK MODE: To define the selection of stations for the rocker switch
 SEEK / TRACK  ⇒ fig. 1 in Radio mode.

ALL STATIONS: The  SEEK / TRACK  rocker switch allows you to
browse through all available stations ⇒ page 12 (display:  ...  to
the left and right of the selected station ⇒ fig. 4).
PRESET: The  SEEK / TRACK  rocker switch allows you to browse
through only the stations stored to presets in the selected frequency
band ⇒ page 12 (display:  ...  to the left and right of the station
buttons ⇒ fig. 5).
SCROLL: If the information is too long to display it on the centre line of the
screen it is shown in the form of continuous text.
RDSa) : It is possible to switch off RDS-dependent services for travel in
areas where RDS is not used.
ON: The RDS is connected ⇒ page 17.OFF: The RDS is switched off.
ALT-FREQ and RDS REG are no longer available in the SETUP menu.


41
Settings menus
Function button: functionALT-FREQb)
ALTERNATIVE FREQUENCY : Define the setting for automatic sta-
tion tracking.

ON: The unit always switches to the radio station's frequency that
offers the best reception as the vehicle travels from one area to the
next. As a result, regional programmes may be interrupted.
OFF: No frequency change takes place. The unit remains tuned to
the selected frequency until reception is lost. RDS REG
is no longer available in the SETUP menu.RDS REGb)c) RDS REGIONAL : Define the setting for automatic station track-
ing.

AUTO: The unit always switches to the radio station's frequency that
offers the best reception as the vehicle travels from one area to the
next. As a result, regional programmes may be interrupted.
FIX: The unit only changes to regional alternative frequencies for
the current station broadcasting the same regional service. The radio
will accept the frequencies of other stations, only when the reception
quality is very poor.
RADIOTEXT: Some RDS-compatible and DAB stations broadcast additional
text information. The individual radio station is responsible for the texts
displayed.

ON: If the currently selected radio station supports radio text and
the reception is strong enough, radio text is displayed in the centre
line of the screen (if necessary as scrolling text) instead of the station
name.
OFF: No radio text is displayed (factory setting).DAB... settings d)
⇒ page 42.AUX: AUX-IN multimedia socket enabled ON or disabled OFF
⇒  page 30.
AUX LVL: The input volume for some external audio sources (AUX, iPod
or iPhone) can be adjusted to the output volume of the other audio sour-
ces ⇒ page 41.
BT AUDIO: Bluetooth audio mode active ON or deactivated  OFF
⇒ page 30.
Function button: functionON-VOL ALTERNATIVELY START-VOL: To regulate the maximum switch on vol-
ume.
GALA Or SDV: To set the speed-dependent volume adjustment
⇒ page 41.
DISPLAY: To set the brightness of the display when the dipped beam head-
lights are switched on.
PDC: PDC VOL ATTENU. : To reduce the volume of the current audio source
to a preset level when the parking distance warning system is active.
a) RDS is not available in all locations ⇒ page 17.
b) Not displayed if RDS OFF is selected.
c) Not displayed if ALT-FREQ OFF is selected.
d) DAB radio mode is only available depending on the unit and currently only in part of Eu-
rope ⇒ page 20.
Adjusting the output volume ( AUX/MDI VOLUME LEVEL)
If you need to increase the output volume for the external audio source, first
lower the base volume on the radio system ⇒ page 11.
If the sound from the external audio source is too low, if possible, increase
the output volume on the external audio source. If this is not sufficient, set
the input volume (AUX VOL LEVEL) in the system settings to level 2 or level 3.
If the sound from the connected external audio source is too loud or distor-
ted, if possible, lower the output volume on the external audio source. If
this is not sufficient, set AUX VOL LEVEL to level 2 or level 1.
Speed-dependent volume adjustment
The GALA function automatically adjusts the volume in line with the speed
of the vehicle.
You can set the degree to which the volume increases with speed on a scale
between 1 and 7. 

42Settings menus
If a low value is set, the volume rises only slightly as the speed of the vehi-
cle increases. At a high setting the volume is increased more. At 0 speed-
dependent volume adjustment is switched off.
Note
Due to country-specific legislation, certain functions may not be available
when the vehicle is travelling above a certain speed. 
Function only available in Europe
DAB settings
Fig. 26 SETUP menu: DAB settings.
DAB Radio mode is only available depending on the unit and country in
question ⇒ page 20.
Function button: functionDAB-TP DAB TRAFFIC ANNOUNCEMENT

ON: Traffic announcements broadcast by DAB traffic news stations
are played in DAB Radio mode (display: “TP:DAB”). The traffic an-
nouncements of FM traffic news stations will be ignored.
OFF: If the TP function is switched on in FM mode, traffic announce-
ments broadcast by an FM traffic station are played in the active DAB
radio mode ⇒  page 17.
DAB-NEWS DAB NEWS ANNOUNCEMENT ON: News broadcast by a DAB
news station is played in the active DAB radio mode.
DAB-ANNO DAB ANNOUNCEMENT ON: Other types of DAB news (sports,
weather, etc.) are played in the active DAB radio mode.
DAB-SF DAB SERVICE FOLLOWING : Automatic station tracking in DAB radio
mode.

ON: If the current DAB station is broadcast on another channel due
to a change in location, this channel is switched to automatically
(factory setting).
OFF: The channel is not automatically switched for station tracking.DAB-FM DAB-FM LINKING ON: Allows changing to the FM frequency band
to automatically track the station.
Press the MENU unit button to close the
SETUP menu.
DAB-FM LINKING ON function
If the current DAB station can no longer be tuned (e.g. there is no longer a
DAB signal), the unit will search and tune into this station on the FM fre-
quency band.
To scan the station through all of the frequencies, it is necessary that the
DAB station and the FM station broadcast the same station identification or
that the DAB indicates the FM station that the DAB station corresponds to.
Once the corresponding FM station has been found, (FM) is displayed after
the station name. Should the DAB station become available again, the unit
switches back to DAB mode after a while. 

43
Settings menus
If the signal is too weak and the DAB station cannot be found again on the
FM band, the radio is muted. 

44Abbreviations
Abbreviations
Abbreviations
AbbreviationMeaningAMAmplitude modulation (medium wave, MW).AUX-INAUX IN multimedia socket (auxiliary input).DABDigital Audio Broadcasting.EONSupports other networks (Enhanced Other Networks).FMFrequency modulation (very high frequency, VHF).MDIExternal data medium (Media Device Interface, e.g. iPod ®
).RDSRadio data system.TITraffic news station (Traffic Information).TPTraffic Programme.

Index
A
AdditionalDisplay information . . . . . . . . . . . . . . . . . . . 10
Adjusting the output volume . . . . . . . . . . . . . . . 41
AM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
AUX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30, 44 and MEDIA-IN . . . . . . . . . . . . . . . . . . . . . . . . 30
Not displayed! (MDI) . . . . . . . . . . . . . . . . . . 30
B
Base volume Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Muting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Bluetooth audio . . . . . . . . . . . . . . . . . . . . . . . . . 31
BT audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
C
CD-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
CD changer (external) . . . . . . . . . . . . . . . . . . . . 36
CD mode See: MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 D
DAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 activate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Additional stations . . . . . . . . . . . . . . . . . . . . 21
Announcements . . . . . . . . . . . . . . . . . . . . . . 20
Autostore . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Bouquet (set of stations) . . . . . . . . . . . . . . . 20
changing channels . . . . . . . . . . . . . . . . . . . . 21
changing station . . . . . . . . . . . . . . . . . . . . . 20
Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
main menu . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Scan function (SCAN) . . . . . . . . . . . . . . . . . . 21
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
station tracking . . . . . . . . . . . . . . . . . . . . . . 42
Station update . . . . . . . . . . . . . . . . . . . . . . . 22
Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Delayed switch-off . . . . . . . . . . . . . . . . . . . . . . . 10
Digital Radio see: DAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
E
Energy management . . . . . . . . . . . . . . . . . . . . . 11
EON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
External audio source . . . . . . . . . . . . . . . . . . . . 30 AUX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Bluetooth audio . . . . . . . . . . . . . . . . . . . . . . 31 External data medium (USB) . . . . . . . . . . . . 32
Input volume . . . . . . . . . . . . . . . . . . . . . . . . 41
MDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
MEDIA-IN multimedia interface . . . . . . . . . . 32
MP3 player . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Output volume . . . . . . . . . . . . . . . . . . . . . . . 41
F
FM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Function buttons (virtual buttons) . . . . . . . . . . 10
Function settings . . . . . . . . . . . . . . . . . . . . . . . . 40
I
Instructions and warnings CD mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Interference mobile phone . . . . . . . . . . . . . . . . . . . . . . . . 10
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
iPhone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
L
LOW BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
45

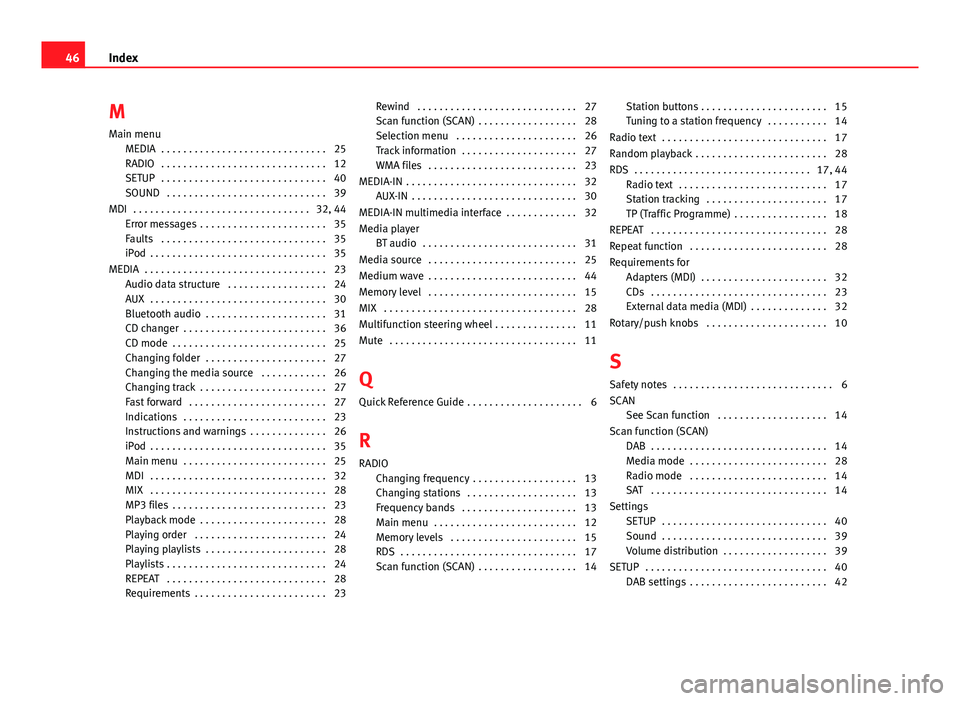

Index

M
Main menu MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
SOUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
MDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32, 44 Error messages . . . . . . . . . . . . . . . . . . . . . . . 35
Faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Audio data structure . . . . . . . . . . . . . . . . . . 24
AUX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Bluetooth audio . . . . . . . . . . . . . . . . . . . . . . 31
CD changer . . . . . . . . . . . . . . . . . . . . . . . . . . 36
CD mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Changing folder . . . . . . . . . . . . . . . . . . . . . . 27
Changing the media source . . . . . . . . . . . . 26
Changing track . . . . . . . . . . . . . . . . . . . . . . . 27
Fast forward . . . . . . . . . . . . . . . . . . . . . . . . . 27
Indications . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Instructions and warnings . . . . . . . . . . . . . . 26
iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . 25
MDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
MIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
MP3 files . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Playback mode . . . . . . . . . . . . . . . . . . . . . . . 28
Playing order . . . . . . . . . . . . . . . . . . . . . . . . 24
Playing playlists . . . . . . . . . . . . . . . . . . . . . . 28
Playlists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
REPEAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Requirements . . . . . . . . . . . . . . . . . . . . . . . . 23 Rewind . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Scan function (SCAN) . . . . . . . . . . . . . . . . . . 28
Selection menu . . . . . . . . . . . . . . . . . . . . . . 26
Track information . . . . . . . . . . . . . . . . . . . . . 27
WMA files . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
MEDIA-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 AUX-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
MEDIA-IN multimedia interface . . . . . . . . . . . . . 32
Media player BT audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Media source . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Medium wave . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Memory level . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
MIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Multifunction steering wheel . . . . . . . . . . . . . . . 11
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Q Quick Reference Guide . . . . . . . . . . . . . . . . . . . . . 6
R RADIO Changing frequency . . . . . . . . . . . . . . . . . . . 13
Changing stations . . . . . . . . . . . . . . . . . . . . 13
Frequency bands . . . . . . . . . . . . . . . . . . . . . 13
Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Memory levels . . . . . . . . . . . . . . . . . . . . . . . 15
RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Scan function (SCAN) . . . . . . . . . . . . . . . . . . 14 Station buttons . . . . . . . . . . . . . . . . . . . . . . . 15
Tuning to a station frequency . . . . . . . . . . . 14
Radio text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Random playback . . . . . . . . . . . . . . . . . . . . . . . . 28
RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 44 Radio text . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Station tracking . . . . . . . . . . . . . . . . . . . . . . 17
TP (Traffic Programme) . . . . . . . . . . . . . . . . . 18
REPEAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Repeat function . . . . . . . . . . . . . . . . . . . . . . . . . 28
Requirements for Adapters (MDI) . . . . . . . . . . . . . . . . . . . . . . . 32
CDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
External data media (MDI) . . . . . . . . . . . . . . 32
Rotary/push knobs . . . . . . . . . . . . . . . . . . . . . . 10
S Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
SCAN See Scan function . . . . . . . . . . . . . . . . . . . . 14
Scan function (SCAN) DAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Media mode . . . . . . . . . . . . . . . . . . . . . . . . . 28
Radio mode . . . . . . . . . . . . . . . . . . . . . . . . . 14
SAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Settings SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Volume distribution . . . . . . . . . . . . . . . . . . . 39
SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 DAB settings . . . . . . . . . . . . . . . . . . . . . . . . . 42
46 Index

SOUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Sound settings . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Station buttons . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Station searchSee Scan function . . . . . . . . . . . . . . . . . . . . 14
Station tracking . . . . . . . . . . . . . . . . . . . . . . . . . 17
Switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
System settings . . . . . . . . . . . . . . . . . . . . . . . . . 40
T Things to note AUX mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Display information . . . . . . . . . . . . . . . . . . . 10
Volume reduction . . . . . . . . . . . . . . . . . . . . . 10
TP (Traffic Programme) . . . . . . . . . . . . . . . . . . . . 17 DAB Radio mode . . . . . . . . . . . . . . . . . . . . . 18
Traffic news station . . . . . . . . . . . . . . . . . . . 18
Track search See: Scan function (SCAN) . . . . . . . . . . . . . 28
Traffic announcements (INFO) . . . . . . . . . . . . . . 18
Traffic news (TP) station monitoring . . . . . . . . . 18
U Unit buttons overview . . . . . . . . . . . . . . . . . . . . . 8
Unit buttons (physical buttons) . . . . . . . . . . . . . 10
Unit overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 V
Volume See base volume . . . . . . . . . . . . . . . . . . . . . 11
47
Index
