2012 Seat Ibiza ST Owner's manual

239
If and when
– Raise the bonnet.
– Move the loop 1
in the direction of the arrow and remove the
cover ⇒ Fig. 157.
– Remove connector ⇒ Fig. 158 2
by pulling outward.
– Remove the bulb by pulling it out and fitting the new one.
– Installation involves the above steps in reverse sequence.
– Fit the cover and close the strap. Make sure that the gasket sits
well on the casing cover during the operation.
– Check whether the new bulb is working. 
Main beam headlights
Fig. 159 Main beam
headlights
Fig. 160 Main beam
headlights
– Raise the bonnet.
– Move the loop 1
in the direction of the arrow and remove the
cover ⇒ Fig. 159.
– Remove connector ⇒ Fig. 160 2
by pulling outward.
– Extract the bulb and fit the replacement so that it sits correctly
into the cut-out on the reflector.
– Installation involves the above steps in reverse sequence.
– Fit the cover and close the strap. Make sure that the gasket sits
well on the casing cover during the operation.
– Check whether the new bulb is working. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

240If and when
Dipped beam headlights
Fig. 161 Dipped beam
headlights
Fig. 162 Dipped beam
headlights
– Raise the bonnet.
– Move the loop ⇒ Fig. 161 1
in the direction of the arrow and
remove the cover. –
Remove connector ⇒ Fig. 162 2
from the bulb.
– Unclip the retainer spring ⇒ Fig. 162 3
pressing inwards to the
right.
– Extract the bulb and fit the replacement so that the rim of the
attachment plate is on the reflector cut-out.
– Fit the connector.
– Fit the cover and close the strap. Make sure that the gasket sits
well on the casing cover during the operation.
– Check whether the new bulb is working. 
Turn signal lights
Fig. 163 Turn signal
– Raise the bonnet.
– Turn bulb holder ⇒ Fig. 163 A
to the left and pull. 

241
If and when
– Remove the bulb by pressing on the bulb holder and rotating at
the same time to the left.
– Installation involves the above steps in reverse sequence. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

242If and when
Changing the bulbs of AFS headlights
AFS headlight bulbs
Fig. 164 AFS headlight
bulbs
Turn signal lights
Xenon headlight (dipped beam/main beam) 
Changing the xenon bulb
The procedure for changing the bulb is the same on both sides of the vehi-
cle.
WARNING
This type of bulb should be changed at a specialised workshop.

A
B
Turn signal light bulb
Fig. 165 Turn signal
– Raise the bonnet.
– Turn bulb holder ⇒ Fig. 165 A
to the left and pull.
– Remove the bulb by pressing on the bulb holder and rotating at
the same time to the left.
– Installation involves the above steps in reverse sequence. 

243
If and when
Changing the fog light bulbs
Fog light bulb
Fig. 166 Fog light
Fig. 167 Fog light –
Remove the bolt ⇒ Fig. 166 A
from the fog light grille with a
screwdriver.
– Subsequently, remove the clips located on the edge of the grill
with gentle leverage.
– Remove the bolts (3x) ⇒ Fig. 167 B
to remove the fog light.
– Remove the metal clip situated on the upper part of the fog
light pulling towards the exterior of the vehicle ⇒ Fig. 167 C
.
Remove the bulb holder
Fig. 168 Fog light
– Remove connector ⇒ Fig. 168 A
from the bulb.
– Turn bulb holder ⇒ Fig. 168 B
to the left and pull.
– Remove the bulb by pressing on the bulb holder and turning it
anti-clockwise at the same time. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

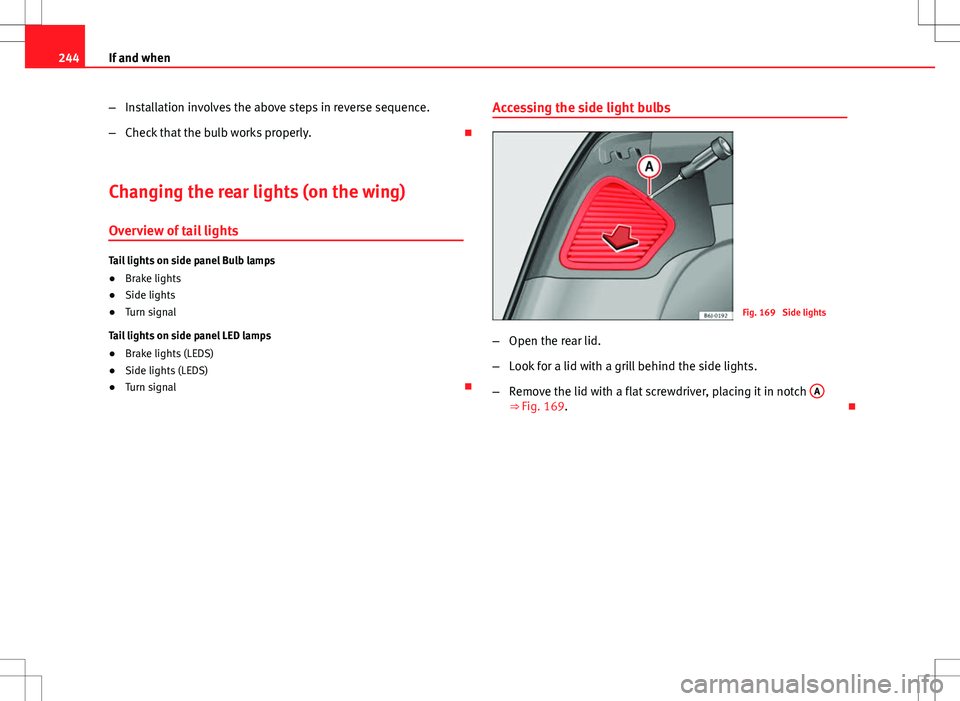

244If and when
–Installation involves the above steps in reverse sequence.
– Check that the bulb works properly. 
Changing the rear lights (on the wing) Overview of tail lights
Tail lights on side panel Bulb lamps
● Brake lights
● Side lights
● Turn signal
Tail lights on side panel LED lamps
● Brake lights (LEDS)
● Side lights (LEDS)
● Turn signal Accessing the side light bulbs
Fig. 169 Side lights
– Open the rear lid.
– Look for a lid with a grill behind the side lights.
– Remove the lid with a flat screwdriver, placing it in notch A
⇒ Fig. 169. 

245
If and when
Changing bulbs
Fig. 170 Removing the
bulb holder
– Remove the bulb holder by pressing the clip B
⇒ Fig. 170 and
pulling outwards.
– Replace the faulty bulb, rotating it to the left and outwards.
– To refit follow the steps in reverse order, taking special care
when fitting the bulb holder.
Changing bulbs. LED lamps
Carry out the same operations as in lights fitted with bulbs.
If necessary, remove the socket, as if it were a bulb.
If the brake light and/or side light with LEDs have to be replaced, the tail
light must be replaced. Changing the rear lights (on the rear lid)
Overview of tail lights
Lights on the rear lid Bulb lamps
●
Reverse lights
● Side lights
● Fog lights
Lights on the rear lid LED lamps
● Reverse lights
● Side lights (LEDS)
● Fog lights 
Accessing the rear lid lights
Fig. 171 Lights on the
rear lid
– Open the rear lid. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

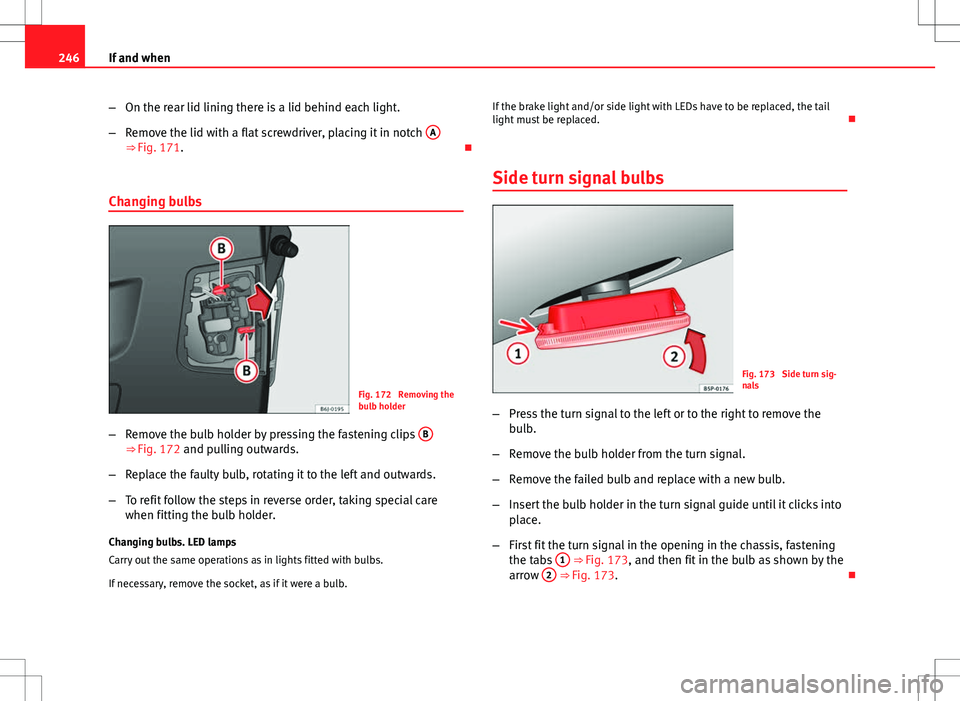

246If and when
–On the rear lid lining there is a lid behind each light.
– Remove the lid with a flat screwdriver, placing it in notch A
⇒ Fig. 171. 
Changing bulbs
Fig. 172 Removing the
bulb holder
– Remove the bulb holder by pressing the fastening clips B
⇒ Fig. 172 and pulling outwards.
– Replace the faulty bulb, rotating it to the left and outwards.
– To refit follow the steps in reverse order, taking special care
when fitting the bulb holder.
Changing bulbs. LED lamps
Carry out the same operations as in lights fitted with bulbs.
If necessary, remove the socket, as if it were a bulb. If the brake light and/or side light with LEDs have to be replaced, the tail
light must be replaced.

Side turn signal bulbs
Fig. 173 Side turn sig-
nals
– Press the turn signal to the left or to the right to remove the
bulb.
– Remove the bulb holder from the turn signal.
– Remove the failed bulb and replace with a new bulb.
– Insert the bulb holder in the turn signal guide until it clicks into
place.
– First fit the turn signal in the opening in the chassis, fastening
the tabs 1
⇒ Fig. 173, and then fit in the bulb as shown by the
arrow 2 ⇒ Fig. 173. 
