2012 Seat Alhambra engine

355
Technical specifications
Weights 5 seats 7 seats
Gross vehicle weight in kg 2310 2500
Weight in running order (with driver) in kg 1742 1790
Gross front axle weight in kg 1190/1240 1190/1240
Gross rear axle weight in kg 1070/1120 1260/1310
Permitted roof load in kg 100 100
Trailer weight
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1800
Trailer with brakes, gradients up to 12% 1800
Engine oil capacity
Approximate engine oil capacity with oil filter change 3,6

Petrol engine 2.0 147 kW (200 PS) Automatic
Engine specifications Power output in kW (PS) rpm 147 (200)/ 5100
Maximum torque in Nm at rpm 280/ 1700-5000
No. of cylinders/capacity in cm3
4,6/ 1984
Fuel Super 95 RON a)
a)
Research Octane Number = Anti-detonation rating of the petrol.
Performance Maximum speed in km/h 221
Acceleration from 0-80 km/h in sec. 5,8
Acceleration from 0-100 km/h in sec. 8,3 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

356Technical specifications
Consumption (litres/100 km)/ CO 2 (g/km)
5 seats 7 seats
Urban cycle 11,5/268 11,6/270
Extra-urban cycle 6,6/155 6,7/156
Combined 8,4/196 8,5/198
Weights
5 seats 7 seats
Gross vehicle weight in kg 2360 2530
Weight in running order (with driver) in kg 1790 1838
Gross front axle weight in kg 1100/1150 1220/1270
Gross rear axle weight in kg 1100/1150 1260/1310
Permitted roof load in kg 100 100
Trailer weight
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 2000
Trailer with brakes, gradients up to 12% 2000
Engine oil capacity
Approximate engine oil capacity with oil filter change 4,6


357
Technical specifications
Diesel engine 2.0 TDI CR 85 kW (115 PS)
Engine specifications Power output in kW (PS) rpm 85 (115)/ 4200
Maximum torque in Nm at rpm 280/1750-2500
No. of cylinders/capacity in cm3
4,6/1984
Fuel Min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
Performance Maximum speed in km/h 183
Acceleration from 0-80 km/h in sec. 12,6
Acceleration from 0-100 km/h in sec. 14
Consumption (litres/100 km)/ CO
2 (g/km)
5 seats 7 seats
Urban cycle 6,8/179 6,9/182
Extra-urban cycle 4,8/127 4,9/130
Combined 5,5/143 5,6/146
Weights
5 seats 7 seats
Gross vehicle weight in kg 2360 2530
Weight in running order (with driver) in kg 1772 1823
Gross front axle weight in kg 1210/1260 1210/1260
Gross rear axle weight in kg 1100/1150 1260/1310
Permitted roof load in kg 100 100
Safety FirstOperating instructionsPractical tipsTechnical Specifications

358Technical specifications
Trailer weight Trailer without brakes 750
Trailer with brakes, gradients up to 8% 2000
Trailer with brakes, gradients up to 12% 2000
Engine oil capacity
Approximate engine oil capacity with oil filter change 4,0

Diesel engine 2.0 TDI CR 100 kW (136 PS)
Engine specifications Power output in kW (PS) rpm 100 (136)/ 4200
Maximum torque in Nm at rpm 320/1750-2500
No. of cylinders/capacity in cm3
4/1968
Fuel Min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
Performance Maximum speed in km/h 192
Acceleration from 0-80 km/h in sec. 7,8
Acceleration from 0-100 km/h in sec. 11,1
Consumption (litres/100 km)/ CO
2 (g/km)
5 seats 7 seats
Urban cycle 6,8/179 6,9/182
Extra-urban cycle 4,8/127 4,9/130
Combined 5,5/143 5,6/146

359
Technical specifications
Weights 5 seats 7 seats
Gross vehicle weight in kg 2340 2510
Weight in running order (with driver) in kg 1174 1822
Gross front axle weight in kg 1190/1240 1200/1250
Gross rear axle weight in kg 1100/1150 1260/1310
Permitted roof load in kg 100 100
Trailer weight
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 2200
Trailer with brakes, gradients up to 12% 2200
Engine oil capacity
Approximate engine oil capacity with oil filter change 4,0

Diesel engine 2.0 TDI CR 100 kW (136 PS) Automatic
Engine specifications Power output in kW (PS) rpm 100 (136)/ 4200
Maximum torque in Nm at rpm 320/1750-2500
No. of cylinders/capacity in cm3
4/1968
Fuel Min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
Performance Maximum speed in km/h 189
Acceleration from 0-80 km/h in sec. 7,8
Acceleration from 0-100 km/h in sec. 11,1 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

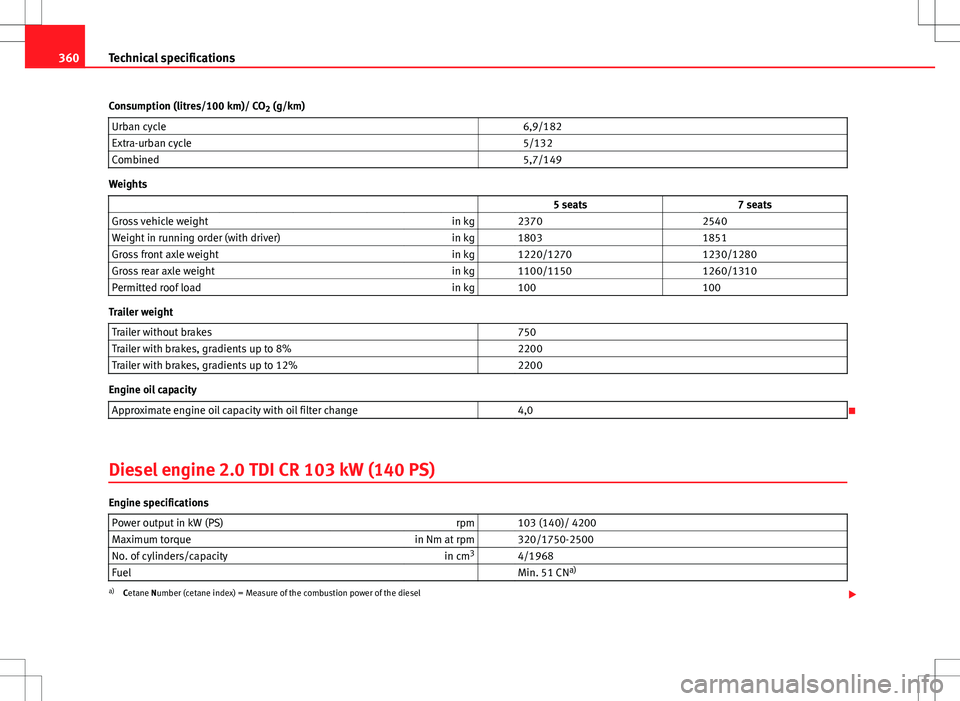

360Technical specifications
Consumption (litres/100 km)/ CO 2 (g/km)
Urban cycle 6,9/182
Extra-urban cycle 5/132
Combined 5,7/149
Weights
5 seats 7 seats
Gross vehicle weight in kg 2370 2540
Weight in running order (with driver) in kg 1803 1851
Gross front axle weight in kg 1220/1270 1230/1280
Gross rear axle weight in kg 1100/1150 1260/1310
Permitted roof load in kg 100 100
Trailer weight
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 2200
Trailer with brakes, gradients up to 12% 2200
Engine oil capacity
Approximate engine oil capacity with oil filter change 4,0

Diesel engine 2.0 TDI CR 103 kW (140 PS)
Engine specifications Power output in kW (PS) rpm 103 (140)/ 4200
Maximum torque in Nm at rpm 320/1750-2500
No. of cylinders/capacity in cm3
4/1968
Fuel Min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel 

361
Technical specifications
Performance Maximum speed in km/h 194
Acceleration from 0-80 km/h in sec. 7,7
Acceleration from 0-100 km/h in sec. 10,9
Consumption (litres/100 km)/ CO
2 (g/km)
5 seats 7 seats
Urban cycle 6,8/179 6,9/182
Extra-urban cycle 4,8/127 4,9/130
Combined 5,5/143 5,6/146
Weights
5 seats 7 seats
Gross vehicle weight in kg 2340 2510
Weight in running order (with driver) in kg 1174 1822
Gross front axle weight in kg 1190/1240 1200/1250
Gross rear axle weight in kg 1100/1150 1260/1310
Permitted roof load in kg 100 100
Trailer weight
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 2200
Trailer with brakes, gradients up to 12% 2200
Engine oil capacity
Approximate engine oil capacity with oil filter change 4,0

Safety FirstOperating instructionsPractical tipsTechnical Specifications

362Technical specifications
Diesel engine 2.0 TDI CR 103 kW (140 PS) Automatic
Engine specifications
Power output in kW (PS) rpm 103 (140)/ 4200
Maximum torque in Nm at rpm 320/1750-2500
No. of cylinders/capacity in cm3
4/1968
Fuel Min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
Performance Maximum speed in km/h 191
Acceleration from 0-80 km/h in sec. 7,7
Acceleration from 0-100 km/h in sec. 10,9
Consumption (litres/100 km)/ CO
2 (g/km)
Urban cycle 6,9/182
Extra-urban cycle 5/132
Combined 5,7/149
Weights
5 seats 7 seats
Gross vehicle weight in kg 2370 2540
Weight in running order (with driver) in kg 1803 1851
Gross front axle weight in kg 1220/1270 1230/1280
Gross rear axle weight in kg 1100/1150 1260/1310
Permitted roof load in kg 100 100
