DIESEL INJECTION
Fault finding – System operation13B
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
The potentiometer serves to control and run fault finding on the valve. The very first time the engine is started, then
each subsequent engine start, the "valve closed" position is programmed (offset). This value is compared to the very
first offset or last programmed offset, for the purposes of fault finding. It is also used to readjust the valve control
function. It is therefore important to associate the EGR valve with the computer that controls it.
Important: the EGR valve offsets must be reinitialised when replacing the valve or reprogramming/replacing
the computer.
V - Catalysed particle filter management (only for Vdiag: 18, 1C, 54, 20, 58, 5C, 24, 28 and 62).
The particle filter prevents the escape of carbon particles emitted by the engine but not yet removed from the
exhaust gases.
The particle filter is a microporous structure containing channels in order to force filter the exhaust gas.
The exhaust pipe consists of several components:
– an oxidation catalytic converter mounted after the turbocharger. This catalytic converter ensures that HC/CO levels
meet current standards by generating the heat (rise in exhaust temperature caused by catalysis) required for
particle filter regeneration,
– a catalysed particle filter located under the bodywork,
– a differential pressure sensor to tell the computer the pressure upstream and downstream of the particle filter,
– a particle filter upstream and downstream temperature sensor,
– a turbine upstream temperature sensor (TAVT).
As the vehicle is driven, the particle filter is loaded with particles (soot). Using a given weight of soot determined via
mapping in the computer, regeneration mode can be triggered if the maximum weight of soot in the particle filter is
reached and all engine operating conditions are met (coolant temperature, etc.).
Particle filter regeneration consists of burning the particles of soot accumulated in the filter.
The differential pressure sensor measures the particle filter inlet/outlet pressure differential; this measurement is
used to estimate the weight of soot present in the particle filter by mapping in the computer:
(weight of soot = pressure differential as a function of exhaust volume flow rate).
If all the criteria are met, the computer enters regeneration mode. The injection programming is then adjusted in
order to raise the target exhaust gas temperature to between 550 and 650°C.
This temperature allows the particles accumulated in the filter to be partially or completely burnt (regeneration).
Regeneration efficiency depends on the particle filter inlet temperature and the time spent in regeneration mode.
Regeneration can be performed automatically while driving if:
–the soot weight is less than the threshold for DF308 Clogged particle filter
–the number of regeneration failures while driving is less than the threshold for DF311 Failed regenerations
limit exceeded.

13B-19V12 MR-372-J84-13B300$030.mif
DIESEL INJECTION
Fault finding – System operation13B
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
Warning light management:
Instrument panel display
The computer displays certain information on the instrument panel relating to engine operation. This concerns five
functions:
– the pre-postheating warning light,
– the coolant temperature warning light,
–the level 1 fault warning light (non-critical fault),
–the level 2 fault warning light (emergency stop),
–the EOBD (European On Board Diagnostic) warning light,
These six functions are represented by 3 warning lights and/or messages displayed by the on-board computer.
Orange pre-post heating/non-critical fault SERVICE warning light (severity 1)
This light is used both as an in-operation indicator light and as a system fault indicator:
– Continuously lit with + after ignition feed:
Indicates preheating of the spark plugs.
– Continuously lit with the Check injection message:
Indicates a level 1 fault (involving operation of the injection system in defect mode).
The driver should have the repairs carried out as soon as possible.
Temperature / red emergency STOP warning light (level 2)
This indicator light is used both as an in-operation indicator light and as a system fault warning light. It lights up for
3 seconds after the ignition is switched on (automatic test procedure managed by the instrument panel):
– Continuously lit:
Indicates engine overheating (the driver is free to choose whether or not to stop the vehicle).
– Continuously lit with the faulty injection message:
Indicates a level 2 fault (In this case, the injection is automatically cut after a few seconds).
The driver should carry out repairs as soon as possible.
ORANGE Excessive pollution EOBD warning light
Symbolised by an engine, it lights up for approximately 3 seconds when the ignition is switched on.
This warning light comes on if the system has one or more EOBD faults.
This warning light is used to alert the driver to injection faults that could lead to excessive pollution, or if the EOBD
system (European On Board Diagnostic) has been deactivated.
The injection computer requests illumination of the EOBD warning light for a present fault only after three
consecutive driving cycles.
The 3 second visual inspection when the ignition is switched on (automatic test procedure managed by the
instrument panel) is carried out by the injection computer.
Special particle filter ORANGE warning light or warning message (depending on instrument panel)
Only for Vdiag: 18, 1C, 54, 20, 58, 5C, 24, 26 and 60.
This warning light or message is used to warn the driver that the particle filter is loaded with particles, (see the soot
weight thresholds for illumination of the warning light for fault DF312 Speed request) due to driving conditions which
were not suitable for regeneration to take place. The driver must then drive as soon as possible at an average speed
of 48 mph (80 km/h) subject to the road conditions and authorised speed limits, until the warning light goes out.

13B-192
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$073.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF308
CONTINUED
1.DEFNOTESNone.
The fault appears if the weight of soot contained in the particle filter is:
– Vdiag 18 and 54: above 56 g.
– Vdiag 1C, 20, 24, 5C, 58: above 58 g
– Vdiag 26 and 28: greater than 68 g.
If Vdiag 18, reprogram the computer (see Replacement of components). Then apply the procedure
corresponding to the new Vdiag.
For the other Vdiag:
Check that there are no leaks or blockages in the exhaust pipe,
Repair if necessary.
Clear fault DF308 Present or Stored.
If the fault is still present, contact the Techline.
EDC16CP33
Program No.: C4
Vdiag No.: 18, 1C, 20, 24,
26, 28, 54, 58, 5C, 60, 62

13B-200
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$073.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF312
CONTINUED 1
The fault appears:
–Vdiag 18 and 1C:
4 failed regeneration attempts (for Laguna II ph2) and 5 failed regeneration attempts (for Vel Satis ph2 and
Espace IV ph2) when driving and the weight of soot in the particle filter is above 20 g.
–Vdiag54:
5 failed regeneration attempts (for Mégane ph2) when driving and the weight of soot in the particle filter is above
20 g.
– Vdiag 20, 24 and 26:
4 failed regeneration attempts (for Laguna II ph2) and 5 failed regeneration attempts (for Vel Satis ph2 and
Espace IV ph2) and 7 failed regeneration attempts (for Espace IV ph2, M9R 761 only) when driving and the weight
of soot in the particle filter is above 20 g for M9R760 and M9R762 or 36 g for M9R761 and M9R763.
–Vdiag 5C and 58:
5 failed regeneration attempts (for Mégane II ph2, M9R 722/724 only) and 7 failed regeneration attempts (for
Mégane II ph2, M9R 721 only) when driving and the weight of soot in the particle filter is above 20 g for M9R 722/
724 or 36 g for M9R 721.
PART A
The flow chart on the following page allows analysis of the driving profile and the causes for the warning to come
on:
EDC16CP33
Program No.: C4
Vdiag No.: 18, 1C, 20, 24,
26, 54, 58, 5C, 60

13B-202
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$073.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF312
CONTINUED 3
Is there at least one?
Among ET706 to ET715 Stored engine status No. 1 to No. 10:
– Read the values of the statuses relating to the distance of the
last failures
These are the engine statuses at the last failures
Is the engine status value for one of the last failures
STOPPED?Contact the
Techline.
Read PR383 Weight of soot in particle filter within the current context, and within
the context when fault DF312 appeared (the weight of soot when DF312 appeared).
Part BCurrent value of PR383 > soot weight at the time of
DF312 + 5g?Part C
AB
NO
YES
NO
YES
YESNO
EDC16CP33
Program No.: C4
Vdiag No.: 18, 1C, 20, 24,
26, 54, 58, 5C, 60

13B-321V12 MR-372-J84-13B300$102.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET742
ET743
ET744
ET745
ET746
ET747
ET748
ET749
ET750
ET751
CONTINUED
Conformity check with engine stopped and ignition on, or engine running, and engine coolant
temperature > 80°C
STATUS1Request by weight of soot
Regeneration was requested based on the measurement of maximum soot weight in
the particle filter, without the particle filter warning light coming on.
STATUS2Request by estimated weight of soot
Regeneration was requested based on an estimation of maximum soot weight in the
particle filter, without the particle filter warning light coming on.
STATUS3Request by distance travelled
Regeneration has been requested after a maximum distance has been travelled
since the last successful regeneration without the particle filter warning light
coming on.
STATUS4Request by number of regeneration failures or weight of soot
This status corresponds to the appearance of DF312 Speed request.
This corresponds to the maximum number of failed regeneration or to the maximum
weight of soot in the particle filter, with the particle filter warning light coming on.
EDC16CP33
Program No.: C4
VDiag No.: 18, 1C, 20, 24,
26, 54, 58, 5C, 60
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

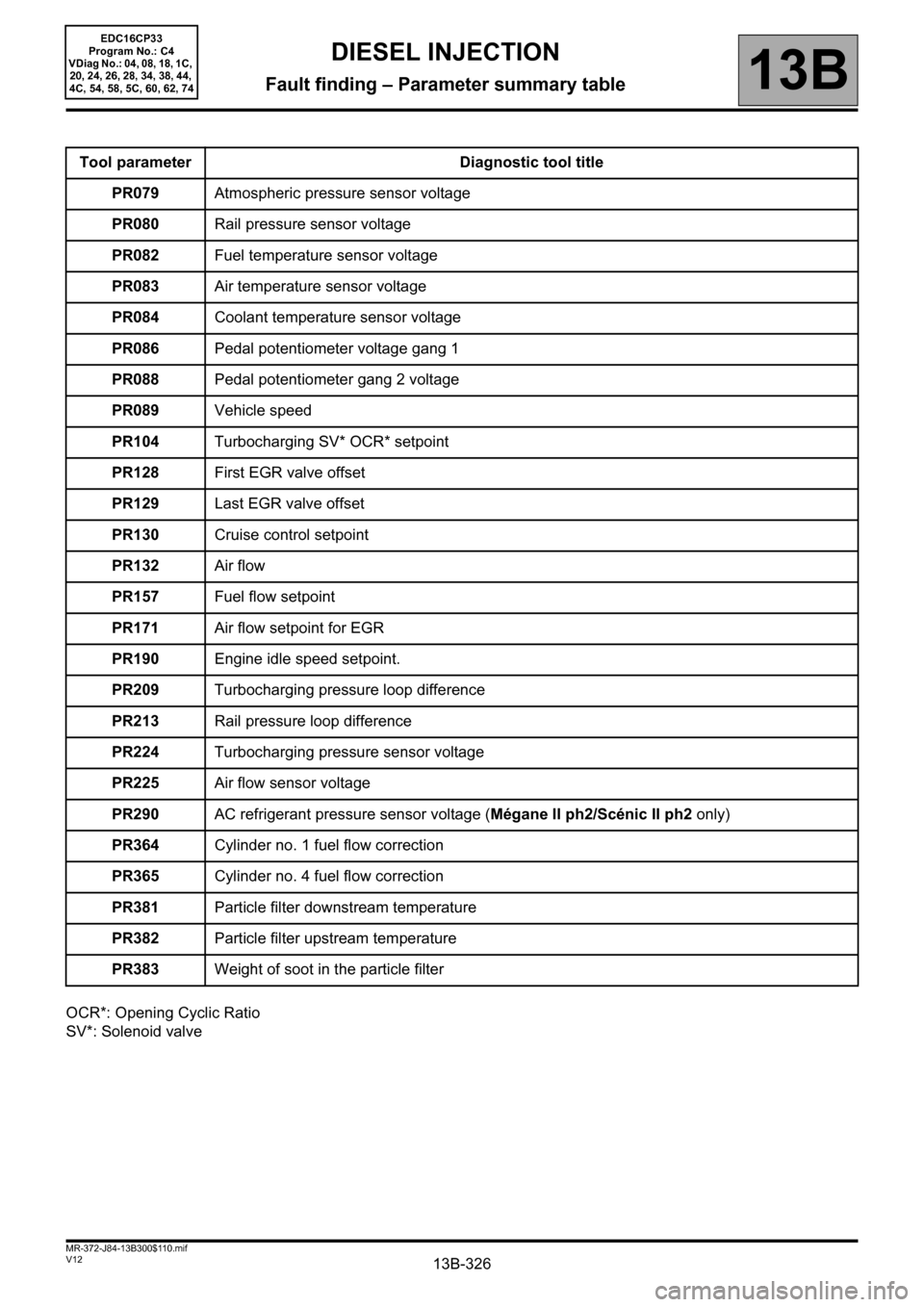

13B-326V12 MR-372-J84-13B300$110.mif
DIESEL INJECTION
Fault finding – Parameter summary table13B
EDC16CP33
Program No.: C4
VDiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
OCR*: Opening Cyclic Ratio
SV*: Solenoid valveTool parameter Diagnostic tool title
PR079Atmospheric pressure sensor voltage
PR080Rail pressure sensor voltage
PR082Fuel temperature sensor voltage
PR083Air temperature sensor voltage
PR084Coolant temperature sensor voltage
PR086Pedal potentiometer voltage gang 1
PR088Pedal potentiometer gang 2 voltage
PR089Vehicle speed
PR104Turbocharging SV* OCR* setpoint
PR128First EGR valve offset
PR129Last EGR valve offset
PR130Cruise control setpoint
PR132Air flow
PR157Fuel flow setpoint
PR171Air flow setpoint for EGR
PR190Engine idle speed setpoint.
PR209Turbocharging pressure loop difference
PR213Rail pressure loop difference
PR224Turbocharging pressure sensor voltage
PR225Air flow sensor voltage
PR290AC refrigerant pressure sensor voltage (Mégane II ph2/Scénic II ph2 only)
PR364Cylinder no. 1 fuel flow correction
PR365Cylinder no. 4 fuel flow correction
PR381Particle filter downstream temperature
PR382Particle filter upstream temperature
PR383Weight of soot in the particle filter

13B-329V12 MR-372-J84-13B300$110.mif
DIESEL INJECTION
Fault finding – Parameter summary table13B
EDC16CP33
Program No.: C4
VDiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
Tool parameter Diagnostic tool title
PR858Damper valve open first offset
PR859Damper valve closed first offset
PR860Damper valve closed last offset
PR861Last open damper valve offset
PR863
Damper valve position feedback
PR873
Oil oxidation signal
PR874
Last service
PR875
Oil dilution signal
PR1012
Weight of soot after regeneration
