13B-432V12 MR-372-J84-13B300$150.mif
DIESEL INJECTION

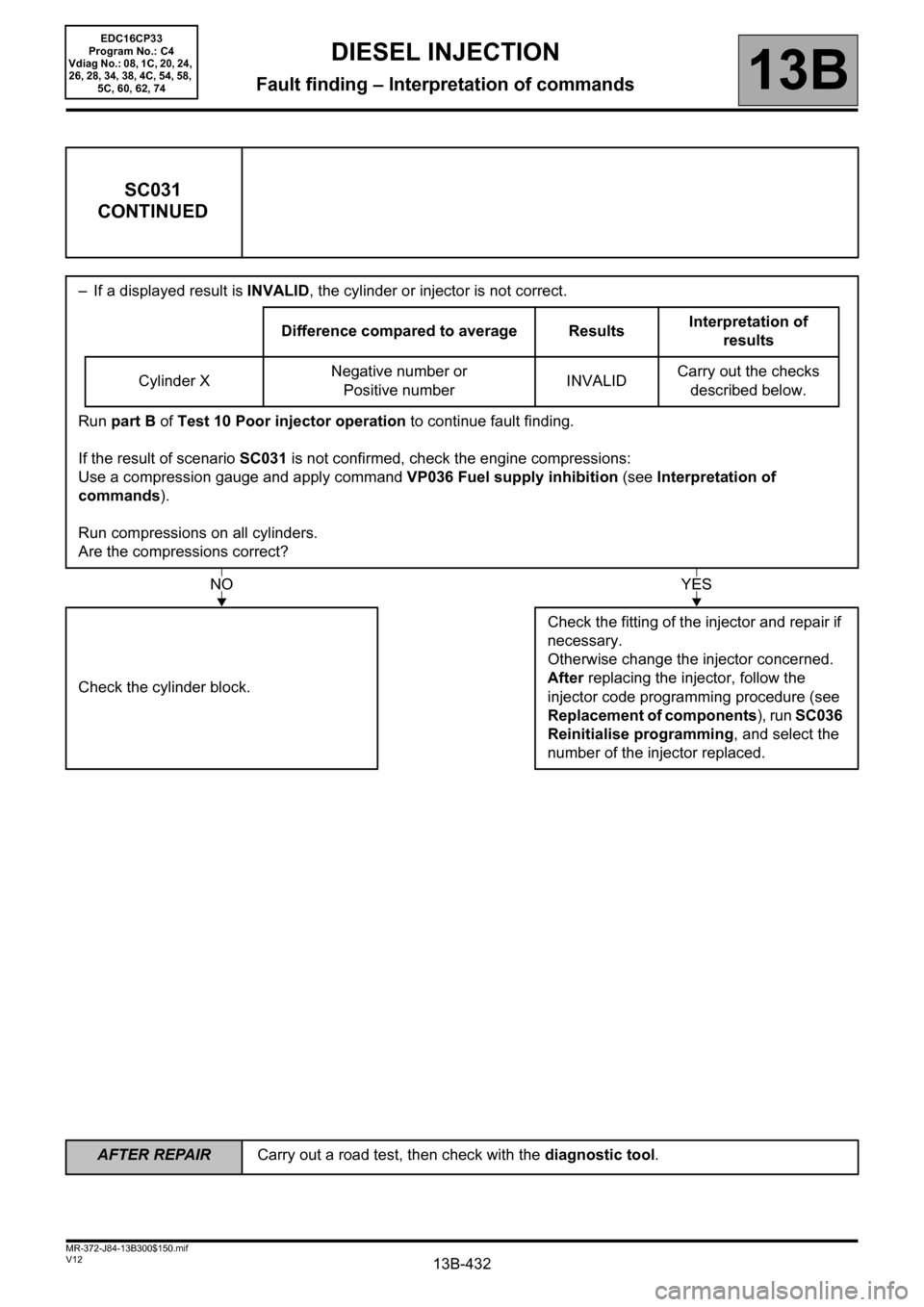

Fault finding – Interpretation of commands13B
SC031
CONTINUED
– If a displayed result is INVALID, the cylinder or injector is not correct.
Difference compared to average ResultsInterpretation of
results
Cylinder XNegative number or
Positive numberINVALIDCarry out the checks
described below.
Run part B of Test 10 Poor injector operation to continue fault finding.
If the result of scenario SC031 is not confirmed, check the engine compressions:
Use a compression gauge and apply command VP036 Fuel supply inhibition (see Interpretation of
commands).
Run compressions on all cylinders.
Are the compressions correct?
Check the cylinder block.Check the fitting of the injector and repair if
necessary.
Otherwise change the injector concerned.
After replacing the injector, follow the
injector code programming procedure (see
Replacement of components), run SC036
Reinitialise programming, and select the
number of the injector replaced.
NOYES
EDC16CP33
Program No.: C4
Vdiag No.: 08, 1C, 20, 24,
26, 28, 34, 38, 4C, 54, 58,
5C, 60, 62, 74
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-490
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
V12 MR-372-J84-13B300$170.mif
DIESEL INJECTION
Fault finding – Fault Finding Chart13B
IMA*: Individual injector correction
ALP9
CONTINUED 3
– Check the consistency between the IMA* codes entered and the codes engraved on the injector bodies.
– Check that the particle filter differential pressure sensor is correctly positioned and connected (see MR 395, 402,
405, 364 or 370 Mechanical, 19B Exhaust, Particle filter pressure sensor: Removal - Refitting),
– Check the exhaust pipe (see TEST1 Exhaust pipe check),
– Check the air inlet circuit (see TEST4 Turbocharged air inlet circuit check),
– Check the air flowmeter (see TEST5 Air flowmeter),
– Check the turbocharger (see TEST7 Variable geometry turbocharger check),
– Check the injectors (see TEST10 Poor injector operation),
– Check the cylinder compressions.
If the fault has not been located and the customer complaint is still present, contact the Techline.
YES
E
EDC16CP33
Program No.: C4
Vdiag No.: 18, 1C, 20, 24,
26, 28, 54, 58, 5C, 60, 62

13B-503V12 MR-372-J84-13B300$180.mif
DIESEL INJECTION
Fault finding – Test13B
IMA*: Individual injector correction
TEST10 Incorrect injector operation
Part A (for VDiag 18, 04 and 44):
Fuel regulation balance check for each injector (individual correction):
– In the CLIP diagnostic tool, choose the Fuel circuit subfunction.
– With the engine idling and the fuel temperature > 50°C, view the flow correction values of each injector (individual
correction), i.e.:
– PR364 Cylinder no. 1 fuel flow correction;
– PR405 Cylinder no. 2 fuel flow correction;
– PR406 Cylinder no. 3 fuel flow correction;
– PR365 Cylinder no. 4 fuel flow correction.
The normal value for flow correction for an injector is approximately X = ±1.5 mg/stroke. This tolerance value may
increase with time, but indicates an injector / cylinder fault if it exceeds X = ±5 mg/stroke.
Check the IMA* injector codes, by comparing the IMA codes engraved on the injectors (the IMA codes are read
from left to right) and the IMA codes read with the diagnostic tool. If the IMA codes are correct, continue the fault
finding procedure, if not, enter the incorrect IMA codes using command SC002 Enter injector codes (see
Interpretation of commands).
1- If at least one of these values is X > + 5 mg/stroke
– Check the valve clearance.
– Check the condition of the engine and test the compressions. Use a compression gauge, the M9R hose end
piece, part number Mot.1772 and apply command VP036 Fuel supply inhibition (see Interpretation of
commands).
– If the compression test reveals a cylinder fault, carry out the necessary repairs.
– If the compression is correct, check the injector fitting conforms according to the procedure (see MR 402 (Vel
Satis ph2), MR 395 (Laguna II ph2), MR 364 (Mégane II ph2), MR 370 (Scénic II ph2) or MR 405 (Espace IV
ph2) Mechanical, 13B, Diesel injection, Diesel injectors: Removal - Refitting).
– Check the fuel regulation again for each injector (individual correction).
– If the customer complaint is still present, replace the injector* concerned.
– See paragraph Part C: Confirmation of flow correction fault finding for each injector, for confirmation of the
fault finding.
EDC16CP33_V18_TEST10 / EDC16CP33_V1C_TEST10 / EDC16CP33_V54_TEST10 / EDC16CP33_V20_TEST10 /
EDC16CP33_V58_TEST10 / EDC16CP33_V5C_TEST10 / EDC16CP33_V24_TEST10 / EDC16CP33_V04_TEST10 /
EDC16CP33_V08_TEST10 / EDC16CP33_V44_TEST10 / EDC16CP33_V4C_TEST10 / EDC16CP33_V34_TEST10 /
EDC16CP33_V38_TEST10 / EDC16CP33_V74_TEST10 / EDC16CP33_V28_TEST10 / EDC16CP33_V62_TEST10 /
EDC16CP33_V26_TEST10 / EDC16CP33_V60_TEST10
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-505V12 MR-372-J84-13B300$180.mif
DIESEL INJECTION
Fault finding – Test13B
Part B (except VDiag 18, 04 and 44):
TEST10
CONTINUED 2
Run SC031 Cylinder operational fault
finding.
Is SC031 correct?
The injectors are operating correctly.Check the engine compressions: use a compression
gauge, M9R hose end piece, part no. Mot. 1772 and apply
command VP036 Fuel supply inhibition (see
Interpretation of commands).
Run compressions on all cylinders.
Are the compressions correct?
Check the cylinder block.Check the fitting of the injector concerned and repair if
necessary.
Otherwise change the injector concerned.
After replacing the injector, follow the injector code
programming procedure (see Replacement of
components), run SC036 Reinitialise programming, and
select the number of the injector replaced.
Repeat Part B of Test 10 to confirm the repairs.
IMPORTANT:
When removing / refitting injectors, follow the cleanliness and safety instructions (see MR 395 (Laguna II ph2),
402 (Vel Satis), 405 (Espace IV Ph2), 364 (Megane II ph2), 370 (Scenic II ph2) Mechanical, 13B, Diesel
injection, Diesel injectors: Removal - Refitting).NO
YES
YESNO
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
