DIESEL INJECTION
Fault finding – Interpretation of commands13B
Laguna II ph2, Vel Satis ph2, Espace IV ph2 only.
AC153HIGH SPEED FAN ASSEMBLY
NOTESThere must be no present or stored faults:
Perform this fault finding after an engine cooling fault.
Engine stopped.
Use the Wiring Diagram Technical Note for Laguna II ph2, Vel Satis ph2, Espace
IV ph2.
If command AC153 does not actuate the high speed fan assembly relay.
Check the condition of the high speed fan assembly relay mounting connectors (see Wiring Diagram
Technical Note, Vehicle, component code 597).
If the connector or connectors are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
If the fault is still present, check that the relay is actuated by the engine management computer as follows:
Disconnect the high speed fan assembly relay, fit a 50 Ω to 100 Ω resistor on its mounting in place of the coil, and
connect a voltmeter as follows:
– positive terminal to + 12 V battery,
– negative terminal to connection 3JP of component 234.
Run command AC153.
If the voltmeter shows the battery voltage (4 ON-OFF cycles of 10 seconds), replace the relay.
If the voltmeter does not show the battery voltage (4 ON-OFF cycles of 10 seconds), contact the Techline.
If the high speed fan assembly relay is supplied using command AC153, but there is still a fan assembly
actuation fault, use the wiring diagram to check:
The conformity of the fan assembly maxi-fuse.
– Check the + 12 V battery supply to connection BP71 of component 234.
– Check the conformity of the high speed fan assembly relay.
– Check the continuity of connection 49B between components 234 and 362.
– Check the conformity of the fan assembly.
– Check for complete earthing on connection MAS of component 162.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
EDC16CP33_V18_AC153 / EDC16CP33_V1C_AC153 / EDC16CP33_V54_AC153 / EDC16CP33_V20_AC153 / EDC16CP33_V58_AC153 /
EDC16CP33_V5C_AC153 / EDC16CP33_V24_AC153 / EDC16CP33_V04_AC153 / EDC16CP33_V08_AC153 / EDC16CP33_V44_AC153 /
EDC16CP33_V4C_AC153 / EDC16CP33_V34_AC153 / EDC16CP33_V38_AC153 / EDC16CP33_V74_AC153 / EDC16CP33_V28_AC153 /
EDC16CP33_V26_AC153
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 74
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-453V12 MR-372-J84-13B300$150.mif
DIESEL INJECTION
Fault finding – Interpretation of commands13B
Laguna II ph2, Vel Satis ph2, Espace IV ph2 only.
AC154LOW-SPEED FAN ASSEMBLY
NOTESThere must be no present or stored faults.
Perform this fault finding after an engine cooling fault or air conditioning fault.
Engine stopped.
Use the Wiring Diagram Technical Note for Laguna II ph2, Vel Satis ph2, Espace
IV ph2.
If, when running command AC154, the low speed fan assembly relay does not operate:
Check the condition of the low speed fan assembly relay mounting connectors (see Wiring Diagram Technical
Note, Vehicle, component code 597).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
If the fault is still present, check that the relay is actuated by the engine management computer as follows:
Disconnect the low speed fan assembly relay, fit a 50 Ω to 100 Ω resistor on the relay mounting in place of the
coil, and connect a voltmeter as follows:
– positive terminal to + 12 V battery,
– negative terminal to connection 3JN of component 700.
Run command AC154.
If the voltmeter shows the battery voltage (4 ON-OFF cycles of 10 seconds), replace the relay.
If the voltmeter does not show the battery voltage (4 ON-OFF cycles of 10 seconds), contact the Techline.
If the low speed fan assembly relay is supplied using command AC154, but there is still a fan assembly actuation
fault, use the wiring diagram to check:
The conformity of the fan assembly maxi-fuse.
– Check the continuity of connection 49L between components 700 and 321.
– Check the low speed resistor (resistance and connections).
– Check the continuity of connection 49B between components 262 and 321.
– Check for complete earthing on connection MAS of component 162.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
EDC16CP33_V18_AC154 / EDC16CP33_V1C_AC154 / EDC16CP33_V54_AC154 / EDC16CP33_V20_AC154 / EDC16CP33_V58_AC154 /
EDC16CP33_V5C_AC154 / EDC16CP33_V24_AC154 / EDC16CP33_V04_AC154 / EDC16CP33_V08_AC154 / EDC16CP33_V44_AC154 /
EDC16CP33_V4C_AC154 / EDC16CP33_V34_AC154 / EDC16CP33_V38_AC154 / EDC16CP33_V74_AC154 / EDC16CP33_V28_AC154 /
EDC16CP33_V26_AC154
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 74
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-454V12 MR-372-J84-13B300$150.mif
DIESEL INJECTION
Fault finding – Interpretation of commands13B
ac195electric coolant pump
NOTESthis command allows you to check the operation of the electric coolant pump.
Check the connection and condition of the coolant pump relay connector, component code 573 and the injection
computer connector, component code 120.
If the connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the connector.
Check the insulation, continuity and the absence of interference resistance on the following connections:
•3AAZ between components 573 and 120,
•3VH between components 573 and 369,
•3FB between components 573 and 983,
•3FB1 between components 573 and 983.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact the techline.
EDC16CP33_V18_AC195 / EDC16CP33_V1C_AC195 / EDC16CP33_V54_AC195 / EDC16CP33_V20_AC195 / EDC16CP33_V58_AC195 /
EDC16CP33_V5C_AC195 / EDC16CP33_V24_AC195 / EDC16CP33_V28_AC195 / EDC16CP33_V62_AC195 / EDC16CP33_V26_AC195 /
EDC16CP33_V60_AC195
EEDC16CP33
Program No.: C4
Vdiag No.: 18, 1C, 20, 24,
26, 28, 54, 58, 5C, 60, 62
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-455V12 MR-372-J84-13B300$150.mif
DIESEL INJECTION
Fault finding – Interpretation of commands13B
AC225RAIL PRESSURE REGULATOR
NOTESPerform this fault finding procedure:
– following interpretation of an unresolved fault
– following an inconsistency recorded in the parameters,
– following a customer complaint (starting problems, engine speed instability, injection
noise).
STEP 1
Check the continuity and absence of interference resistance on the following connection:
•3RG between the components 120 and 1198.
Check the + 12 V after relay supply to the rail pressure regulator (DRV) of the following connection:
•3FB of component 1198.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Run command AC225, if you can hear a slight whistling noise and rattling from the pressure regulator, go to step
2, otherwise, check the operation of the computer output stage:
Vehicle under + after ignition feed, clear the faults displayed by the diagnostic tool.
With the voltmeter in the direct current position:
With the rail pressure regulator connected, connect the voltmeter earth lead to connection3RG of
component1198 and the positive lead to connection3FB of component1198. Run command AC225, the
voltmeter should display four successive voltages between 2 V and 2.4 V.
If the measurement is not correct, contact the Techline.
STEP 2
EDC16CP33_V18_AC225 / EDC16CP33_V1C_AC225 / EDC16CP33_V54_AC225 / EDC16CP33_V20_AC225 / EDC16CP33_V58_AC225 /
EDC16CP33_V5C_AC225 / EDC16CP33_V24_AC225 / EDC16CP33_V04_AC225 / EDC16CP33_V08_AC225 / EDC16CP33_V44_AC225 /
EDC16CP33_V4C_AC225 / EDC16CP33_V34_AC225 / EDC16CP33_V38_AC225 / EDC16CP33_V74_AC225 / EDC16CP33_V28_AC225 /
EDC16CP33_V62_AC225 / EDC16CP33_V26_AC225 / EDC16CP33_V60_AC225
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-457V12 MR-372-J84-13B300$150.mif
DIESEL INJECTION
Fault finding – Interpretation of commands13B
AC226PUMP PRESSURE REGULATOR
NOTESPerform this fault finding procedure:
– following interpretation of an unresolved fault
– following an inconsistency recorded in the parameters,
– following a customer complaint (starting problems, engine speed instability, injection
noise).
STEP 1
Check the continuity and absence of interference resistance on the following connection:
•3HI between the components 120 and 1105.
Check the + 12 V after relay supply to the pump pressure regulator (MPROP) of the following connection:
•3FB of component 1105.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Run command AC226, if you can hear a slight whistling noise and rattling from the pressure regulator, go to step
2, otherwise, ensure that the computer output stage is functioning correctly:
Vehicle under + after ignition feed, clear the faults displayed by the diagnostic tool.
With the voltmeter in the direct current position:
With the pump pressure regulator connected, connect the voltmeter earth lead to connection3HI of
component1105 and the positive lead to connection3FB of component1105. Run command AC226, the
voltmeter must display four successive voltages between 2 V and 2.4 V.
If the measurement is not correct, contact the Techline.
STEP 2
EDC16CP33_V18_AC226 / EDC16CP33_V1C_AC226 / EDC16CP33_V54_AC226 / EDC16CP33_V20_AC226 / EDC16CP33_V58_AC226 /
EDC16CP33_V5C_AC226 / EDC16CP33_V24_AC226 / EDC16CP33_V04_AC226 / EDC16CP33_V08_AC226 / EDC16CP33_V44_AC226 /
EDC16CP33_V4C_AC226 / EDC16CP33_V34_AC226 / EDC16CP33_V38_AC226 / EDC16CP33_V74_AC226 / EDC16CP33_V28_AC226 /
EDC16CP33_V62_AC226 / EDC16CP33_V26_AC226 / EDC16CP33_V60_AC226
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-470
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
V12 MR-372-J84-13B300$170.mif
13B

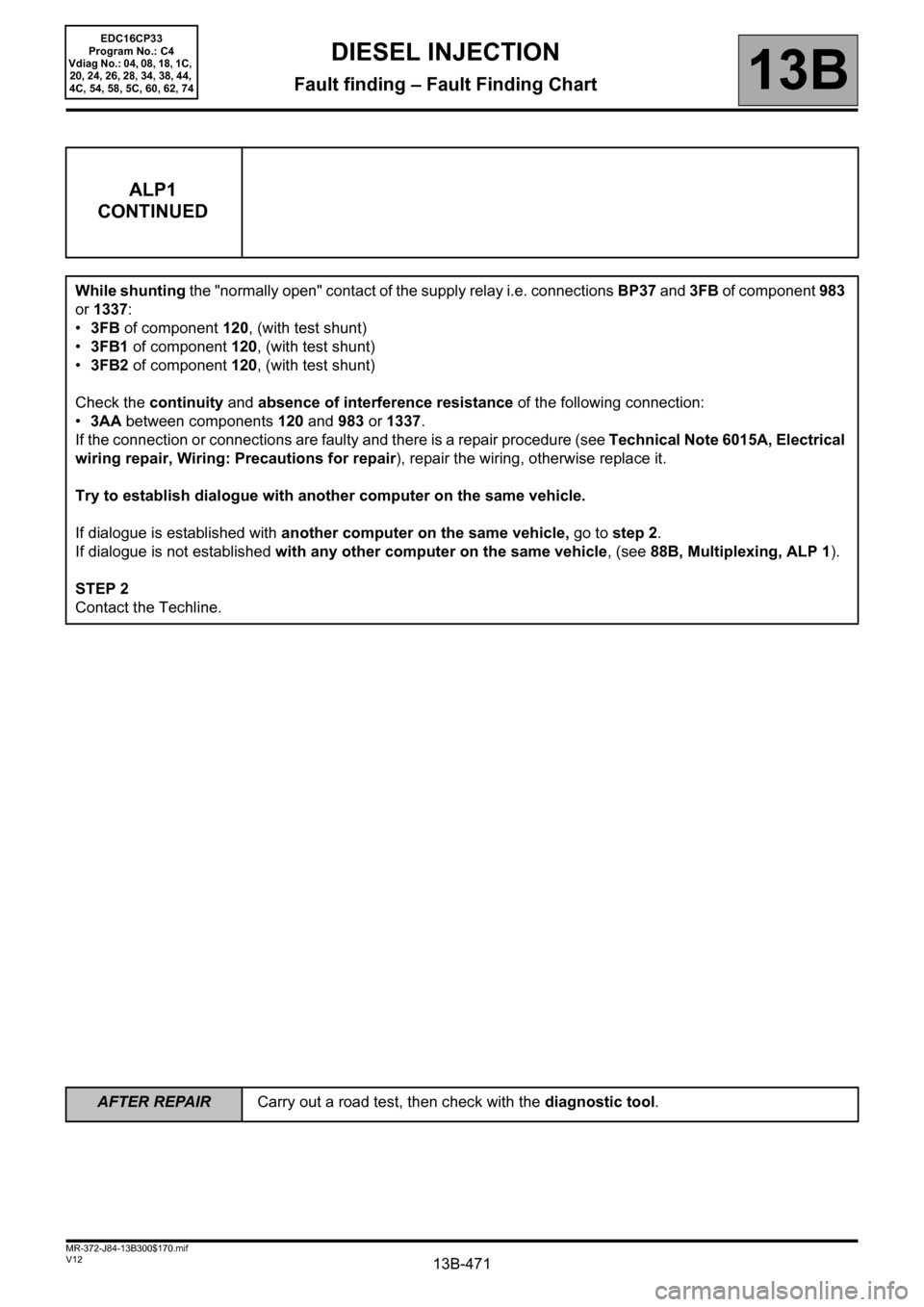

ALP1 No dialogue with engine management computer
Use the Wiring Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2,
Scénic II ph2.
STEP 1
Check the conformity of the vehicle type, and the domain selected on the tool.
Check that the tool is not faulty by trying to establish dialogue with a computer on another vehicle.
Check the supply to the diagnostic socket, component code 225, of the following connections:
•BCP4 of component 225 (+ before ignition),
•AP10 of component 225 (+ after ignition),
•NAP and MA of component 225 (earth).
Check the conformity of the after ignition fuse.
– The conformity of the injection relay mounting.
Check the conformity of the main relay (relay removed):
–Insulation between connections 3FB and BP37 of component 983 or 1337.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
– Measure the resistance between connections 3AA and BP37 of component 983 or 1337.
If the resistance of the injection relay is not between: 60 Ω < X < 70 Ω, replace the relay.
Disconnect the engine management computer and check that there are no conducting parts on the computer
studs. If this reveals any kind of impurity, rectify it and try to establish dialogue.
If the fault is still present, place the bornier Elé. 1681 on the engine harness:
Check the continuity and absence of interference resistance on the following multiplex connections:
•133B between components 120 and 225,
•133C between components 120 and 225.
Check the +12 V after relay supply to the engine management computer on the following connections:
•3FB of component 120,
•3FB1 of component 120,
•3FB2 of component 120.
Check for complete earthing on connections NT of component 120.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
EDC16CP33_V18_ALP01 / EDC16CP33_V1C_ALP01 / EDC16CP33_V54_ALP01 / EDC16CP33_V20_ALP01 / EDC16CP33_V58_ALP01 /
EDC16CP33_V5C_ALP01 / EDC16CP33_V24_ALP01 / EDC16CP33_V04_ALP01 / EDC16CP33_V08_ALP01 / EDC16CP33_V44_ALP01 /
EDC16CP33_V4C_ALP01 / EDC16CP33_V34_ALP01 / EDC16CP33_V38_ALP01 / EDC16CP33_V74_ALP01 / EDC16CP33_V28_ALP01 /
EDC16CP33_V62_ALP01 / EDC16CP33_V26_ALP01 / EDC16CP33_V60_ALP01
DIESEL INJECTION
Fault finding – Fault Finding Chart
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-471
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
V12 MR-372-J84-13B300$170.mif
DIESEL INJECTION
Fault finding – Fault Finding Chart13B
ALP1
CONTINUED
While shunting the "normally open" contact of the supply relay i.e. connections BP37 and 3FB of component 983
or 1337:
•3FB of component 120, (with test shunt)
•3FB1 of component 120, (with test shunt)
•3FB2 of component 120, (with test shunt)
Check the continuity and absence of interference resistance of the following connection:
•3AA between components 120 and 983 or 1337.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Try to establish dialogue with another computer on the same vehicle.
If dialogue is established with another computer on the same vehicle, go to step 2.
If dialogue is not established with any other computer on the same vehicle, (see 88B, Multiplexing, ALP 1).
STEP 2
Contact the Techline.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-473
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
V12 MR-372-J84-13B300$170.mif
DIESEL INJECTION
Fault finding – Fault Finding Chart13B
ALP2
CONTINUED 1
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check the conformity of the engine earths (oxidation, tightness, etc.).
Check the mounting and condition (overheating) of the sensor.
Check the synchronisation of the camshaft sensors and the engine speed sensors with the display of ET238
Synchronisation. If synchronisation is not active, refer to the checks described in DF195 Camshaft/engine
speed sensor consistency.
Test the high pressure fuel circuit:
Run scenario SC035 High pressure fuel circuit fault finding.
To interpret the result, apply the interpretation of command SC035 (see Interpretation of commands).
Check the fuel circuit sealing: run Test 3 Low pressure circuit check.
If Test 3 is correct.
If Test 3 is not correct, proceed as follows:
Check the conformity of the type of heater plugs configured:
For Vdiag 20, 24, 38 and 74: consult ET781 Heater plugs in the Ignition/Preheating subfunction and check the
conformity with the type of plugs installed:
– Slow plugs have a black ring.
– Fast plugs have a white ring.
If the heater plugs are being replaced with plugs of a different type (see Replacement of components, Replacing
heater plugs).
For all Vdiags, check that all 4 plugs have the same colour ring.
Check that the heater plugs are actuated using the AC037 Preheating relay command.
Check the sealing and condition of the inlet circuit: run Test 4 Turbocharged air inlet circuit check, and follow
the related fault finding procedure (see Test 4).
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
