Ordinateur de bord : messages d’alerte (X91 - B91 - K91 - Renault)
ENG_NU_939-3_D91_Renault_1
TRIp cOmpUTER ANd WARNINg sYsTEm: warning message
These appear with the ® warning light and require you to stop immediately, for your own safety, as soon as traffic
conditions allow. stop your engine and do not restart it. contact an approved dealer.
Examples of warning messages are given in the following pages. Note: the messages appear on the display either individually
or alternately (when there are several messages to be displayed), and \
may be accompanied by a warning light and/or a beep.
Examples of messages Interpreting the display selected
“Injection system fault” Indicates a fault in the injection system.
“Engine failure hazard ”
Indicates that the vehicle has a serious engine fault.
“Engine overheating ”
Indicates that the engine is overheating.
“power steering fault” or “Risk of steering locking ”Indicates a fault in the steering.
“parking brake fault” or “Stop vehicle ”Indicates an electronic parking brake fault. Apply the electronic parking brake manually and
ensure that the vehicle is immobilised using a chock.
“Battery charging fault” Indicates a fault with the vehicle’s battery charging circuit.
“Oil pressure fault” Indicates an engine oil pressure fault.
“puncture” Indicates a puncture on the wheel displayed on the trip computer and war\
ning system screen.

headlight washer ................................................... (current page)
1.70
ENG_UD11971_2
Essuie-vitre / lave-vitre avant (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_1
Note: with the engine switched off or
when the windscreen wiper is set to in-
termittent, a longer pull will trigger three
sweeps of the wipers followed, a few
seconds later, by a fourth, in addition to
the windscreen washer.
Headlight washers
Headlights on
On equipped vehicles, hold stalk 1
pulled towards you for about 1 second,
and the headlight washers and wind -
screen washers will be activated at the
same time.
Note: when the minimum windscreen
washer fluid level is reached, the head -
light washer system may be deprimed.
Fill the windscreen washer fluid and
then activate the windscreen washer,
with the engine running , to reprime
the system.
Before any action on the
windscreen (washing the
vehicle, de-icing, cleaning
the windscreen, etc.) return
stalk 1 to position A (park).
Risk of injury and/or damage.
Windscreen washer
With the ignition on, pull stalk 1 then
release.
A brief pull will trigger a single sweep
of the wipers, in addition to the wind -
screen washer.
scREEN WAsHER/WIpER (continued)
1
A
B
c
d
Check the condition of the wiper blades. You are responsible for their service life:
– they must remain clean: clean the blades and the windscreen regularly with
soapy water;
– do not use them when the windscreen is dry;
– free them from the windscreen when they have not been used for a long time.
In all cases, replace them as soon as they begin to lose efficiency: approximately
once a year.
1
In freezing or snowy weather, ensure
they are not stuck to the windscreen
(including the central area located
behind the interior rear-view mirror)
before starting the wipers (risk of
motor overheating).

JauneNoirNoir texte
2.39
ENG_UD27633_9
Boîte de vitesses automatique (X91 - B91 - K91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_2
aUtoMatIC GeaRBox (3/3)
operating faults
– When driving , if the message
“ Check auto gearbox ” and the
© warning light appear on the
instrument panel, this indicates a
fault.
Contact your approved Dealer as
soon as possible.
– When driving, if the message “gear-
box overheating ” accompanied by
© warning light appears on the
instrument panel, stop the vehicle to
allow the gearbox to cool down.
Contact your approved Dealer as
soon as possible.
– If a vehicle with an automatic
gearbox breaks down , refer to the
information on “Towing” in Section 5.
10
When setting off, if the lever is locked
in position P even though you are de -
pressing the brake pedal and pressing
unlocking button 2, the lever can be re-
leased manually. To do this, press the
button by inserting an object into the
hole 10 and simultaneously press un -
locking button 2 located on the lever.
2

wiper blades ......................................... (up to the end of the DU)
wipers blades ............................................. (up to the end of the DU)
5.25
ENG_UD4848_1
Balais d’essuie-vitres (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_5

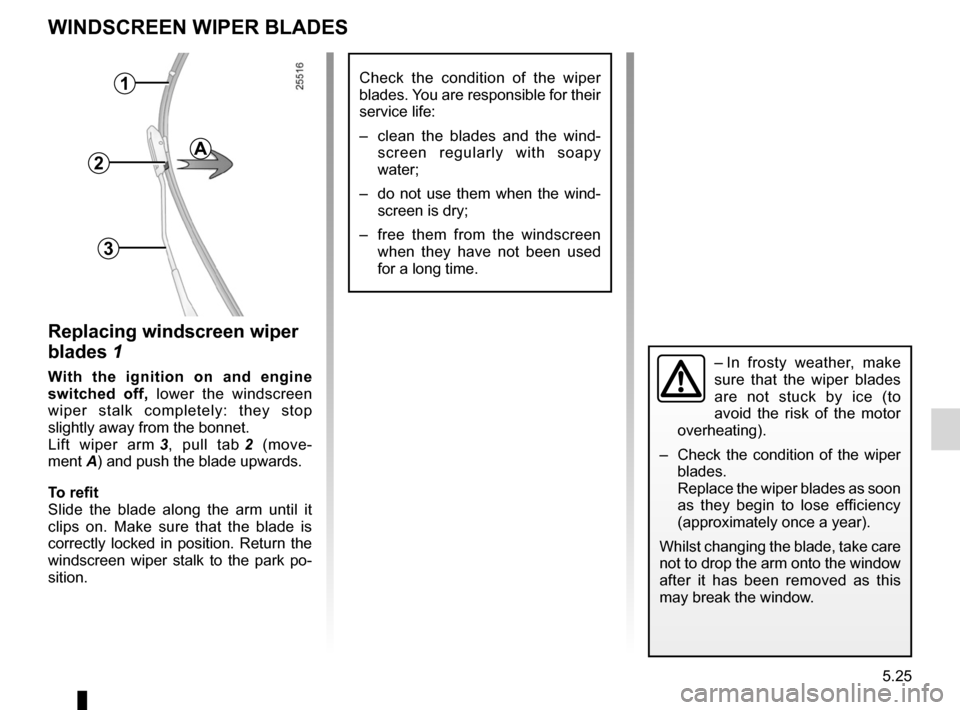

Wipers (replacing blades)
