Child safety: general information
cHILd sAfETY : general information (1/2)
carrying children
Children, and adults, must be correctly
seated and strapped in for all journeys.
The children being carried in your vehi-
cle are your responsibility.
A child is not a miniature adult. Children
are at risk of specific injuries as their
muscles and bones have not yet fin -
ished growing. The seat belt alone
would not provide suitable protection.
Use an approved child seat and ensure
you use it correctly.
driver’s responsibility
when parking or stopping
the vehicle
Never leave an animal,
child or adult who is not self-suffi -
cient alone on your vehicle, even for
a short time.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or locking the
doors.
Also, in hot and/or sunny weather,
please remember that the tempera-
ture inside the passenger compart-
ment increases very quickly.
RI sK O f d EATH OR sERIOU s
INJURY.
A collision at 30 mph
(50 km/h) is the same as fall-
ing a distance of 10 metres.
Transporting a child without
a restraint is the equivalent of allow-
ing him or her to play on a fourth -
floor balcony without railings.
Never travel with a child held in your
arms. In the event of an accident,
you will not be able to keep hold of
the child, even if you yourself are
wearing a seat belt.
If your vehicle has been involved in
a road accident, replace the child
seat and have the seat belts and
ISOFIX anchorage points checked.

towing rings .......................................... (up to the end of the DU)
Isofix ..................................................... (up to the end of the DU)
JauneNoirNoir texte
1.31
ENG_UD20057_3
Sécurité enfants : généralités (X91 - D91 - X95 - E95 - \
Renault)
ENG_NU_939-3_D91_Renault_1
cHILd sAfETY : general information (2/2)
Using a child seat
The level of protection offered by the
child seat depends on its ability to re -
strain your child and on its installation.
Incorrect installation compromises the
protection it offers the child in the event
of harsh braking or an impact.
Before purchasing a child seat, check
that it complies with the regulations for
the country you are in and that it can
be fitted in your vehicle. Consult an ap-
proved dealer to find out which seats
are recommended for your vehicle.
Before fitting a child seat, read the
manual and respect its instructions. If
you experience any difficulties during
installation, contact the manufacturer
of the equipment. Keep the instructions
with the seat.
Never leave a child unat -
tended in the vehicle.
Check that your child is
always strapped in and that
the belt or safety harness used is
correctly set and adjusted. Avoid
wearing bulky clothing which could
cause the belts to slacken.
Never let your child put their head or
arms out of the window.
Check that the child is in the correct
position for the entire journey, espe-
cially if asleep.
Set a good example by always fas-
tening your seat belt and teaching
your child:
– to strap themselves in correctly.
– to always get in and out of the car
at the kerb, away from busy traf-
fic.
Do not use a second-hand child
seat or one without an instruction
manual.
Check that there are no objects in
the vicinity of the child seat which
could impede its operation.

child restraint/seat ................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child safety ............................................ (up to the end of the DU)
child seats ............................................. (up to the end of the DU)
transporting children ............................. (up to the end of the DU)
1.33
ENG_UD22184_2
Sécurité enfants : choix de la fixation du siège enfant (X91 -\
D91 - Renault)
ENG_NU_939-3_D91_Renault_1
choosing a child seat mounting
cHILd sAfETY : choosing a child/baby seat mounting (1/2)
There are two ways of attaching child
seats: via the seat belt or using the
ISOFIX system.
Attachment via the seat belt
The seat belt must be adjusted to
ensure that it is effective in the event of
harsh braking or an impact.
Ensure that the strap paths indicated
by the child seat manufacturer are re-
spected.
Always check that the seat belt is cor-
rectly fastened by pulling it up, then
pulling it out fully whilst pressing on the
child seat.
Check that the seat is correctly held by
moving it from side to side and back
to front: the seat should remain firmly
fixed.
Check that the child seat has not been
installed at an angle and that it is not
resting against a window. Attachment using the IsOfIX
system
Authorised ISOFIX child seats are ap
-
proved in accordance with regulation
ECE-R44 in one of the three following
cases:
– ISOFIX universal 3-point forward -
facing seat
– ISOFIX semi-universal 2-point seat
– specific
For the latter two, check that your child
seat can be installed by consulting the
list of compatible vehicles.
Attach the child seat with the ISOFIX
locks, if these are provided. The ISOFIX
system allows quick, easy, safe fitting.
The ISOFIX system consists of 2 rings
and, in some cases, a third ring.
Before using an ISOFIX
child seat that you pur -
chased for another vehicle,
check that its installation is
authorised. Consult the list of ve -
hicles which can be fitted with the
seat from the equipment manufac -
turer.
No modifications may be
made to the component
parts of the restraint system
(ISOFIX seat belts, seats
and their mountings) originally fitted.
The seat belt must never
be twisted or the tension
relieved. Never pass the
shoulder strap under the
arm or behind the back.
Check that the seat belt has not
been damaged by sharp edges.
If the seat belt does not operate nor-
mally, it will not protect the child.
Consult an approved dealer. Do not
use this seat until the seat belt has
been repaired.
Do not use the child seat
if it may unfasten the seat
belt restraining it: the base
of the seat must not rest on
the buckle and/or catch of the seat
belt.

1.34
ENG_UD22184_2
Sécurité enfants : choix de la fixation du siège enfant (X91 -\
D91 - Renault)
ENG_NU_939-3_D91_Renault_1
cHILd sAfETY : choosing a child/baby seat mounting (2/2)
The ISOFIX anchorage points have been exclusively designed for child
seats with the ISOFIX system. Never fit a different type of child seat, seat
belt or other objects to these anchorage points.
Check that nothing is obstructing the anchorage points.
If your vehicle has been involved in a road accident, have the ISOFIX anchorage
points checked and replace your child seat.
Check that the seatback
of the forward-facing child
seat is in contact with the
seatback of the vehicle
seat.
In this case, the child seat may not
always rest on the seat base of the
vehicle seat.
The two rings 1 are located between
the seatback and the seat base of the
seat and are identified by a marking.
To ensure your child seat can be easily
fitted and locked on rings 1, use access
guides 2 on the child seat.
3
The third ring is used to attach the
upper strap on some child seats.
To reach hook 3 from the rear seat,
unlock the vehicle rear bench seatback
(see the information on “rear bench
seat: functions” in Section 1), pass the
belt through, then lift the seatback, en-
suring that it is correctly locked.
Fix the hook of the strap onto ring 3 and
pull the strap so that the seatback of the
child seat comes into contact with the
seatback of the vehicle seat.
1
2

1.36
ENG_UD25098_1
Sécurité enfants : installation du siège enfant (X91 - D91 - R\
enault)
ENG_NU_939-3_D91_Renault_1
Jaune NoirNoir texte
cHILd sAfETY : fitting a child seat (2/3)
child seat attached using the IsOfIX
mounting
ü Seat which allows an ISOFIX
child seat to be fitted.
± The rear seats are fitted with
an anchorage point which allows a
forward-facing ISOFIX child seat with
universal approval to be fitted. The an-
chorage points are located in the lug -
gage compartment.
The size of the ISOFIX child seat is in-
dicated by a letter:
– B and B1: for forward-facing seats in
group 1 (9 to 18 kg);
– C: rear-facing seats in group 1 (9 to
18 kg);
– D and E: shell seat or rear-facing
seats in group 0 or 0+ (less than
13 kg);
– F and G: cots in group 0 (less than
10 kg).
child seat attached using the belt
¬Seat which allows a seat with
“Universal” approval to be fitted using
a seat belt;
− Seat which only allows a rear-
facing seat with “Universal” approval
to be attached with a seat belt.
Using a child safety system which is not approved for this vehicle will not
correctly protect the baby or child. They risk serious or even fatal injury.
³ Check the status of the air bag
before fitting a child seat or allowing a
passenger to use the seat.
R I sK O f dE AT H O R
s ERIOU s INJURY: before
fitting a rear-facing child
seat on the front passenger
seat, check that the airbag has been
deactivated (please refer to the in -
formation on “Child safety: front
passenger airbag deactivation/acti -
vation” in Section 1).

JauneNoirNoir texte
1.37
ENG_UD25098_1
Sécurité enfants : installation du siège enfant (X91 - D91 - R\
enault)
ENG_NU_939-3_D91_Renault_1
cHILd sAfETY : fitting a child seat (3/3)
(1) RIsK Of dEATH OR sERIOUs INJURY: before fitting a rear-facing child seat on the front passenger seat, check
that the airbag has been deactivated (please refer to the information on “Child safety: front passenger airbag deactiva -
tion/activation” in Section 1).
Type of child seat Weight of the child seat sizefront passenger
seat (1) (2) (5) Rear seats
c arrycot fitted across the
vehicle
Group 0 < 10 kg
F - GXX
shell seat/rear-facing seat
Group 0, 0+ and 1 Up to 18 kg
C, D, EUU - IL (3)
forward-facing seat
Group 1 9 to 18 kg
B, B1XU - IUF - IL (4)
Booster seat
Group 2 and 3 15 kg to 36 kg
XU (4)
X = Seat not suitable for fitting child seats.
U = Seat allowing a child seat with “Universal” approval to be atta\
ched by seat belt; check that it can be fitted correctly.
IUf/IL = On equipped vehicles, seat which allows an approved “Universal”/“semi-universal” or “vehicle specific” child seat to be
attached using the ISOFIX system; check that it can be fitted.
(2) Only a rear-facing child seat can be fitted in this seat: raise the seat to the maximum and position it as far back as possible,
tilting the seatback slightly (approximately 25°).
(3) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it
will go, although without allowing it to come into contact with the chil\
d seat.
(4) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the
height of the headrest or remove it if necessary; do not push the seat in front of the child more than halfway back on its run-
ners and do not recline the seatback more than 25°.
(5) Make sure that the child seat or the child’s feet do not prevent the front seat from locking correctly. Refer to the information
on the “Front seat” in Section 1.
The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-
tions in force are respected.

JauneNoirNoir texte
7.3
FRA_UD29933_4
Index (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_7
AlphAbeticAl index (3/5)

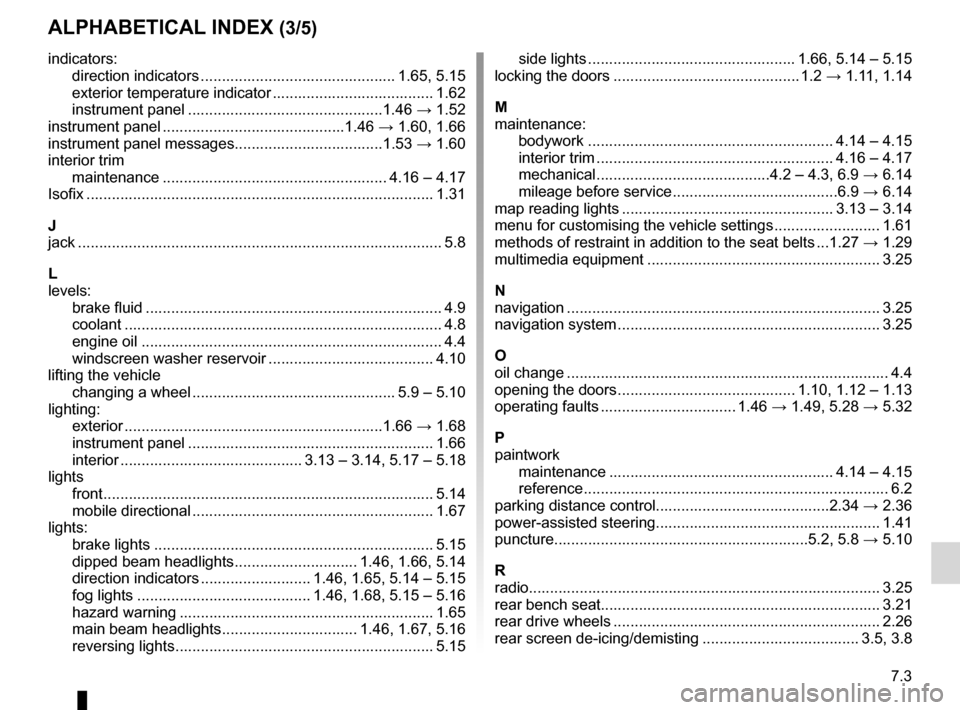

indicators:
direction indicators .............................................. 1.65, 5.15
exterior temperature indicator ...................................... 1.62
instrument panel .............................................. 1.46 → 1.52
instrument panel ........................................... 1.46 → 1.60, 1.66
instrument panel messages ...................................1.53 → 1.60
interior trim maintenance ..................................................... 4.16 – 4.17
Isofix .................................................................................. 1.31
J
jack ...................................................................................... 5.8
l
levels: brake fluid ...................................................................... 4.9
coolant ........................................................................... 4.8
engine oil ....................................................................... 4.4
windscreen washer reservoir ....................................... 4.10
lifting the vehicle changing a wheel ................................................ 5.9 – 5.10
lighting: exterior ............................................................. 1.66 → 1.68
instrument panel .......................................................... 1.66
interior ........................................... 3.13 – 3.14, 5.17 – 5.18
lights front .............................................................................. 5.14
mobile directional ......................................................... 1.67
lights: brake lights .................................................................. 5.15
dipped beam headlights ............................. 1.46, 1.66, 5.14
direction indicators .......................... 1.46, 1.65, 5.14 – 5.15
fog lights ......................................... 1.46, 1.68, 5.15 – 5.16
hazard warning ............................................................ 1.65
main beam headlights ................................ 1.46, 1.67, 5.16
reversing lights ............................................................. 5.15side lights
................................................. 1.66, 5.14 – 5.15
locking the doors ............................................ 1.2 → 1.11, 1.14
M
maintenance: bodywork .......................................................... 4.14 – 4.15
interior trim ........................................................ 4.16 – 4.17
mechanical .........................................4.2 – 4.3, 6.9 → 6.14
mileage before service ....................................... 6.9 → 6.14
map reading lights .................................................. 3.13 – 3.14
menu for customising the vehicle settings ......................... 1.61
methods of restraint in addition to the seat belts ... 1.27 → 1.29
multimedia equipment ....................................................... 3.25
n
navigation .......................................................................... 3.25
navigation system .............................................................. 3.25
O
oil change ............................................................................ 4.4
opening the doors .......................................... 1.10, 1.12 – 1.13
operating faults ................................ 1.46 → 1.49, 5.28 → 5.32
p
paintwork maintenance ..................................................... 4.14 – 4.15
reference ........................................................................ 6.2
parking distance control ......................................... 2.34 → 2.36
power-assisted steering ..................................................... 1.41
puncture ............................................................ 5.2, 5.8 → 5.10
R
radio................................................................................... 3.25
rear bench seat .................................................................. 3.21
rear drive wheels ............................................................... 2.26
rear screen de-icing/demisting ..................................... 3.5, 3.8
