2012 RENAULT KOLEOS ESP

RENAULT cardbattery ............................................. (up to the end of the DU)
RENAULT card battery .........................(up to the end of the DU)
5.22
ENG_UD27283_6
Carte RENAULT : pile (X45 - H45 - X91 - B91 - K91 - X95 - B95 - D95 - E95 - K95 - J95 - R95 - L38 - X38 - X32 - B32 - X98 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_5
Operating faultsIf the battery is too weak to ensure cor-
rect operation, you may start (insert the
RENAULT card in the card reader) and
lock/unlock the vehicle (refer to the in-
formation on “Locking/unlocking the
doors” in Section 1).
RENAULT card: battery
renault carD: battery
replacing the batteryWhen the message “Replace card bat-
tery” appears on the instrument panel,
replace the RENAULT card battery,
press button 1 , pulling on emergency
key 2, then unclip cover 3 using tab 4.
Remove the battery by pressing on one
side (movement A ) and by lifting the
other (movement B) then replace it, en-
suring the polarity and model, shown
on cover 3 are respected.
Do not throw away your
used batteries; give them to
an organisation responsible
for collecting and recycling
batteries.
1
2
When refitting, proceed in the reverse
order, then press one of the buttons on
the card four times, close to the vehicle:
the next time the vehicle is started, the
message will disappear.
n ote: it is not advisable to touch the
electronic circuit or contacts on the
RENAULT card when replacing the bat-
tery.
a
B
3
The batteries are available from approved Dealers, and their service life approxi -
mately two years. Check that there is no dye on the battery: risk of an incorrect
electrical contact.
4
Check that the cover is clipped shut.

wiper blades ......................................... (up to the end of the DU)
wipers blades ............................................. (up to the end of the DU)
5.24
ENG_UD20957_3
Balais d’essuie-vitre avant (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_5
Wipers (replacing blades)
wIPer BlaDes
Check the condition of the wiper
blades. You are responsible for their
service life:
– clean the blades, windscreen and
rear screen regularly with soapy
water;
– do not use them when the wind-
screen or rear screen are dry;
– free them from the windscreen or
rear screen when they have not
been used for a long time.
In frosty weather, make
sure that the wiper blades
are not stuck by ice (to
avoid the risk of the motor
overheating).
Check the condition of the wiper
blades.
Replace the wiper blades as soon
as they begin to lose efficiency (ap-
proximately once a year).
Whilst changing the blade, take care
not to drop the arm onto the window
after it has been removed as this
may break the window.
replacing windscreen wiper
blades 1
w ith the ignition on and engine
switched off, lower the windscreen
wiper stalk completely: they stop
slightly away from the bonnet. Lift the
wiper arm 3 , pinch the tabs 2 , gently
pull upwards (movement A ) then push
the blade upwards (movement B).
refitting
Slide the blade along the arm until
it clips on. Check that it is correctly
locked. Return the windscreen wiper
stalk to the park position.
1
2
3
a
rear screen wiper blade 4
– Lift wiper arm 5;
– pivot the blade 4 beyond the point of
resistance. (movement C);
Replace the blade.
t o refit
To refit the wiper blade, proceed in re-
verse order to removal. Make sure that
the blade is correctly locked in position.
4
c
5
B

towingbreakdown ...................................... (up to the end of the DU)
towing hitch ........................................... (up to the end of the DU)
5.25
ENG_UD23537_3
Remorquage : dépannage (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_5
Towing
tOwIng : breakdown (1/4)
t owing procedure
Before any towing, check that the steer-
ing column is not locked.
If it is locked, insert the RENAULT card
into the reader and press the Start/Stop
button twice without pressing on the
pedals. The steering column unlocks,
the vehicle accessory functions are
supplied with power and you can use
the lights (stop lights, directional indica -
tor lights, etc.): the vehicle must have
its lights on at night.
Do not remove the RENAULT card from
the reader when the vehicle is being
towed.
Press the Start/Stop button twice in
succession to switch off the ignition
once towing is finished (risk of running
down the battery).
Furthermore, it is essential to respect
the towing regulations set out in the leg-
islation of the country concerned and, if
your vehicle is the towing vehicle, not to
exceed the towing weight of your vehi-
cle. Contact your approved Dealer.

vehicle identification ............................. (up to the end of the DU)
vehicle identification plates ................... (up to the end of the DU)
technical specifications ......................... (up to the end of the DU)
paintwork reference .......................................................... (current page)
6.2
ENG_UD22100_5
Plaques d’identification véhicule (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_6

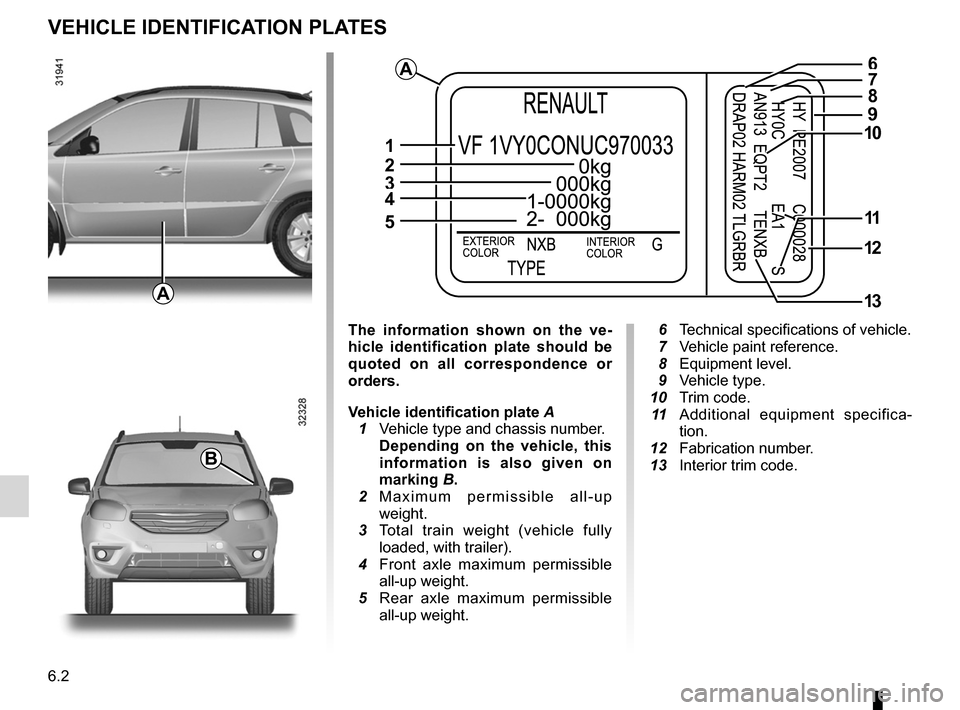

Vehicle identification plates
Vehicle identification plates
a
B
a
1
2
34
5
678
9
10
11
12
13
t he information shown on the ve -
hicle identification plate should be
quoted on all correspondence or
orders.
Vehicle identification plate A
1 Vehicle type and chassis number.
depending on the vehicle, this
information is also given on
marking B.
2 M a x i m u m p e r m i s s i b l e a l l - u p
weight.
3 Total train weight (vehicle fully
loaded, with trailer).
4 Front axle maximum permissible
all-up weight.
5 Rear axle maximum permissible
all-up weight.
6 Technical specifications of vehicle.
7 Vehicle paint reference.
8 Equipment level.
9 Vehicle type.
10 Trim code.
11 Additional equipment specifica -
tion.
12 Fabrication number.
13 Interior trim code.

vehicle identification plates ................... (up to the end of the DU)
6.3
ENG_UD27149_4
Plaques d’identification moteur (H45 - X65 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_6
engine identification plates
t he information on the label A or
engine plate B should be quoted
on all of your correspondence or
orders.
Vehicle plate A
This includes the vehicle type and the
chassis number.
n ote: depending on the vehicle, a
label stating “Do not cover, paint over,
weld, cut, perforate, alter or remove the
Vehicle Identification Number” is under
the vehicle plate A.engine plate B
This gives the engine type and number
(it may be in a different location, de -
pending on the engine).
a
BB
2.0 dCi2.5 16V

7.2
ENG_UD27169_2
Index (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_7
Jaune NoirNoir texte
AlphAbeticAl index (2/5)
driver’s position ................................. 1.40 – 1.41, 1.44 → 1.47
driving ................................................ 2.2 → 2.16, 2.18 → 2.41
driving position settings ............................................................. 1.17 – 1.18
e
electric beam height adjustment ........................................ 1.66
electric windows ..................................................... 3.14 – 3.15
electronic parking brake ........................................ 2.10 → 2.13
Electronic Stability Program: ESP .........................2.24 → 2.28
emergency key ........................................................... 1.2 – 1.3
emergency spare wheel ............................................. 5.2 – 5.3
engine technical specifications .................................................. 6.5
engine oil ................................................................... 4.4 → 4.6
engine oil level ................................................................... 1.49
engine specifications ........................................................... 6.5
engine start/stop button .............................................. 2.3 – 2.4
environment ....................................................................... 2.17
ESP: Electronic Stability Program .........................2.24 → 2.28
external lights and signals ................................................. 1.66
F
4 wheel drive (4WD) .............................................. 2.21 → 2.23
faults operating faults ................................................ 5.29 → 5.33
filter air filter ........................................................................... 4.9
diesel filter ...................................................................... 4.9
particle filter .......................................................... 1.46, 2.8
passenger compartment filter ........................................ 4.9
fittings .................................................................... 3.22 → 3.27
fog lights ............................................................................ 5.11
front passenger air bag deactivation ................................. 1.36
front seat adjustment electric controls ............................................................ 1.15manual controls
................................................ 1.15 – 1.16
front seats adjustment .......................................................1.14 → 1.16
fuel advice on fuel economy ............................................... 2.14
capacity ............................................................ 1.70 → 1.72
filling ........................................................ 1.46, 1.70 → 1.72
grade ................................................................ 1.70 → 1.72
fuel economy ......................................................... 2.14 → 2.16
fuel filler cap .......................................................... 1.70 → 1.72
fuel level ............................................................................ 1.48
fuel priming bulb ......................................................... 1.72, 2.8
fuel repriming ..................................................................... 1.72
fuel tank capacity ............................................................ 1.70 → 1.72
fuel tank capacity ................................................... 1.70 → 1.72
fuses ....................................................................... 5.18 – 5.19
G
gear lever ............................................................................. 2.9
glove box ........................................................................... 3.22
h
handbrake ............................................................................ 2.9
hands-free telephone integrated control ............................ 3.38
hazard warning lights signal .................................. 1.62 → 1.65
headlight beam adjustment ............................................... 1.66
headlight flashers .............................................................. 1.62
headrest .................................................................... 1.14, 3.29
heating and air conditioning system ........................ 3.7 → 3.13
heating system ........................................................ 3.4 → 3.12
hill start .............................................................................. 2.28
Hill Start Assistance (HSA) ................................................ 2.28
horn ................................................................................... 1.62
horn: flash ............................................................................. 1.62
