2012 RENAULT ESPACE display

clock ..................................................... (up to the end of the DU)
clock ..................................................... (up to the end of the DU)
external temperature ............................ (up to the end of the DU)
1.63
ENG_UD20349_1
Heure et températures extérieures (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
Clock and exterior temperature
cLOcK and eXTerIOr TeMPera TUre
When the ignition is switched on, the
clock and (depending on vehicle) exter-
nal temperature are displayed.
resetting the clock 1
Vehicles equipped with a navigation
system, radio, etc.
Refer to the equipment instructions for
the special features of these vehicles.
external temperature
indicator
special note:
When the outside temperature is –3°C
to +3°C, the °C characters flash (signal -
ling a risk of black ice on the road).
e xternal temperature in -
dicator
As ice formation is related
to exposure, local air hu -
midity and temperature, the external
temperature alone is not sufficient to
indicate the presence of ice.
If the power supply is cut (battery
disconnected, supply wire cut, etc.),
the clock must be reset.
We recommend that you do not
adjust these settings while driving.
1

2.10
ENG_UD20366_1
Frein de parking assisté (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_2
ASSISTED PARKING BRAKE (continued)
v ersions with an automatic
gearbox
Never leave your vehicle without
moving the selector lever to position N
or P.
For safety reasons, if the lever is not in
one of these positions and the driver’s
door is open or incorrectly shut, the au-
tomatic release function is deactivated.
Emergency unlocking(battery fault or system failure).
To release the assisted parking brake:
lift cover 7 and pull handle 6 until the
unlocking noise can be heard.
This control cannot be used to reap-
ply the parking brake.
After having replaced the battery, the
system will be operational from the first
manual release command.
Operating faults
– In the event of a fault, a warning
message appears on the display
(depending on the vehicle) and de -
pending on the case, warning light 2
flashes and warning light 5 lights up.
– If the assisted parking brake cannot
be used, indicator light 3 flashes for
approximately 10 seconds when the
engine is started, then goes out.
Each time handle 1 is used and
each time the engine is switched off
indicator lights 2 and 3 will flash for
10 seconds.
Contact an approved dealer as soon as
possible.
Never leave a child (or a
pet) in the vehicle with the
RENAULT card in the card
reader or passenger com -
partment. They could release the
parking brake and cause the vehicle
to move off unintentionally.
1
2
6
7
35

2.18
ENG_UD20370_1
Système de surveillance de pression des pneus (X81 - J81 - Renault)\
ENG_NU_932-3_X81ph3_Renault_2
Jaune NoirNoir texte

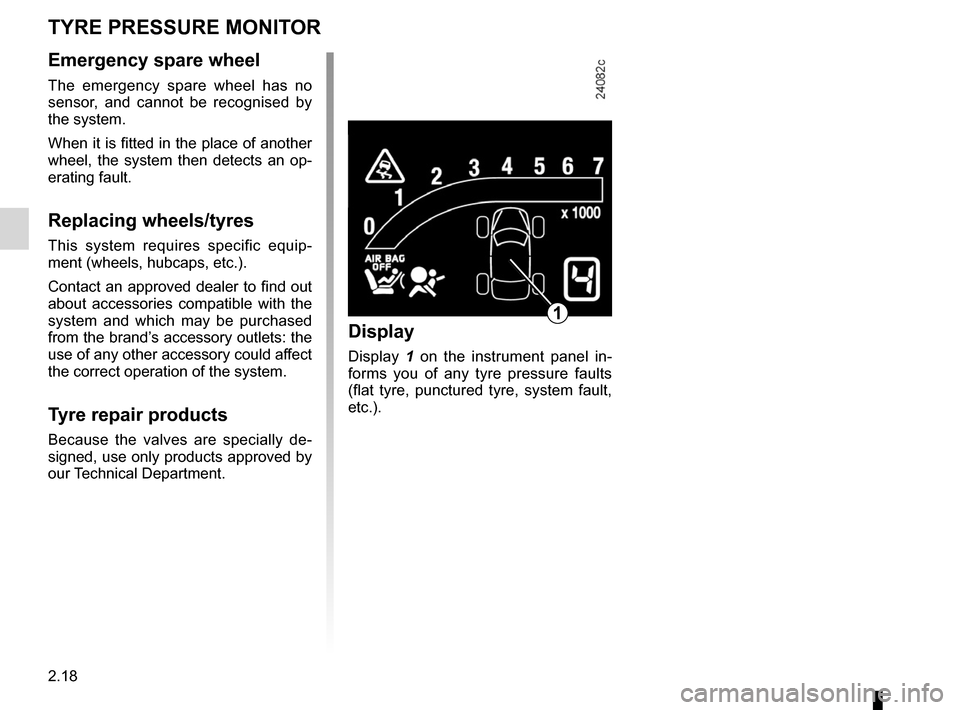

TYRE PRESSURE MONITOR
Emergency spare wheel
The emergency spare wheel has no
sensor, and cannot be recognised by
the system.
When it is fitted in the place of another
wheel, the system then detects an op-
erating fault.
Replacing wheels/tyres
This system requires specific equip -
ment (wheels, hubcaps, etc.).
Contact an approved dealer to find out
about accessories compatible with the
system and which may be purchased
from the brand’s accessory outlets: the
use of any other accessory could affect
the correct operation of the system.
Tyre repair products
Because the valves are specially de -
signed, use only products approved by
our Technical Department.
Display
Display 1 on the instrument panel in -
forms you of any tyre pressure faults
(flat tyre, punctured tyre, system fault,
etc.).
1

JauneNoirNoir texte
2.19
ENG_UD20370_1
Système de surveillance de pression des pneus (X81 - J81 - Renault)\
ENG_NU_932-3_X81ph3_Renault_2
TYRE PRESSURE MONITOR
“check tyre pressure”
A shaded wheel B indicates a deflated
tyre.
“Inflate tyres to motorway
pressure”
The tyre pressure is not suitable for the
speed of travel. Slow down or inflate
all four tyres to “motorway pressure”
(refer to the label located on the label
on the edge of the driver’s door).
“Wheel sensors missing”
One wheel A disappears, indicating
that the sensor on this wheel is missing
or faulty (e.g. if the emergency spare
wheel is fitted).
“Stop! Tyre puncture”
Replace the wheel B concerned or call
your approved dealer.
This message appears along with the
û warning light.
Operating faults
In certain conditions involving readjust-
ment of tyre pressures, the fault mes -
sage may continue to be displayed (for
approximately 1 hour and 45 minutes
after the vehicle has stopped).
A
B
Examples of messages which may appear on the display

2.22
ENG_UD20372_1
Système antipatinage : A.S.R. (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_2
TRAcTION cONTROL: ASR (2/2)
Disabling the function
In some situations (driving on very wet
ground: snow, mud, etc. or driving with
snow chains fitted), the system may
reduce the engine output to limit wheel -
spin. If this is not required, it is possible
to deactivate the function by pressing
switch 1.
The message “‘ESP deactivated” ap -
pears to inform you, accompanied by
warning light A.
Disabling the function also disables the
ESP function.
Correct this as soon as possible by
pressing switch 1 again.
Traction control is automatically reacti-
vated when the ignition is switched on.
Operating faults
If the system detects an operating fault,
the message “Check ESP” is displayed
on the instrument panel display along
with the
ú warning light and warn-
ing light A.
Consult an approved dealer.
If the warning light comes on accom -
panied by the “ESP deactivated” mes -
sage when the engine is started, turn
the steering wheel from lock to lock to
reinitialise the system.
1
A

JauneNoirNoir texte
2.27
ENG_UD1793_1
Régulateur-Limiteur de vitesse : fonction limiteur (X81 - Renault)
ENG_NU_932-3_X81ph3_Renault_2
cRUISE cONTROL - SPEED LIMITER: limiter function (continued)
Switching onPress switch 1 on the side showing
Ì.
The indicator light on the instrument
panel lights up and, depending on the
vehicle, the trip computer or the infor -
mation display enters “speed limiter”
mode.
Limiting the speedAt a constant speed (above about
18 mph (30 km/h)) and in the correct
gear (for vehicles with manual gear -
boxes), press switch 2 : the speed is
stored.
Driving
When a limit speed has been memo -
rised, if this speed is not reached the
vehicle behaves in a similar way to a
vehicle without the speed limiter func -
tion.
Once this speed is reached, no effort
on the accelerator pedal will allow
you to exceed the programmed speed
except in an emergency (refer to infor-
mation on “Exceeding the limit speed”).
The system is designed in such a
way that it is possible to detect a dif-
ference between the programmed
speed and the speed shown on the
instrument panel.
v arying the limit speed
The limit speed may be changed by
pressing repeatedly or holding down:
– button 2 to increase the speed,
– button 5 to decrease the speed.
1
2
5

2.30
ENG_UD1794_1
Régulateur-Limiteur de vitesse : fonction régulateur (X81 - Renau\
lt)
ENG_NU_932-3_X81ph3_Renault_2
Jaune NoirNoir texte
cRUISE cONTROL - SPEED LIMITER: cruise control function (continued)
Driving
Once a cruising speed is memorised
and the cruise control function is active,
you may lift your foot off the accelera -
tor pedal.
Important: you are never -
theless advised to keep
your feet close to the pedals
in order to react if neces -
sary.
The system is designed in such a
way that it is possible to detect a dif-
ference between the programmed
speed and the speed shown on the
instrument panel.
Switching on
Press switch 1 on the side showing
Í.
The indicator light in the instrument
panel lights up and, depending on the
vehicle, the trip computer or the infor -
mation display enters cruise control
mode.
Activating cruise control
At a steady speed (above 18 mph
(30 km/h)) and in the correct gear (for
vehicles with manual gearboxes), press
switch 2 or 5 : the function is activated
and the speed is stored.
1
2
5

2.34
ENG_UD20377_1
Aide au parking (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_2
Jaune NoirNoir texte
PARKING DISTANcE cONTROL (continued)
vehicles fitted with rear
parking distance control
Operation
Rear parking distance control is only
activated when reverse is selected.
Deactivating the system
Press switch 1 to deactivate the system.
The warning light in the switch comes
on to remind you that the system has
been deactivated: the “parking distance
control deactivated” message appears
on the instrument panel for around
10 seconds.
You can reactivate the system by
pressing the switch again: the warning
light will go out and “parking distance
control activated” message will be dis-
played on the instrument panel for ap-
proximately 10 seconds.
The system is automatically reactivated
after the ignition is switched off and the
engine restarted. You can deactivate the system for pro-
longed periods by pressing the switch
for longer than approximately three
seconds.
The warning light in the switch stays
on and the “parking distance control
deactivated” message appears on the
instrument panel for approximately
10 seconds.
Once deactivated, the system can
be reactivated by pressing the button
again for longer than approximately
three seconds. The warning light on the
switch will go out and the “parking dis-
tance control activated” message will
be displayed on the instrument panel
for approximately 10 seconds.
1
An impact to the underside of the vehicle (e.g.: striking a post, raised kerb
or other street furniture) may result in damage to the vehicle (e.g.: defor-
mation of an axle).
To avoid any risk of accident, have your vehicle checked by an approved
Dealer.
