2012 RENAULT CLIO SPORT TOURER key

1.16
ENG_UD19715_3
Verrouillage / Déverrouillage des portes (X85 - B85 - C85 - S85 - K85\
- Renault)
ENG_NU_853-8_BCSK85_Renault_1
Jaune NoirNoir texte
LOCKING/UNLOCKING THE DOORS (2/3)
Manual locking of each of the doors
With the door open, turn screw 6 using
key 4 and close the door again. This
means that the doors are then locked
from the outside.
The doors can only be opened from the
inside or outside of the vehicle using
the key for the front left-hand door.
Insert key
4 into the lock of the front
left-hand door and lock or unlock.
Use of emergency key
4 integrated
in the RENAULT card
Insert the end of emergency key 4 into
hole 5.
Move it upwards to remove cover A.
A
5446

JauneNoirNoir texte
1.17
ENG_UD19715_3
Verrouillage / Déverrouillage des portes (X85 - B85 - C85 - S85 - K85\
- Renault)
ENG_NU_853-8_BCSK85_Renault_1
Driver’s responsibility
Never leave your vehicle
with the key or RENAULT
card inside.
If you decide to keep the doors
locked whilst driving, remember that
it may be more difficult for those as-
sisting you to gain access to your
vehicle in the event of an emer -
gency.
To lock the vehicle leaving a door
open (e.g. when transporting some-
thing in the luggage compartment
which prevents it from closing),
or when the vehicle is located in a
zone where there is a high level of
electromagnetic radiation, or if the
key or RENAULT card fails: with the
ignition off, press switch 7 for more
than five seconds.
Doors and tailgate status
indicator
When the ignition is on, the indicator
light integrated in switch 7 informs you
of the status of the doors and tailgate:
– indicator light on, the doors and tail-
gate are locked;
– light off, the doors and tailgate are
unlocked.
When the ignition is off, the indicator
light remains lit and then goes out when
you lock the doors.
Using the door locking/unlocking in-
terior control.
With the ignition off and a front door
open, press switch 7 for more than five
seconds.
Make sure you have your key or
RENAULT card with you before leaving
your vehicle.
When the door is closed, all the doors
and the tailgate will be locked.
Unlocking from outside the vehicle is
only possible with the key, RENAULT
card or emergency key.
Locking/unlocking from the
inside: switch
7
This simultaneously controls the open -
ing elements (doors and tailgate) and
the fuel filler flap.
If a door is open or not properly closed,
the doors lock and then quickly unlock.

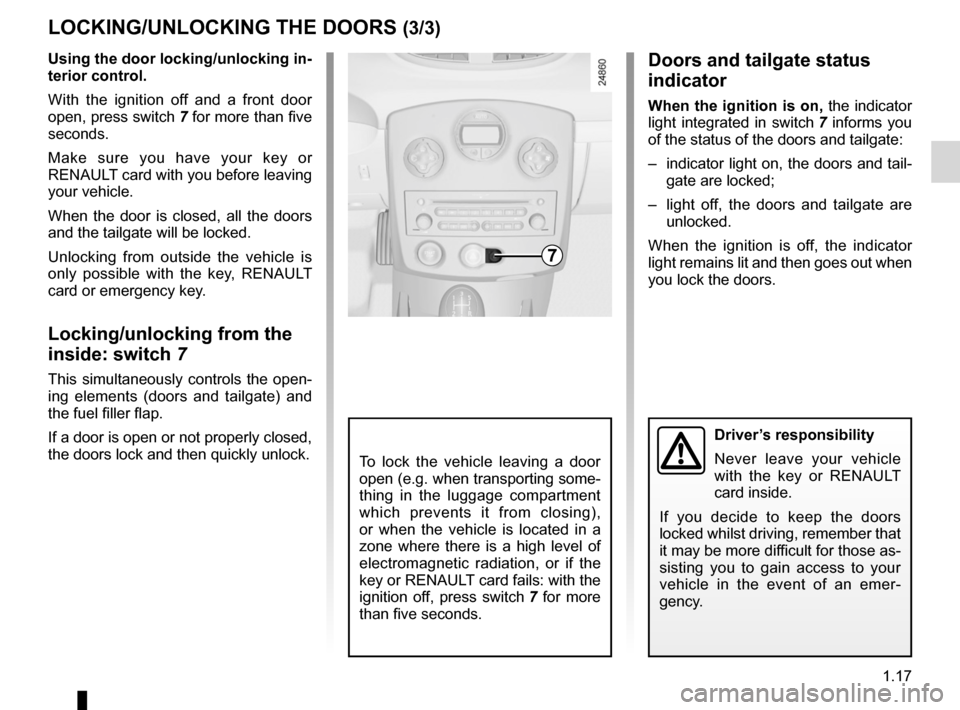

LOCKING/UNLOCKING THE DOORS (3/3)
7

engine immobiliser................................(up to the end of the DU)
engine immobiliser................................ (up to the end of the DU)
1.19
ENG_UD10518_1
Système antidémarrage (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1

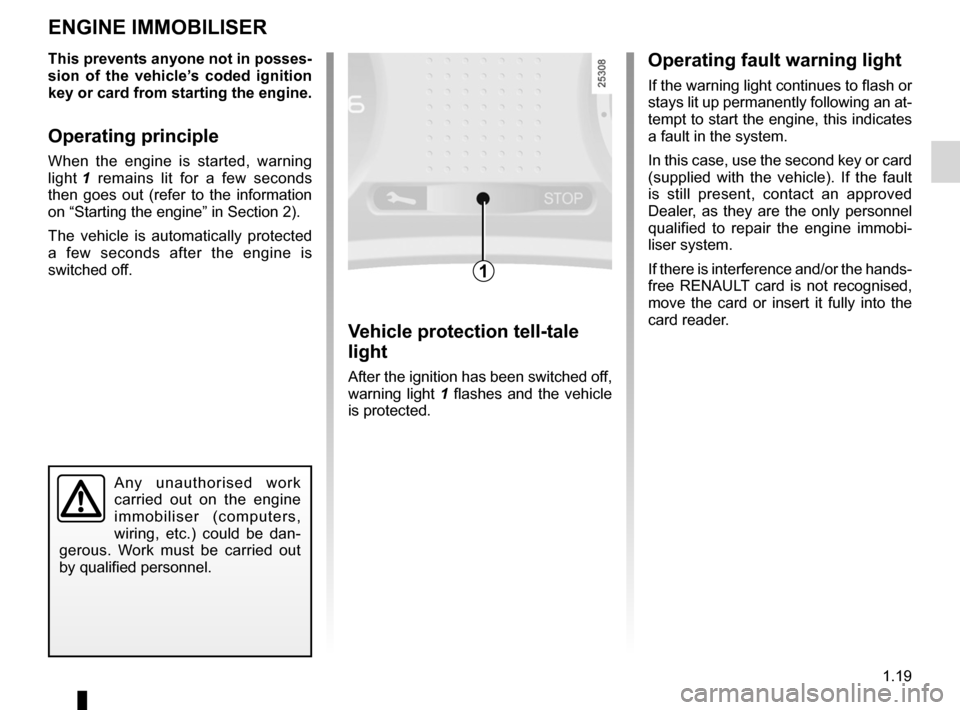

Engine immobiliser
Operating fault warning light
If the warning light continues to flash or
stays lit up permanently following an at-
tempt to start the engine, this indicates
a fault in the system.
In this case, use the second key or card
(supplied with the vehicle). If the fault
is still present, contact an approved
Dealer, as they are the only personnel
qualified to repair the engine immobi -
liser system.
If there is interference and/or the hands -
free RENAULT card is not recognised,
move the card or insert it fully into the
card reader.
Vehicle protection tell-tale
light
After the ignition has been switched off,
warning light 1 flashes and the vehicle
is protected.
This prevents anyone not in posses-
sion of the vehicle’s coded ignition
key or card from starting the engine.
Operating principle
When the engine is started, warning
light
1 remains lit for a few seconds
then goes out (refer to the information
on “Starting the engine” in Section 2).
The vehicle is automatically protected
a few seconds after the engine is
switched off.
ENGINE IMMOBILISER
1
Any unauthorised work
carried out on the engine
immobiliser (computers,
wiring, etc.) could be dan -
gerous. Work must be carried out
by qualified personnel.

JauneNoirNoir texte
1.53
ENG_UD19781_2
Poste de conduite direction à gauche (X85 - B85 - C85 - S85 - K85 - \
Renault)
ENG_NU_853-8_BCSK85_Renault_1
DRIVING POSITION: LEFT-HAND DRIVE (2/2)
1 Side air vent.
2 Stalk for:
– direction indicator lights;
– exterior lights;
– front fog lights;
– rear fog lights.
3 Instrument panel.
4 Driver ’s Airbag location, horn,
cruise control/speed limiter con -
trols.
5 – Radio remote control.
– Hands-free telephone inte -
grated control.
6 Stalk for:
– windscreen and rear screen
wash/wipe;
– trip computer and warning
system information readout.
7 Ignition switch (vehicle with key).
8 Centre air vents. 9 Warning lights for:
– driver’s seat belt warning light;
– deactivating the front passenger
airbag.
10 Display (depending on the vehicle)
of time, temperature, radio infor -
mation, navigation system infor -
mation, etc.
11 Heating or air conditioning con -
trols.
12 Passenger Airbag location.
13 Side air vent.
14 Glove box.
15 Location for radio, navigation
system, etc.
16 Central door locking switch.
17 RENAULT card reader (vehicle
with RENAULT card).
18 Hazard warning lights switch.
19 Gear lever.
20 Cruise control and speed limiter
control.
21 Cigar lighter.
22 Handbrake.
23 Location for a cup holder, ashtray,
etc.
24 Engine start or stop control (vehi -
cle with RENAULT card).
25 Parking distance control switch.
26 Fuse box.
27 Steering column height adjustment
control.
28 Controls for:
– traction control and ESP;
– headlight beam height remote
adjustment;
– instrument panel lighting rheo -
stat.
29 Bonnet release.
The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

JauneNoirNoir texte
1.55
ENG_UD19782_2
Poste de conduite direction à droite (X85 - B85 - C85 - S85 - K85 - \
Renault)
ENG_NU_853-8_BCSK85_Renault_1
DRIVING POSITION: RIGHT-HAND DRIVE (2/2)
1 Side air vent.
2 Passenger Airbag location.
3 Centre air vents.
4 Warning lights for:
– driver’s seat belt warning light;
– deactivating the front passenger
airbag.
5 Display (depending on the vehicle)
of time, temperature, radio infor -
mation, navigation system infor -
mation, etc.
6 Heating or air conditioning con -
trols.
7 Parking distance control switch.
8 Stalk for:
– direction indicator lights;
– exterior lights;
– front and rear fog lights.
9 Instrument panel.
10 Driver ’s Airbag location, horn,
cruise control/speed limiter con -
trols. 11 – Radio remote control.
– Hands-free telephone inte -
grated control.
12 Stalk for:
– windscreen and rear screen
wash/wipe;
– trip computer and warning
system information readout.
13 Side air vent.
14 Controls for:
– traction control and ESP;
– headlight beam height remote
adjustment;
– instrument panel lighting rheo -
stat.
15 Ignition switch (vehicle with key).
16 Steering column height adjustment
control.
17 Fuse box.
18 Central door locking switch.
19 RENAULT card reader (vehicle
with RENAULT card).
20 Gear lever.
21 Cigar lighter.
22 Handbrake.
23 Cruise control and speed limiter
control.
24 Location for a cup holder, ashtray,
etc.
25 Hazard warning lights switch.
26 Engine start or stop control (vehi -
cle with RENAULT card).
27 Location for radio, navigation
system, etc.
28 Glove box.
29 Bonnet release.
The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

1.64
ENG_UD24928_6
Ordinateur de bord : généralités (X85 - B85 - C85 - S85 - K85 \
- Renault)
ENG_NU_853-8_BCSK85_Renault_1
Jaune NoirNoir texte

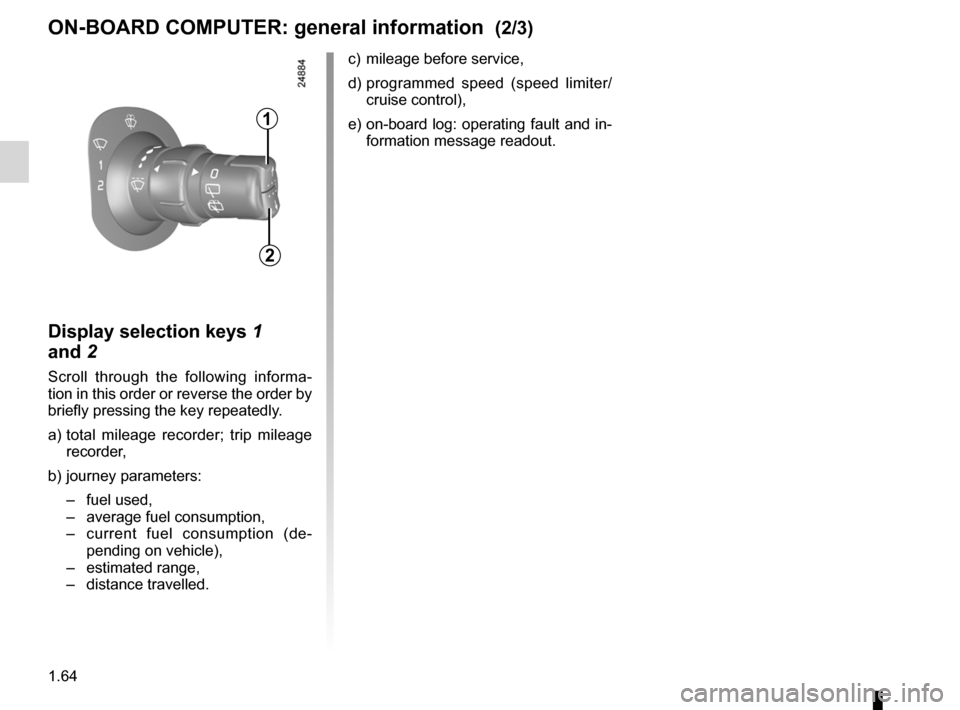

ON-BOARD COMPUTER: general information (2/3)
Display selection keys 1
and 2
Scroll through the following informa-
tion in this order or reverse the order by
briefly pressing the key repeatedly.
a) total mileage recorder; trip mileage
recorder,
b) journey parameters:
– fuel used,
– average fuel consumption,
– current fuel consumption (de -
pending on vehicle),
– estimated range,
– distance travelled. c)
mileage before service,
d) programmed speed (speed limiter/
cruise control),
e) on-board log: operating fault and in-
formation message readout.
1
2

JauneNoirNoir texte
1.65
ENG_UD24928_6
Ordinateur de bord : généralités (X85 - B85 - C85 - S85 - K85 \
- Renault)
ENG_NU_853-8_BCSK85_Renault_1

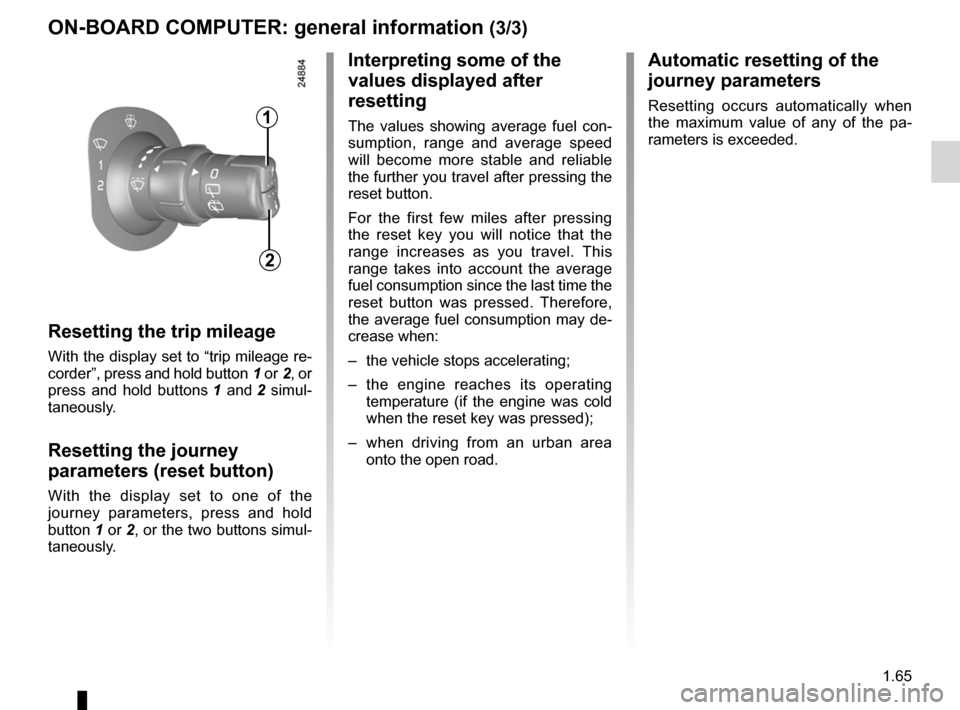

ON-BOARD COMPUTER: general information (3/3)
Resetting the trip mileage
With the display set to “trip mileage re-
corder”, press and hold button 1 or 2, or
press and hold buttons 1 and 2 simul -
taneously.
Resetting the journey
parameters (reset button)
With the display set to one of the
journey parameters, press and hold
button 1 or 2, or the two buttons simul-
taneously.
Interpreting some of the
values displayed after
resetting
The values showing average fuel con -
sumption, range and average speed
will become more stable and reliable
the further you travel after pressing the
reset button.
For the first few miles after pressing
the reset key you will notice that the
range increases as you travel. This
range takes into account the average
fuel consumption since the last time the
reset button was pressed. Therefore,
the average fuel consumption may de-
crease when:
– the vehicle stops accelerating;
– the engine reaches its operating
temperature (if the engine was cold
when the reset key was pressed);
– when driving from an urban area
onto the open road.
Automatic resetting of the
journey parameters
Resetting occurs automatically when
the maximum value of any of the pa -
rameters is exceeded.1
2

1.71
ENG_UD24930_1
Ordinateur de bord : messages d’anomalies de fonctionnement (X85 - \
B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1

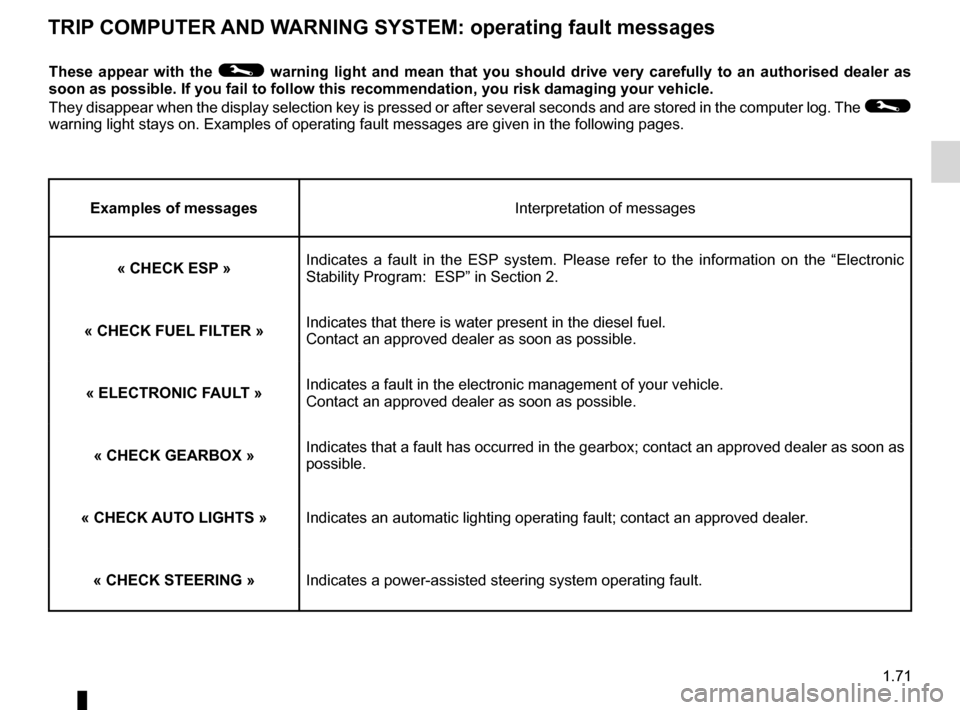

TRIP COMPUTER AND WARNING SYSTEM: operating fault messages
These appear with the © warning light and mean that you should drive very carefully to an authorised dealer as
soon as possible. If you fail to follow this recommendation, you risk da\
maging your vehicle.
They disappear when the display selection key is pressed or after several seconds and are stored in the computer log. The
©
warning light stays on. Examples of operating fault messages are given i\
n the following pages.
Examples of messages Interpretation of messages
« CHECK ESP »Indicates a fault in the ESP system. Please refer to the information on the “Electronic
Stability Program: ESP” in Section 2.
« CHECK FUEL FILTER » Indicates that there is water present in the diesel fuel.
Contact an approved dealer as soon as possible.
« ELECTRONIC FAULT » Indicates a fault in the electronic management of your vehicle.
Contact an approved dealer as soon as possible.
« CHECK GEARBOX »Indicates that a fault has occurred in the gearbox; contact an approved dealer as soon as
possible.
« CHECK AUTO LIGHTS »Indicates an automatic lighting operating fault; contact an approved dea\
ler.
« CHECK STEERING » Indicates a power-assisted steering system operating fault.
