2012 RENAULT CLIO SPORT TOURER key

2.1
ENG_UD27580_9
Sommaire 2 (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2
Section 2: Driving
(Advice on use relating to fuel economy and the environment)
Running in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.3
Starting/stopping the engine using the key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.4
Starting/stopping the engine using the RENAULT card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5
Special features of petrol versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.9
Special features of diesel versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.10
Special features of diesel versions fitted with a particle filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.11
Gear lever/Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.12
Advice: anti-pollution and fuel economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.13
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.16
Anti-lock braking system: ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . 2.17
Electronic Stability Programme: ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.19
Traction control: ASR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.21
Emergency brake assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.23
Speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.24
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.27
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . 2.31
Parking distance control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.34

engine start/stop button ........................ (up to the end of the DU)
ignition switch ....................................... (up to the end of the DU)
starting the engine ................................ (up to the end of the DU)
starting the engine ................................ (up to the end of the DU)
switching on the vehicle ignition ........... (up to the end of the DU)
2.3
ENG_UD26548_3
Contacteur de démarrage : véhicule avec clé / télécommand\
e à radiofréquence (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2
Ignition switch
Special note on vehicles with an au-
tomatic gearbox
Before starting, move the lever to posi-
tion N or P.
Note:
If a gear other than neutral is displayed,
it flashes; starting is not possible unless
you depress the brake pedal, while
holding the key in the starting position.Ignition position M.
The ignition is switched on:
Start position D
If the engine fails to start at the first
attempt, the key must be turned back
before the starter can be activated
again. Release the key as soon as the
engine starts.
Note: on diesel versions, several sec -
onds may pass between turning the
key and the engine starting to allow for
engine preheating.
Off position S (steering lock
applied)
To lock: remove the key and turn the
steering wheel until the steering column
locks.
To unlock: turn the key and the steering
wheel slightly.
“Accessories” position A
When the ignition is switched off, any
accessories (radio, etc.) will continue to
function.
IGNITION SWITCH: vehicle with key

stopping the engine .............................. (up to the end of the DU)
engine start/stop button ........................ (up to the end of the DU)
driving ................................................... (up to the end of the DU)
starting the engine ................................ (up to the end of the DU)
2.4
ENG_UD10550_1
Démarrage / arrêt moteur : véhicule avec clé / télécom\
mande à radiofréquence (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2
Starting/stopping the engine using the key
Stopping the engine
With the engine idling, turn the key
back to the Stop position.ÉDiesel injection
Cold or warm engine
– Turn the key to the “Start” posi -
tion D without depressing the
accelerator pedal .
– Release the key as soon as the
engine starts.
Note: several seconds may pass be -
tween turning the key and the engine
starting to allow for engine preheating.Starting the engine
Petrol injection
Engine warm or cold
– Run the starter without depress-
ing the accelerator.
– Release the key as soon as the
engine starts.
STARTING/STOPPING THE ENGINE: vehicle with key
Driver’s responsibility
Never leave your vehi-
cle with the key inside and
never leave a child (or a
pet) unsupervised, even for a short
while.
There is a risk that they could start
the engine or operate electrical
equipment (electric windows etc.)
and trap part of their body (neck,
arms, hands, etc.).
Risk of serious injury.
Never switch off the ignition before
the vehicle has stopped completely.
Once the engine has stopped, the
brake servo, power-assisted steer -
ing, etc., and the passive safety de-
vices such as the airbags and pre -
tensioners will no longer operate.

3.18
ENG_UD14664_3
Lève-vitres électriques / Lève-vitres impulsionnels / Lève-v\
itres manuels (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3
Jaune NoirNoir texte

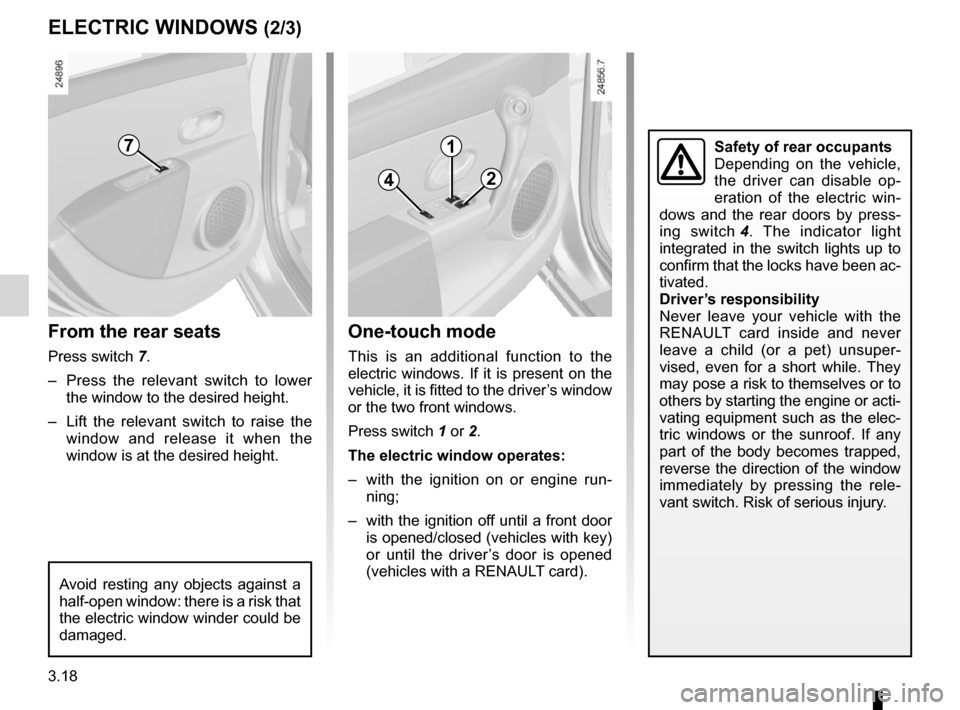

eLeCtriC WinDOWs (2/3)
From the rear seats
Press switch 7.
– Press the relevant switch to lower
the window to the desired height.
– Lift the relevant switch to raise the
window and release it when the
window is at the desired height.
One-touch mode
This is an additional function to the
electric windows. If it is present on the
vehicle, it is fitted to the driver’s window
or the two front windows.
Press switch 1 or 2.
the electric window operates:
– with the ignition on or engine run -
ning;
– with the ignition off until a front door
is opened/closed (vehicles with key)
or until the driver’s door is opened
(vehicles with a RENAULT card).
7
4
1
2
safety of rear occupants
Depending on the vehicle,
the driver can disable op -
eration of the electric win -
dows and the rear doors by press -
ing switch 4 . The indicator light
integrated in the switch lights up to
confirm that the locks have been ac-
tivated.
Driver’s responsibility
Never leave your vehicle with the
RENAULT card inside and never
leave a child (or a pet) unsuper -
vised, even for a short while. They
may pose a risk to themselves or to
others by starting the engine or acti-
vating equipment such as the elec-
tric windows or the sunroof. If any
part of the body becomes trapped,
reverse the direction of the window
immediately by pressing the rele -
vant switch. Risk of serious injury.
Avoid resting any objects against a
half-open window: there is a risk that
the electric window winder could be
damaged.

battery (remote control) ........................ (up to the end of the DU)
5.32
ENG_UD12595_2
Télécommandes à radiofréquence : piles (X85 - B85 - C85 - S\
85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
Remote controls A and B
Replacing the battery
Remove screw 1 , open the case at
slot 2 using a coin, and replace the bat-
tery 3 , observing the type and polarity
shown on the back of the cover. Note:
It is not advisable to touch the
electrical circuit in the key cover when
replacing the battery.
Radio frequency remote control: battery
The batteries are available from ap-
proved Dealers, and their service
life approximately two years.
Check that there is no dye on the
battery: risk of an incorrect electri -
cal contact.
RADIO FREQUENCY REMOTE CONTROL: battery
2
1
3
AAB
3
Do not dispose of your used
batteries in the countryside.
Give them to an organisa-
tion that collects and recy -
cles used batteries.
When refitting, ensure that the cover
is correctly clipped on and the screw
tightened.

RENAULT cardbattery ............................................. (up to the end of the DU)
RENAULT card battery .........................(up to the end of the DU)
5.33
ENG_UD19814_3
Carte Renault : pile (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_5

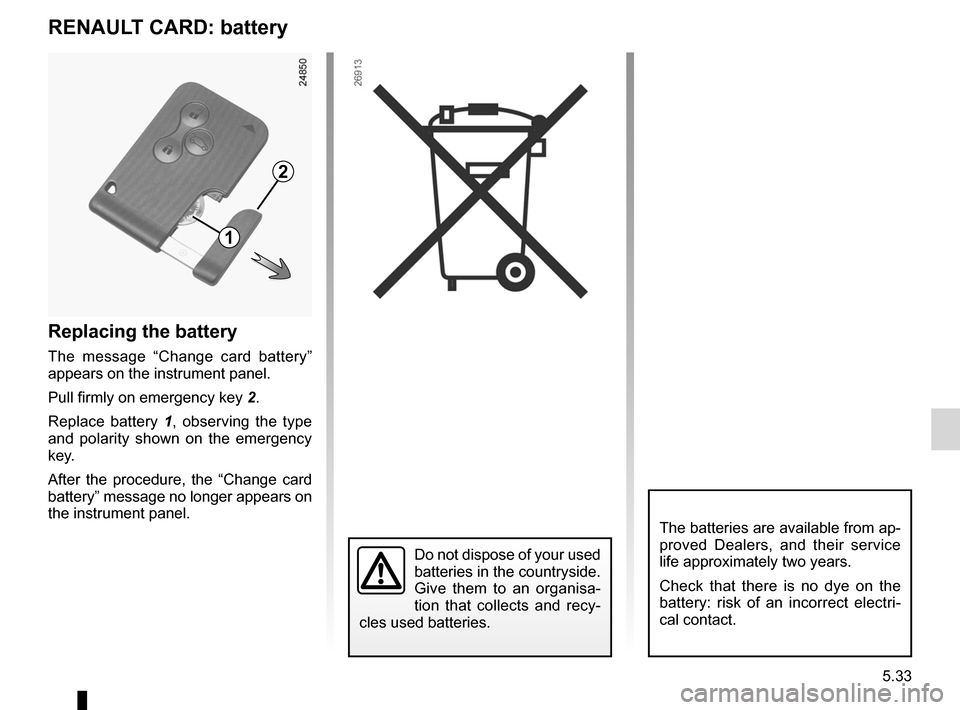

RENAULT card: battery
Do not dispose of your used
batteries in the countryside.
Give them to an organisa -
tion that collects and recy -
cles used batteries.
Replacing the battery
The message “Change card battery”
appears on the instrument panel.
Pull firmly on emergency key 2.
Replace battery 1, observing the type
and polarity shown on the emergency
key.
After the procedure, the “Change card
battery” message no longer appears on
the instrument panel.
RENAULT CARD: battery
1
2
The batteries are available from ap-
proved Dealers, and their service
life approximately two years.
Check that there is no dye on the
battery: risk of an incorrect electri -
cal contact.

towing hitch........................................... (up to the end of the DU)
towing breakdown ...................................... (up to the end of the DU)
5.38
ENG_UD27405_4
Remorquage : dépannage (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
Jaune NoirNoir texte
Insert the key in the ignition switch, or
the card in the reader, to unlock the
steering wheel and use the signalling
lights (brake lights, hazard warning
lights, etc.). The towed vehicle’s lights
must be switched on at night.
The speed specified by current legis -
lation for towing must always be ob -
served. If your vehicle is the towing
vehicle, do not exceed the maximum
towing weight for your vehicle (refer
to the information on “Weights” in
Section 6).
Only use:– at the rear, towing point 4 (depend-
ing on the vehicle);
– at the front, towing hitch 3 (never
the drive shafts).
These towing points may only be used
for towing: never use them for lifting the
vehicle directly or indirectly.Access to towing points
Unclip by pulling towards you and lift
cover 1 or 5 (depending on the vehicle).
Tighten towing hitch 2 fully: as much
as possible by hand at first, then finish
tightening it using the wheelbrace or,
depending on the vehicle, the lever.
Use only the towing eye 2 and the
wheelbrace located under the lug -
gage compartment carpet in the tool kit
(please refer to the information under
“Tool kit” in Section 5).
Towing
TOWING: breakdown (1/3)
3
1
2
1
5
2
4
1

JauneNoirNoir texte
5.39
ENG_UD27405_4
Remorquage : dépannage (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
Towing a vehicle with an
automatic gearbox
With the engine switched off: the
transmission is no longer lubricated. It
is preferable to tow this type of vehi -
cle on a trailer or tow it with the front
wheels off the ground.
Under exceptional circumstances,
you may tow the vehicle with all four
wheels on the ground, only going
forward, with the gear lever in the
Neutral position, and for a distance
not exceeding 30 miles (50 km).
If the lever is stuck in P,
even though you are de -
pressing the brake pedal,
the lever can be released
manually.
To do this, unclip the upper section
of the cover at the base of the lever.
Press simultaneously on the mark
on the gaiter and the unlocking
button on the lever.
– Use a rigid towing bar.
If a rope or cable is used
(where the law allows this),
the vehicle being towed
must be able to brake.
– A vehicle must not be towed if it is
not fit to be driven.
– Avoid accelerating or braking
suddenly when towing, as this
may result in damage being
caused to the vehicle.
– When towing a vehicle, it is ad -
visable not to exceed 15 mph
(25 km/h).
– Do not push the vehicle if the
steering column is locked.
Towing procedure
Before any towing, check that the steer-
ing column is not locked.
If it is locked, insert the RENAULT card
into the reader and press the Start/Stop
button for five seconds without press-
ing on the pedals. The steering column
unlocks and the vehicle accessories
functions are supplied.
Leave the card in the reader while
towing.
Press the Start/Stop button twice in
succession once towing is finished (risk
of running down the battery).
TOWING: breakdown (2/3)
Do not leave the tools unse-
cured inside the vehicle as
they may come loose under
braking.
W h e n t h e e n g i n e i s
stopped, steering and brak-
ing assistance are not op -
erational.
Do not remove the key from
the ignition switch or the
card from the reader during
towing.
