2012 RENAULT CLIO display

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
3.15
ENG_UD19787_3
Air conditionné automatique (X85 - B85 - C85 - S85 - K85 - Renault)\
ENG_NU_853-7_BCSK85_Renault_3
Prolonged use of the air recirculation
mode may cause the windows to mist
up or lead to odours, as the air is not
renewed.
We therefore advise you to return to
normal mode (external air) by pressing
button 14 again as soon as the air recir-
culation function is no longer required,
or return to automatic recirculation by
pressing the AUTO button.air recirculation mode
Pressing button 14 activates air recir -
culation (the symbol lights up on the
display).
During recirculation, air is taken from
the passenger compartment and is re-
cycled, with no air being taken from out-
side the vehicle.
Air recirculation allows the external at-
mosphere to be cut off (when driving in
polluted areas, etc.).
aUt OMatiC CLiMate COntrOL (8/8)
14

Downloaded from www.Manualslib.com manuals search engine maintenance:mechanical ...................................... (up to the end of the DU)
engine oil level ...................................... (up to the end of the DU)
engine oil .............................................. (up to the end of the DU)
4.4
ENG_UD22490_3
Niveau huile moteur : généralités (X85 - B85 - C85 - S85 - K85\
- Renault)
ENG_NU_853-7_BCSK85_Renault_4
Jaune NoirNoir texte
Variant 1 Variant 2Interpretation of messages
25302Message 1
“Oil level OK”
OIL LEVEL
OOOOOOO
The message “oil” is
displayed, alternating with dashes No display
Message 2
“Adjust oil level”
If the level is at minimum: depending
on the vehicle, the message “top up oil
level” or “oil” appears on the display, al-
ternating with dashes and the
©
warning light on the instrument panel
comes on: message 2.
It is vital to top up the oil as soon as
possible.
Engine oil level: general information
The display only warns the
driver if the oil level is at the
minimum level. It does not
inform the driver that the oil
level has exceeded the maximum
level as this can only be measured
using a dipstick.
Minimum oil level warning on instru-
ment panel
When the ignition is switched on, if the
level is above the minimum level, the
message “oil ok” or “oil level correct” is
shown on the display for approximately
15 seconds.
For more information, press the trip
computer readout button: the message
“oil level” will be shown on the display
with squares which are replaced by
dashes when the level drops.
To advance to trip computer reading,
press the button again.
It is normal for an engine to use oil for
lubrication and cooling of moving parts
and it is normal to top up the level be-
tween oil changes.
However, contact your approved
Dealer if more than 0.5 litres is being
consumed every 600 miles (1,000 km)
after the running in period.
Check the oil level at regular inter
-
vals and before any long journey
to avoid the risk of damaging your
engine.
Reading the oil level
The oil level should be read with the ve-
hicle on level ground, after the engine
has been switched off for some time.
The dipstick must be used to read
the exact oil level and make sure
that the maximum level has not been
exceeded (risk of engine damage).
Refer to the following pages.
The instrument panel display only
alerts the driver when the oil level is at
its minimum.
ENGINE OIL LEVEL: general information (1/2)

Downloaded from www.Manualslib.com manuals search engine maintenance:interior trim ...................................... (up to the end of the DU)
interior trim maintenance ................................... (up to the end of the DU)
4.15
ENG_UD21919_7
Entretien des garnitures intérieures (X35 - X45 - X65 - J77 - X81 - \
J81 - X85 - X91 - B91 - K91 - D91 - X83 - X61 - X77 ph2 - X95 - B95 - D9\
5 - K95 - J95 - R95 - L38 -
ENG_NU_853-7_BCSK85_Renault_4

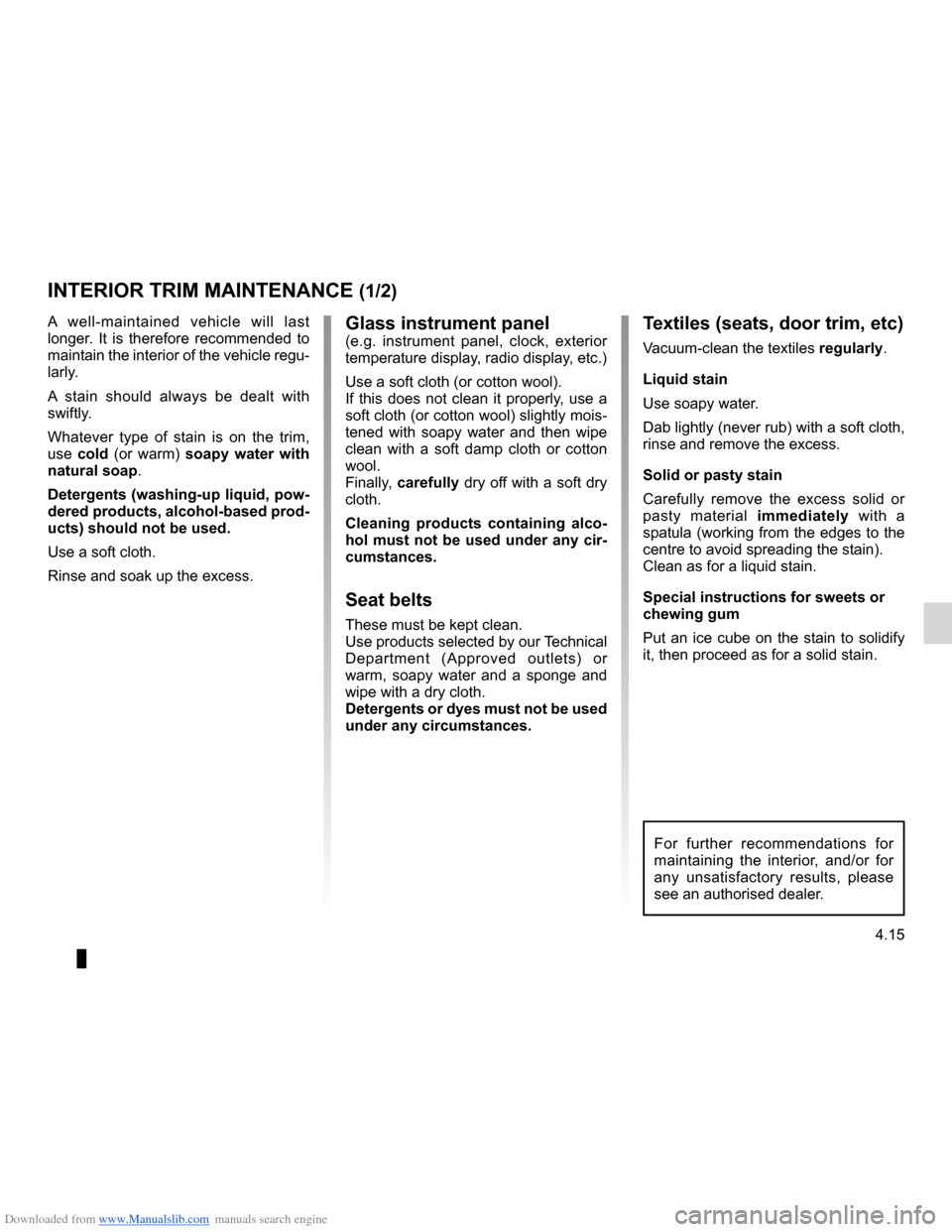

Interior trim maintenance
Glass instrument panel(e.g. instrument panel, clock, exterior
temperature display, radio display, etc.)
Use a soft cloth (or cotton wool).
If this does not clean it properly, use a
soft cloth (or cotton wool) slightly mois-
tened with soapy water and then wipe
clean with a soft damp cloth or cotton
wool.
Finally, carefully dry off with a soft dry
cloth.
Cleaning products containing alco -
hol must not be used under any cir-
cumstances.
Seat belts
These must be kept clean.
Use products selected by our Technical
Department (Approved outlets) or
warm, soapy water and a sponge and
wipe with a dry cloth.
Detergents or dyes must not be used
under any circumstances.
INTERIOR TRIM MAINTENANCE (1/2)
Textiles (seats, door trim, etc)
Vacuum-clean the textiles regularly.
Liquid stain
Use soapy water.
Dab lightly (never rub) with a soft cloth,
rinse and remove the excess.
Solid or pasty stain
Carefully remove the excess solid or
pasty material immediately with a
spatula (working from the edges to the
centre to avoid spreading the stain).
Clean as for a liquid stain.
Special instructions for sweets or
chewing gum
Put an ice cube on the stain to solidify
it, then proceed as for a solid stain.
A well-maintained vehicle will last
longer. It is therefore recommended to
maintain the interior of the vehicle regu-
larly.
A stain should always be dealt with
swiftly.
Whatever type of stain is on the trim,
use
cold (or warm) soapy water with
natural soap.
Detergents (washing-up liquid, pow -
dered products, alcohol-based prod-
ucts) should not be used.
Use a soft cloth.
Rinse and soak up the excess.
For further recommendations for
maintaining the interior, and/or for
any unsatisfactory results, please
see an authorised dealer.
