The duration of lighting varies, depending on the context:
- when the ignition is off, approximately ten minutes,
- in energy economy mode, approximately thirty seconds,
- when the engine is running, no limit.
STORAGE BOX
This has areas for storing a box of spare bulbs, a fi rst aid kit, the
temporary puncture repair kit, a warning triangle, the removable ball of
the towbar system...
BOOT LAMPS
Your vehicle is fi tted with two boot lamps; one in the right-hand boot
side trim and a second in the centre under the rear shelf.
They come on automatically when the boot is opened and switch off
automatically when the boot is closed.
They cannot be deactivated manually.
A second warning triangle can be stored in the boot lid trim. It also contains the vehicle's handbook pack.
For access to it:
)
raise the fl oor using the strap,
)
secure it in the vertical position behind the stops, located on the sides of the boot.
Page 95 of 336
4/
VISIBILITY
DAYTIME RUNNING LAMPS
Daytime lighting, compulsory in certain countries, which comes on
automatically when the engine is started providing better visibility of the
vehicle by other road users.
In countries in which it is imposed by regulations:
- by default, this function is activated and cannot be deactivated,
- the dipped beam headlamps come on, associated with the
sidelamps and the number plate lamps.
For other countries where the vehicle is sold, this function is assured
by specifi c lamps. The lighting control stalk should be in position "0"
or
"AUTO"
.
This function can be activated or deactivated via the vehicle
confi guration menu.
Deactivation of the daytime running lamps is effective after
operation of the lighting control stalk or after the next engine
start; activation is immediate.
LED LAMPS
They come on when the engine is started.
Depending on the destination country, they are used for:
- daytime running lamps * in day mode and sidelamps in night mode
(they are brighter when daytime running lamps),
or
- sidelamps in day and night mode.
Where LED lamps are fi tted, the fi lament bulbs for the daytime running
lamps / sidelamps in the front lamp units are not used.
* function that can be set in the vehicle confi guration menu.
Page 98 of 336
96
MANUAL ADJUSTMENT OF
HALOGEN HEADLAMPSA
UTOMATIC ADJUSTMENT OF
XENON HEADLAMPS
To avoid dazzling other road users, the height of the halogen bulb
headlamps must be adjusted according to the load in the vehicle.
0.
1 or 2 people in the front seats.
-.
3 people.
1.
4 people.
-.
Intermediate setting.
2.
4 people + maximum authorised loads.
-.
Intermediate setting.
3.
Driver + maximum authorised loads. In order to avoid causing a nuisance to other road users, this system
corrects the height of the xenon headlamp beams automatically and
when stationary, in relation to the load in the vehicle.
If a malfunction occurs, this warning lamp is displayed on the
instrument panel, accompanied by an audible signal and a
message in the screen.
The system then places your headlamps in the lowest position.
Initial setting is position "0". Do not touch the xenon headlamp bulbs.
Contact a PEUGEOT dealer or a qualifi ed workshop.
Travelling abroad
If using your vehicle in a country that drives on the other side of
the road, the headlamps must be adjusted to avoid dazzling on-
coming drivers.
Contact a PEUGEOT dealer or a qualifi ed workshop.
Page 175 of 336
8/
PRACTICAL INFORMATION

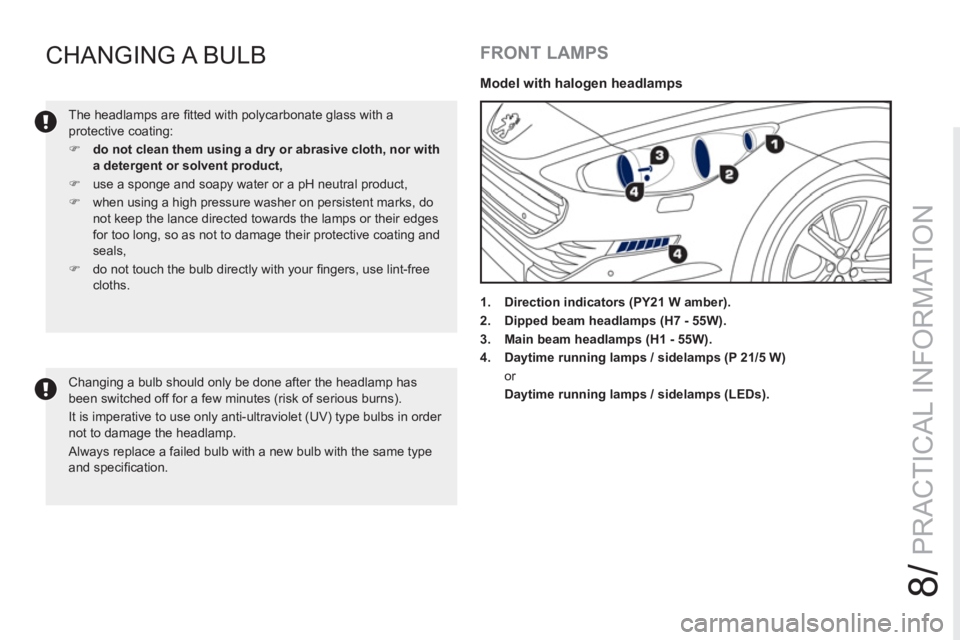

CHANGING A BULB
The headlamps are fi tted with polycarbonate glass with a
protective coating:
)
do not clean them using a dry or abrasive cloth, nor with
a detergent or solvent product,
)
use a sponge and soapy water or a pH neutral product,
)
when using a high pressure washer on persistent marks, do
not keep the lance directed towards the lamps or their edges
for too long, so as not to damage their protective coating and
seals,
)
do not touch the bulb directly with your fi ngers, use lint-free
cloths.
Changing a bulb should only be done after the headlamp has
been switched off for a few minutes (risk of serious burns).
It is imperative to use only anti-ultraviolet (UV) type bulbs in order
not to damage the headlamp.
Always replace a failed bulb with a new bulb with the same type
and specifi cation.
FRONT LAMPS
Model with halogen headlamps
1.
Direction indicators (PY21 W amber).
2.
Dipped beam headlamps (H7 - 55W).
3.
Main beam headlamps (H1 - 55W).
4.
Daytime running lamps / sidelamps (P 21/5 W)
or
Daytime running lamps / sidelamps (LEDs).
Page 176 of 336
174
1.
Direction indicators (PY21W SV silver).
2.
Directional dipped / main beam headlamps (D1S-35W).
3.
Additional main beam headlamps (H1-55W).
4.
Daytime running lamps / sidelamps (P21/5W)
or
Daytime running lamps / sidelamps (LEDs).

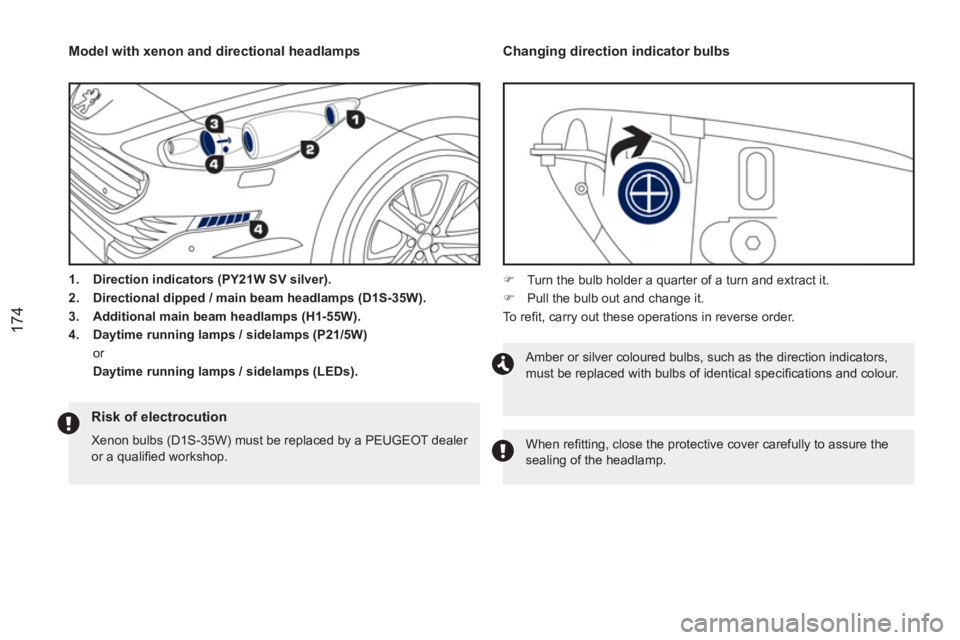

Model with xenon and directional headlamps
Risk of electrocution
Xenon bulbs (D1S-35W) must be replaced by a PEUGEOT dealer
or a qualifi ed workshop.
Changing direction indicator bulbs
)
Turn the bulb holder a quarter of a turn and extract it.
)
Pull the bulb out and change it.
To refi t, carry out these operations in reverse order.
Amber or silver coloured bulbs, such as the direction indicators,
must be replaced with bulbs of identical specifi cations and colour.
When refi tting, close the protective cover carefully to assure the
sealing of the headlamp.
Page 177 of 336
8/
PRACTICAL INFORMATION

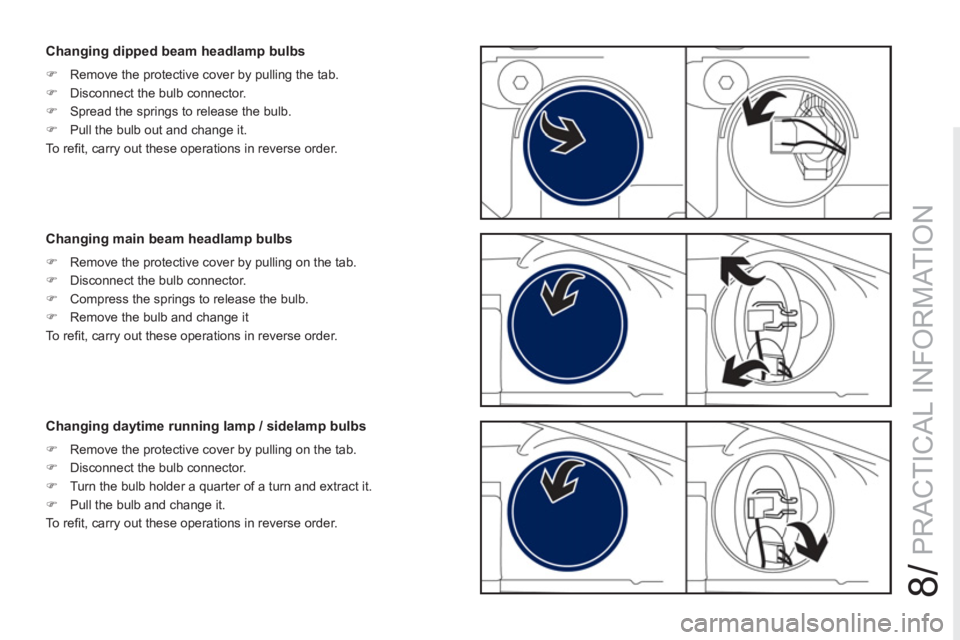

Changing dipped beam headlamp bulbs
)
Remove the protective cover by pulling the tab.
)
Disconnect the bulb connector.
)
Spread the springs to release the bulb.
)
Pull the bulb out and change it.
To refi t, carry out these operations in reverse order.
Changing main beam headlamp bulbs
)
Remove the protective cover by pulling on the tab.
)
Disconnect the bulb connector.
)
Compress the springs to release the bulb.
)
Remove the bulb and change it
To refi t, carry out these operations in reverse order.
Changing daytime running lamp / sidelamp bulbs
)
Remove the protective cover by pulling on the tab.
)
Disconnect the bulb connector.
)
Turn the bulb holder a quarter of a turn and extract it.
)
Pull the bulb and change it.
To refi t, carry out these operations in reverse order.
Page 178 of 336
176

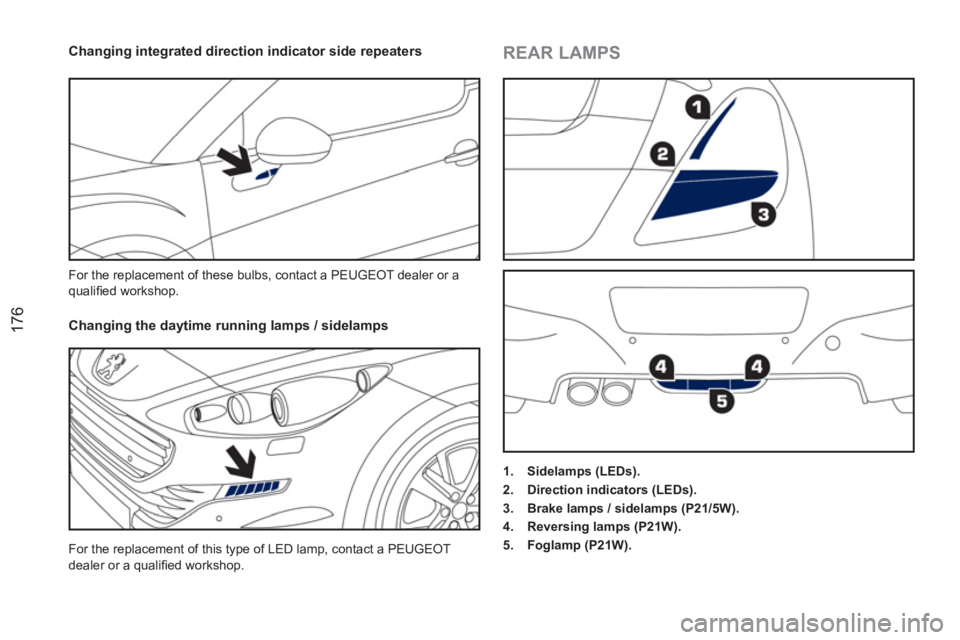

Changing integrated direction indicator side repeaters
Changing the daytime running lamps / sidelamps
REAR LAMPS
1.
Sidelamps (LEDs).
2.
Direction indicators (LEDs).
3.
Brake lamps / sidelamps (P21/5W).
4.
Reversing lamps (P21W).
5.
Foglamp (P21W).
For the replacement of this type of LED lamp, contact a PEUGEOT
dealer or a qualifi ed workshop. For the replacement of these bulbs, contact a PEUGEOT dealer or a
qualifi ed workshop.
