2012 PEUGEOT RCZ bulb

8/
PRACTICAL INFORMATION

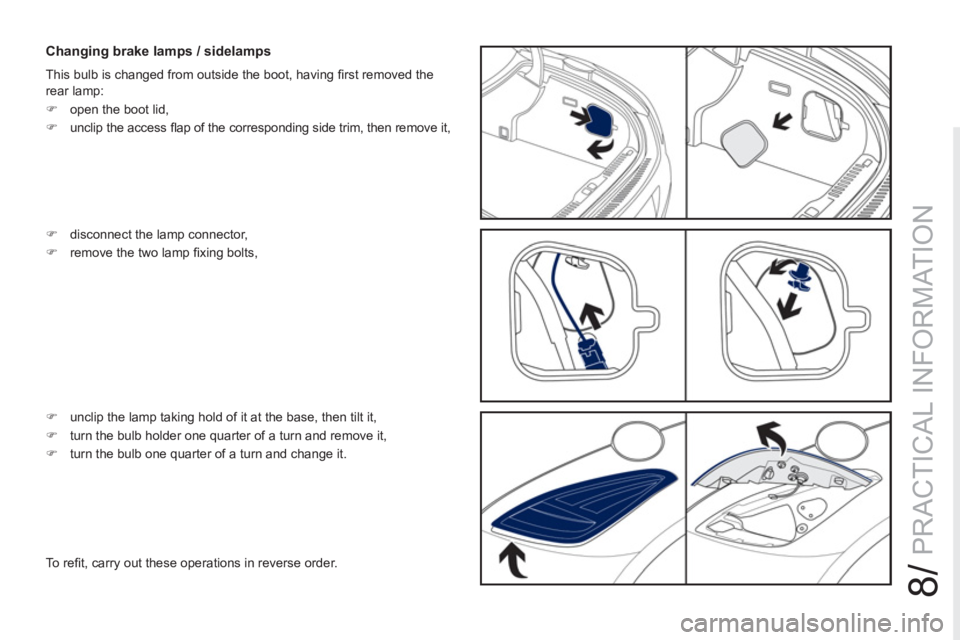

Changing brake lamps / sidelamps

This bulb is changed from outside the boot, having fi rst removed the
rear lamp:


)
open the boot lid,

)
unclip the access fl ap of the corresponding side trim, then remove it,

)
unclip the lamp taking hold of it at the base, then tilt it,

)
turn the bulb holder one quarter of a turn and remove it,

)
turn the bulb one quarter of a turn and change it.
To refi t, carry out these operations in reverse order.
)
disconnect the lamp connector,

)
remove the two lamp fi xing bolts,

178

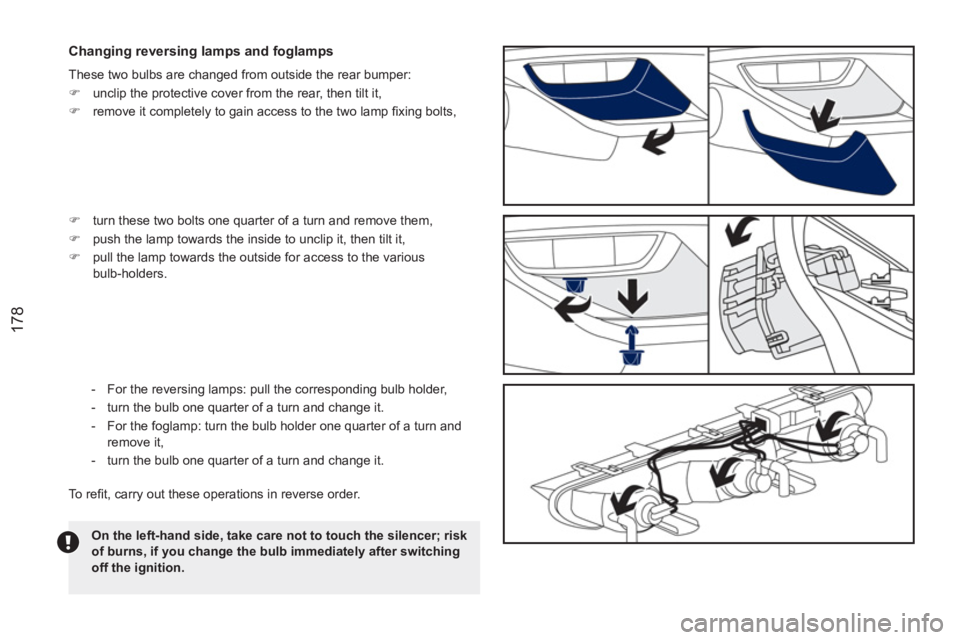

Changing reversing lamps and foglamps

These two bulbs are changed from outside the rear bumper:


)
unclip the protective cover from the rear, then tilt it,

)
remove it completely to gain access to the two lamp fi xing bolts,

On the left-hand side, take care not to touch the silencer; risk
of burns, if you change the bulb immediately after switching
off the ignition.


)
turn these two bolts one quarter of a turn and remove them,

)
push the lamp towards the inside to unclip it, then tilt it,

)
pull the lamp towards the outside for access to the various
bulb-holders.


- For the reversing lamps: pull the corresponding bulb holder,

- turn the bulb one quarter of a turn and change it.


- For the foglamp: turn the bulb holder one quarter of a turn and
remove it,

- turn the bulb one quarter of a turn and change it.

To refi t, carry out these operations in reverse order.

8/
PRACTICAL INFORMATION

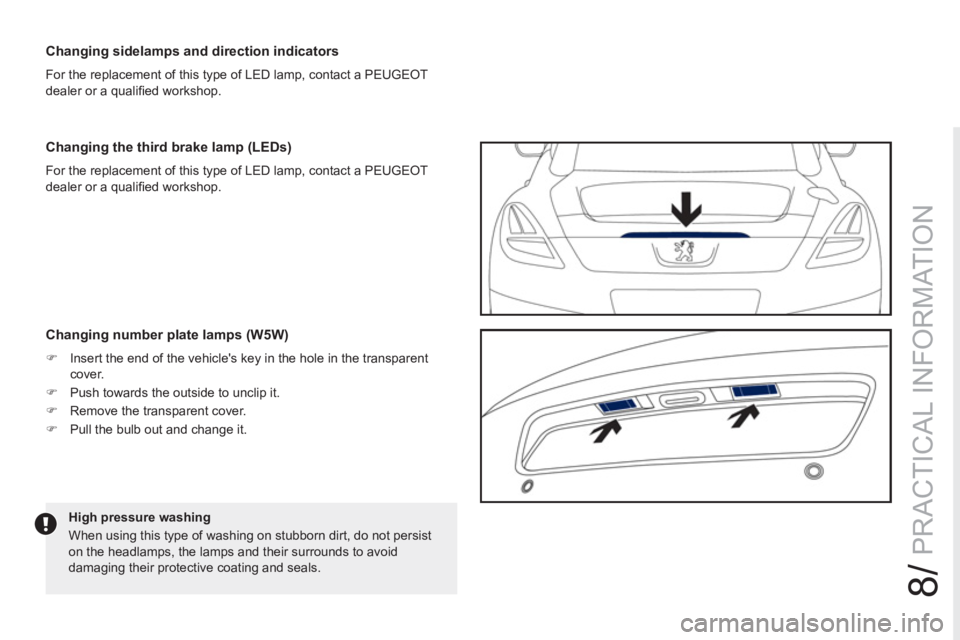

Changing sidelamps and direction indicators

For the replacement of this type of LED lamp, contact a PEUGEOT
dealer or a qualifi ed workshop.

High pressure washing

When using this type of washing on stubborn dirt, do not persist
on the headlamps, the lamps and their surrounds to avoid
damaging their protective coating and seals.


Changing number plate lamps (W5W)



)
Insert the end of the vehicle's key in the hole in the transparent
cover.

)
Push towards the outside to unclip it.

)
Remove the transparent cover.

)
Pull the bulb out and change it.



Changing the third brake lamp (LEDs)

For the replacement of this type of LED lamp, contact a PEUGEOT
dealer or a qualifi ed workshop.

194

Installation of radio communication transmitters

Before installing any after-market radio communication transmitter,
you can contact a PEUGEOT dealer for the specifi cation of
transmitters which can be fi tted (frequency, maximum power,
aerial position, specifi c installation requirements), in line with the
Vehicle Electromagnetic Compatibility Directive (2004/104/EC).



Depending on the legislation in force in the country, it may be
compulsory to have a high visibility safety vest, warning triangle
and spare bulbs and fuses available in the vehicle.
The fi tting of electrical equipment or accessories which are not
recommended by PEUGEOT may result in a failure of your
vehicle's electronic system and excessive electrical consumption.
Please note this precaution. You are advised to contact a
PEUGEOT representative to be shown the range of recommended
equipment and accessories.



"Multimedia":

portable navigation systems, Wi-Fi on Board...
By going to a PEUGEOT dealer you can also obtain products for
cleaning and maintenance (exterior and interior) - including ecological
products from the "TECHNATURE" range, topping up products
(screenwash, ...), touch-up pens and aerosols for the exact colour of
your vehicle, refi lls (cartridge for temporary tyre repair kit...), ...

ALPHABETICAL INDEX
ALPHABETICAL INDEX
ABS and EBFD systems.................. 105
Accessories ..................................... 193
Accessory socket, 12V ...................... 84
Access to rear seats .......................... 73
Active bonnet ................................... 108
Adjusting headlamps ......................... 96
Adjusting the steering wheel.............. 69
Airbags .............................................114
Airbags, front ............................ 115, 118
Airbags, lateral.......................... 116, 118
Air conditioning .................................. 20
Air conditioning, digital................. 75, 76
Air fi lter ............................................ 154
Air fl ow ............................................... 74
Air vents............................................. 74
Alarm ................................................. 56
Alert / warning log .............................. 46
Alloy wheels..................................... 192
Anti-lock braking system
(ABS) ............................................ 105
Anti-pinch........................................... 59
Anti-theft .......................................... 127
Arches, aluminium ........................... 191
Armrest, front ..................................... 85
Ashtray .............................................. 84
Assistance call ......................... 103, 202
Audible warning ............................... 103
Audio/video sockets......................... 232
Audio streaming (Bluetooth) .... 288, 315
Audio systems ................................. 205
Automatic illumination
of headlamps ............................ 91, 94Automatic operation of hazard
warning lamps ............................... 102
Automatic rain sensitive
windscreen wipers .................. 98, 100
Auxiliary
sockets ........... 86, 232, 289, 310, 312A/ A/
Battery ..................................... 154, 171
Battery, charging .............................. 172
Battery, remote control ................ 54, 55
Bluetooth
(hands-free) ........... 233-235, 272, 313
Bluetooth
(telephone) ............. 233-235, 272, 313
Bodywork ......................................... 191
Bonnet ............................................. 148
Boot ................................................... 64
Boot (opening) ................................... 52
Boot lamp .......................................... 89
Brake discs ...................................... 155
Brake lamps..................................... 176
Brake pads ...................................... 155
Braking assistance system .............. 105B/
Central locking ............................. 53, 62
Changing a bulb ....................... 173-179
Changing a fuse ....................... 180-186
Changing a wheel ..................... 163-172
Changing a wiper blade ........... 101, 169
Changing the remote
control battery ................................. 54
Changing the time ........... 38, 45, 47, 49
CHECK .............................................. 37
Checking levels ....................... 152, 153
Checking
the engine oil level .................. 33, 152
Checking tyre pressures
(using the kit) ................................ 162
Checks...................................... 149-155
Children ..................... 113, 115, 119-126
Child seats ............................... 121-126
Cleaning (advice)............................. 191
Clock.................................................. 38
Closing the boot........................... 53, 64
Closing the doors......................... 53, 61
Colour screen,
retractable ........................... 46, 48, 50
Connectors,
audio ............... 86, 232, 289, 310, 312
Coolant level .............................. 33, 153
Coolant temperature
indicator .......................................... 33
Courtesy mirror .................................. 83
Cruise control .................................. 139
Cup holder ......................................... 82
Customising stickers........................ 191C/
Capacity, fuel tank ........................... 146
CD MP3 ........................... 229, 285, 309C/

ALPHABETICAL INDEX
ALPHABETICAL INDEX
Navigation................................ 216, 255
Number plate lamps ........................ 176N/
Menu, main ...................................... 306
Mirror, rear view ................................. 72
Mirrors, door ................................ 70, 71
Mountings for ISOFIX seats ............ 124
MP3 CD ........................... 229, 285, 309
Music media players ........ 228, 284, 309M/Indicators, direction ......................... 102
Infl ating accessories
(using the kit) ................................ 162
Infl ating tyres ............................. 20, 200
Inputs for audio
system ............ 86, 232, 289, 310, 312
Instrument panel lighting ................... 38
Instrument panels .................. 22, 24, 37
Instrument panel screen .................... 22
Intelligent Traction Control ............... 106
Interior fi nish .................................... 191
Interior fi ttings .................................... 82
Interior lamp....................................... 79
Interior mood lighting ......................... 80
ISOFIX ............................................. 124
ISOFIX child seats .................... 125-126
ISOFIX mountings ........................... 124I/Labels, identifi cation ........................ 200
Lamps, front............................. 173, 191
Lamps, rear ............................. 176, 191
Lamps, warning and indicator....... 26-32
LED daytime running lamps .............. 93
Level, brake fl uid ............................. 152
Level, headlamp wash ............... 99, 153
Level, power steering fl uid ............... 152
Levels and checks .................... 149-155
Lighting, guide-me home ............. 94, 95
Lighting, interior ........................... 79, 80
Lighting bulbs (replacement) ........... 173
Lighting control stalk .......................... 90
Lighting dimmer ................................. 38
Lighting on reminder .......................... 92
Loading .............................................. 20
Load reduction mode ....................... 170
Locating your vehicle ......................... 54
Locking from the inside...................... 62
Locking the boot ................................ 64
Low fuel level ............................. 28, 146L/
JACK socket .............. 86, 289, 310, 312
Jukebox (copy) ................................ 230
Jukebox (playing) ............................ 231J/
Main beam ......................... 90, 174, 175
Maintenance ...................................... 20
Maintenance (advice) ...................... 191
Map reading lamps ............................ 79
Markings, identifi cation .................... 200
Mat..................................................... 87M/
Oil fi lter ............................................ 154
Oil level ...................................... 33, 152
Opening the bonnet ......................... 148
Opening the boot ......................... 52, 64
Opening the doors ................. 52, 61, 63
Opening the fuel fi ller fl ap ................ 146
Opening the retractable screen ......... 50
Operation indicator lamps............. 26-32O/
Keeping
children safe ........... 113, 115, 119-126
Key in ignition warning..................... 127
Key with remote control ........ 52-55, 127K/Paint colour code ............................. 200
Paintwork, matt ................................ 192
Parking brake .......................... 128, 155
Parking sensors, front...................... 143P/

324
ALPHABETICAL INDEX
Screen menu map ........... 238, 292, 316
Screenwash, front.............................. 99
Screenwash fl uid level ............... 99, 153
Seat adjustment........................... 65, 66
Seat belts............................ 29, 111, 113
Seats, electric .............................. 66, 68
Seats, rear ......................................... 73
Serial number, vehicle ..................... 200
Service indicator ................................ 35
Servicing ............................................ 20
Setting the clock .............. 38, 45, 47, 49
Short-cut menus ...................... 212, 254
Sidelamps ..................... 90, 93, 174-176
Side repeater ................................... 175
SIM card .......................................... 236
Snow chains .................................... 168
Spare wheel..................................... 166
Speed limiter.................................... 136
Speedometer ..................................... 22
Spoiler, active .................................. 109
Starting the vehicle .................. 127, 132
Steering mounted controls,
audio ............................. 210, 252, 305
Stickers, customising ....................... 191
Stopping the vehicle ................ 127, 132
Storage .................................. 82, 85, 88
Storing driving positions .................... 68
Stowing rings ..................................... 88
Sun visor............................................ 83
Synchronising the remote control ...... 54
Synthesiser, voice............................ 266
System, navigation .................. 216, 255S/
Radio ............................... 227, 281, 307
RCA sockets .................... 232, 289, 312
Rear foglamp ............................. 92, 176
Rear screen (demisting) .................... 78
Recharging the battery .................... 172
Reduction of electrical load ............. 170R/
Regeneration of the particle
emissions fi lter .............................. 154
Reinitialising the electric windows ..... 60
Reinitialising the remote control ........ 54
Remote control ............................. 52-55
Removing a wheel ........................... 164
Removing the mat ............................. 87
Repair kit, puncture ......................... 156
Replacing bulbs ............................... 173
Replacing fuses ............................... 180
Replacing the air fi lter ...................... 154
Replacing the oil fi lter ...................... 154
Replacing the passenger
compartment fi lter ......................... 154
Replacing wiper blades ........... 101, 169
Resetting the service indicator .......... 36
Resetting the trip recorder ................. 37
Rev counter ....................................... 22
Reversing lamps .............................. 176
Risk areas (update) ................. 223, 261
Routine checks ........................ 154, 155
Running out of fuel (Diesel) ............. 151R/Parking sensors, rear ...................... 142
Particle emission fi lter.............. 153, 154
Passenger compartment fi lter.......... 154
PEUGEOT call button ...................... 203
PEUGEOT CONNECT
ASSISTANCE ............................... 202
Peugeot Connect Media Navigation
(NG4 3D) .................... 24, 39, 48, 205
Peugeot Connect Navigation
(RT6) ....................................... 46, 249
PEUGEOT CONNECT SOS .... 202, 203
Peugeot Connect Sound
(RD5) ...................................... 42, 303
Peugeot Connect USB ...................... 86
PEUGEOT services ......................... 203
PIN code .......................................... 236
Player, CD MP3 ............... 279, 285, 309
POIs (updating) ....................... 223, 261
Port, USB................... 86, 232, 289, 310
Priming the fuel system ................... 151
Protecting children ..... 113, 115, 119-126
Puncture .......................................... 156P/
Screen, colour .........................211, 238
Screen, colour and mapping.... 253, 292
Screen, monochrome .............. 306, 316
Screen, multifunction (with audio
equipment) .................... 42, 46, 48, 50
Screen-wash reservoir..................... 153S/

326
EXTERIOR


Remote control key 52-55


- opening / closing

- unlocking / partial opening of the boot

- anti-theft protection

- battery
Alarm 56-58

Boot 64
Temporary puncture repair kit 156-162
Changing a wheel 163-167
Active spoiler 109-110

Parking sensors 142-144
Towbar 189-190
Towing 187-188

Changing bulbs 176-179


- rear lamps

- 3rd brake lamp

- number plate lamps

Accessories 193-194

Fuel tank 146-147
Wipers 98-101
Changing a wiper blade 169
Door mirrors 70-71

Active bonnet 108
Lighting controls 90-95
Directional lighting 97
Headlamp height adjustment 96
Changing bulbs 173-176


- front lamps

- direction indicator repeaters


Doors 61-63


- opening / closing

- central locking

- anti-attack security

- emergency locking
Cleaning, maintenance 191-192
Alarm 56-58
Electric windows 59-60

Braking assistance 105
Trajectory control 106-107

Tyre under-infl ation detection 103-104
Tyre pressures 162, 200
Snow chains 168
