2012 PEUGEOT RCZ rear view mirror

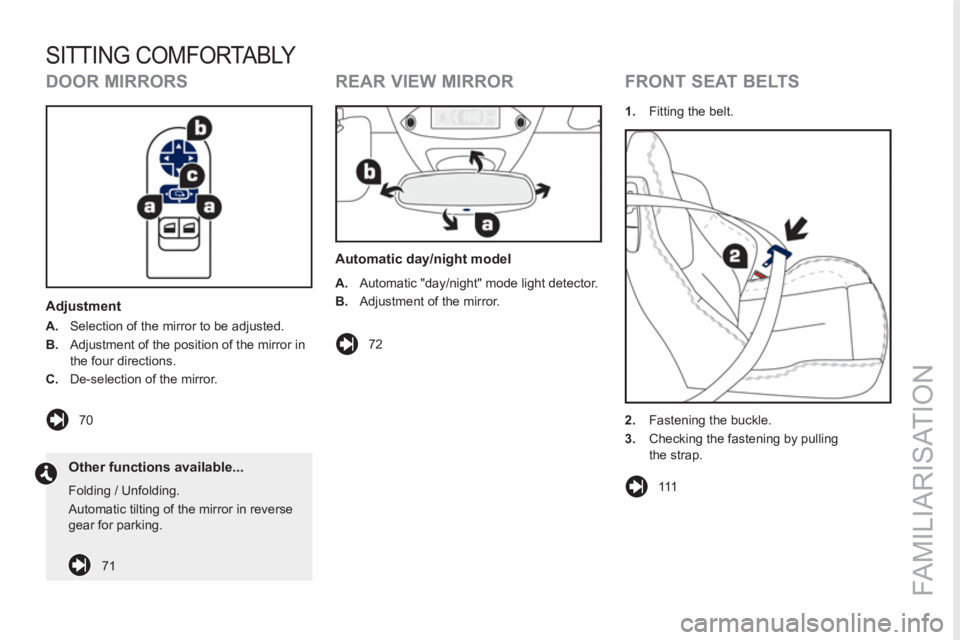

FAMILIARISATION
SITTING COMFORTABLY

DOOR MIRRORS


Adjustment



A.
Selection of the mirror to be adjusted.

B.
Adjustment of the position of the mirror in
the four directions.

C.
De-selection of the mirror.


Other functions available...

Folding / Unfolding.
Automatic tilting of the mirror in reverse
gear for parking. 70
71



REAR VIEW MIRROR

72

111


Automatic day/night model



A.
Automatic "day/night" mode light detector.

B.
Adjustment of the mirror.

2.
Fastening the buckle.

3.
Checking the fastening by pulling
the strap.


FRONT SEAT BELTS



1.
Fitting the belt.

3/
EASE OF USE and COMFORT


Folding



)
From outside: lock the vehicle using the remote control or the key.

)
From inside: with the ignition on, pull the control A
in the central
position rearwards.
If the mirrors are folded using control A
, they will not unfold when
the vehicle is unlocked. Pull again on control A
.


Unfolding



)
From outside: unlock the vehicle using the remote control or
the key.

)
From inside: with the ignition on, pull the control A
in the central
position rearwards.
The folding and unfolding of the door mirrors using the remote
control can be deactivated by a PEUGEOT dealer or a qualifi ed
workshop.
Never fold or unfold the electric folding mirrors manually.









Automatic tilting in reverse gear

System which provides a view of the ground during parking
manoeuvres in reverse gear.


Programming



)
With the engine running, engage reverse gear.

)
Select and adjust the left-hand and right-hand mirrors in
succession.
The adjustment is stored immediately.


Switching on



)
With the engine running, engage reverse gear.

)
Move control A
to the right or to the left to select the corresponding
mirror.
The glass of the mirror selected tilts downwards, in accordance with its
programming.


Switching off



)
Exit reverse gear and wait ten seconds.
or


)
Return control A
to the central position.
The mirror glass returns to its initial position.
The mirror glass also returns to its initial position:


- if the speed exceeds 6 mph (10 km/h),

- if the engine is switched off.

72





REAR VIEW MIRROR

Adjustable mirror providing a central rearward view.
Equipped with an anti-dazzle system, which darkens the mirror glass
and reduces the nuisance to the driver caused by the sun, headlamps
from other vehicles...

As a safety measure, the mirrors should be adjusted to reduce
the "blind spot".









Automatic day/night model


In order to ensure optimum visibility during your manoeuvres, the
mirror lightens automatically when reverse gear is engaged.

By means of a sensor, which measures the light from the rear of the
vehicle, this system automatically and progressively changes between
the day and night uses.
Due to the curve of the rear screen, the image in the rear view
mirror may be slightly distorted; take this into account when
manoeuvring the vehicle.

4/
VISIBILITY

AUTOMATIC "GUIDE-ME-HOME" LIGHTING

Operating fault

In the event of a malfunction of the sunshine sensor, the
lighting comes on, this warning lamp is displayed in the
instrument panel and/or a message appears in the screen,
accompanied by an audible signal.
Contact a PEUGEOT dealer or a qualifi ed workshop.
In fog or snow, the sunshine sensor may detect suffi cient light. In
this case, the lighting will not come on automatically.
Do not cover the sunshine sensor, coupled with the rain sensor
and located in the centre of the windscreen behind the rear view
mirror; the associated functions would no longer be controlled.

When the automatic illumination of headlamps function is activated,
under low ambient light the dipped beams headlamps come on
automatically when the ignition is switched off.


Programming

Activation or deactivation, as well as the duration of the guide-me-home
lighting, is set in the vehicle confi guration menu.

100












AUTOMATIC RAIN SENSITIVE WINDSCREEN
WIPERS
The windscreen wipers operate automatically, without any action on the
part of the driver, if rain is detected (sensor behind the rear view mirror),
adapting their speed to the intensity of the rainfall.

Activation

This is controlled manually by the driver by pushing the stalk
downwards to the "AUTO"
position.
It is accompanied by a message in the screen.


Switching off

This is controlled manually by the driver by moving the stalk upwards
then returning it to position "0"
.
It is accompanied by a message in the screen.


Operating fault

If an automatic wiping malfunction occurs, the wipers will operate in
intermittent mode.
Have it checked by a PEUGEOT dealer or a qualifi ed workshop. The automatic rain sensitive wipers must be reactivated if the
ignition has been off for more than one minute, by pushing the
stalk downwards.
Do not cover the rain sensor, linked with the sunshine sensor
and located in the centre of the windscreen behind the rear view
mirror.
Switch off the automatic rain sensitive wipers when using an
automatic car wash.
In winter, to avoid damaging the wiper blades, it is advisable
to wait until the windscreen is completely clear of ice before
activating the automatic rain sensitive wipers.

182

DASHBOARD FUSES

The fusebox is placed in the lower part of the dashboard (left hand side,
inside the glove box). It consists of two boxes.

Access to the fuses



)
refer to the paragraph "Access to tools".



Fuse tables



Fuse N°



Rating


Functions



F1



-

Not used.


F2



30 A

Locking and deadlocking earth.


F3



5 A

Airbags, active bonnet and pretensioners
control unit.


F4



10 A

Clutch pedal switch, electrochrome
rear view mirror, automatic gearbox,
switching and protection unit.


F5



30 A

One-touch electric windows, folding
mirrors supply.


F6



-

Not used.


F7



5 A

Front and rear courtesy lamps, map
reading lamps, sun visor lighting, glove
box lighting.


F8



20 A

Audio equipment, audio/telephone,
multifunction screen, tyre under-infl ation
detection, clock.


F9



30 A

12 V socket.


F10



15 A

Steering mounted controls.


F11



15 A

Low current ignition switch.


F12



15 A

Instrument panel, air conditioning,
driver's seat memory unit, rain /
sunshine sensor, airbags.

Box 1

ALPHABETICAL INDEX
ALPHABETICAL INDEX
Navigation................................ 216, 255
Number plate lamps ........................ 176N/
Menu, main ...................................... 306
Mirror, rear view ................................. 72
Mirrors, door ................................ 70, 71
Mountings for ISOFIX seats ............ 124
MP3 CD ........................... 229, 285, 309
Music media players ........ 228, 284, 309M/Indicators, direction ......................... 102
Infl ating accessories
(using the kit) ................................ 162
Infl ating tyres ............................. 20, 200
Inputs for audio
system ............ 86, 232, 289, 310, 312
Instrument panel lighting ................... 38
Instrument panels .................. 22, 24, 37
Instrument panel screen .................... 22
Intelligent Traction Control ............... 106
Interior fi nish .................................... 191
Interior fi ttings .................................... 82
Interior lamp....................................... 79
Interior mood lighting ......................... 80
ISOFIX ............................................. 124
ISOFIX child seats .................... 125-126
ISOFIX mountings ........................... 124I/Labels, identifi cation ........................ 200
Lamps, front............................. 173, 191
Lamps, rear ............................. 176, 191
Lamps, warning and indicator....... 26-32
LED daytime running lamps .............. 93
Level, brake fl uid ............................. 152
Level, headlamp wash ............... 99, 153
Level, power steering fl uid ............... 152
Levels and checks .................... 149-155
Lighting, guide-me home ............. 94, 95
Lighting, interior ........................... 79, 80
Lighting bulbs (replacement) ........... 173
Lighting control stalk .......................... 90
Lighting dimmer ................................. 38
Lighting on reminder .......................... 92
Loading .............................................. 20
Load reduction mode ....................... 170
Locating your vehicle ......................... 54
Locking from the inside...................... 62
Locking the boot ................................ 64
Low fuel level ............................. 28, 146L/
JACK socket .............. 86, 289, 310, 312
Jukebox (copy) ................................ 230
Jukebox (playing) ............................ 231J/
Main beam ......................... 90, 174, 175
Maintenance ...................................... 20
Maintenance (advice) ...................... 191
Map reading lamps ............................ 79
Markings, identifi cation .................... 200
Mat..................................................... 87M/
Oil fi lter ............................................ 154
Oil level ...................................... 33, 152
Opening the bonnet ......................... 148
Opening the boot ......................... 52, 64
Opening the doors ................. 52, 61, 63
Opening the fuel fi ller fl ap ................ 146
Opening the retractable screen ......... 50
Operation indicator lamps............. 26-32O/
Keeping
children safe ........... 113, 115, 119-126
Key in ignition warning..................... 127
Key with remote control ........ 52-55, 127K/Paint colour code ............................. 200
Paintwork, matt ................................ 192
Parking brake .......................... 128, 155
Parking sensors, front...................... 143P/

328
INSTRUMENTS AND CONTROLS


Instrument panels 22-25
Warning lamps 26-32
Indicators 33-36
Buttons 37-38


- Check / service indicator / trip distance
recorder

- lighting dimmer


Wiper controls 98-101
Trip computer 39-41

Speed limiter 136-138
Cruise control 139-141

Steering wheel adjustment 69
Horn 103

Door mirrors 70-71
Electric windows 59-60

Dashboard fuses 180-183
Opening the bonnet 148
Courtesy lamps 79
Seat belt / passenger's front airbag
warning lamps display 111-112
Rear view mirror 72
Sun visor 83
Multifunction screens 42-51
Clock 38
Hazard warning lamps 102
Switch panel 15

Lighting controls 90-95
Headlamp height adjustment 96

Peugeot Connect Media Navigation
(NG4 3D) 205-248
Peugeot Connect Navigation (RT6) 249-302
Peugeot Connect Sound (RD5) 303-320
Emergency or assistance call 103, 201

Ventilation 74-75
Digital air conditioning 76-78

Automatic gearbox 132-135
Manual gearbox 130
Gear shift indicator 131
Hill start assist 129
Parking brake 128
Active spoiler control 109-110
