Page 10 of 164
8
Familiarisation
INTERIOR
Instruments and controls
1.
Fusebox.
2.
Programmable heating.
3.
Cruise control switch.
4.
MODE, configuration and
personalisation / lighting dimmer /
headlamp beam height adjustment.
5.
Lighting and direction indicator control
stalk.
6.
Instrument panel with screen.
7.
Wiper / screenwash / trip computer
control stalk.
8.
Ignition switch.
9.
Driver's airbag / horn.
Page 119 of 164
11
7
7
CHECK
S
Under the bonnet
DIESEL ENGINES
1.
Windscreen/headlamp wash reservoir.
2.
Fusebox.
3.
Coolant reservoir.
4.
Brake and clutch fluid reservoir.
5.
Air filter.
6.
Dipstick.
a
: 2.2 Iitre 100
b
: 2.2 Iitre 120
c
: 3.0 Iitre 160
7.
Engine oil filler cap.
a
: 2.2 Iitre 100
b
: 2.2 Iitre 120
c
: 3.0 Iitre 160
8.
Power steering reservoir. Battery connections:
+ Positive metal point.
- Negative metal point (earth).
UNDER THE BONNET
Page 137 of 164
135
QUICK HELP
8

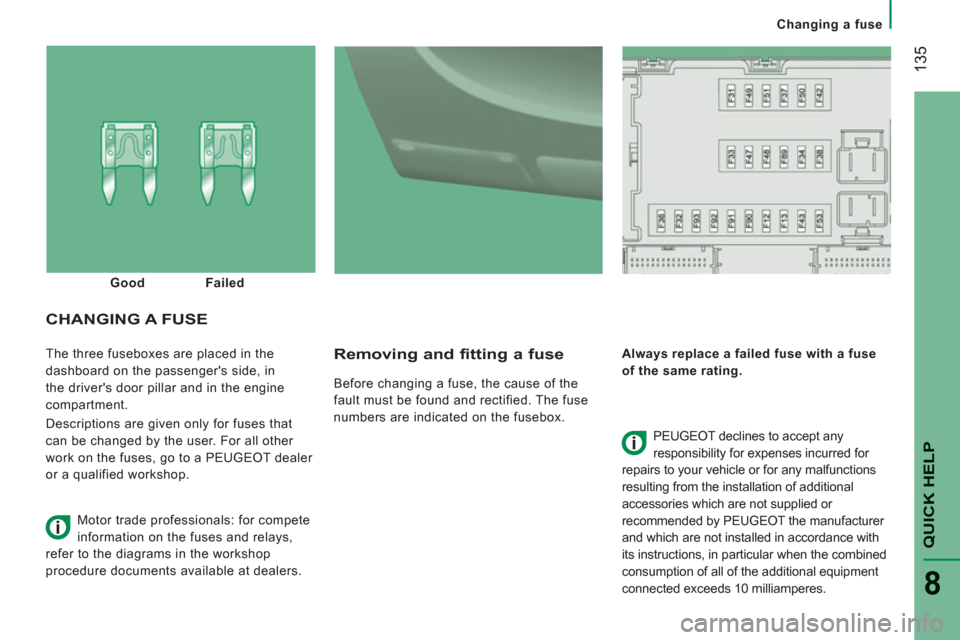

Changing a fuse
The three fuseboxes are placed in the
dashboard on the passenger's side, in
the driver's door pillar and in the engine
compartment.
Descriptions are given only for fuses that
can be changed by the user. For all other
work on the fuses, go to a PEUGEOT dealer
or a qualified workshop.
Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fusebox.
Always replace a failed fuse with a fuse
of the same rating.
CHANGING A FUSE
PEUGEOT declines to accept any
responsibility for expenses incurred for
repairs to your vehicle or for any malfunctions
resulting from the installation of additional
accessories which are not supplied or
recommended by PEUGEOT the manufacturer
and which are not installed in accordance with
its instructions, in particular when the combined
consumption of all of the additional equipment
connected exceeds 10 milliamperes.
Good
Failed
Motor trade professionals: for compete
information on the fuses and relays,
refer to the diagrams in the workshop
procedure documents available at dealers.
Page 138 of 164
136
Changing a fuse

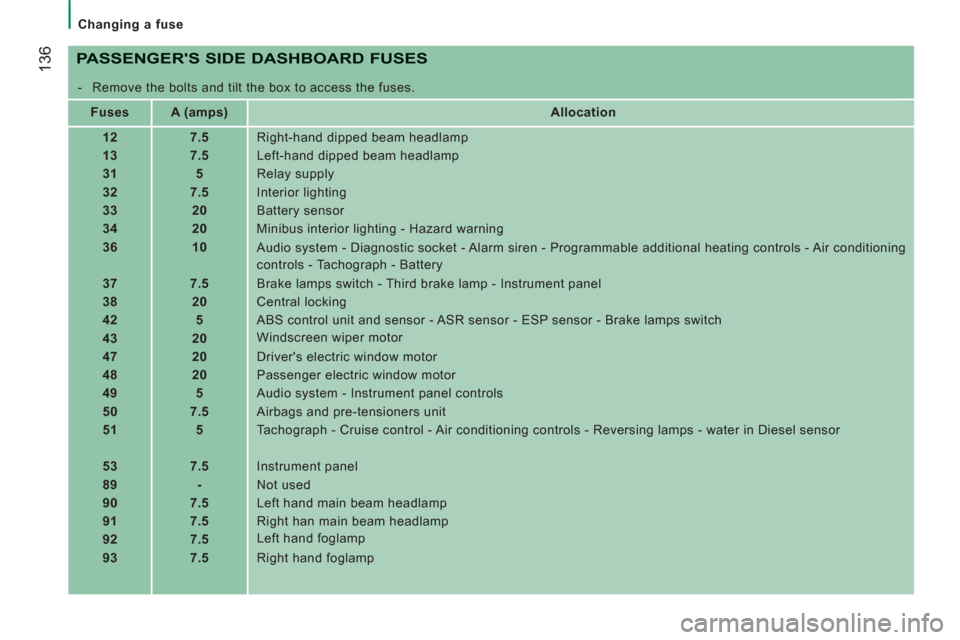

PASSENGER'S SIDE DASHBOARD FUSES
- Remove the bolts and tilt the box to access the fuses.
Fuses
A (amps)
Allocation
12
7.5
Right-hand dipped beam headlamp
13
7.5
Left-hand dipped beam headlamp
31
5
Relay supply
32
7.5
Interior lighting
33
20
Battery sensor
34
20
Minibus interior lighting - Hazard warning
36
10
Audio system - Diagnostic socket - Alarm siren - Programmable additional heating controls - Air conditioning
controls - Tachograph - Battery
37
7.5
Brake lamps switch - Third brake lamp - Instrument panel
38
20
Central locking
42
5
ABS control unit and sensor - ASR sensor - ESP sensor - Brake lamps switch
43
20
Windscreen wiper motor
47
20
Driver's electric window motor
48
20
Passenger electric window motor
49
5
Audio system - Instrument panel controls
50
7.5
Airbags and pre-tensioners unit
51
5
Tachograph - Cruise control - Air conditioning controls - Reversing lamps - water in Diesel sensor
53
7.5
Instrument panel
89
-
Not used
90
7.5
Left hand main beam headlamp
91
7.5
Right han main beam headlamp
92
7.5
Left hand foglamp
93
7.5
Right hand foglamp
Page 140 of 164
138
Changing a fuse
FUSES IN THE ENGINE
COMPARTMENT
- Remove the nuts and tilt the box to
access the fuses.
Fuses
A (amps)
Allocation
1
40
ABS pump supply
2
50
Diesel pre-heater unit
3
30
Ignition switch
4
30
Headlamp washer pump
8
40
Cab fan unit
9
15
Rear 12 V socket
10
15
Horn
14
15
Front 12 V socket
15
10
Cigarette lighter
20
30
Screenwash pump
21
15
Fuel pump supply
24
15
Additional panel for ambulance - Mirrors
30
15
Demisting
Page 160 of 164
158
Interior
Seat belts 98-99
Airbags 101-103
Deactivating the passenger airbag 102
Parking brake,
handbrake 93
Seats, adjustments 60-61
Seat with variable damping 61
2-seat bench 62
Tools, jack 126 ISOFIX mountings 106-108 Child seats 104-111
Courtesy lamps 71, 133
12 volt socket 70 Rear view mirror 72
Cab courtesy lamp 69, 133
Changing a courtesy lamp bulb 133
Load space 70-71
●
stowing rings,
●
load retainer,
●
roof box,
●
trims,
●
inspection lamp.
Accessories 114-115
INTERIOR
Sliding side windows 71 Battery (+), charging,
starting 124-125
Earth point (-) 117
Reversing camera 79-80 Fuses in the right hand door pillar 137
Crew cab 65
Seats / rear bench seats 63-64
Rear heating /
air conditioning 55-56
