2012 Peugeot Boxer fuses

135
QUICK HELP
8
Changing a fuse
The three fuseboxes are placed in the
dashboard on the passenger's side, in
the driver's door pillar and in the engine
compartment.
Descriptions are given only for fuses that
can be changed by the user. For all other
work on the fuses, go to a PEUGEOT dealer
or a qualified workshop.
Removing and fitting a fuse

Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fusebox.
Always replace a failed fuse with a fuse
of the same rating.
CHANGING A FUSE

PEUGEOT declines to accept any
responsibility for expenses incurred for
repairs to your vehicle or for any malfunctions
resulting from the installation of additional
accessories which are not supplied or
recommended by PEUGEOT the manufacturer
and which are not installed in accordance with
its instructions, in particular when the combined
consumption of all of the additional equipment
connected exceeds 10 milliamperes.
Good
Failed
Motor trade professionals: for compete
information on the fuses and relays,
refer to the diagrams in the workshop
procedure documents available at dealers.

136


Changing a fuse


PASSENGER'S SIDE DASHBOARD FUSES



- Remove the bolts and tilt the box to access the fuses.


Fuses


A (amps)

Allocation


12


7.5
Right-hand dipped beam headlamp


13


7.5
Left-hand dipped beam headlamp


31


5
Relay supply


32


7.5
Interior lighting


33


20
Battery sensor


34


20
Minibus interior lighting - Hazard warning


36


10

Audio system - Diagnostic socket - Alarm siren - Programmable additional heating controls - Air conditioning
controls - Tachograph - Battery


37


7.5
Brake lamps switch - Third brake lamp - Instrument panel


38


20
Central locking


42


5
ABS control unit and sensor - ASR sensor - ESP sensor - Brake lamps switch


43


20

Windscreen wiper motor


47


20
Driver's electric window motor


48


20
Passenger electric window motor


49


5
Audio system - Instrument panel controls


50


7.5
Airbags and pre-tensioners unit


51


5
Tachograph - Cruise control - Air conditioning controls - Reversing lamps - water in Diesel sensor


53


7.5
Instrument panel


89


-
Not used


90


7.5
Left hand main beam headlamp


91


7.5
Right han main beam headlamp


92


7.5
Left hand foglamp


93


7.5
Right hand foglamp

QUICK HEL
P
8
Changing a fuse


Fuses


A (amps)

Allocation


54


-
Not used


55


15
Heated seats


56


15
12 V socket


57


10
Programmable additional heating


58


15
Demisting: left hand rear screen


59


15
Demisting: right hand rear screen


60


-
Not used


61


-
Not used


62


-
Not used


63


10
Programmable additional heating switch


64


-
Not used


65



30
Programmable additional heating fan

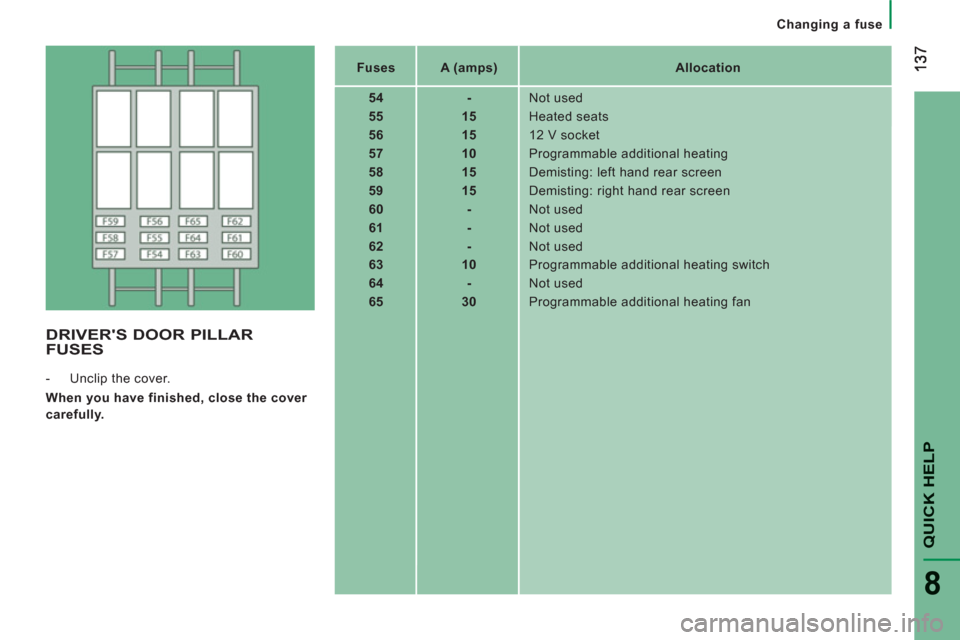

DRIVER'S DOOR PILLAR
FUSES


- Unclip the cover.

When you have finished, close the cover
carefully.

138


Changing a fuse

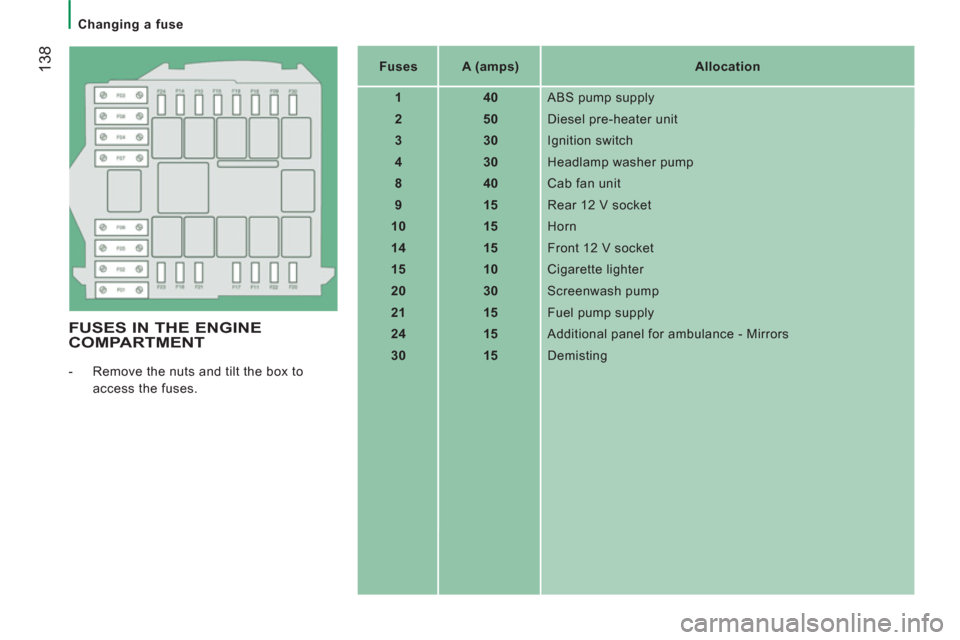

FUSES IN THE ENGINE
COMPARTMENT


- Remove the nuts and tilt the box to
access the fuses.

Fuses


A (amps)

Allocation


1


40
ABS pump supply


2


50
Diesel pre-heater unit


3


30
Ignition switch


4


30
Headlamp washer pump


8


40
Cab fan unit


9


15
Rear 12 V socket


10


15
Horn


14


15
Front 12 V socket


15


10
Cigarette lighter


20


30
Screenwash pump


21


15

Fuel pump supply


24


15
Additional panel for ambulance - Mirrors


30


15
Demisting
