Familiarisation
Two front rings, located between the seat
back and the seat cushion are used to
secure an ISOFIX child seat.
ISOFIX mountings

106




PASSENGER SAFETY



To deactivate the front passenger airbag,
refer to the "MODE" section of chapter 4, then
on the "Passenger airbag" menu, select OFF.
The airbag warning lamp on the instrument
panel stays on while the airbag is
deactivated.

75
This prevents opening of the sliding side
door from the inside.
Child lock
25

77
4
TECHNOLOGY ON BOARD

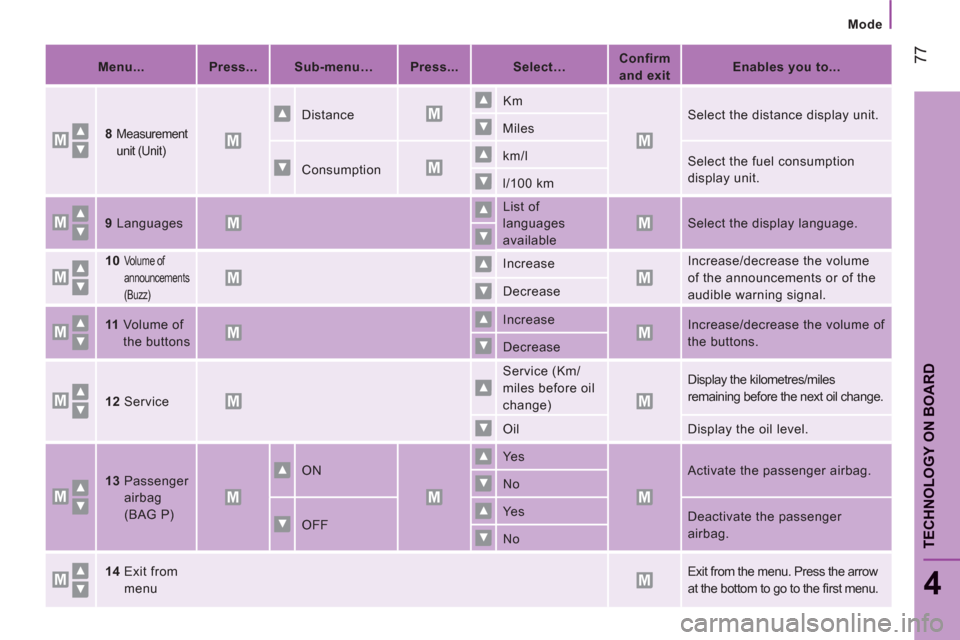

Mode


Menu...


Press...


Sub-menu…


Press...


Select…


Confirm
and exit


Enables you to...


8

Measurement
unit (Unit) Distance
Km
Select the distance display unit.
Miles
Consumption km/l
Select the fuel consumption
display unit.
l/100 km

9
Languages
List of
languages
available
Select the display language.

10

Volume of
announcements
(Buzz)
Increase
Increase/decrease the volume
of the announcements or of the
audible warning signal. Decrease

11
Volume of
the buttons Increase
Increase/decrease the volume of
the buttons.
Decrease

12
Service
Service (Km/
miles before oil
change) Display the kilometres/miles
remaining before the next oil change.
Oil Display the oil level.

13
Passenger
airbag
(BAG P) ON
Ye s
Activate the passenger airbag.
No
OFF Ye s
Deactivate the passenger
airbag.
No

14
Exit from
menu Exit from the menu. Press the arrow
at the bottom to go to the fi rst menu.

101
5
SAFETY
Airbags

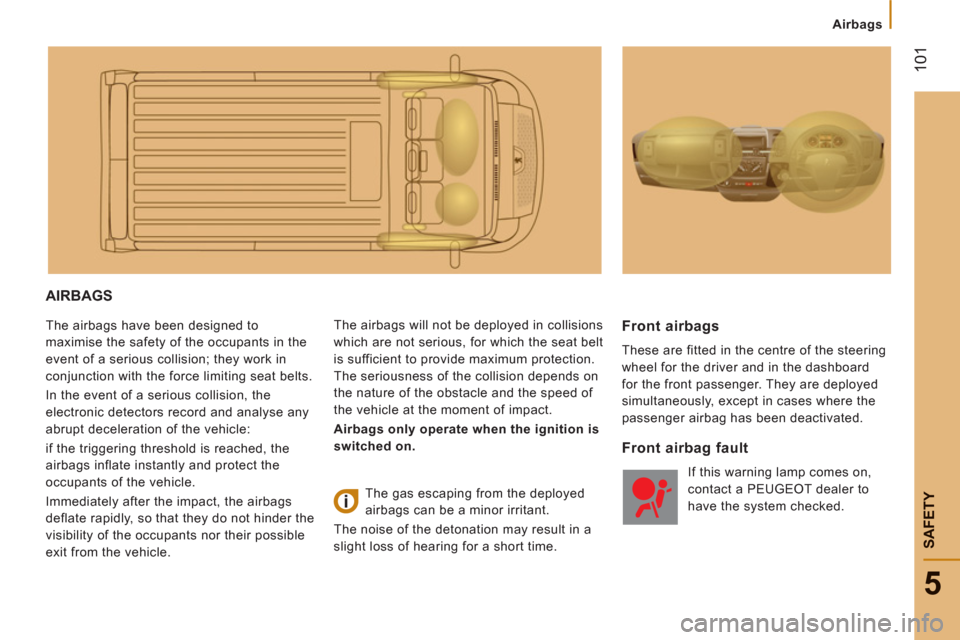

AIRBAGS
The airbags have been designed to
maximise the safety of the occupants in the
event of a serious collision; they work in
conjunction with the force limiting seat belts.
In the event of a serious collision, the
electronic detectors record and analyse any
abrupt deceleration of the vehicle:
if the triggering threshold is reached, the
airbags inflate instantly and protect the
occupants of the vehicle.
Immediately after the impact, the airbags
deflate rapidly, so that they do not hinder the
visibility of the occupants nor their possible
exit from the vehicle. The airbags will not be deployed in collisions
which are not serious, for which the seat belt
is sufficient to provide maximum protection.
The seriousness of the collision depends on
the nature of the obstacle and the speed of
the vehicle at the moment of impact.

Airbags only operate when the ignition is
switched on. Front airbags

These are fitted in the centre of the steering
wheel for the driver and in the dashboard
for the front passenger. They are deployed
simultaneously, except in cases where the
passenger airbag has been deactivated.
The gas escaping from the deployed
airbags can be a minor irritant.
The noise of the detonation may result in a
slight loss of hearing for a short time.
Front airbag fault
If this warning lamp comes on,
contact a PEUGEOT dealer to
have the system checked.

kmCITY


Airbags
102

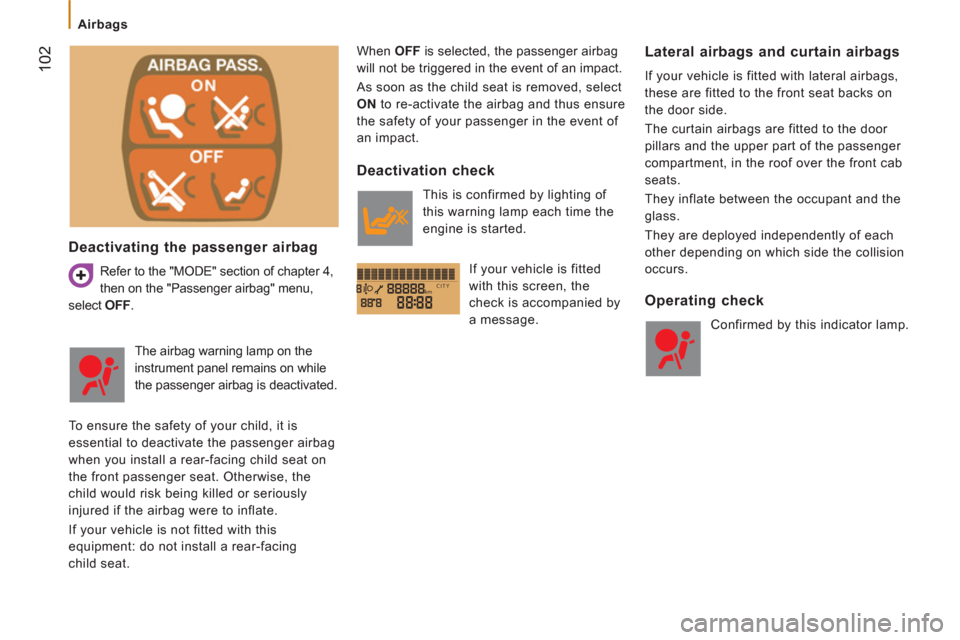

Deactivating the passenger airbag

Refer to the "MODE" section of chapter 4,
then on the "Passenger airbag" menu,
select OFF
. When OFF
is selected, the passenger airbag
will not be triggered in the event of an impact.
As soon as the child seat is removed, select
ON
to re-activate the airbag and thus ensure
the safety of your passenger in the event of
an impact.


Lateral airbags and curtain airbags

If your vehicle is fitted with lateral airbags,
these are fitted to the front seat backs on
the door side.
The curtain airbags are fitted to the door
pillars and the upper part of the passenger
compartment, in the roof over the front cab
seats.
They inflate between the occupant and the
glass.
They are deployed independently of each
other depending on which side the collision
occurs.
The airbag warning lamp on the
instrument panel remains on while
the passenger airbag is deactivated.
To ensure the safety of your child, it is
essential to deactivate the passenger airbag
when you install a rear-facing child seat on
the front passenger seat. Otherwise, the
child would risk being killed or seriously
injured if the airbag were to inflate.
If your vehicle is not fitted with this
equipment: do not install a rear-facing
child seat.
Deactivation check
This is confirmed by lighting of
this warning lamp each time the
engine is started.
If your vehicle is fitted
with this screen, the
check is accompanied by
a message.


Operating check

Confirmed by this indicator lamp.

Child safety

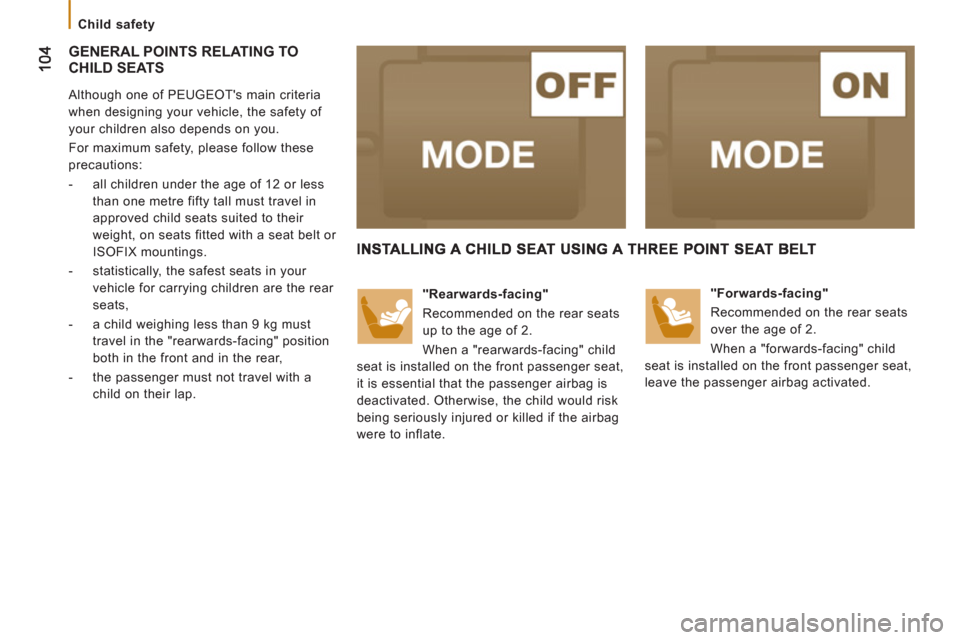

GENERAL POINTS RELATING TO
CHILD SEATS

Although one of PEUGEOT's main criteria
when designing your vehicle, the safety of
your children also depends on you.
For maximum safety, please follow these
precautions:


- all children under the age of 12 or less
than one metre fifty tall must travel in
approved child seats suited to their
weight, on seats fitted with a seat belt or
ISOFIX mountings.

- statistically, the safest seats in your
vehicle for carrying children are the rear
seats,

- a child weighing less than 9 kg must
travel in the "rearwards-facing" position
both in the front and in the rear,

- the passenger must not travel with a
child on their lap.



"Rearwards-facing"
Recommended on the rear seats
up to the age of 2.
When a "rearwards-facing" child
seat is installed on the front passenger seat,
it is essential that the passenger airbag is
deactivated. Otherwise, the child would risk
being seriously injured or killed if the airbag
were to inflate.
"Forwards-facing"
Recommended on the rear seats
over the age of 2.
When a "forwards-facing" child
seat is installed on the front passenger seat,
leave the passenger airbag activated.

104

105
5
SAFETY


Child safety


Refer to chapter 5, "Airbags" section.

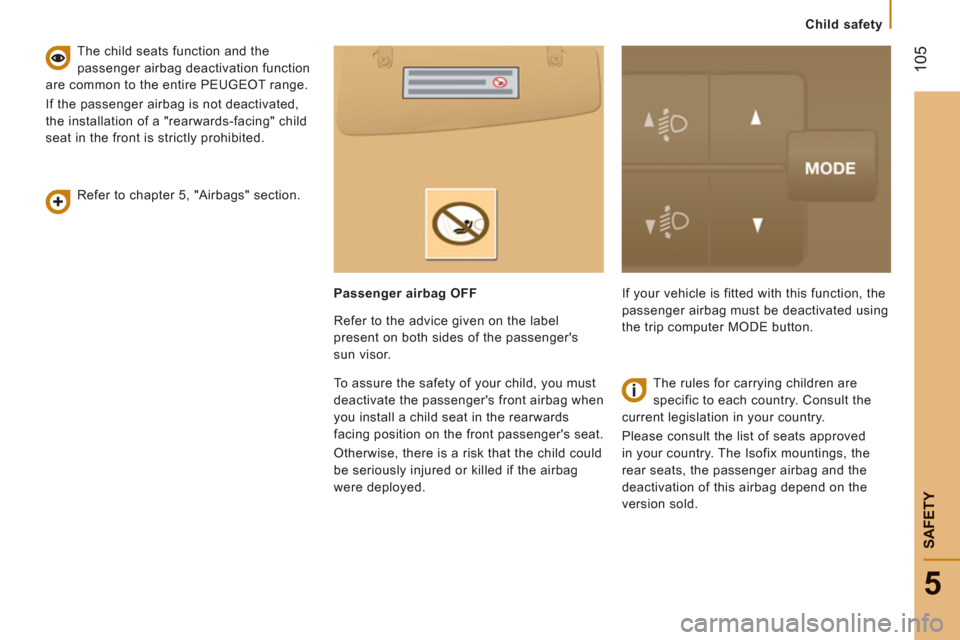

The child seats function and the
passenger airbag deactivation function
are common to the entire PEUGEOT range.
If the passenger airbag is not deactivated,
the installation of a "rearwards-facing" child
seat in the front is strictly prohibited.
If your vehicle is fitted with this function, the
passenger airbag must be deactivated using
the trip computer MODE button.

The rules for carrying children are
specific to each country. Consult the
current legislation in your country.
Please consult the list of seats approved
in your country. The Isofix mountings, the
rear seats, the passenger airbag and the
deactivation of this airbag depend on the
version sold.

Passenger airbag OFF

Refer to the advice given on the label
present on both sides of the passenger's
sun visor.

To assure the safety of your child, you must
deactivate the passenger's front airbag when
you install a child seat in the rearwards
facing position on the front passenger's seat.
Otherwise, there is a risk that the child could
be seriously injured or killed if the airbag
were deployed.

111
5
SAFETY


Child safety

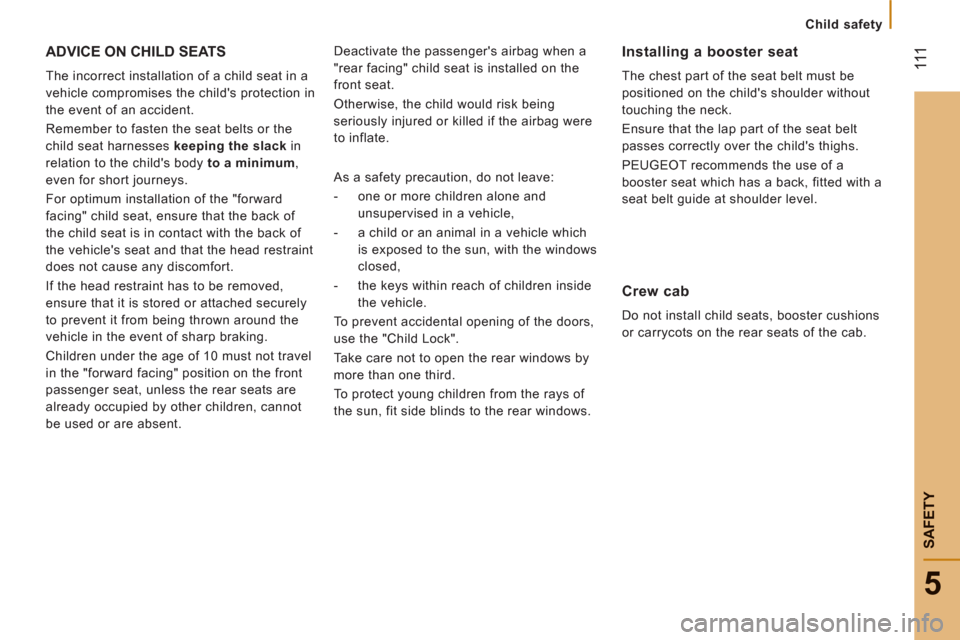

ADVICE ON CHILD SEATS

The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
in
relation to the child's body to a minimum
,
even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back of
the vehicle's seat and that the head restraint
does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.
Children under the age of 10 must not travel
in the "forward facing" position on the front
passenger seat, unless the rear seats are
already occupied by other children, cannot
be used or are absent. Deactivate the passenger's airbag when a
"rear facing" child seat is installed on the
front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag were
to inflate.

As a safety precaution, do not leave:


- one or more children alone and
unsupervised in a vehicle,

- a child or an animal in a vehicle which
is exposed to the sun, with the windows
closed,

- the keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors,
use the "Child Lock".
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds to the rear windows.
Installing a booster seat

The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a
booster seat which has a back, fitted with a
seat belt guide at shoulder level.
Crew cab

Do not install child seats, booster cushions
or carrycots on the rear seats of the cab.
