Instruments and controls


INSTRUMENT PANEL



1.
Distance recorder in miles/kilometres.

2.
Screen.

3.
Dials and gauges.

4.
Rev counter.

INSTRUMENTS AND CONTROLS
Instrument panel screen 1



- Time,

- Miles/Kilometres travelled,

- Range,

- Fuel consumption,

- Average speed,

- Headlamp beam height,

- Programmable overspeed warning via
MODE,

- Service indicator.



Instrument panel screen 2



- Time,

- Date,

- Ambient temperature,

- Miles/Kilometres travelled,

- Range,

- Fuel consumption,

- Average speed,

- Headlamp beam height,

- Programmable overspeed warning via
MODE,

- Service indicator,

- Warning messages displayed in the top
section,

- Radio (frequency of the current station).

72


Mirrors and windows


MIRRORS AND WINDOWS
MIRRORS
Door mirrors

These are divided into two zones:

A -
Upper mirror

B -
Lower mirror
The mirror glass is spherical in order to
widen the lateral field of vision. Objects
seen in the mirror are in reality closer than
they appear. Therefore, this must be taken
into account in order to assess the distance
correctly.
The shell incorporates the direction indicator
side repeater and the aerials, according to
the equipment available on board (GPS,
GSM, Radio, ...).

Electrical controls

Turn the control to select the mirror zone.

1
Driver's mirror:

A1 -
Upper mirror

B1 -
Lower mirror
Then move the control in the direction of the
adjustment required.

2
Passenger mirror:

A2 -
Upper mirror

B2 -
Lower mirror
Then move the control in the direction of the
adjustment required.


Rear view mirror

The lever located on the lower edge moves
the mirror into two positions.
For the day position, the lever is pushed.
For the night position to prevent dazzle,
pull the lever towards you.
Electric folding

Press this control.
Defrosting the mirrors

Press the rear screen defrosting
button.

76


Mode



Menu…


Press...


Sub-menu…


Press...


Select…


Confirm
and exit


Enables you to...


1
Bleep
Speed
(Speed) ON
Increase
Activate/deactivate the audible
signal indicating exceeding of
the programmed speed and
select the speed. Decrease


OFF

2
Headlamps
sensor


Increase
Set the sensitivity of the
sunshine sensor (1 to 3).
Decrease



3
Activation
Trip B

Activate
Display a second
distance "Trip B".

Deactivate



4
Setting the
time (Hour)

Hours/
Minutes

Increase
Set the clock.
Decrease
Time format 24

Select the clock display mode.
12



5
Setting the
date
Year/Month/
Day

Activate
Set the date.
Deactivate



6
See radio


ON
Display the name of the station.
OFF



7
Autoclose

While moving

ON

Activate/Deactivate automatic door
locking above approx 12 mph (20 km/h).
OFF

Audio equipment
84

Volume adjustment. Automatic presetting of stations
(autostore).

Selection of wavebands
FM1, FM2, FMA.

Selection of wavebands:
MW1, MW2.

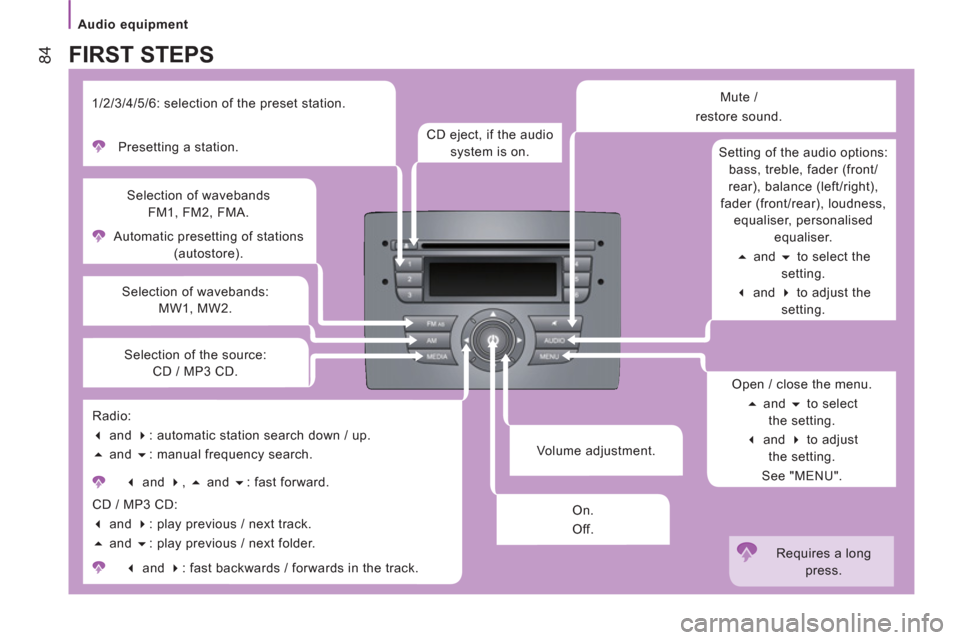

FIRST STEPS


On.
Off.
CD eject, if the audio
system is on.

Open / close the menu.


and
to select
the setting.


and
to adjust
the setting.
See "MENU".
Setting of the audio options:
bass, treble, fader (front/
rear), balance (left/right),
fader (front/rear), loudness,
equaliser, personalised
equaliser.


and
to select the
setting.


and
to adjust the
setting.
Mute /
restore sound.

CD / MP3 CD:


and
: play previous / next track.


and
: play previous / next folder.

Requires a long
press.
Radio:


and
: automatic station search down / up.


and
: manual frequency search.



and
,
and
: fast forward.



and
: fast backwards / forwards in the track. Presetting a station.

1/2/3/4/5/6: selection of the preset station.

Selection of the source:
CD / MP3 CD.

Audio equipment
85
4
TECHNOLOGY
on
BOARD
STEERING MOUNTED CONTROLS







Change of source:
CD/MP3 CD or radio
frequency.

Automatic search for a
higher radio frequency.
Select the next CD/MP3
CD track.

Automatic search for a lower
frequency.
Select the previous CD/MP3
CD track.
Mute / restore the
sound.



Pause CD/MP3 CD
track.
Volume increase.

Volume decrease.

Audio equipment
87
4
TECHNOLOGY
on
BOARD

Scroll the
display

Select

Display

Select

Display

Select

Display

Select

Display

Select

Display

Enables you
to…

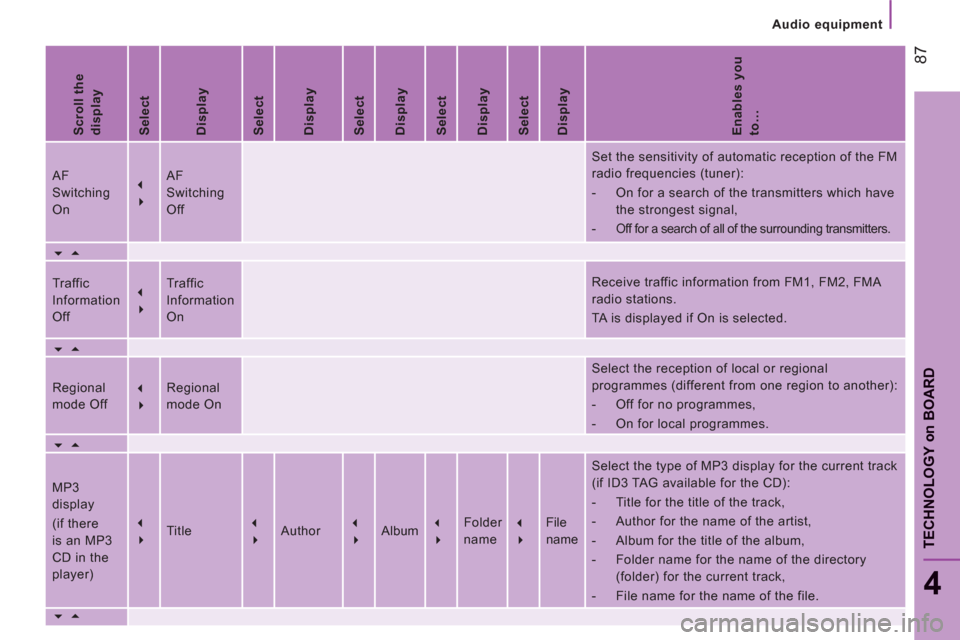

AF
Switching
On

 AF
Switching
Off Set the sensitivity of automatic reception of the FM
radio frequencies (tuner):


- On for a search of the transmitters which have
the strongest signal,

-
Off for a search of all of the surrounding transmitters.




Traffic
Information
Off

 Traffic
Information
On Receive traffic information from FM1, FM2, FMA
radio stations.
TA is displayed if On is selected.



Regional
mode Off

 Regional
mode On Select the reception of local or regional
programmes (different from one region to another):


- Off for no programmes,

- On for local programmes.



MP3
display
(if there
is an MP3
CD in the
player)

 Title

 Author

 Album


 Folder
name

 File
name Select the type of MP3 display for the current track
(if ID3 TAG available for the CD):


- Title for the title of the track,

- Author for the name of the artist,

- Album for the title of the album,

- Folder name for the name of the directory
(folder) for the current track,

- File name for the name of the file.




Audio equipment
88

Scroll the
display

Select

Display

Select

Display

Select

Display

Select

Display

Enables you
to…

Speed
volume Off

 Speed
volume
Low

 Speed
volume
High Select the automatic control of the volume in relation to
the vehicle speed:


- Off.

- Low for on (low sensitivity),

- High for on (high sensitivity),



Radio on
vol - Limit
on

 Radio
on vol -
Limit off Select the initial volume setting:
Limit on:


- if the volume equal to or greater than the maximum
value, the volume will be at maximum,

- if the volume is between the maximum and
minimum values, the volume will be that memorised
when switching off,

- if the volume is equal to or lower than the minimum
value, the volume will be at minimum.
Limit off:


- the volume is memorised when switching off.
Choose a volume setting between 1 and 40.

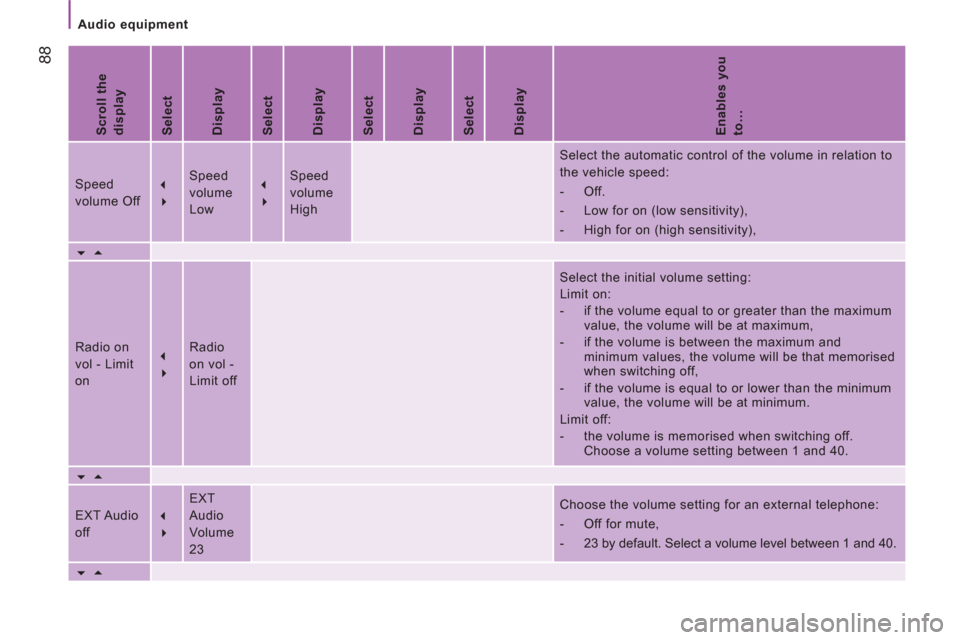

EXT Audio
off

 EXT
Audio
Volume
23 Choose the volume setting for an external telephone:


- Off for mute,

- 23 by default. Select a volume level between 1 and 40.




89
4
TECHNOLOGY
on
BOARD

Scroll the
display

Select

Display

Select

Display

Select

Display

Select

Display

Enables you
to…

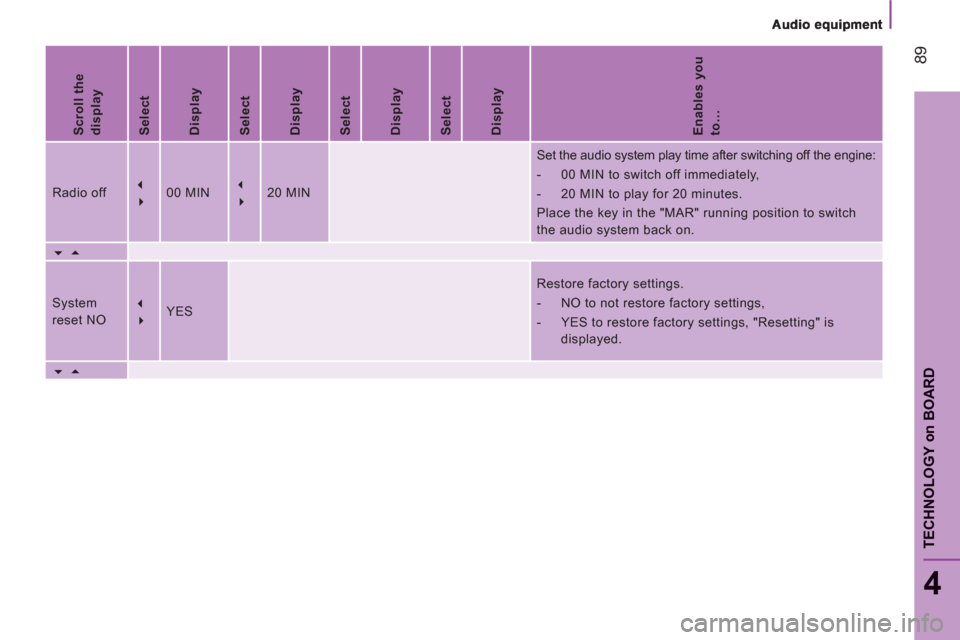

Radio off

 00 MIN

 20 MIN Set the audio system play time after switching off the engine:


- 00 MIN to switch off immediately,

- 20 MIN to play for 20 minutes.
Place the key in the "MAR" running position to switch
the audio system back on.



System
reset NO

 YES Restore factory settings.


- NO to not restore factory settings,

- YES to restore factory settings, "Resetting" is
displayed.
