QUICK HEL
P
8
Changing a wheel

4. OPERATING PROCEDURE



- Remove the trim using the screwdriver F

as a lever.

- Release the bolts using the wheelbrace E
.
- Position the jack C
at one of the four
locations provided on the underbody
near the wheels.
3. SPARE WHEEL


The spare wheel retaining bolt is located on
the rear right side.


- Turn the bolt using the socket A
and the
ratchet wrench B
to release the wheel.

- Turn to the locking point, indicated by
an increase in the force required for the
manoeuvre.
- Take out the spare wheel using the
wrench.

- Unscrew the handle G
and remove the
support H
.

- Release the spare wheel and place it
near the wheel to be changed.

If you have a retractable foor board, the jack
must be positioned at 45°.


- Extend the jack using the ratchet wrench B

until the wheel is a few centimetres off the
ground.

- Unscrew the bolts fully and change the
wheel.

12
8
6. REFITTING THE REPAIREDWHEEL

Refitting of the wheel is identical to step 5,
do not forget to refit the wheel trim.

Refer to the "Identification markings"
section of chapter 9 to locate the tyre
label.
The spare wheel is not designed to be used
over long distances. Have the tightening of
the bolts and pressure of the spare wheel
checked by a PEUGEOT dealer without
delay.
Also, have the original wheel repaired and
refitted by a PEUGEOT dealer as soon as
possible.


5. FITTING THE SPARE WHEEL



- Put the wheel in place on the hub and
start screwing in the bolts by hand.

- Carry out an initial tightening of the bolts
using the wheelbrace E
.

- Lower the vehicle completely by folding
the jack, then remove the jack.

- Tighten the bolts again using the
wheelbrace E
, tighten them fully without
forcing them.

- Stow the wheel to be repaired at the
rear of the vehicle.
- Hook the support H
and screw in the
handle G
.

- Insert the socket A
in the hole then
screw in the bolt, using the ratchet
wrench B
, to raise the wheel.

- Stow the tools and the trim.
Never go underneath a vehicle supported
only by a jack (use an axle stand).
The jack and the tool kit are specific to
your vehicle. Do not use them for other
purposes.

12
9
QUICK HEL
P
8
Changing a wheel

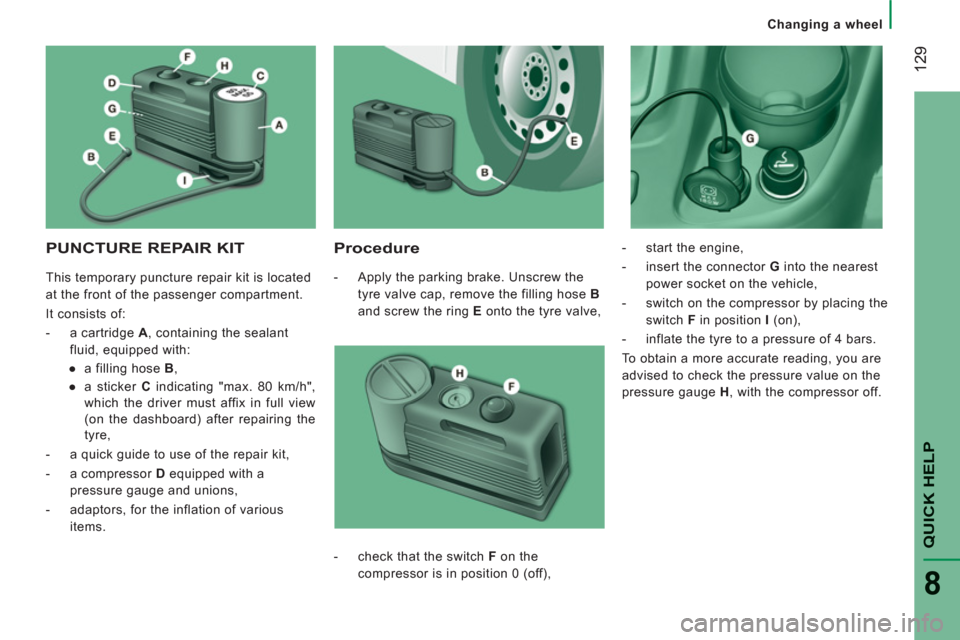

PUNCTURE REPAIR KIT

Procedure



- Apply the parking brake. Unscrew the
tyre valve cap, remove the filling hose B
and screw the ring E
onto the tyre valve,
- start the engine,

- insert the connector G
into the nearest
power socket on the vehicle,

- switch on the compressor by placing the
switch F
in position I
(on),

- inflate the tyre to a pressure of 4 bars.
To obtain a more accurate reading, you are
advised to check the pressure value on the
pressure gauge H
, with the compressor off.

- check that the switch F
on the
compressor is in position 0 (off), This temporary puncture repair kit is located
at the front of the passenger compartment.
It consists of:


- a cartridge A
, containing the sealant
fluid, equipped with:


●
a filling hose B
,

●
a sticker C
indicating "max. 80 km/h",
which the driver must affix in full view
(on the dashboard) after repairing the
tyre,

- a quick guide to use of the repair kit,

- a compressor D
equipped with a
pressure gauge and unions,

- adaptors, for the inflation of various
items.

Changing a wheel

130


- If a pressure of at least 3 bars
is not
reached within 5 minutes, disconnect
the compressor from the valve and the
power socket, then move the vehicle
forward by approximately 10 metres to
distribute the sealant fluid inside the
tyre.

- Then repeat the inflating operation:


●
if a pressure of at least 3 bars
is not
reached within 10 minutes, switch off
your vehicle: the tyre has suffered too
much damage and repair has not been
possible. Consult a PEUGEOT dealer.

●
if the tyre has been inflated to a
pressure of 4 bars
, set off again
immediately.

After driving for approximately 10 minutes,
stop and check the pressure of the tyre
again.
Adjust the pressure if necessary and contact
a PEUGEOT dealer as soon as possible.
Checking and adjusting the pressure

The compressor can only be used to check
and adjust the pressure.


- Disconnect the hose I
and connect it to
the tyre valve directly; the cartridge will
then be connected to the compressor
and the filling fluid will not be injected.
If it is necessary to deflate the tyre, connect
the hose I
to the tyre valve and press the
yellow button, placed in the centre of the
switch on the compressor.


Replacing the sealant fluidcartridge

To replace the cartridge, carry out the
following operations:


- disconnect the hose I
,

- turn the cartridge to be replaced
anticlockwise and lift it,

- insert the new cartridge and turn it clockwise,

- reconnect the hose I
and connect the
hose B
in its location.


The cartridge contains ethylene-glycol, a
product which is harmful if swallowed and
which causes irritation to the eyes.
Keep out of reach of children.
After use, do not discard the cartridge in the
environment, take it to a PEUGEOT dealer or
to an organisation responsible for its collection.
This replacement kit is available from
PEUGEOT dealers.

131
QUICK HEL
P
8
Changing a bulb

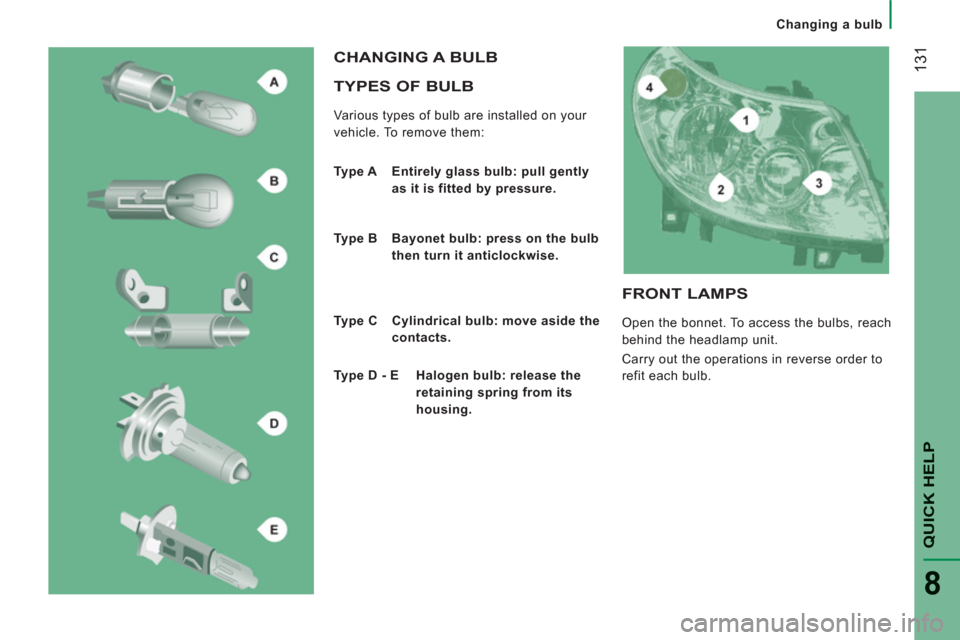

TYPES OF BULB

Various types of bulb are installed on your
vehicle. To remove them:
CHANGING A BULB


Type A Entirely glass bulb: pull gently
as it is fitted by pressure.

Type B Bayonet bulb: press on the bulb
then turn it anticlockwise.

Type C Cylindrical bulb: move aside the
contacts.

Type D - E Halogen bulb: release the
retaining spring from its
housing.

FRONT LAMPS

Open the bonnet. To access the bulbs, reach
behind the headlamp unit.
Carry out the operations in reverse order to
refit each bulb.

132


Changing a bulb

1 - Dipped beam headlamp

Type D
, H7 - 55 W


- Remove the cover by turning it
anticlockwise.

- Disconnect the electrical connector.

- Release the retaining spring by pressing
on the two clips.

- Change the bulb taking care to align the
metal part with the grooves on the lamp.

3 - Main beam headlamp

Type E
, H1 - 55 W


- Remove the cover by turning it
anticlockwise.

- Disconnect the electrical connector.

- Release the retaining spring by pressing
on the two clips.

- Change the bulb taking care to align the
metal part with the groove on the lamp.


2 - Sidelamp

Type A
, W 5 W - 5 W


- Remove the cover by turning it
anticlockwise.

- Remove the bulb holder fitted by
pressure.

- Change the bulb.

4 - Direction indicators

Type B
, PY 21 W - 21 W


- Turn the bulb holder a quarter turn
anticlockwise.

- Remove the bulb by pressing it lightly
while turning it anticlockwise.

- Change the bulb.


5 - Foglamps

Type D
, H1 - 55 W


- Turn the steering fully to the left.

- Unscrew the screw located in the wheel
arch then open the flap.

- Remove the cover.

- Disconnect the electrical connector.

- Release the retaining spring by pressing
on the two clips.

- Change the bulb taking care to align the
metal part with the grooves on the lamp.
Halogen bulbs must be changed after
the headlamp has been off for several
minutes (risk of serious burns). Do not touch
the bulb directly with your fi ngers, use lint-free
cloths.
When each operation has been completed,
check the operation of the lamps.
When using a high pressure washer
on stubborn dirt, do not persist on the
headlamps, the lamps and their edges to
avoid damaging their lacquer finish and
seals.

QUICK HELP
8
Changing a bulb

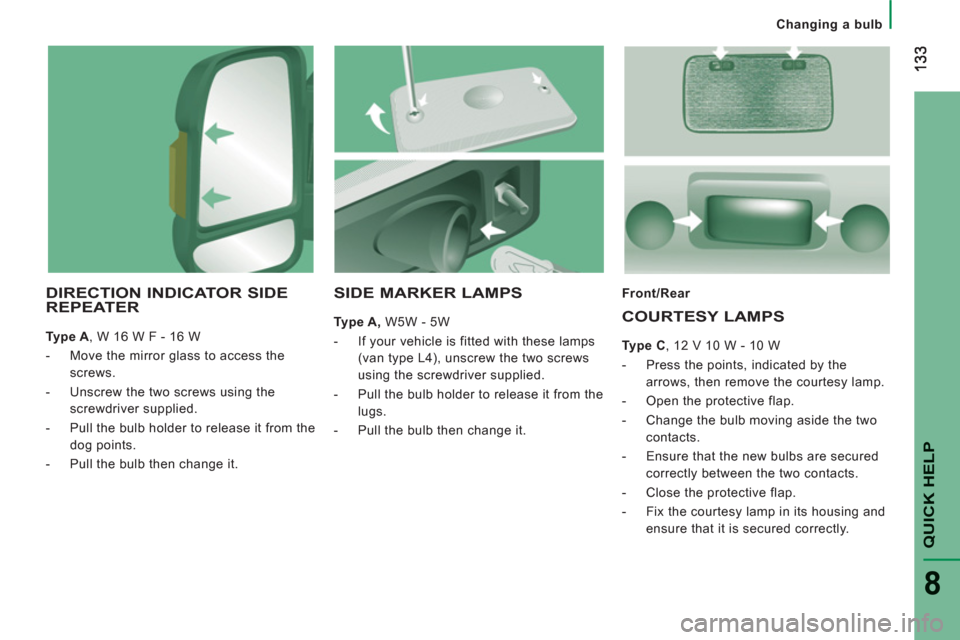

DIRECTION INDICATOR SIDE
REPEATER

Type A
, W 16 W F - 16 W


- Move the mirror glass to access the
screws.

- Unscrew the two screws using the
screwdriver supplied.

- Pull the bulb holder to release it from the
dog points.

- Pull the bulb then change it.
Front/Rear

COURTESY LAMPS


Type C
, 12 V 10 W - 10 W


- Press the points, indicated by the
arrows, then remove the courtesy lamp.

- Open the protective flap.

- Change the bulb moving aside the two
contacts.

- Ensure that the new bulbs are secured
correctly between the two contacts.

- Close the protective flap.

- Fix the courtesy lamp in its housing and
ensure that it is secured correctly.



SIDE MARKER LAMPS


Type A,
W5W - 5W


- If your vehicle is fitted with these lamps
(van type L4), unscrew the two screws
using the screwdriver supplied.

- Pull the bulb holder to release it from the
lugs.

- Pull the bulb then change it.

134


Changing a bulb

REAR LAMPS

For more information on the bulbs, refer to
the table "Types of bulb".
- Remove the two fixing nuts.

- Pull the lens block from the outside.

- Unscrew the three screws using the
screwdriver supplied (under the front
passenger seat) and extract the bulb
holder.

- Remove the faulty bulb by pressing it
lightly while turning it anticlockwise.

- Change the bulb.

1.
Brake/sidelamps
Type B,
P 21/5 W - 5 W


Type B
, P21W - 21W


- Unscrew the two screws.

- Remove the lamp.

- Remove the bulb holder moving aside
the two tabs.

- Remove the faulty bulb by pressing it
lightly while turning it anticlockwise.

- Change the bulb.
2.
Direction indicators
Type B,
PY 21 W - 21 W

3.
Reversing lamps
Type B,
P 21 W - 21 W

4.
Foglamps
Type B,
P 21 W - 21 W


- Identify the faulty bulb then open the
rear doors.

- Disconnect the electrical connector.
NUMBER PLATE LAMPS


Type A,
C 5 W - 5 W


- Press the point, indicated by the arrow,
then remove the plastic lens.

- Change the bulb by moving aside the
two contacts.
- Ensure that the new bulbs are secured
correctly between the two contacts.

- Replace the plastic lens and press on it.
