3
EASE OF USE
and
COMFOR
T
Ventilation
PROGRAMMABLE ADDITIONAL HEATING
If your vehicle is fitted with separate
programmable heating: it gradually brings
the engine up to a good temperature to
facilitate starting. An integrated clock permits programming of
its start time. The passenger compartment
will be heated more quickly. Heating cycle indicator lamp

Digital programming control

The programmable heating system control
panel is located at the bottom right of the
dashboard. Display on
Displaying the programme
number selected
Time display button
Time setting buttons
Selection of the stored
programme
Button for immediate switching
on of the heating
Time setting and reading
indicator lamp

58

Ventilation


Setting the time of the internal clock

Set the clock on the control panel before
programming the deferred switching on of
the heating.
Immediate switching on of the heating
Before switching on the heating, check that:


- the temperature setting control is in the
"Hot air" position (red).

- the air fl ow setting control is in position 2.
This symbol or the previous stored time
and the number (e.g. 1) corresponding to
the recalled pre-selection are displayed for
ten seconds.

Note:
if you wish to recall the other pre-
selected times, press the SET button several
times before the ten seconds have elapsed. Press this button.
The screen and the associated
indicator lamp come on.
Within ten seconds, press these two setting
buttons until the correct time is displayed.
Press ">" to increase the hours
or "<" to decrease.
Press and hold the button for
more rapid scrolling of the digits.


Reading the time

Press this button.
This indicator lamp comes
on, the time is displayed for
approximately ten seconds. Press this button.
The screen and the heating
cycle indicator lamp come on
and remain on throughout the
duration of operation.
Switching on the deferred heating

Switching on can be programmed between
one minute and twenty-four hours in
advance.
You can store up to three different start
times, but programme one deferred start
only.

Note
:
if you wish to start the heating at a
fixed time each day, simply reprogramme
the stored time each day.
Press this button, the screen
becomes brighter. Within the ten seconds, press
these two setting buttons to
select the required start time.
Setting of the stored time is
confirmed by clearing of the start
time, display of the pre-selection
number (e.g. 1) and increased
brightness of the screen illumination.

76


Mode



Menu…


Press...


Sub-menu…


Press...


Select…


Confirm
and exit


Enables you to...


1
Bleep
Speed
(Speed) ON
Increase
Activate/deactivate the audible
signal indicating exceeding of
the programmed speed and
select the speed. Decrease


OFF

2
Headlamps
sensor


Increase
Set the sensitivity of the
sunshine sensor (1 to 3).
Decrease



3
Activation
Trip B

Activate
Display a second
distance "Trip B".

Deactivate



4
Setting the
time (Hour)

Hours/
Minutes

Increase
Set the clock.
Decrease
Time format 24

Select the clock display mode.
12



5
Setting the
date
Year/Month/
Day

Activate
Set the date.
Deactivate



6
See radio


ON
Display the name of the station.
OFF



7
Autoclose

While moving

ON

Activate/Deactivate automatic door
locking above approx 12 mph (20 km/h).
OFF

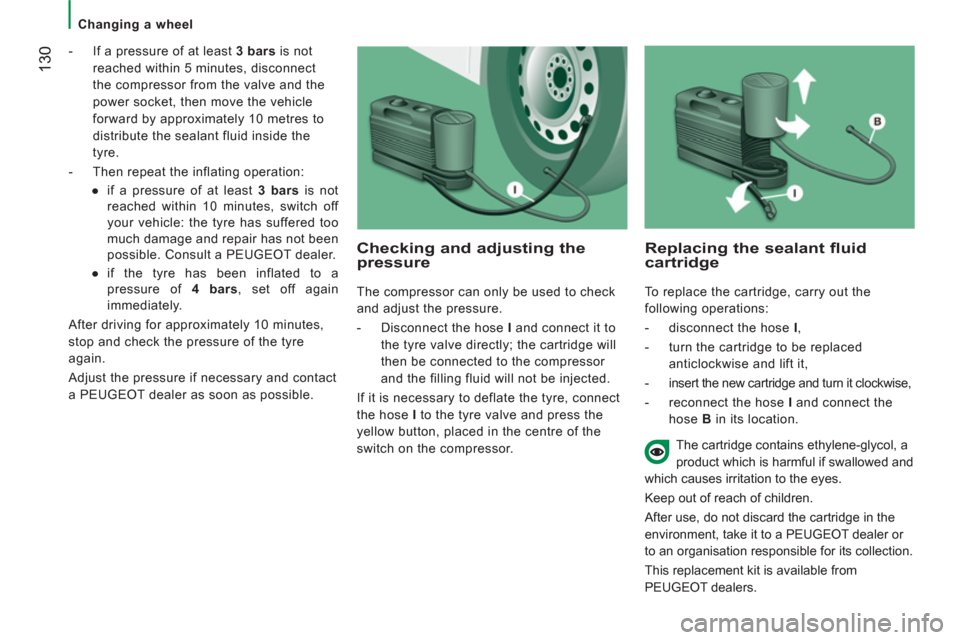

Changing a wheel

130


- If a pressure of at least 3 bars
is not
reached within 5 minutes, disconnect
the compressor from the valve and the
power socket, then move the vehicle
forward by approximately 10 metres to
distribute the sealant fluid inside the
tyre.

- Then repeat the inflating operation:


●
if a pressure of at least 3 bars
is not
reached within 10 minutes, switch off
your vehicle: the tyre has suffered too
much damage and repair has not been
possible. Consult a PEUGEOT dealer.

●
if the tyre has been inflated to a
pressure of 4 bars
, set off again
immediately.

After driving for approximately 10 minutes,
stop and check the pressure of the tyre
again.
Adjust the pressure if necessary and contact
a PEUGEOT dealer as soon as possible.
Checking and adjusting the pressure

The compressor can only be used to check
and adjust the pressure.


- Disconnect the hose I
and connect it to
the tyre valve directly; the cartridge will
then be connected to the compressor
and the filling fluid will not be injected.
If it is necessary to deflate the tyre, connect
the hose I
to the tyre valve and press the
yellow button, placed in the centre of the
switch on the compressor.


Replacing the sealant fluidcartridge

To replace the cartridge, carry out the
following operations:


- disconnect the hose I
,

- turn the cartridge to be replaced
anticlockwise and lift it,

- insert the new cartridge and turn it clockwise,

- reconnect the hose I
and connect the
hose B
in its location.


The cartridge contains ethylene-glycol, a
product which is harmful if swallowed and
which causes irritation to the eyes.
Keep out of reach of children.
After use, do not discard the cartridge in the
environment, take it to a PEUGEOT dealer or
to an organisation responsible for its collection.
This replacement kit is available from
PEUGEOT dealers.
