2012 PEUGEOT 508 HYBRID DAG fuse

.
.
Contents
Child seats 153
ISOFIX child seats 160
Child lock 164
Child safety
Direction indicators 165
Emergency or assistance call 166
Horn 166
Tyre under-infl ation detection 167
ESC system 168
Seat belts 171
Airbags 174
Safety
Te m p o r a ry puncture repair kit 178
Changing a wheel 184
Changing a bulb 191
Changing a fuse 200
12 V battery 204
Energy economy mode 207
Changing a wiper blade 208
To w i ng the vehicle 209
To w i ng a trailer 211
Fitting roof bars 213
Accessories 214
Practical information
Opening the bonnet 217
Running out of fuel (Diesel) 218
Petrol engines 219
Diesel engines 220
Checking levels 222
Checks 225
Checks
Petrol engines 227
Petrol weights 228
Diesel engines 230
Diesel weights 233
Dimensions 236
Identifi cation markings 237
Technical data
Emergency or assistance 239
JBL equipment 241
Peugeot Connect Navigation (RT6) 243
Audio system 297
Audio equipment and telematics
Alphabetical index
Visual search

10
Familiarisation
9.Fusebox.
10. Front door window demisting/defrostingvent.
11.Windscreen demisting/defrosting vent. 12 .Steering lock and star ting with the key.
13. Starting using the electronic key. 14 .
Audio equipment steering wheel controls.
15. Wiper / screenwash / trip computer stalk.
16.Central locking and hazard warningbuttons.
17. Multifunction screen.

Instruments and controls
1.
Cruise control / speed limiter controls. 2.
Headlamp height adjustment. 3.
Lighting and direction indicator stalk
4.
Instrument panel. 5.
Driver's airbag.Horn.
6.Gear lever.
7. 12 V accessory socket
USB por t / auxiliary socket. 8.Bonnet release lever.
18.Central adjustable air vents.19. Passenger's airbag.20.
Side adjustable air vents.
21.Glove box / Passenger's airbag deactivation. 22.
Electric parking brake. 23.
Central armrest with storage. 24.
Storage (according to version).25.Audio system. 26.Heating / air conditioning controls.

200
Practical information




















Changing a fuse Procedure for replacing a failed fuse with a new fuse to rectify a failure of the corresponding function.
The extraction tweezer and spare
fuses are
located in the glove box.
Access to the tools

Before changing a fuse, the cause of the failure
must be identified and rectified. ) Identify the failed fuse by checking thecondition of its filament.


Changing a fuse
Good Failed
)
Use the special tweezer to extract the fuse from its housing.)
Always replace the faulty fuse with a fuse of the same rating.)
Check that the number marked on thefusebox, the rating marked on the fuse and
the following tables all agree.
PEUGEOT will not accept responsibilityfor the cost incurred in repairing your vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and not
recommended by PEUGEOT andnot installed in accordance with its instructions, in par ticular when thecombined consumption of all of the additional equipment connectedexceeds 10 milliamperes.



Installing electricalaccessories

Your vehicle's electrical system isdesigned to operate with standard or optional equipment.
Before installing other electrical equipment or accessories on your vehicle, contact a PEUGEOT dealer or a qualified workshop.

8
201
Practical information

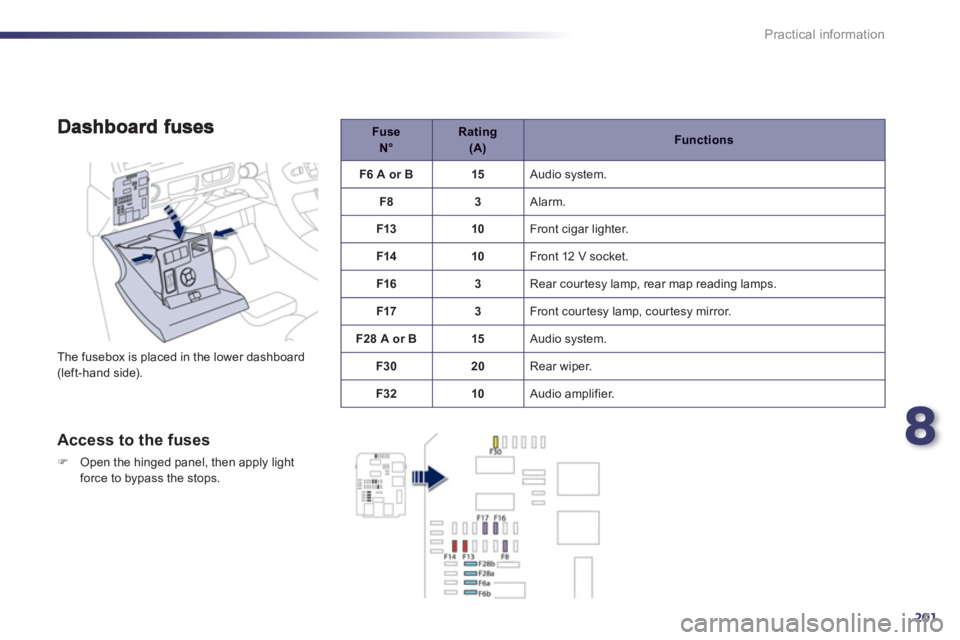

The fusebox is placed in the lower dashboard(left-hand side).


Access to the fuses
)Open the hinged panel, then apply light
force to bypass the stops.
Fuse N°
Rating (A)Functions
F6 A or B 15
Audio s
ystem.
F
83 Alarm.
F1
310 Front cigar lighter.
F1410
Front 12 V socket.
F1
63 Rear courtesy lamp, rear map reading lamps.
F17
3 Front cour tesy lamp, cour tesy mirror.
F2
8 A or B15 Audio system.
F3
020 Rear wiper.
F32 10
Audio amplifier.

202
Practical information


Fuse N°


Rating (A)

Functions
F3
15 Driver's electric window panel, 12 V socket for rear seats.
F
415 12 V socket in boot.
F530 One-touch rear window.
F
630 One-touch front window.
F1
120
Trailer unit.
F12 20
Audio am
plifier.
F1
520
Panoramic sunroof blind (SW).
F1
65 Driver's electric window switch panel.

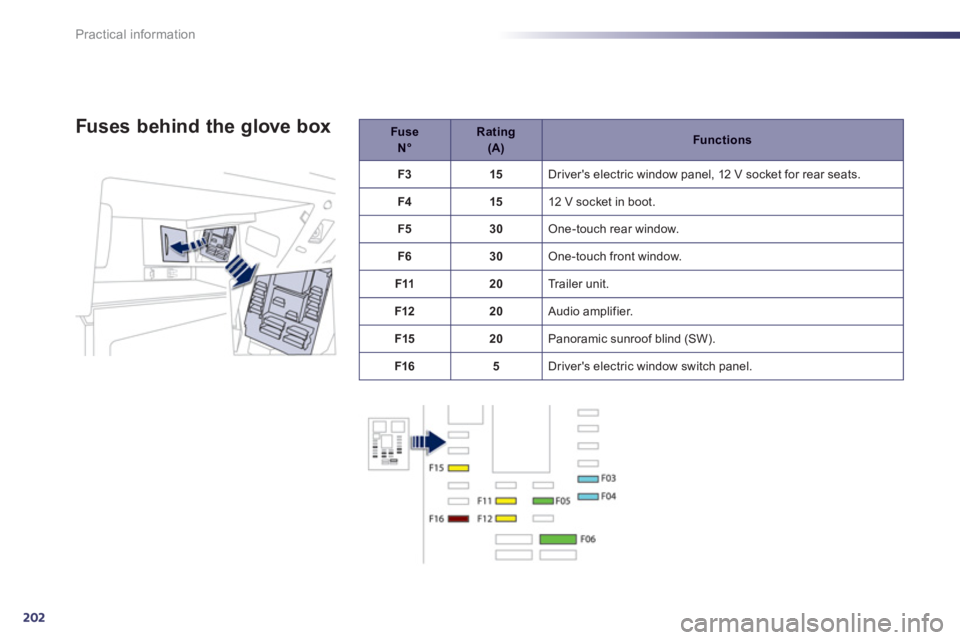

Fuses behind the glove box

8
203
Practical information

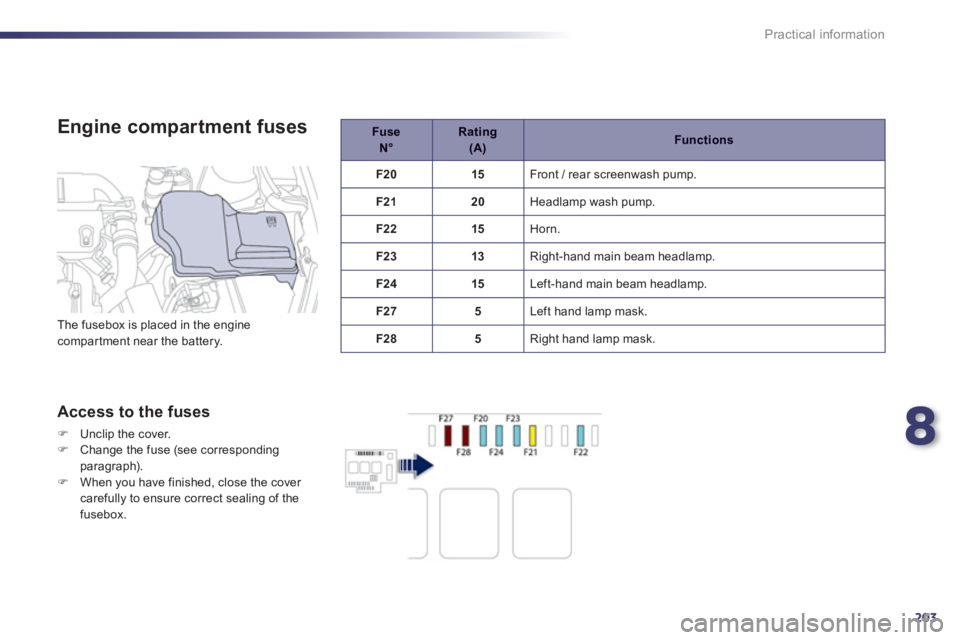

Engine compartment fuses


Access to the fuses
)Unclip the cover. )Change the fuse (see corresponding paragraph).)When you have finished, close the cover carefully to ensure correct sealing of the
fusebox.


Fuse N°

Rating (A)Functions
F20 15
Front / rear screenwash pump.
F2
120 Headlamp wash pump.
F2215 Horn.
F2
313 Right-hand main beam headlamp.
F2
415 Left-hand main beam headlamp.
F27 5
Le
ft hand lamp mask.
F2
85 Right hand lamp mask. The fusebox is placed in the engine compartment near the battery.

204
Practical information

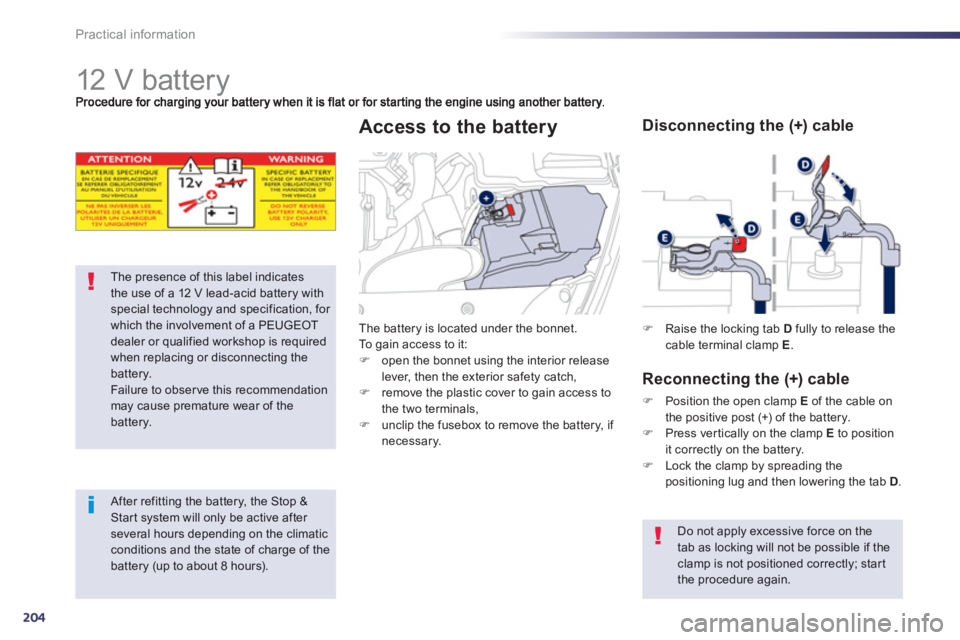

12 V battery
The presence of this label indicatesthe use of a 12 V lead-acid battery withspecial technology and specification, for which the involvement of a PEUGEOT dealer or qualified workshop is requiredwhen replacing or disconnecting thebattery.
Failure to observe this recommendation may cause premature wear of thebattery.

After refitting the battery, the Stop & Start system will only be active after several hours depending on the climaticconditions and the state of charge of the battery (up to about 8 hours).
The battery is located under the bonnet.
To gain access to it:
)
open the bonnet using the interior releaselever, then the exterior safety catch, )
remove the plastic cover to gain access to
the two terminals,) unclip the fusebox to remove the battery, if necessary.



Access to the battery
)Raise the locking tab Dfully to release the cable terminal clamp E.



Disconnecting the (+) cable

Reconnectin
g the (+) cable
)Position the open clamp Eof the cable on
the positive post (+) of the battery.
)Press ver tically on the clamp E
to position
it correctly on the battery. )Lock the clamp by spreading the positioning lug and then lowering the tab D.
Do not apply excessive force on the
tab as locking will not be possible if the clamp is not positioned correctly; star tthe procedure again.

8
215
Practical information

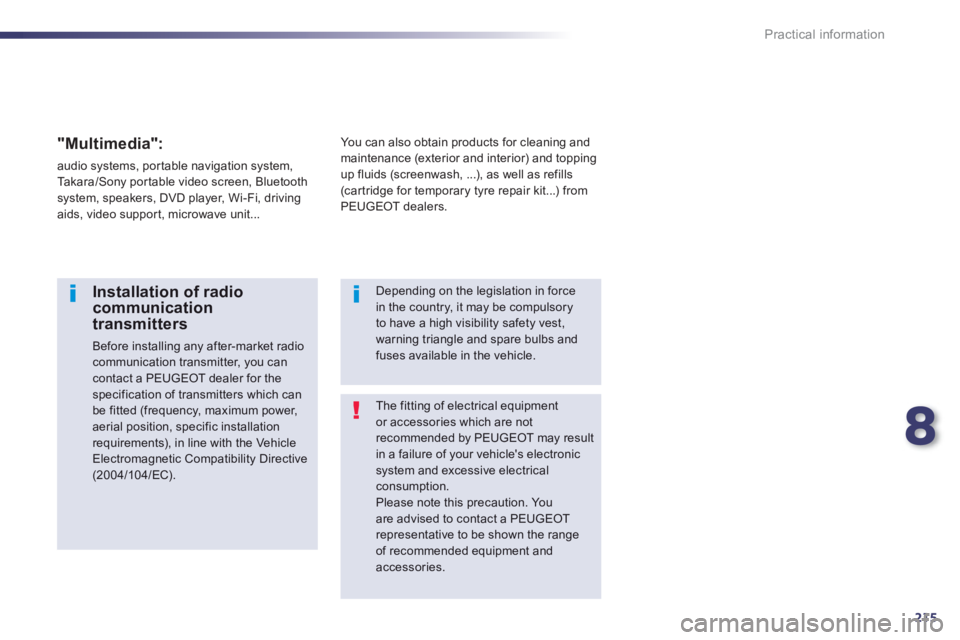

The fitting of electrical equipmentor accessories which are notrecommended by PEUGEOT may result in a failure of your vehicle's electronic system and excessive electricalconsumption.Please note this precaution. You are advised to contact a PEUGEOT representative to be shown the rangeof recommended equipment andaccessories.



Installation of radio communication transmitters

Before installing any after-market radio communication transmitter, you can contact a PEUGEOT dealer for the specification of transmitters which canbe fitted (frequency, maximum power, aerial position, specific installation
requirements), in line with the VehicleElectromagnetic Compatibility Directive(2004/10 4/EC).


Depending on the legislation in force in the country, it may be compulsoryto have a high visibility safety vest, warning triangle and spare bulbs and fuses available in the vehicle. You can also obtain products
for cleaning and
maintenance (exterior and interior) and topping up fluids (screenwash, ...), as well as refills(cartridge for temporary tyre repair kit...) fromPEUGEOT dealers.



"Multimedia":

audio systems, portable navigation system,
Ta k a r a / S o ny por table video screen, Bluetoothsystem, speakers, DVD player, Wi-Fi, drivingaids, video suppor t, microwave unit...
