Eco-driving 20

4
Familiarisation

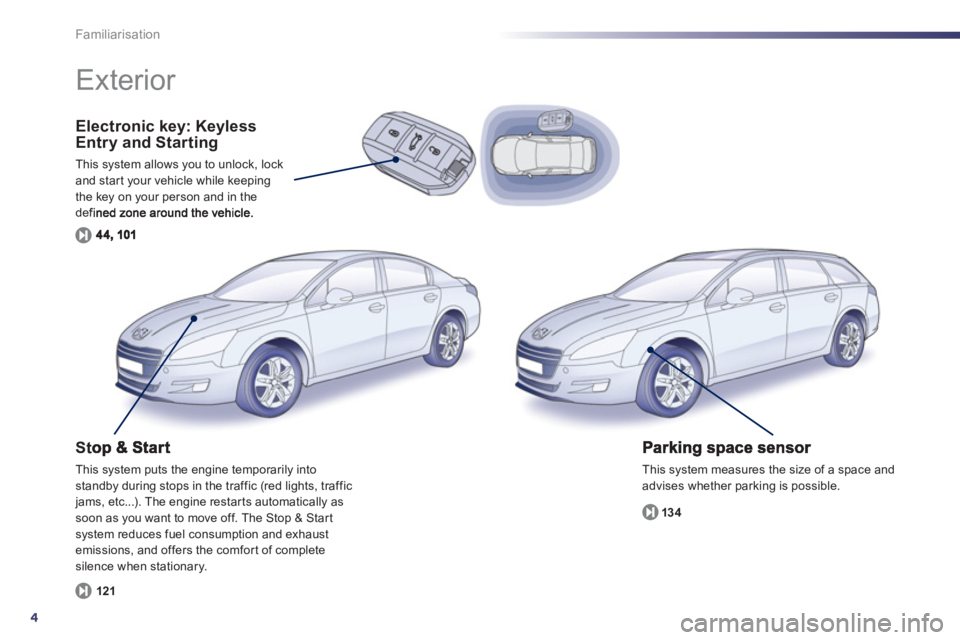

Electronic key: KeylessEntry and Starting
This system allows you to unlock, lockand star t your vehicle while keepingthe key on your person and in the defined zone around the vehicle.
This system measures the size of a space and
advises whether parking is possible.
13
4
Exterior
St
This system puts the engine temporarily into standby during stops in the traffic (red lights, traffic jams, etc...). The engine restar ts automatically as soon as you want to move off. The Stop & Start system reduces fuel consumption and exhaustemissions, and offers the comfor t of complete silence when stationary.
12
1

8
Familiarisation
Lighting of the indicator lamp indicates the state
of the corresponding function.
Switch panels
Opening the boot.
Opening the fuel filler flap. 57, 58
Massa
ge.
7
1
53

Alarm.
Pro
grammable heating warning lamp.
6
4
99
Electric parking brake.
10
3
Starting/stopping using the electronic key.
10
1

Deactivation of Stop & Start.
122


Head-up display
(on/off, settings).
12
5

Deactivation of parking sensors.
133


Parking space sensor.
134

Electric child lock.
164


Deactivation of the DSC/ASR system.
170

Adaptive lighting.
142

18
Familiarisation
Driving safely
Stop & Start
Going into engine STOP mode
121

The "ECO"warning lamp comes
on in the instrument panel and the
engine goes into standby; with anelectronic gear control gearbox and speeds
below 4 mph (6 km/h), press the brake pedal or put the gear lever in position N.

Going into engine START mode

Deactivation
/ Reactivation

You can deactivate the system at any time bypressing the "ECO OFF"
button; the button's
warning lamp comes on.
122
122
The system is automatically reactivated every time the engine is star ted withthe key.
Before refuelling or doing anything under the bonnet, you must switch off the ignition with the key. Th
e "ECO"
warning lamp goes off
and the engine restar ts with anelectronic gear control gearbox:



- with the gear lever in position A
or Mrelease the brake pedal,

- or with the gear lever in position N
andbrake pedal released, move the gear lever
to position Aor M ,

- or engage reverse.
In certain circumstances, the ST
OP modemay not be available; the "ECO"
warning lamp
flashes for a few seconds, then goes off. In certain circumstances,
STA R T m o d e m ay be
invoked automatically; the "ECO"warning lampflashes for a few seconds, then goes off.

1
25
Instruments and controls
Warning / indicator lampStateCauseAction / Observations
Diesel engine pre-heating fixed. The START/STOP
switch has been pressed (ignition on). Wait until the warning lamp goes off before star ting.
Once it goes off, star ting is immediate, on condition
that the brake pedal remains pressed for automatic or electronic gearboxes, or the clutch pedal is pressed fully down for manual gearboxes.
The period of illumination of the warning lamp is
determined by the ambient conditions (up to about
thirty seconds in extreme conditions).
If the engine does not star t, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.
Parking brake fixed. The parking brake is applied or notproperly released. Release the parking brake to switch off the warninglamp, keeping your foot on the brake pedal.
Obser ve the safety recommendations.
For further information on the parking brake, refer to
the "Parking brake" section.
Deactivation of the automatic functions of the electric parkingbrake
fixed. The "automatic application" (on switching off the engine) and
"automatic release" functions aredeactivated or faulty.
Activate the function (according to country) via the
vehicle configuration menu or contact a PEUGEOT
dealer or a qualified workshop if automatic application /
release is not possible.
The parkin
g brake can be released manually using the emergency release procedure.
For more information on the electric parking brake,
refer to the corresponding section.

26
Instruments and controls
Warning / indicator lampStateCauseAction / Observations
Automatic wipingfixed.The wiper control is pushed downwards. Automatic front wiping is activated. To deactivate automatic wiping, operate the controlstalk downwards or put the stalk into another position.
Passenger's
airbag systemfix
ed in the seat belt
and passenger's front airbag warning lampsdisplay.The control switch, located in the
glove box, has been placed in the "ON"position.
The passenger's front airbag is activated.
In this case, do not install a "rear
facin
g" child seat.M
ove the control switch to the "OFF"
position to
deactivate the passen
ger's front airbag.
In this case, you can install a "rear facing" child seat.
Stop & Start

fixed. When the vehicle stops (red lights,
traffic jams, ...) the Stop & Star t system has put the engine into STOP mode. The warnin
g lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.

fl
ashes for a few seconds, then goes off. STOP mode is temporaril
y unavailable.
or
STA R T mode is invoked
automatically. For more information on special cases with STOP
mode and
START mode, refer to the "Stop & Start"section.

1
31
Instruments and controls
Warning or indicator lamp in the instrument panelStateCauseAction / Observations


Engine oilpressure
fixed. There is a fault with the enginelubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a PEUGEOT
dealer or a qualified workshop.


Batter y charge
fixed. The battery charging circuit has a fault (dirty or loose terminals, slack or cut alternator belt, ...). The warning lamp should go o
ff when the engine is started.
If it does not go off, contact a PEUGEOT dealer or a qualified workshop.



Door(s) open

fixed, associated with
a message identifying
the door, if the speed is
below 6 mph
(10 km/h).
A door or the boot is still open. Close the door or boot.

fixed
, associated with a
message identifying the door, and accompanied by an audible signalif the speed is above6 mph (10 km/h).

38
Instruments and controls
System which provides current information concerning the trip (range, fuel consumption…).








Tr i p c o m p u t e r
Instrument panel screen
Information displa
y
)
Press the steering mounted control
todisplay the various trip computer tabs in succession.


- Th
e current information tab with:


●
the range,

●
the current fuel consumption,

●
the
Stop & Start time counter.



-
The trip "1"tab with:


●
the average speed,
for the first trip,

●
the average fuel consumption,

●
the distance travelled.





-
The trip "2"
tab with:


●
the average speed,
for the second trip,

●
the average fuel consumption,

●
the distance travelled.



)
Or on the end of the wiper stalk.
