ARRANGING YOUR SEATS
Ri
gid panel
Putting the seats back in place
)
Raise the seat back and push it
rearwards until it locks.
From the boot
)
Pull the strap B
to release the seat
and push the seat back forwards
gently.
Folding the seats in the 2nd row
)
Pull the strap A
upwards fi rmly to re-
lease the seat and continue to pull
until the seat is fully folded.
Access to the 3rd row seats
)
Close the aircraft style tables on the
2 nd row seats if they are open.
)
Hold the control D
up, the seat is
released and the seat base rises to
the seat back.
)
Push the seat back forwards, holding
the control D
forwards.
71
70
71
7 SEAT VERSION
)
After folding the seats, slide the
catch C
.
Page 21 of 340
FA
M
19
ARRANGING YOUR SEATS (7 SEAT VERSION)
72,
111
)
Pull the strap E
and guide the seat
until the assembly locks.
)
Fold the concertina boards forwards.
)
Lower the head restraints and place
the concertina board in the vertical
position behind the seat.
)
While pulling the strap F
, push the
seat back forwards gently.
)
Remove the load space screen from
its storage compartment and position
it behind the 2 nd row seats.
)
Place the rigid panels of the 2 nd row
seats upright and lock them then fold
the concertina boards rearwards.
)
Remove the load space cover and
store it in its housing.
Changing from 5 to 7 seats
72,
111
Page 70 of 340
CO
68
Table position, front passenger
seat
This position, associated with that of the
rear seats, allows you to transport long
objects inside the vehicle.
The maximum weight on the seat is
30 kg.
Folding the seat backrest
)
Raise the armrest and fold up the
"aircraft" style table, fi xed on the
back of the seat.
)
Check that no object, either on or
underneath the seat, could hinder
its movement.
)
To make the operation easier, place
the head restraint in the low position
(if the seat is in the fully forward po-
sition).
)
If your vehicle is fi tted with the video
pack, place the protective cover on
the head restraint.
)
Lift the control, located behind the
seat, then guide the seat back for-
wards.
Returning the seat to the normal
position
)
Guide the seat backrest rearwards
until it locks in place.
When the seat backrest is in this po-
sition, only the 2 nd
row passenger
seat located behind the driver can be
used.
Page 72 of 340
CO
70
Flat floor
Each seat can be folded onto the fl oor
to enable you to modify your vehicle’s
interior space.
Folding the seat from the 2 nd row
)
Place the seats as far towards the
rear as possible.
)
Pull fi rmly upwards on strap C
, to
unlock the seat ; keep pulling until
the seat is fully folded.
)
Push the backrest slightly forwards
so that the backrest pivots, folding
onto the seat base. The assembly
then lowers onto the fl oor.
Folding the seat from the boot
When loading, for example, you can
fold the seat or seats directly from the
boot, once you have folded the 3 rd
row
seats (7 seat version).
)
Place the seats as far towards the
rear as possible.
)
Pull on the strap D
to release the
chosen seat and push the backrest
gently forwards.
Repositioning seat
)
If necessary, return the 2 nd row seat
rigid panels to their initial position
and lock them.
)
Raise the backrest and push it rear-
wards until it locks.
Before moving the 3 rd row
seats (7 seat version), return
the 2
nd row seat rigid panels
to their initial position and lock them.
Emergency exit: if the fi rst system
(strap C
) fails, strap D
enables the
3 rd row passengers to exit quickly.
To avoid damaging the mecha-
nism, the strap D
unclips under
excessive force. Simply reclip it
to restore the system to working order.
Supervise any movement of seats by
children.
Page 73 of 340
CO
71
Rigid panel
Each 2 nd row seat backrest has a rigid
panel attached.
This panel enables you:
- to have a continuous load surface in
the boot, whatever the positions of
the seats,
- to avoid having objects sliding under
the 2 nd row seats. 30 kg maximum
on each panel.
Releasing/Locking the rigid panel
)
Before deploying the rigid panels,
check that the 2 nd row seats are po-
sitioned as far towards the rear as
possible.
)
Slide the latch E
on the panel up-
wards, to release it.
)
Return the panel to its initial position,
then slide the latch E
downwards, to
lock it in place.
Entering/Exiting the 3rd
row (7 seat version) Repositioning the seat, from the outside, with the door open
If there are passengers seated in the
3 rd row (7 seat version):
)
Manually return the assembly as far
as possible rearwards; the seat does
not return as far as the maximum
rearwards position so as to retain leg
space for the 3 rd
row passengers.
)
Fold the seat base.
)
Raise the aircraft style table on the
2 nd row seat if it is down.
)
Hold the control F
in the raised posi-
tion, the seat unlocks and the seat
base comes up against the backrest.
)
Push the seat backrest forwards,
holding the control F
forwards.
Page 74 of 340
CO
72
3 RDROW SEATS(7 SEAT VERSION)
Concertina boards
Two rigid concertina boards, which cannot
be separated from the vehicle, cover the
two 3 rd row seats, when these are in the
folded position.
Folding the concertina boards
)
Pull on the control, the 3 sections of
the board will fold like a concertina.
When the 3 rd row seats are upright, these
concertina boards can be left either:
- fl at behind the seats,
- in the vertical position,
thereby leaving a storage area available.
The two rigid boards can each support
a maximum of 100 kg.
)
Remove the load space screen.
)
If necessary, return the 2 nd row rig-
id panels to their initial position and
lock them.
)
Correctly position the concertina
board vertically behind the seat.
)
Pull on the control G
, located behind
the seat backrest. The backrest tilts
rearwards pulling the seat base with
it. The seat locks in the open posi-
tion.
Storing a seat
)
Lower the head restraints.
)
Correctly position the concertina
board vertically behind the seat.
)
Pull on the control H
, located at the
bottom of the seat backrest. The
seat is released.
)
Next push the backrest gently for-
wards. The backrest pivots folding
onto the seat base. The seat base
then folds into the stowage area
provided for that purpose.
)
Reposition the concertina boards
over the folded seats.
Page 75 of 340
CO
73

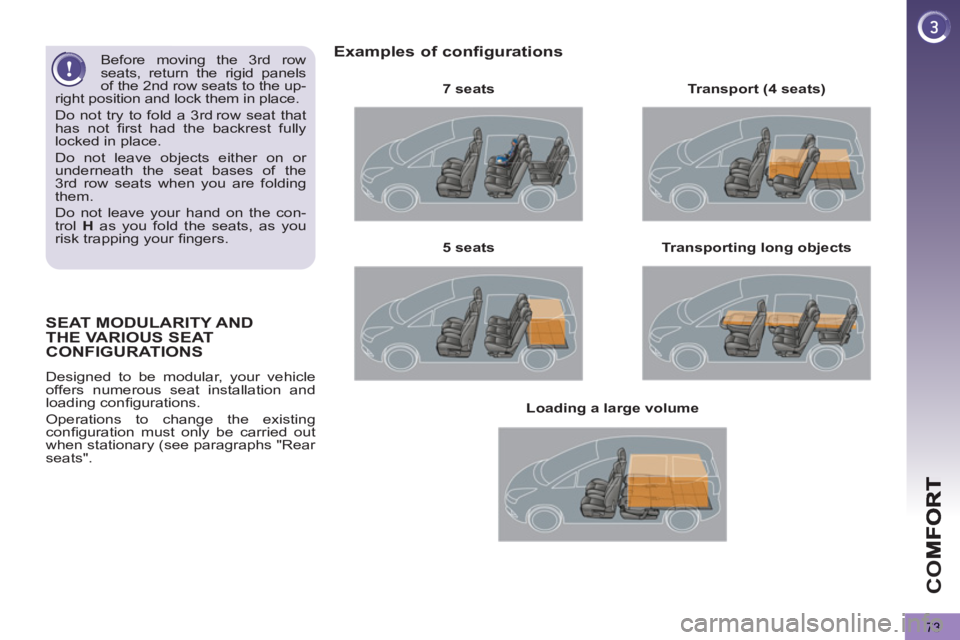

SEAT MODULARITY AND THE VARIOUS SEAT
CONFIGURATIONS
Designed to be modular, your vehicle
offers numerous seat installation and
loading confi gurations.
Operations to change the existing
confi guration must only be carried out
when stationary (see paragraphs "Rear
seats".
Examples of configurations
7 seats
Transporting long objects
5 seats
Transport (4 seats)
Loading a large volume
Before moving the 3 rd row
seats, return the rigid panels
of the 2 nd row seats to the up-
right position and lock them in place.
Do not try to fold a 3 rd
row seat that
has not fi rst had the backrest fully
locked in place.
Do not leave objects either on or
underneath the seat bases of the
3 rd row seats when you are folding
them.
Do not leave your hand on the con-
trol H
as you fold the seats, as you
risk trapping your fi ngers.
