Electric parking brake
This combines the functions of automatic
application
on switching off the engine and
automatic release
on acceleration.
Manual application/release is possible.
140

Audio and communication systems
This equipment benefi ts from the latest tech-
nology: MP3 compatible Peugeot Connect
Sound (RD5), Peugeot Connect USB, Blue-
tooth, Peugeot Connect Navigation (RNEG)
or Peugeot Connect Media Navigation
(RT6) with 16/9 retractable colour screen,
JBL audio system, auxiliary sockets.
227
Head-up display
This system projects certain information
into the fi eld of vision of the driver: speed,
cruise control/speed limiter and Distance
alert.
148

Dual-zone digital air conditioning
This system allows different levels of
comfort to be set for the driver and front
passenger. It then controls these levels
automatically according to the ambient
conditions.
62
Peugeot Connect
Navigation (RNEG) 271
303

Peugeot Connect
Sound (RD5)
Peugeot Connect
Media Navigation (RT6) Peugeot Connect USB
250,
310
Bluetooth 255,
291,
313
PEUGEOT
Assistance 223

FA
M
10

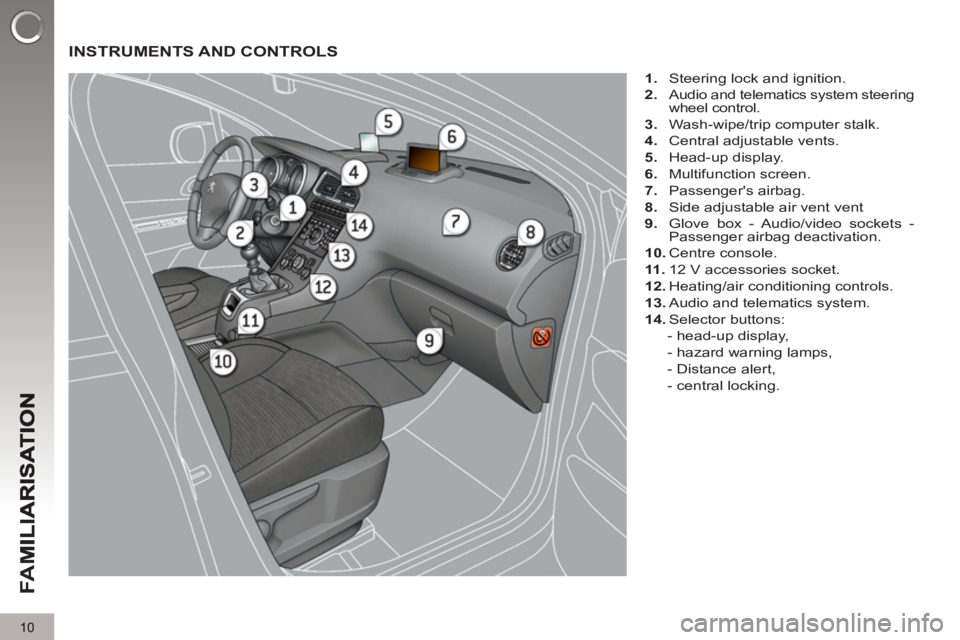

INSTRUMENTS AND CONTROLS



1.
Steering lock and ignition.

2.
Audio and telematics system steering
wheel control.

3.
Wash-wipe/trip computer stalk.

4.
Central adjustable vents.

5.
Head-up display.

6.
Multifunction screen.

7.
Passenger's airbag.

8.
Side adjustable air vent vent

9.
Glove box - Audio/video sockets -
Passenger airbag deactivation.

10.
Centre console.

11 .
12 V accessories socket.

12.
Heating/air conditioning controls.

13.
Audio and telematics system.

14.
Selector buttons:
- head-up display,
- hazard warning lamps,
- Distance alert,
- central locking.

FA
M
16
MONITORING

Instrument
panel



A.
With the ignition on, the needle
should indicate the level of fuel re-
maining.

B.
With the engine running, its associated
low level warning lamp should go off.

C.

With the ignition on, the oil level indicator
should display "OIL OK"
for a few seconds.

If the levels are not correct, top up the
levels which are low.
27



1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.
29


Switch panels

Lighting of the indicator lamp indicates the
status of the corresponding function.


A.
Parking space
sensors. 169
165
81
167
131
127
148
128
B.
Deactivation of Stop &
Start.

C.
Volumetric alarm.

D.
Visual and audible
parking sensors.

E.
ESP OFF.

F.
Child lock.

G.
Head-up display.

H.
Hazard warning
lamps.
Lower


Central

150

I.
Distance alert.
86

J.
Central locking.

FA
M
22
Your vehicle is equipped with a system
which keeps it immobile for a short time
(approximately 2 seconds) to assist you
when starting on a hill, the time required
for you to move your foot from the brake
pedal to the accelerator pedal.
This system only operates:


- when the vehicle has been com-
pletely stopped with your foot on the
brake pedal,

- on certain gradients,

- when the driver's door is closed.
Do not get out of the vehicle
during the hill start assist tem-
porary holding phase.
145

DRIVING SAFELY
Head-up displa
y


1.
Head-up display on/off.

2.
Brightness adjustment.

3.
Display height adjustment.
The adjustments must be
made with the engine running
and the vehicle stationary. 148


Distance alert



1.
Distance alert on/off.

2.
Alert value increase/decrease.
150


Hill start assist

FA
M
23
DRIVING SAFELY
S

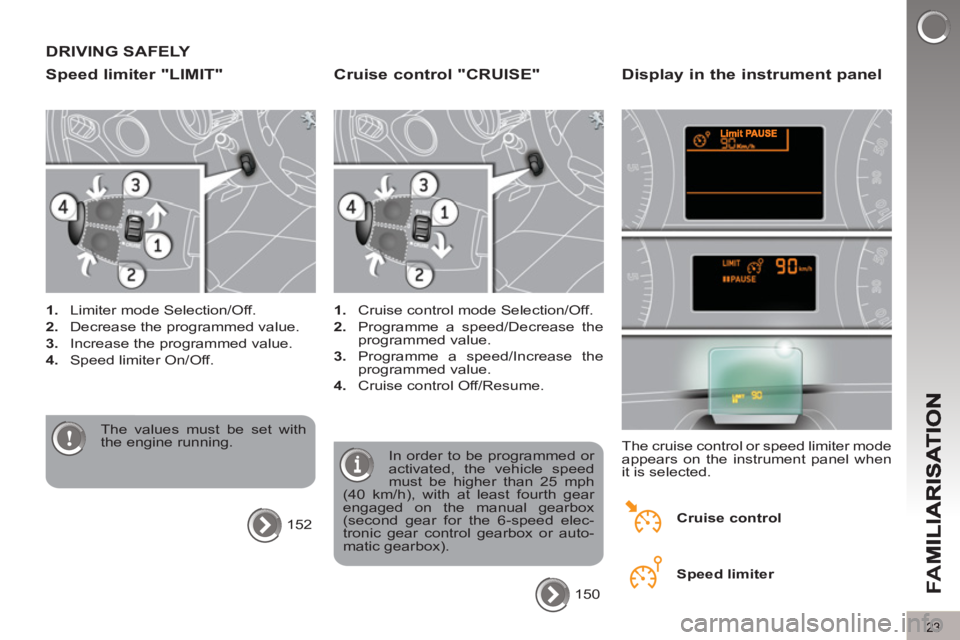

peed limiter "LIMIT"


1.
Limiter mode Selection/Off.

2.
Decrease the programmed value.

3.
Increase the programmed value.

4.
Speed limiter On/Off.
The values must be set with
the engine running.
152


Cruise control "CRUISE"



1.
Cruise control mode Selection/Off.

2.
Programme a speed/Decrease the
programmed value.

3.
Programme a speed/Increase the
programmed value.

4.
Cruise control Off/Resume.
In order to be programmed or
activated, the vehicle speed
must be higher than 25 mph
(40 km/h), with at least fourth gear
engaged on the manual gearbox
(second gear for the 6-speed elec-
tronic gear control gearbox or auto-
matic gearbox).
150
Display in the instrument panel

The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.

Cruise control

Speed limiter

Optimise the use of your gearbox

With a manual gearbox, move off gen-
tly, change up without waiting and
drive by changing up quite soon. If
your vehicle has the system, the gear
shift indicator invites you to change up;
it is displayed in the instrument panel,
follow its instructions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.

Drive smoothly


Maintain a safe distance between ve-
hicles, use engine braking rather than
the brake pedal, and press the accel-
erator progressively. These practices
contribute towards a reduction in fuel
consumption and CO
2 emissions and
also helps reduce the background traf-
fi c noise.


If your vehicle has cruise control, make
use of the system at speeds above 25 mph
(40 km/h) when the traffi c is fl owing well.



Control the use of your electrical equipment


Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents be-
fore using the air conditioning.
Above 30 mph (50 km/h), close the win-
dows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in
the passenger compartment down (sun
roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.
Switch off the headlamps and front
foglamps when the level of light does
not require their use.

Avoid running the engine before moving
off, particularly in winter; your vehicle will
warm up much faster while driving.


As a passenger, if you avoid connect-
ing your multimedia devices (fi lm, music,
video game...), you will contribute towards
limiting the consumption of electrical en-
ergy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.

ECO-DRIVING

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
2525

27
IN
S

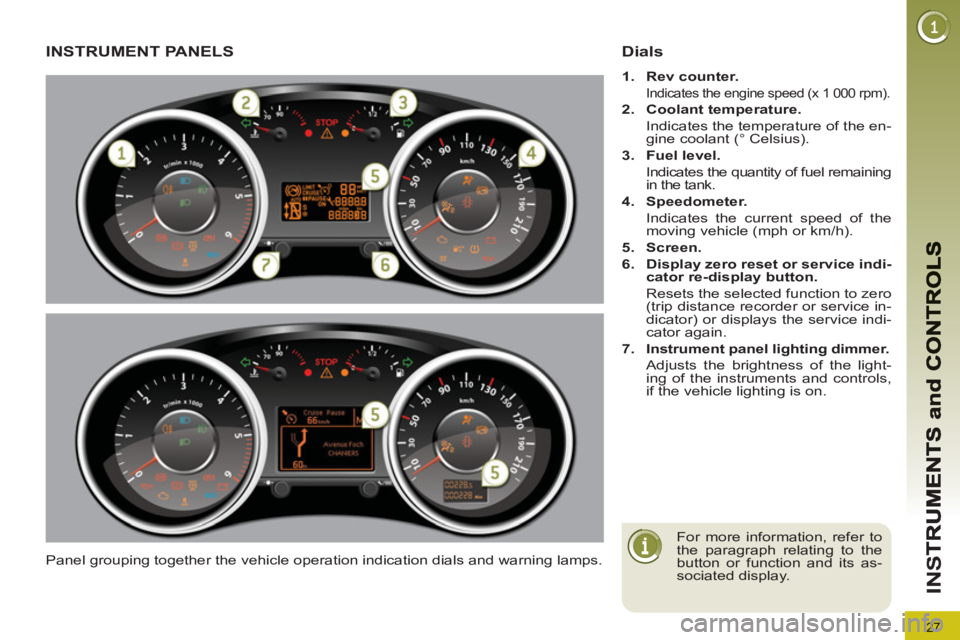

INSTRUMENT PANELS
Panel grouping together the vehicle operation indication dials and warning lamps.
Dials



1.
Rev counter.


Indicates the engine speed (x 1 000 rpm).

2.
Coolant temperature.

Indicates the temperature of the en-
gine coolant (° Celsius).

3.
Fuel level.

Indicates the quantity of fuel remaining
in the tank.

4.
Speedometer.

Indicates the current speed of the
moving vehicle (mph or km/h).

5.
Screen.


6.
Display zero reset or service indi-
cator re-display button.

Resets the selected function to zero
(trip distance recorder or service in-
dicator) or displays the service indi-
cator again.

7.
Instrument panel lighting dimmer.


Adjusts the brightness of the light-
ing of the instruments and controls,
if the vehicle lighting is on.

For more information, refer to
the paragraph relating to the
button or function and its as-
sociated display.
