CONTENTS
INDEX325-329
DRIVING 140-170
CHECKS 171-178
PRACTICAL
INFORMATION 179-213
TECHNICALDATA 214-222
AUDIO EQUIPMENT andTELEMATICS 223-324
Electric parking brake...................140Hill start assist..............................145Head-up display...........................148Distance alert ...............................150Speed limiter................................r152Cruise control...............................154Manual gearbox ............................156Gear efficiency indicator...............r1566-speed electronic gear control gearbox......................................157Automatic gearbox.......................161Stop & Start ..................................164Parking sensors ............................167Parking space sensors.................169
Bonnet ..........................................172Running out of fuel (Diesel)..........173Petrol engines ..............................174Diesel engines..............................175Checking levels............................176Checks..........................................177
Temporary puncture repair kit......179Changing a wheel.........................188Changing a bulb...........................194Changing a fuse ...........................19912 V Battery..................................206Energy economy mode................208Changing a wiper blade...............208Towing the vehicle ........................209Towing a trailer.............................r210Fitting roof bars.............................211Very cold climate screen..............212Accessories..................................213
Petrol engines..............................214Petrol weights...............................215Diesel engines ..............................216Diesel weights ..............................217Dimensions ...................................221Identification markings..................222
Emergency or assistance.............223Peugeot Connect Media ...............227Peugeot Connect Navigation(RNEG).......................................271Peugeot Connect Sound (RD5)..........................................303
VISUAL
SEARCH330-334
Page 41 of 340
39
IN
S
Following this operation, if you
wish to disconnect the battery,
lock the vehicle and wait at
least fi ve minutes for the zero reset
to be taken into account.
Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:
)
switch off the ignition,
)
press and hold the trip distance re-
corder zero reset button,
)
switch on the ignition; the distance
recorder display begins a count-
down,
)
when the display indicates "=0"
, re-
lease the button; the spanner disap-
pears. The distance remaining may
be weighted by the time fac-
tor, depending on the driving
conditions.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.
Service overdue
For 5 seconds after the ignition is
switched on, the spanner fl ashes
to
indicate that the service must be carried
out as soon as possible.
Example:
the service is overdue by
180 miles (300 km).
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains on
.
Retrieving the service information
You can access the service information
at any time.
)
Press the trip distance recorder zero
reset button.
The service information is displayed
for a few seconds, then disappears.
Page 70 of 340
CO
68

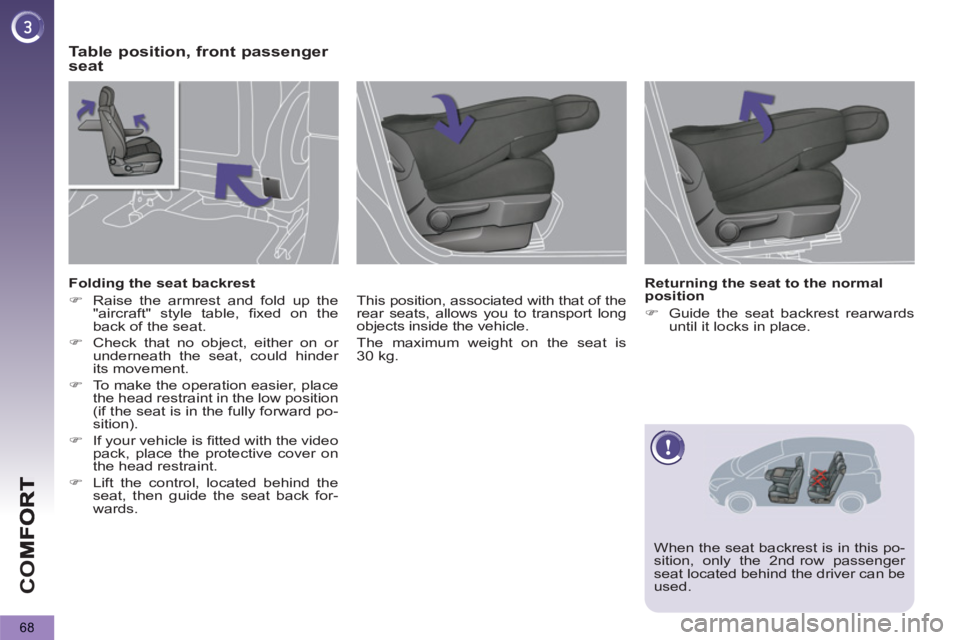

Table position, front passenger
seat
This position, associated with that of the
rear seats, allows you to transport long
objects inside the vehicle.
The maximum weight on the seat is
30 kg.
Folding the seat backrest
)
Raise the armrest and fold up the
"aircraft" style table, fi xed on the
back of the seat.
)
Check that no object, either on or
underneath the seat, could hinder
its movement.
)
To make the operation easier, place
the head restraint in the low position
(if the seat is in the fully forward po-
sition).
)
If your vehicle is fi tted with the video
pack, place the protective cover on
the head restraint.
)
Lift the control, located behind the
seat, then guide the seat back for-
wards.
Returning the seat to the normal
position
)
Guide the seat backrest rearwards
until it locks in place.
When the seat backrest is in this po-
sition, only the 2 nd
row passenger
seat located behind the driver can be
used.
Page 118 of 340

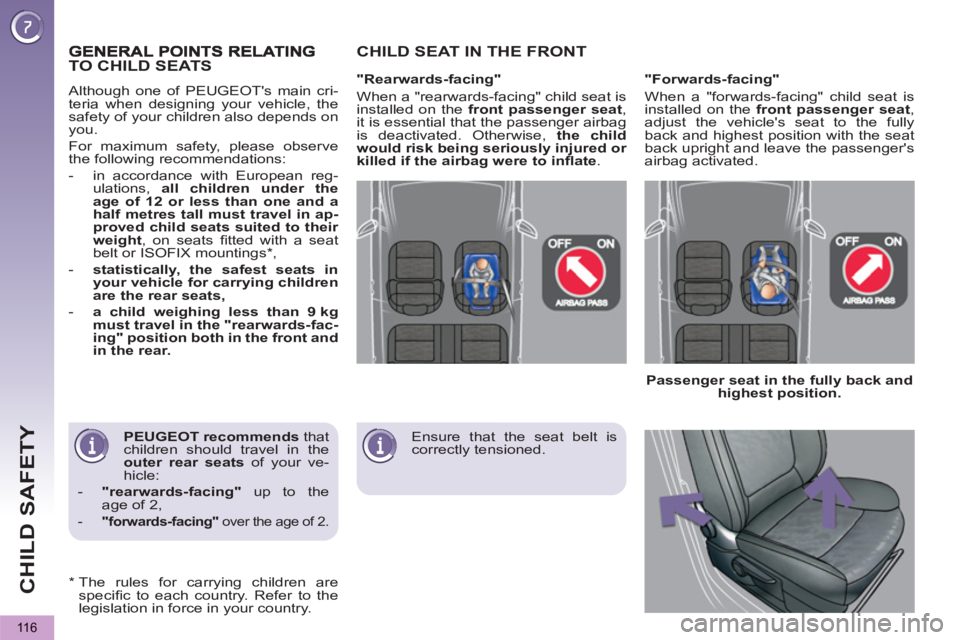

CHILD SAFETY
116
PEUGEOT recommends
that
children should travel in the
outer
rear seats
of your ve-
hicle:
- "rearwards-facing"
up to the
age of 2,
- "forwards-facing"
over the age of 2.
TO CHILD SEATS
Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please observe
the following recommendations:
- in accordance with European reg-
ulations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight
, on seats fi tted with a seat
belt or ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-fac-
ing" position both in the front and
in the rear.
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the fully
back and highest position with the seat
back upright and leave the passenger's
airbag activated.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the front passenger seat
,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate
.
*
The rules for carrying children are
specifi c to each country. Refer to the
legislation in force in your country.
Passenger seat in the fully back and
highest position.
CHILD SEAT IN THE FRONT
Ensure that the seat belt is
correctly tensioned.
Page 122 of 340
CHILD SAFETY
120
INSTALLING CHILD SEATS USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt
and universally approved (a)
in accordance with the weight of the child and the seat in the vehicle.
Weight of the child and indicative age
Seat
Under 13 kg
(groups 0 ( b
) and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger
seat ( c
) with
height adjuster
U (R)
U (R)
U (R)
U (R)
Front passenger
seat (c)
without
height adjuster
X
X
X
X
5 seats
(2 rows)
Outer
rear seats
U
*
U
*
U
*
U
*
Centre
rear seat
U
U
U
U
To install a child seat in a rear seat, facing forwards or backwards, slide the rear seat backwards suffi ciently so that front seat
backrest is not in the way.
*
Precautions are required when fi tting a child seat with a stay
(or drop down leg). Refer to the page "Installing a child seat
with a stay" for more information.
Page 123 of 340
CHILD SAFETY
121
a:
universal child seat, child seat that can be installed in all vehicles using a seat belt.
b:
group 0, from birth to 10 kg. Shells seats and baby carriers cannot be installed in the front passenger seat.
c:
consult the legislation in force in your country before installing your child on this seat.
U:
seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rearwards-facing"
and/or "forwards-facing".
U (R):
idem U
, with the vehicle's seat adjusted to the highest position.
L-:
only the child seats indicated can be installed on the seat concerned (according to country).
X:
seat position not suitable for installation of a child seat for the weight class indicated.
* Precautions are required when fi tting a child seat with a stay
(or drop down leg). Refer to the page "Installing a child seat
with a stay" for more information.
Weight of the child and indicative age
Seat
Under 13 kg
(groups 0 (b)
and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger
seat (c)
with height
adjuster
U (R)
U (R)
U (R)
U (R)
Front passenger
seat (c)
without
height adjuster
X
X
X
X
7 seats
(3 rows)
Outer rear seats
2nd row
U
*
U
*
U
*
U
*
Centre rear
seat 2nd row
U
U
U
U
Rear seats
3rd row
U
U
U
U
When the KIDDY Life (L3) is installed with its booster on the front passenger seat, the vehicle's seat must be adjusted to
its maximum forwards position and the airbag must be deactivated.
Page 127 of 340
./..
CHILD SAFETY
125
SEATING POSITIONS FOR INSTALLING ISOFIX CHILD SEATS
In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the
vehicle fi tted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter between A
and G
, is indicated on the child seat next to the ISOFIX logo.
Weight of the child
/indicative age
Less than 10 kg
(group 0)
Up to approx.
6 months
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to approx. 1 year
From 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat
Shell
"rearwards-facing"
"rearwards-
facing"
"forwards-facing"
ISOFIX size category
F
G
C
D
E
C
D
A
B
B1
Front passenger seat
X
X
X
X
5 seats
(2 rows)
Outer rear seats
IL-SU
*
IL-SU
*
IL-SU
*
IUF
*
IL-SU *
Centre rear seat
X
IL-SU
IL-SU
IUF
IL-SU
*
Precautions are required when fi tting a child seat with a stay
(or drop down leg). Refer to the page "Installing a child seat
with a stay" for more information.
To install a child seat in a rear seat, facing forwards or backwards, slide the rear seat backwards suffi ciently so that front seat
backrest is not in the way.
Page 128 of 340
CHILD SAFETY
126
IUF:
seat suitable for the installation of an I
sofi x U
niversal seat, " F
orwards-facing" secured using the top belt.
IL-SU:
seat suitable for the installation of an I
sofi x S
emi- U
niversal seat either:
- "rearwards-facing" fi tted with a top belt or a stay,
- "forwards-facing" fi tted with a stay,
- a shell seat fi tted with an upper strap or a stay.
For advice on securing of the top belt, refer to the paragraph "Isofi x mountings".
X:
seat not suitable for the installation of a child seat or shell for the weight group indicated.
Weight of the child
/indicative age
Less than 10 kg
(group 0)
Up to approx.
6 months
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to approx. 1 year
From 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat
Shell
"rearwards-facing"
"rearwards-facing"
"forwards-facing"
ISOFIX size category
F
G
C
D
E
C
D
A
B
B1
Front passenger seat
X
X
X
X
7 seats
(3 rows)
Outer rear
seats 2nd row
IL-SU
*
IL-SU
*
IL-SU
*
IUF
*
IL-SU
*
Centre rear
seat 2nd row
X
IL-SU
IL-SU
IUF
IL-SU
Rear seats
3rd row
Not Isofi x
* Precautions are required when fi tting a child seat with a stay
(or drop down leg). Refer to the page "Installing a child seat
with a stay" for more information.
