INTERIOR


Electric parking brake
This combines the functions of automatic
application
on switching off the engine and
automatic release
on acceleration.
Manual application/release is possible.
140

Audio and communication systems
This equipment benefi ts from the latest tech-
nology: MP3 compatible Peugeot Connect
Sound (RD5), Peugeot Connect USB, Blue-
tooth, Peugeot Connect Navigation (RNEG)
or Peugeot Connect Media Navigation
(RT6) with 16/9 retractable colour screen,
JBL audio system, auxiliary sockets.
227
Head-up display
This system projects certain information
into the fi eld of vision of the driver: speed,
cruise control/speed limiter and Distance
alert.
148

Dual-zone digital air conditioning
This system allows different levels of
comfort to be set for the driver and front
passenger. It then controls these levels
automatically according to the ambient
conditions.
62
Peugeot Connect
Navigation (RNEG) 271
303

Peugeot Connect
Sound (RD5)
Peugeot Connect
Media Navigation (RT6) Peugeot Connect USB
250,
310
Bluetooth 255,
291,
313
PEUGEOT
Assistance 223

FITTINGS
104
12 V ACCESSORY SOCKETS


)
To connect a 12 V accessory (max
power: 120 Watts), remove the cover
and connect a suitable adaptor.
Exceeding the maximum power could
result in damage to your accessory.
CENTRE CONSOLE
Storage device for the driver and front
passenger.

Storage



)
Slide the cover for access to the
10.5 litre storage compartment.
This can contain 2 half-litre bottles.
A ventilation outlet distributes cooled air.
PEUGEOT CONNECT USB


This connection box consists of a jack
auxiliary socket and/or a USB port.
It permits the connection of portable
equipment, such as a digital audio player
of the iPod
® type or a USB memory stick.
It reads the audio fi le formats (mp3,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these fi les using the
steering mounted controls or the audio
equipment control panel and display
them on the multifunction screen.

When it is in use, the portable equipment
charges automatically.

For more information on the
use of this equipment, re-
fer to the Peugeot Connect
Sound part of the "Audio and
Telematics" section.

228
01FIRST STEPS

Peugeot Connect Media Navigation (NG4 3D) CONTROL PANEL

Access to the Radio Menu

Display the list of stations in
alphabetical order (FM band) or frequency order (AM band).

Access to the Media Menu(audio CD, Jukebox,
Auxiliary input).
Display the list o
f tracks.
Change the audio source.
Access to the NavigationMenu and display recentdestinations.
Abandon the current
operation.
Long press: return to main
displa
y. Access to the Traffi c Menu.
Access to the Address book Menu.

A
ccess to the "SETUP" menu (confi guration).
Lon
g press: GPS coverage.

Audio settings (Balance/
Fader, Bass/Treble, Musical
ambience...
).

Adjust volume (each source
is independent, including
navigation messages and alerts).
Lon
g press: reinitialise thesystem.
Short press: mute.

Automatic search down/up for radio frequencies.
Select
previous/next CD or MP3
track.
SD card reader.Short press: clears the last character.
Enter the numbers or lettersusing the alpha-numeric keypad.
Presettin
g 10 radio frequencies.

231
02

VOICE COMMANDS -
VOICE RECO. INITIATION
VOICE COMMANDS AND STEERING MOUNTED CONTROLS
CONTEXTSAYACTION
MEDIA Media
Select media
Single slot
Jukebox
USB
Ext
ernal device SD-Card
Track <1 - 1000>
F
older <1 - 1000> Select the MEDIA source

Choose a source
Select the CD player source
Select the Jukebox source Select the USB player source
Select the audio AUX input source

Select the SD card source
Select a specifi c track (number between
1 and 1 000) on the active MEDIUM
Select a Folder (number between 1 and
1 000
) on the active MEDIUM
TELEPHONE Phone menu
Enter number
Phone book
Dial
Save number
Accept
Re
ject Open the Telephone Menu
Enter a telephone number to be called

Open the phone book
Make a call
Save a number in the phone book
Accept an incomin
g call
Reject an incoming call
ADDRESS
BOOK Address book menu
Call

Navigate
Open the address book
Call fi le using its <fi le> description asdescribed in the address book
Start guidance to an address in the
address book using its <fi le> description

250
07MUSIC MEDIA PLAYERS






CD, MP3/WMA CD, MP3/WMA SD CARD/
USB PLAYER

In order to be able to play a recorded CDR or CDRW, when
recording it is preferable to select the ISO 9660 level 1, 2 or Joliet standard.
If the disc is recorded in another format it ma
y not be played correctly.

It is recommended that the same recording standard is always
used for an individual disc, with as low a speed as possible(4x maximum) for optimum sound quality.
In the particular case o
f a multi-session CD, the Joliet standard is
recommended.The audio equipment will onl
y play audio fi les with the extension".mp3" with a speed of between 8 Kbps and 320 Kbps and the extension ".wma" with a speed of between 5 Kbps and 384 Kbps.
It also supports the VBR
(Variable Bit Rate) mode.
No other t
ype of fi le (.mp4, .m3u...) can be played. The MP3 format, an abbreviation of MPEG 1, 2 & 2.5 Audio La
yer 3
and the WMA format, an abbreviation of Windows Media Audio and
the propert
y of Microsoft, are audio compression standards whichpermit the recording of several tens of music fi les on a single disc.

Connecting an IPod:
To play MP3 type
fi les, connect the IPod using the USB port(limited functions).
To pla
y ITunes fi les, connect the IPod using the auxiliary socket (AUX).

In order to be read, a USB memor
y stick must be formattedto FAT 32.It is advisable to restrict
fi le names to 20 characters, without usingof special characters (e.g. : " " ? ; ˘) to avoid any playing and
displaying problems.
Durin
g play, exit the "SD-Card" or "USB" source before removingthe SD card or the USB memory stick from its port.
To avoid an
y risk of theft, remove the SD card or the USB memorystick when you leave your vehicle with the roof open. INFORMATION AND ADVICE

254
07
1
3
MEDIA
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2
1
3
4
2MEDIA
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
RADIONAV ESC TRAFFICMEDIA
RADIONAV ESC TRAFFICMEDIA
Connect the portable device (MP3 player, camcorder, camera…) to
the RCA sockets (white and red for audio; yellow for video) in the glove box using a JACK/RCA audio cable.

Press the MEDIA button then press
it again or select the Media Menu function and press OK to confi rm.

Select the AUX music source and press OK to confi rm. Play begins
automatically.
Select "Select media" then "External
device (AV)" and press OK to activate it.
External device

The display and management of the controls is via the portable device.

















USING AN EXTERNAL DEVICE (AUX)


If the external input is not activated, select "Ext. Device (Aux)management" to activate it.
VIEWING A VIDEO DVD


Select the video source required ("DVD-Video", "External device (AV)"). Press OK to confi rm. Play begins.
Press the MEDIA button to gain
access to the DVD menu at any time, or to the functions of the Media Menu
which adjust the video (brightness/contrast, image format...). If the DVD does not appear on the
screen, press the MODE button togain access to the "MEDIA" screen
which displays the DVD screen.
Insert the DVD in the pla
yer. Play begins
automatically.

The 4-direction navigator and the chromed ring allow you to move
the DVD selection cursor. Change chapter by pressing the  or  button.

MUSIC MEDIA PLAYERS


AUDIO/VIDEO/RCA CABLE NOT SUPPLIED

262

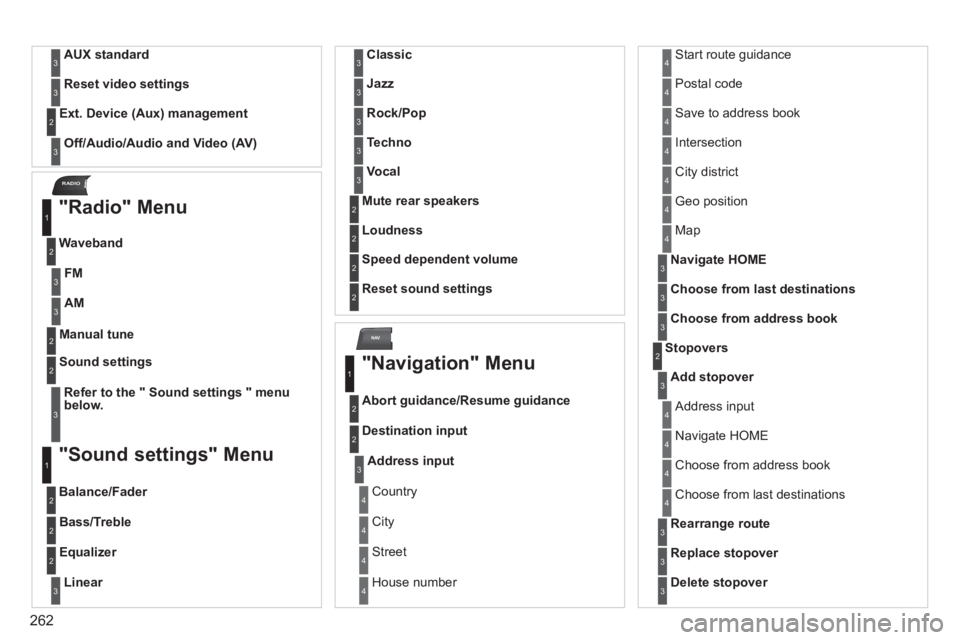

NAV
RADIO
AUX standard3
Reset video settings3
Off/Audio/Audio and Video (AV)
Ext. Device (Aux) management2
3

"Radio" Menu


Waveband
1
2
Manual tune 2
Refer to the "Sound settings" menubelow.
Sound settings2
3


"Sound settings" Menu


Balance/Fader
1
2
Bass/Treble2
Equalizer 2
Linear3
Classic3
Jazz3
Rock/Pop3
Techno3
Vocal3
Mute rear speakers2
Loudness 2
Speed dependent volume2
Reset sound settings
2


"Navigation" Menu
Abort guidance/Resume guidance
1
2
Destination input2
Address input3

Country4
City 4
Street4

House number 4
Start route guidance4

Postal code4
Save to address book4

Intersection4
City district4
Geo position4

Map4
Navigate HOME3
Choose from last destinations3
Choose from address book3


Stopovers 2
Add stopover3
Address input4

Navigate HOME 4
Choose from address book4
Choose from last destinations 4
Rearrange route3
Replace stopover3
Delete stopover3
FM3
AM3

290
07
43 1
2

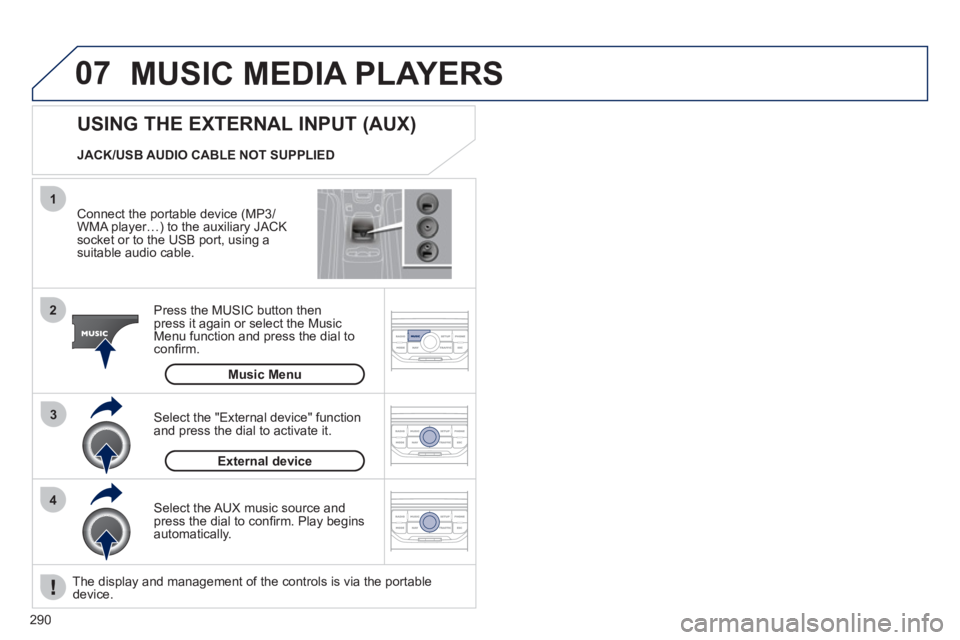

MUSIC MEDIA PLAYERS


Connect the portable device (MP3/
WMA player…) to the auxiliary JACK socket or to the USB port, using asuitable audio cable.
Press the M
USIC button then
press it again or select the Music Menu function and press the dial to confi rm.
Select the AUX music source and
press the dial to confi rm. Play beginsautomatically.
Select the "External device" functionand press the dial to activate it.
External device













USING THE EXTERNAL INPUT (AUX)
Music Menu JACK/USB AUDIO CABLE NOT SUPPLIED
The displa
y and management of the controls is via the portabledevice.
