2012 PEUGEOT 5008 seat adjustment

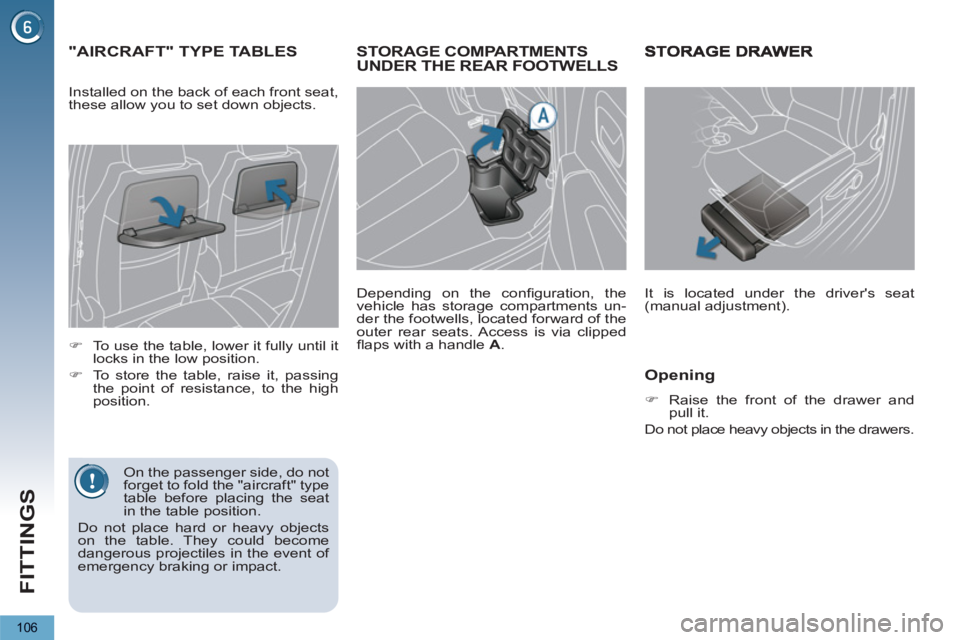

FITTINGS
106
STORAGE COMPARTMENTS UNDER THE REAR FOOTWELLS

Depending on the confi guration, the
vehicle has storage compartments un-
der the footwells, located forward of the
outer rear seats. Access is via clipped
fl aps with a handle A
.
"AIRCRAFT" TYPE TABLES



)
To use the table, lower it fully until it
locks in the low position.

)
To store the table, raise it, passing
the point of resistance, to the high
position.

On the passenger side, do not
forget to fold the "aircraft" type
table before placing the seat
in the table position.
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event of
emergency braking or impact. Installed on the back of each front seat,
these allow you to set down objects.
It is located under the driver's seat
(manual adjustment).

Opening



)
Raise the front of the drawer and
pull it.
Do not place heavy objects in the drawers.

CHILD SAFETY
11 9
Do not place the stay on the
storage compartment cover;
it might break in a serious im-
pact. Where the adjustments
of the stay allow it, we suggest two
other possibilities for installation.
The centre rear seat does not have
a storage compartment below the
footwell. You can therefore easily
fi t a child seat with a stay, whether
Isofi x or universal (installed using the
3 point seat belt).
INSTALLING A CHILD SEAT WITH A STAY
Care must be taken when installing a child seat with stay (a drop down leg) in the vehicle. In particular you should look for the
presence of a storage compartment below the rear seat footwells.

At the bottom of the storage
compartment
If the stay is long enough, you can ad-
just it so that it contact the bottom of
the storage compartment. Remove all
objects from the storage compartment
before installing the stay.


Away from the storage
compartment area
Another possibility, if the stay is long
enough and can be inclined suffi ciently
(always by following the recommenda-
tions given the installation instructions
for the child seat), is to position the stay
so that it contacts the fl oor away from
the storage compartment. Adjust the
longitudinal position of the front or rear
seat to obtain a satisfactory position for
the stay away from the storage com-
partment.
If you cannot fi t the stay in way
described, we recommend
that you do not fi t a child seat
with stay to this seat.

SA
F
132

Height adjustment

Front seat belt not fastened/
unfastened warning lamp









Fastening


)
Pull the strap, then insert the tongue
in the buckle.

)
Check that the seat belt is fastened
correctly by pulling the strap.


)
To adjust the anchorage point,
squeeze the control A
and slide it
until you fi nd a notch.

When the ignition is switched
on, this warning lamp comes
on on the seat belt and pas-
senger's front airbag warning
lamps display, if the driver and/or the
front passenger has not fastened their
seat belt.
From approximately 12 mph (20 km/h)
this warning lamp fl ashes for two minutes
accompanied by an audible signal. Once
these two minutes have elapsed, this
warning lamp remains on until the driver
and/or the front passenger fastens their
seat belt.
Unfastening


)
Press the red button on the buckle.

)
Guide the seat belt as it reels in.

SEAT BELTS

Front seat belts


The front seat belts are fi tted with a preten-
sioning and force limiting system.
This system improves safety in the front
seats in the event of a front or side impact.
Depending on the severity of the impact,
the pretensioning system instantly tightens
the seat belts against the body of the oc-
cupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure of
the seat belt on the chest of the occupant,
so improving their protection.

SA
F
135





The driver must ensure that
passengers use the seat belts
correctly and that they are all
restrained securely before setting
off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for
short journeys.
Do not interchange the seat belt
buckles as they will not fulfi l their role
fully.
The seat belts are fi tted with an inertia
reel permitting automatic adjustment
of the length of the strap to your size.
The seat belt is stowed automatically
when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
The inertia reels are fi tted with an au-
tomatic locking device which comes
into operation in the event of a collision,
emergency braking or if the vehicle rolls
over. You can release the device by
pulling fi rmly on the strap and releasing
it so that it reels in slightly. In order to be effective, a seat belt
must:


- be tightened as close to the body
as possible,

- be pulled in front of you with a
smooth movement, checking that
it does not twist,

-
be used to restrain only one person,


- not bear any trace of cuts or fraying,


- not be converted or modifi ed to
avoid affecting its performance.
In accordance with current safety
regulations, for all repairs on your
vehicle, go to a qualifi ed workshop
with the skills and equipment need-
ed, which a PEUGEOT dealer is able
to provide.
Have your seat belts checked regu-
larly by a PEUGEOT dealer or a
qualifi ed workshop, particularly if the
straps show signs of damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and reeled in correctly.
Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one and a half metres.
Never use the same seat belt to secure
more than one person.
Never allow a child to travel on your
lap.

In the event of an impact

Depending on the nature and se-
riousness of the impact
, the pre-
tensioning device may be deployed
before and independently of the
airbags. Deployment of the preten-
sioners is accompanied by a slight
discharge of harmless smoke and
a noise, due to the activation of the
pyrotechnic cartridge incorporated in
the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a PEUGEOT dealer
or a qualifi ed workshop.
