2012 PEUGEOT 5008 window

PEUGEOT's SERVICE BOX Internet site permits easy
and free consultation of your vehicle documentation
on line.



Your vehicle lives on the Internet!


Access the latest information available.


Connect to http://public.servicebox.peugeot.com:

Simple and user friendly, SERVICE BOX allows you
access:

Please note the following point:

The fi tting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure
of your vehicle’s electronic system. Please note this specifi c warning. It is advisable to contact a PEUGEOT dealer
to be shown the recommended equipment and accessories.

●
to your Handbook,

●
to previous Vehicle documentation.
select your language,
click on the link in the "Private customer access"
zone to consult the Vehicle documentation,

select your vehicle,
fi nally, click on the item which is of interest to you. choose its body type then the date of publication
of the handbook, A window opens giving access to all of the handbooks...

CONTENTS
FAMILIARISATION4-24
INSTRUMENTSand CONTROLS 27-41
CHILDSAFETY 116-127
MULTIFUNCTION
SCREEN
S42-57
SAFETY 128-139
COMFORT 58-75
ACCESS 76-90
VISIBILITY 91-101
FITTINGS 102-115
Instrument panels ...........................27Indicator and warning lamps ..........29Indicators........................................37Adjustment buttons.........................41
Child seats.....................................116ISOFIX child seats........................123Child lock......................................127
Screen A without audio equipment.....t42Screen A with audio equipment......44Screen C (Peugeot Connect Sound)............4616/9 retractable colour screen(Peugeot Connect Navigation (RNEG)) .......................................4916/9 high definition retractable colour screen (Peugeot Connect Media)....51Trip computer.................................r54
Direction indicators.......................128Hazard warning lamps..................128Horn..............................................128Tyre under-inflation detection .......129ESC system..................................130Front seat belts.............................132Airbags .........................................136
Heating and Ventilation ..................58Manual air conditioning ..................60Rear screen demist/defrost............61Dual-zone digital air conditioning...62Front seats.....................................65Rear seats, 2nd row.......................69Access to the 3rd row.....................71Rear seats, 3rd row........................72Seat modularity..............................73Mirrors............................................74Steering wheel adjustment .............75
Remote control key........................76Alarm..............................................81Electric windows.............................83Doors ..............................................85Boot................................................87Fuel tank.........................................89Misfuel prevention..........................90
Lighting controls.............................91Automatic illumination
of headlamps................................94Headlamp adjustment ....................94Directional lighting ..........................95Wiper controls................................96Automatic rain sensitive wipers......98Courtesy lamps ..............................99Interior mood lighting ....................100
Interior fittings ...............................102Centre console .............................104Rear multimedia...........................107Panoramic sunroof.......................f108Boot fittings 5 seat version ...........109Boot fittings 7 seat version ............110ECO-DRIVING 25-26

FA
M
9
INSTRUMENTS AND CONTROLS


1.
Cruise control/speed limiter switches.

2.
Steering wheel adjustment.

3.
Lighting and direction indicator stalk.

4.
Instrument panel.

5.
Driver's airbag.
Horn.

6.
Gear lever.

7.
Electric parking brake.

8.
12 V accessories socket.

9.
Panoramic sunroof control.

10.

Owner's Handbook storage compartment.


11 .
Bonnet release.

12.
Door mirror controls.
Electric window controls.
Child lock.

13.
Manual headlamp height adjustment.
Instrument panel navigator associated
with the Peugeot Connect Media
Navigation (NG4 3D).

14.
Alarm button.
Parking sensors button.
Dynamic stability control
(ESP/ASR) button.
Stop & Start.

15.

Front door window demist/defrost vent.


16.
Windscreen demist/defrost vent.

Optimise the use of your gearbox

With a manual gearbox, move off gen-
tly, change up without waiting and
drive by changing up quite soon. If
your vehicle has the system, the gear
shift indicator invites you to change up;
it is displayed in the instrument panel,
follow its instructions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.

Drive smoothly


Maintain a safe distance between ve-
hicles, use engine braking rather than
the brake pedal, and press the accel-
erator progressively. These practices
contribute towards a reduction in fuel
consumption and CO
2 emissions and
also helps reduce the background traf-
fi c noise.


If your vehicle has cruise control, make
use of the system at speeds above 25 mph
(40 km/h) when the traffi c is fl owing well.



Control the use of your electrical equipment


Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents be-
fore using the air conditioning.
Above 30 mph (50 km/h), close the win-
dows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in
the passenger compartment down (sun
roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.
Switch off the headlamps and front
foglamps when the level of light does
not require their use.

Avoid running the engine before moving
off, particularly in winter; your vehicle will
warm up much faster while driving.


As a passenger, if you avoid connect-
ing your multimedia devices (fi lm, music,
video game...), you will contribute towards
limiting the consumption of electrical en-
ergy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.

ECO-DRIVING

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
2525

CO
58
HEATING AND VENTILATION
System which creates and maintains
good conditions of comfort and visibility in
the vehicle's passenger compartment.
Controls
The incoming air follows various routes
depending on the controls selected by
the driver, the front passenger and rear
passengers, according to the level of
equipment.
The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits.
The air distribution control enables you
to select the air vents used in the pas-
senger compartment by the combined
use of the associated buttons. The air fl ow control enables you to in-
crease or reduce the speed of the ventila-
tion fan.
These controls are grouped together on
control panel A
on the centre console.

The air circulating in the passenger com-partment is fi ltered and originates either
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode.


Air distribution



1.
Windscreen demisting/defrosting vents.


2.
Front side window demisting/de-
frosting vents.

3.
Side adjustable air vents.

4.
Central adjustable air vents.

5.
Air outlets to the front footwells.

6.
Adjustable air vents for the rear pas-
sengers.

7.
Air outlets to the rear footwells.

CO
59

The air conditioning system
does not contain chlorine and
does not present any danger
to the ozone layer.
Recommendations for ventilation and air conditioning
REAR VENTILATION
ADJUSTMENT
After pressing the "REAR" button, turn
the adjustment dial of the rear side
vents to decrease or increase the fl ow
of air.
Take care not to obstruct the side vents
and the air outlets on the fl oor.
To shut off the fl ow of air, close the vents
and set the dial to 0. In order for these systems to be fully effective, follow the operation and mainte-
nance guidelines below:


)
If the interior temperature remains very high after the vehicle has been
parked in the sun for a considerable time, fi rst ventilate the passenger com-
partment for a few minutes.
Place the air fl ow control at a suffi cient level to provide an adequate renewal
of air in the passenger compartment.

)
To obtain an even air distribution, take care not to obstruct the exterior air
intake grilles located at the base of the windscreen, the nozzles, the vents
and the air outlets, as well as the air extractor located in the boot.

)
Use in preference the intake of exterior air as prolonged use of the air recir-
culation may cause misting of the windows and side windows.

)
Do not cover the sunshine sensor, located on the dashboard; this is used for
regulation of the automatic air conditioning system.

)
Operate the air conditioning system for 5 to 10 minutes, once or twice a
month to keep it in good working order.

)
Ensure that the passenger compartment fi lter is in good condition and have
the fi lter elements replaced regularly (refer to the "Checks" section).
We recommend the use of a combined passenger compartment fi lter. Thanks
to its second special active fi lter, it contributes to the purifi cation of the air
breathed by the occupants and the cleanliness of the passenger compartment
(reduction of allergic symptoms, bad odours and greasy deposits).

)
The air conditioning uses power from the engine while operating. This results
in an increase in the vehicle's fuel consumption.
When towing at or near maximum capacity or on steep slopes in high ambient
temperatures, switching off the air conditioning saves engine power and so
improves towing capacity.
Condensation created by the air conditioning results in a discharge of water
under the vehicle when stationary, which is perfectly normal.

)

To ensure correct operation of the air conditioning system, you are also advised
to have it checked regularly.

)
If the system does not produce cold air, do not use it and contact a PEUGEOT
dealer or a qualifi ed workshop.

CO
60

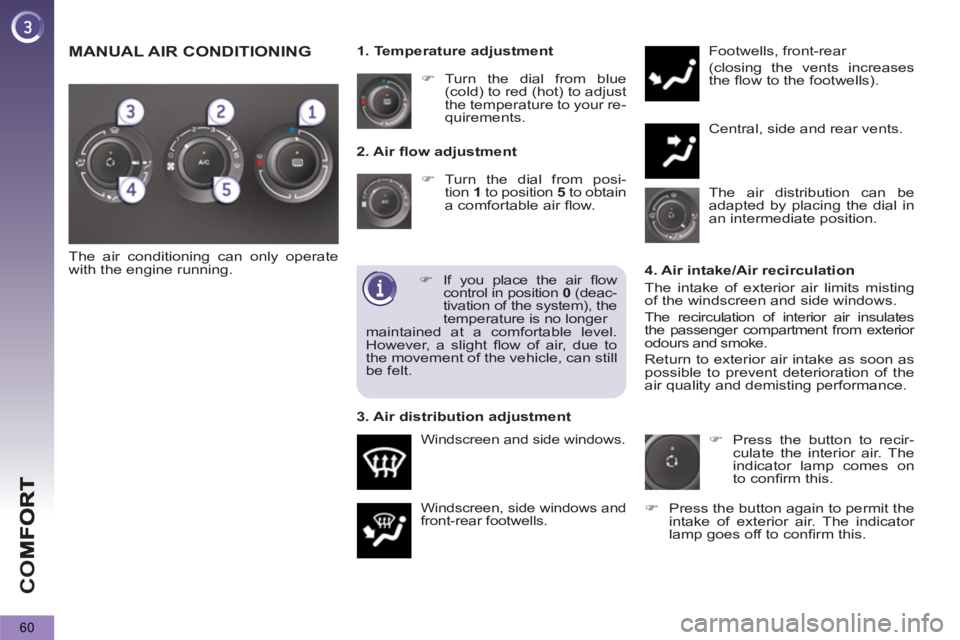

2. Air fl ow adjustment


)
Turn the dial from posi-
tion 1
to position 5
to obtain
a comfortable air fl ow.

Windscreen, side windows and
front-rear footwells.
Footwells, front-rear
(closing the vents increases
the fl ow to the footwells).
Central, side and rear vents.

)
Turn the dial from blue
(cold) to red (hot) to adjust
the temperature to your re-
quirements.


Windscreen and side windows.


1. Temperature adjustment
The air distribution can be
adapted by placing the dial in
an intermediate position.
















The air conditioning can only operate
with the engine running.

4. Air intake/Air recirculation
The intake of exterior air limits misting
of the windscreen and side windows.
The recirculation of interior air insulates
the passenger compartment from exterior
odours and smoke.
Return to exterior air intake as soon as
possible to prevent deterioration of the
air quality and demisting performance.
)
If you place the air fl ow
control in position 0
(deac-
tivation of the system), the
temperature is no longer

3. Air distribution adjustment


)
Press the button to recir-
culate the interior air. The
indicator lamp comes on
to confi rm this.

)
Press the button again to permit the
intake of exterior air. The indicator
lamp goes off to confi rm this.


MANUAL AIR CONDITIONING
maintained at a comfortable level.
However, a slight fl ow of air, due to
the movement of the vehicle, can still
be felt.

CO
61
Demisting/defrosting
The control button is located
on the air conditioning system
control panel.
REAR SCREENDEMIST/DEFROST



)
Switch off the demist/de-
frost of the rear screen and
door mirrors as soon as it
is no longer necessary as
lower current consumption
results in reduced fuel con-
sumption.

Switching on

The rear screen demist/defrost can only
operate when the engine is running.


)
Press this button to demist/defrost
the rear screen and the door mir-
rors. The indicator lamp associated
with the button comes on.

Switching off

The demist/defrost switches off auto-
matically to prevent an excessive con-
sumption of current.


)
It is possible to stop the demist/de-
frost operation before it is switched off
automatically by pressing the button
again. The indicator lamp associated
with the button switches off.


5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:


- lower the temperature, in summer,

- increase the effectiveness of the
demisting in winter, above 3 °C.


Switching on


)
Press the "A/C"
button, the button's
indicator lamp comes on.
The air conditioning does not operate
when the air fl ow adjustment control 2

is in position " 0
".
To obtain cooled air more quickly, you
can use recycling of the interior air for
a few moments. Then return to fresh air
intake. The marking on the control
panel indicates the position of
the controls to quickly demist
or defrost the windscreen and
side windows:


)
place the air intake control 4
in the
"Exterior air intake" position (indicator
lamp off),

)
place the air distribution dial 3
in the
"Windscreen position",

)
place the air fl ow dial 2
in position 5
(maximum),

)
place the temperature dial 1
in the
red position (hot).


Switching off


)
Press the "A/C"
button again, the
button's indicator lamp goes off.
Switching off may affect comfort levels
(humidity, condensation).






With Stop & Start, when dem-
isting has been activated, the
STOP mode is not available.
