2012 PEUGEOT 3008 warning

242
07
1
3
4
2
5
7
8
6
9
MEDIA
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
RADIONAV ESC TRAFFICMEDIA

Select "Jukebox management" then
"Add fi les" and press OK at each step
to confi rm.
Press the MEDIA button. Press the
MEDIA button again or select Media
Menu and press OK to confi rm.
Insert an audio/MP3 CD, a USB
memory stick or an SD card.







JUKEBOX


Add fi les


Check that the active MEDIA source is that of the medium used
(CD, USB or SD card).

Select "Add fi les from MP3-Disc" for
example and press OK to validate.
Select the tracks required then "Rip
selection" or select all of the tracks using
"Rip all".


Select "[New folder]" to create a new
folder or select an existing folder
(created previously).

Add fi les from MP3-Disc


[New folder]



"Do you want to change the names of the
tracks that will be ripped?": select "Yes" to
change them or "No".

To copy an MP3 CD, then select "Real
time ripping", "Fast ripping"/"High quality
(192 kbit/sec)" or "Standard quality
(128 kbit/sec)" then select "Start ripping".


Confi rm the warning message by
pressing "OK" to start the copy.

OK



Ye s

No

When copying is in progress, switching off the ignition will interrupt the
process but it will resume directly when the ignition is switched on again.

MUSIC MEDIA PLAYERS


COPYING A CD, A USB MEMORY STICK OR AN SD CARD
ONTO THE HARD DISK

251
10
MEDIA
TRAFFIC

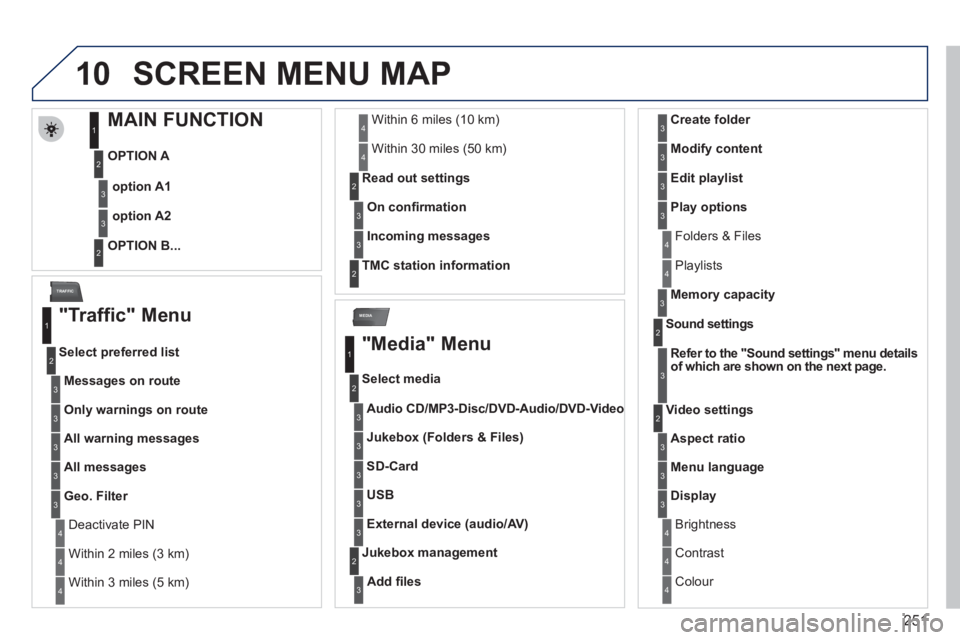

SCREEN MENU MAP













MAIN FUNCTION


OPTION A

OPTION B...

option A1



option A2


1
2
3
2
3


"Traffic" Menu


Messages on route



Select preferred list
1
2
3

Deactivate PIN 4


Only warnings on route
3


All warning messages
3


All messages
3


Geo. Filter
3

Within 2 miles (3 km) 4

Within 3 miles (5 km) 4

Within 6 miles (10 km) 4

Within 30 miles (50 km) 4


On confi rmation

Read out settings
2
3


Incoming messages

3


TMC station information
2


"Media" Menu


Audio CD/MP3-Disc / DVD-Audio / DVD-Video


Select media
1
2
3


Jukebox (Folders & Files)
3


SD-Card
3


USB
3


External device (audio/AV)

3


Add fi les

Jukebox management
2
3

Folders & Files 4


Create folder
3


Modify content
3


Edit playlist
3


Play options
3

Playlists 4


Memory capacity

3


Refer to the "

Sound settings

"
menu details
of which are shown on the next page.

Sound settings
2
3


Aspect ratio

Video settings
2
3


Menu language
3


Display
3

Brightness 4

Contrast 4

Colour 4

258

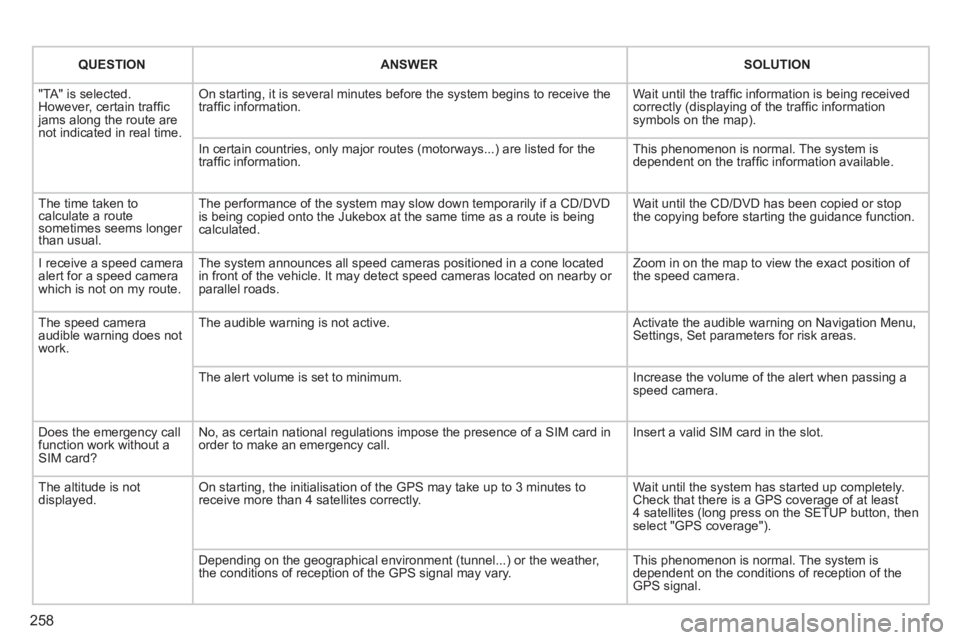

QUESTION



ANSWER



SOLUTION


"TA" is selected.
However, certain traffi c
jams along the route are
not indicated in real time. On starting, it is several minutes before the system begins to receive the
traffi c information. Wait until the traffi c information is being received
correctly (displaying of the traffi c information
symbols on the map).
In certain countries, only major routes (motorways...) are listed for the
traffi c information. This phenomenon is normal. The system is
dependent on the traffi c information available.
The time taken to
calculate a route
sometimes seems longer
than usual. The performance of the system may slow down temporarily if a CD/DVD
is being copied onto the Jukebox at the same time as a route is being
calculated. Wait until the CD/DVD has been copied or stop
the copying before starting the guidance function.
I receive a speed camera
alert for a speed camera
which is not on my route. The system announces all speed cameras positioned in a cone located
in front of the vehicle. It may detect speed cameras located on nearby or
parallel roads. Zoom in on the map to view the exact position of
the speed camera.
The speed camera
audible warning does not
work. The audible warning is not active. Activate the audible warning on Navigation Menu,
Settings, Set parameters for risk areas.
The alert volume is set to minimum. Increase the volume of the alert when passing a
speed camera.
Does the emergency call
function work without a
SIM card? No, as certain national regulations impose the presence of a SIM card in
order to make an emergency call. Insert a valid SIM card in the slot.
The altitude is not
displayed. On starting, the initialisation of the GPS may take up to 3 minutes to
receive more than 4 satellites correctly. Wait until the system has started up completely.
Check that there is a GPS coverage of at least
4 satellites (long press on the SETUP button, then
select "GPS coverage").
Depending on the geographical environment (tunnel...) or the weather,
the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system is
dependent on the conditions of reception of the
GPS signal.

275
05
2 1
3
4
5

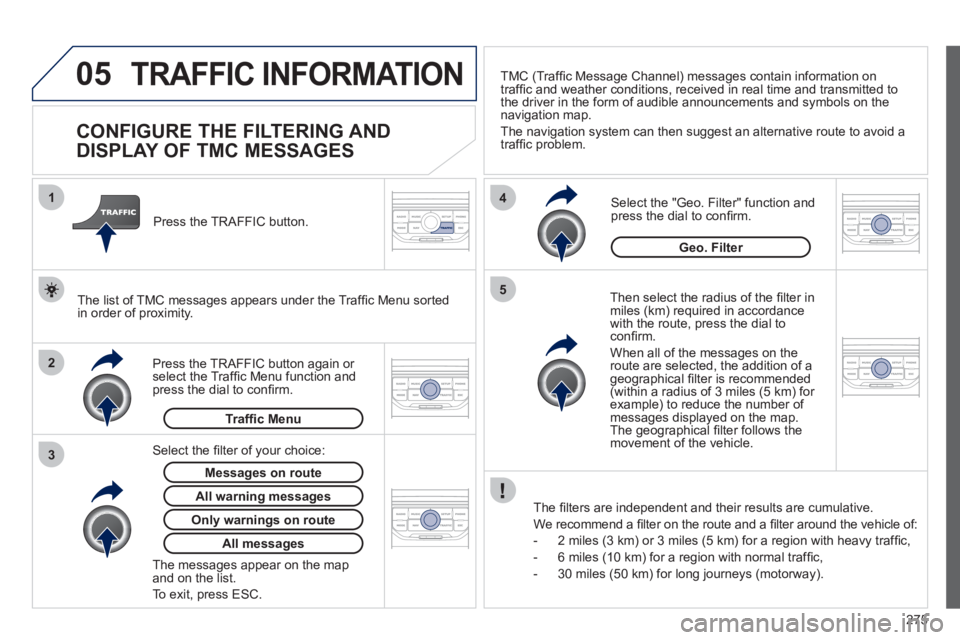

TRAFFIC INFORMATION









CONFIGURE THE FILTERING AND
DISPLAY OF TMC MESSAGES

Then select the radius of the fi lter in
miles (km) required in accordance
with the route, press the dial to
confi rm.
When all of the messages on the
route are selected, the addition of a
geographical fi lter is recommended
(within a radius of 3 miles (5 km) for
example) to reduce the number of
messages displayed on the map.
The geographical fi lter follows the
movement of the vehicle.

The fi lters are independent and their results are cumulative.
We recommend a fi lter on the route and a fi lter around the vehicle of:


- 2 miles (3 km) or 3 miles (5 km) for a region with heavy traffi c,

- 6 miles (10 km) for a region with normal traffi c,

- 30 miles (50 km) for long journeys (motorway).


Press the TRAFFIC button again or
select the Traffi c Menu function and
press the dial to confi rm.
Press the TRAFFIC button.
TMC (Traffi c Message Channel) messages contain information on
traffi c and weather conditions, received in real time and transmitted to
the driver in the form of audible announcements and symbols on the
navigation map.
The navigation system can then suggest an alternative route to avoid a
traffi c problem.

Select the "Geo. Filter" function and
press the dial to confi rm.

Messages on route

The list of TMC messages appears under the Traffi c Menu sorted
in order of proximity.

All warning messages

Traffi c Menu



Select the fi lter of your choice:

Only warnings on route


All messages

The messages appear on the map
and on the list.
To exit, press ESC.
Geo. Filter

285
10
RADIO
SCREEN MENU MAP


"Traffic" Menu


Messages on route
Only warnings on route
All warning messages
All messages

Within
2 miles (3 km)
Geo. Filter

Within
3 miles (5 km)

Within
6 miles (10 km)


Within
30 miles (50 km)


Within 60 miles (100 km)





"Music" Menu


Select music
Sound settings

Balance/Fader


Bass/Treble

Linear
Equalizer

Classic
Jazz
Rock/Pop
Techno Vocal

Loudness


Speed dependent volume


Reset sound settings




"Radio" Menu


Waveband

AM


Linear
FM


Manual tune
Sound settings

Balance/Fader


Bass/Treble


Equalizer














MAIN FUNCTION


OPTION A

option A1


option A2




OPTION B...

1
2
3
1
2
4
1
2
3
4
3
3
3
3
2
2
2
2
4
4
4
4
4
3
3
3
3
3
2
3
2
2
3
3
3
3
1
2
3
2
3

315
ALPHABETICAL INDEX
A
B
D
Accessories ................................204
Accessory socket,
12 volt ..................... 100, 102, 109
Adjusting headlamps ..............92, 93
Adjusting head
restraints ....................................67
Adjusting seat belt
height ...............................130, 131
Adjusting the steering
wheel .........................................73
Airbags .........................................36
Airbags, curtain...................135, 136
Airbags, front ......................133, 136
Airbags, lateral....................135, 136
Air conditioning .............................25
Air conditioning,
digital ...................................59, 62
Air conditioning,
manual .................................59, 60
Air fi lter .......................................172
Air fl ow ..........................................25
Air vents........................................58
Alarm ............................................79
Anti-pinch..............................81, 106
Anti-theft .......................................76
Armrest .......................................100
Armrest, front ..............................102
Armrest, rear ...............................105
Assistance call ............................214
Audible warning ..........................124
Audio/video sockets....................244
Audio streaming
(Bluetooth) ...............................305
Automatic illumination
of headlamps .......................89, 92
Automatic operation
of hazard warning lamps .........124
Automatic rain sensitive
windscreen wipers ...............94, 96
Auxiliary socket...................280, 302
Auxiliary sockets .................244, 300Battery ................................172, 197
Battery, charging .........................197
Battery, remote control ...........77, 78
Blind for panoramic sunroof........106
Bluetooth (hands-free) ....... 245-247,
281, 282, 303
Bluetooth
(telephone) ...... 245-247, 281, 282
Bonnet ........................................167
Bonnet stay.................................167
Boot fl oor, adjustable .................. 111
Boot lamp ............................. 99, 112
Boot lid..........................................86
Brake discs .................................173
Brake lamps................................188
Brake pads .................................173
Brakes ........................................173
Date (setting) ..... 250, 284, 306, 307
Daytime running
lamps ........................ 91, 185, 187
Deactivating the passenger
airbag .......................................133
Deadlocking ..................................75
Defrosting ...............................60, 61
Demisting......................................60
Dials and gauges ..........................27
Diesel additive level ....................172
Dimensions .................................210
Dipped beam ............... 89, 185, 186
Dipstick .................................40, 171
Directional lighting ........................93
Direction indicators .... 124, 185, 188
Distance alert..............................147
Doors ............................................83
Doors emergency control .............85
Door trays ...................................100
Dynamic emergency braking ......140
C
Capacity, fuel tank ........................87
CD MP3 ..............................279, 299
Central locking ........................75, 84
Changing a bulb ........ 185, 188, 189
Changing a fuse .........................190
Changing a wheel ...............180, 182
Changing a wiper blade ........96, 200
Changing the date ..... 250, 284, 307
Changing the remote
control battery ............................77
Changing the time ..... 250, 284, 307
Checking levels ..................171, 172
Checking the engine oil level ........40
Checking tyre pressures
(using the kit) ...........................174
Checks............... 169, 170, 172, 173
Child lock ....................................123Children ...................... 118, 121, 122
Child seats ................................. 113
Child seats, conventional.... 116, 118
Closing the boot................75, 85, 86
Closing the doors....................75, 83
Cold climate screen ....................203
Colour screen, retractable ...49, 51, 53
Connectors,
audio ....... 101, 102, 280, 300, 302
Control for panoramic
sunroof blind ............................106
Coolant level .........................37, 171
Coolant temperature indicator ......37
Courtesy lamps.............................97
Courtesy mirror ...........................101
Cruise control .............................151
Cup holder ..................................100

316
ALPHABETICAL INDEX
E
G
Eco-driving ...................................25
Economical driving ......................25
Economy mode...........................199
Electric window controls ...............81
Electronic engine
immobiliser ..........................76, 78
Electronic stability control
(ESC) .......................................126
Emergency call ...................214, 215
Emergency warning
lamps .......................................124
Energy economy mode...............199
Engine,
Diesel ......... 88, 168, 170, 207-209
Engine, petrol ...... 88, 169, 205, 206
Engine compartment ..........169, 170
Engine compartment
fusebox ....................................190
Engine oil level indicator .......40, 171
Engines...............................205, 207
Environment ...........................25, 78
ESC/ASR ....................................126
ESP/ASR ....................................127Headlamp wash reservoir ...........171
Head restraints, front ....................67
Head restraints, rear .....................69
Heated seats ................................67
Heating ...................................25, 60
Height and reach adjustment,
steering wheel ...........................73
Hill start assist ............................142
Hooks .........................................109
Horn ............................................124
G.P.S. .................................228, 267
Gearbox, automatic ............158, 173
Gearbox, electronic
gear control ............. 154, 161, 173
Gearbox, manual ....... 153, 161, 173
Gear lever .....................................25
Gear lever, automatic gearbox ...158
Gear lever, electronic
gear control gearbox ................154
Gear lever, manual gearbox .......153
Gear shift indicator .....................153
Glove box ...................................101
Grab handle on console .............100
Grab handles ..............................100
Grip control .................................128
Guidance ............................228, 267
Guide-me-home............................92
F
Filling with fuel ........................87, 88
Fitting a wheel ............................183
Fitting roof bars...........................203
Fittings, boot ...............................107
Flashing indicators......................124
Floor, three-position .................... 111
Foglamps, rear .............................90
Folding the rear seats ...................69
Front foglamps............. 90, 185, 187
Front seats........................65, 66, 68
Fuel...................................25, 87, 88Fuel consumption .........................25
Fuel fi ller cap ................................87
Fuel fi ller fl ap ..........................87, 88
Fuel gauge....................................87
Fuel tank .................................87, 88
Fusebox, dashboard ...................190
Fuses ..........................................190
H
Halogen headlamps....................185
Hands-free kit ............ 281, 282, 303
Hazard warning lamps ................124
Head-up display......... 145, 149, 151
Headlamp adjustment.............92, 93
Headlamps, directional .........93, 185
Headlamp wash ............................95
I
Identifi cation plates ..................... 211
Indicator lamps, status..................31
Indicators, direction ....................124
Infl ating accessories
(using the kit) ...........................174
Infl ating tyres ................................25
Inputs for audio
system ............ 244, 280, 300, 302
Instrument panel lighting ..............41
Instrument panels ...................27, 28
Instrument panel screen .......27, 153
Interior fi ttings .............................100
Interior mood lighting ....................98
ISOFIX child seats .............. 120-122
ISOFIX mountings ......................120
J
Jack ....................................180, 182
JACK socket .......................300, 302
Jukebox (copy) ...........................242
Jukebox
(playing) ...................................243

317
ALPHABETICAL INDEX
NP
K
LM
Navigation...........................228, 267
Number plate lamps ...................189Paint colour code ........................ 211
Panoramic glass sunroof ............106
Parking brake .............................173
Parking brake,
electric .............................137, 140
Parking sensors,
rear ..........................................164
Particle emission fi lter.........172, 173
Passenger compartment
fi lter ..........................................172
PEUGEOT call button .................215
Peugeot Connect
ASSISTANCE ..........................214
Peugeot Connect Media
Navigation (NG4 3D) ....28, 51, 53,
55, 217, 220,
223, 251
Peugeot Connect
Navigation (RNEG) .............49, 53,
264, 285
Peugeot Connect
SOS .................................214, 215
Peugeot Connect
Sound (RD5) ..... 46, 293, 308, 310
PEUGEOT services ....................215
PIN code .....................................248
Player, CD MP3 ..................279, 299
POIs (updating) ..........................235
Port, USB................... 102, 300, 302
Priming the fuel system ..............168
Protecting
children ..... 113, 118, 120-122, 133
Puncture .....................................174 Keeping children
safe .................. 113, 121, 122, 133
Key with remote control .... 74-76, 78Main beam .................... 89, 185-187
Maintenance .................................25
Map reading lamps .......................97
Markings, identifi cation ............... 211
Mat..............................................103
Menu, main .................................296
Mini fuel level ................................87
Mirror, rear view ............................72
Mirrors, door .................................71
Misfuel prevention ........................88
Motorway function
(direction indicators) ................124
Mountings for ISOFIX seats .......120
MP3 CD ..............................279, 299
Multimedia, rear ..........................104
Music media players ...........240, 278 Labels,
identifi cation ............................. 211
Lamps,
warning and indicator ....29, 32, 33
Level,
brake fl uid ................................171
Level,
headlamp wash .................95, 171
Level,
power steering fl uid .................171
Levels and
checks ............................. 169-172
Lighting .........................................99
Lighting,
guide-me home ....................91, 92
Lighting, interior ......................97, 98
Lighting bulbs
(replacement) ......... 185, 188, 189
Lighting control stalk .....................89
Lighting dimmer ............................41
Loading .................................25, 203
Load reduction mode ..................199
Load space cover .......................108
Locating your vehicle ....................75
Locking from
the inside ...................................84
Long objects,
transporting ........................68, 105
Luggage retaining net .................109
Luggage retaining strap ..............107
O
Oil fi lter .......................................172
Oil level .................................40, 171
Opening the bonnet ....................167
Opening the boot ....................74, 85
Opening the doors ..................74, 83
Opening the panoramic sunroof
blind .........................................106
Opening the retractable screen ....53
Opening the tailgate ...............85, 86
Operation indicator
lamps ...................... 29, 31, 32, 34
