PRACTICAL INFORMATION
192




TOWING A TRAILER, ...

Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.

Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.

Driving advice

The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.
In all cases, keep a check on the cool-
ant temperature.

Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.


)
To lower the engine speed, reduce
your speed.
Side wind


)
Take into account the increased
sensitivity to side wind.

Tyres


)
Check the tyre pressures of the tow-
ing vehicle and of the trailer, observ-
ing the recommended pressures.

Braking
Towing a trailer increases the braking
distance.

)
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.








Maximum trailer weight

You must not tow a trailer weighing
more than 500 kg.
Distribution of loads


)
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load
must be reduced by 10 % for every
1 000 metres of altitude. Driving with a trailer places greater de-
mands on the towing vehicle and the
driver must take particular care.
We recommend the use of
genuine PEUGEOT towbars
and their harnesses that have
been tested and approved from the
design stage of your vehicle, and that
the fi tting of the towbar is entrusted
to a PEUGEOT dealer or a qualifi ed
workshop.
If the trailer is not fi tted by a PEUGEOT
dealer, it is imperative that it is fi tted
using the vehicle's electrical pre-
equipment, in accordance with the
manufacturer's instructions.
Refer to the "Technical Data"
section for details of the
weights and towed loads
which apply to your vehicle.

Lighting


)
Check the electrical lighting and sig-
nalling on the trailer.
The rear parking sensors will
be deactivated automatically if
a genuine PEUGEOT towbar
is used.

TECHNICAL DATA
196


ELECTRIC MOTOR AND BATTERY



Electric motor


-


Technology
Synchronous with permanent magnets.
Max. power: EU standard (kW)
27
Max. power speed (rpm)
2 500
Max. torque: EU standard (Nm)
200
Max. torque speed (rpm)
1 250
Effi ciency (%)
80 to 90

High voltage battery


Ni-MH

(Nickel Metal Hydride)
Voltage (V~)

200
Energy capacity (kWh/Ah)
1.1/5 .5
Range (miles (km))
1.2 (2) (approximately)
Range varies according to the ambient climatic conditions, the driving style and conditions, the use of vehicle systems and
ageing of the battery.

TECHNICAL DATA
197


ENGINE AND GEARBOX



Diesel engine


2 litre Turbo HDi
163 hp



Gearbox

Electronic gear control
(6-speed)
Cubic capacity (cc)
1 997
Bore x stroke (mm)
85 x 88
Max power: EU standard (kW)
110/120
Max power engine speed (rpm)
3 750
Max torque: EU standard (Nm)
320/340
Max torque engine speed (rpm)
2 000
Fuel

Diesel
Catalytic converter
yes
Particle emission fi lter
yes

OIL CAPACITIES (in litres)



Engine (with fi lter replacement)
-
Gearbox - Final drive
-

TECHNICAL DATA
198


WEIGHTS AND TOWED LOADS (in kg)



Diesel engine


2 litre Turbo HDi
163 hp



Gearbox

Electronic gear control
(6-speed)


- Unladen weight
1 660


- Kerb weight *

1 735


- Payload

551


- Gross vehicle weight
(GVW)
2 245


- Gross train weight (GTW)
on a 12 % gradient
2 745


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
500


- Braked trailer ** (with load transfer with
the GTW limit)
770


- Unbraked trailer
500


- Recommended nose weight
70

* The kerb weight is equal to the unladen weight + driver (75 kg).
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

**
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is re-
duced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on
its road holding.
To make use of the 270 kg load transfer, the driver must be alone with no luggage in the vehicle.

TECHNICAL DATA
199





DIMENSIONS (IN MM)

TECHNICAL DATA
200

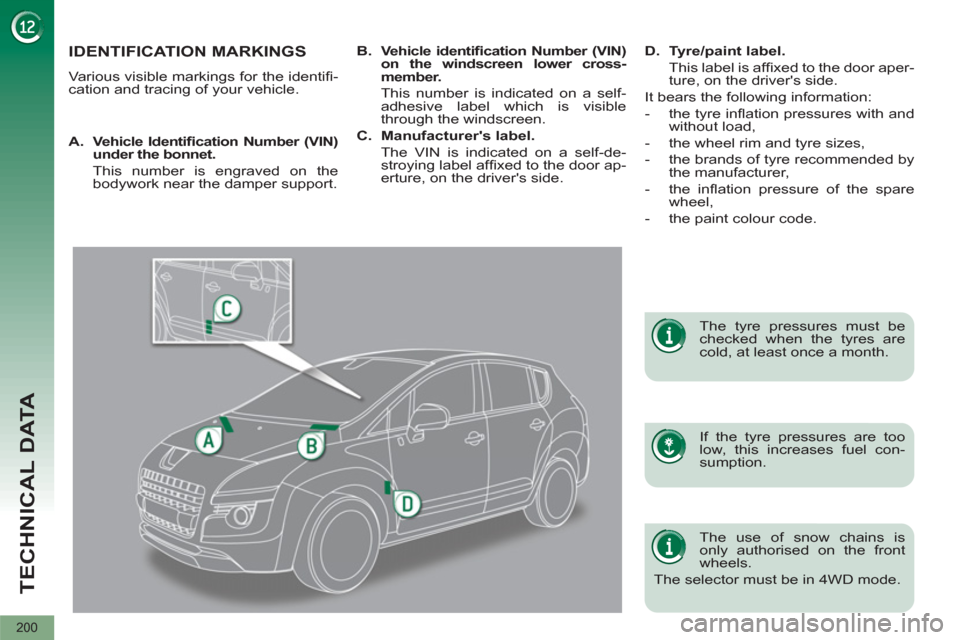

IDENTIFICATION MARKINGS

Various visible markings for the identifi -
cation and tracing of your vehicle.

If the tyre pressures are too
low, this increases fuel con-
sumption.

The tyre pressures must be
checked when the tyres are
cold, at least once a month.


A.
Vehicle Identifi cation Number (VIN)
under the bonnet.
This number is engraved on the
bodywork near the damper support.
B.
Vehicle identifi cation Number (VIN)
on the windscreen lower cross-
member.
This number is indicated on a self-
adhesive label which is visible
through the windscreen.

C.
Manufacturer's label.

The VIN is indicated on a self-de-
stroying label affi xed to the door ap-
erture, on the driver's side.
D.
Tyre/paint label.

This label is affi xed to the door aper-
ture, on the driver's side.
It bears the following information:


- the tyre infl ation pressures with and
without load,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by
the manufacturer,

- the infl ation pressure of the spare
wheel,

- the paint colour code.


The use of snow chains is
only authorised on the front
wheels.
The selector must be in 4WD mode.
