2012 Peugeot 3008 Hybrid 4 fuel

CONTENTS
FAMILIARISATION 4-25
INSTRUMENTS
and CONTROLS 44-58CHILD
SAFETY 118-128
MULTIFUNCTION
SCREENS 59-67SAFETY 129-138 COMFORT 68-81
ACCESS 82-96
VISIBILITY 97-106FITTINGS 107-117
Instrument panels ........................... 44
Indicator and warning lamps .......... 46
Indicators ........................................ 54
Adjustment buttons ......................... 58Child seats .....................................118
ISOFIX child seats........................ 125
Child lock ...................................... 128
Screen C
(Peugeot Connect Sound)............ 59
16/9 high definition retractable
colour screen
(Peugeot Connect Media) ............ 62Direction indicators ....................... 129
Hazard warning lamps.................. 129
Horn .............................................. 129
ESC system .................................. 130
Front seat belts............................. 132
Airbags ......................................... 135 Heating and Ventilation .................. 68
Rear screen demist - defrost .......... 69
Dual-zone digital air conditioning ... 70
Front seats ..................................... 73
Rear seats ...................................... 77
Steering wheel adjustment ............. 79
Mirrors ............................................ 80
Remote control key ........................ 82
Alarm .............................................. 87
Electric windows ............................. 89
Doors .............................................. 91
Boot ................................................ 93
Lower tailgate ................................. 94
Fuel tank ......................................... 95
Misfuel prevention (Diesel) ............. 96
Lighting controls ............................. 97
Automatic illumination
of headlamps .............................. 100
Headlamp adjustment .................. 100
Wiper controls .............................. 101
Automatic rain sensitive wipers .... 103
Courtesy lamps ............................ 104
Interior mood lighting .................... 105
Boot lamp ..................................... 106Interior fittings ............................... 107
Front armrest ................................ 109
Rear multimedia ............................ 111
Panoramic sunroof ........................113
Boot fittings ....................................114
HYBRID SYSTEM 26-43
Eco-driving...................................... 37

CONTENTS
ALPHABETICAL
INDEX 272-275 DRIVING 139-158
CHECKS 159-165PRACTICAL
INFORMATION 166-195
TECHNICAL
DATA 196-200AUDIO EQUIPMENT
and TELEMATICS 201-271
Electric parking brake ................... 139
Hill start assist .............................. 144
Head-up display ........................... 147
Speed limiter ................................ 149
Cruise control ............................... 151
6-speed electronic gear control
gearbox ...................................... 153
Parking sensors ............................ 157
Bonnet .......................................... 160
Running out of fuel (Diesel).......... 161
Diesel engine ................................ 162
Checking levels ............................ 163
Checks.......................................... 164Temporary puncture repair kit ...... 166
Changing a wheel......................... 172
Changing a bulb ........................... 175
Changing a fuse ........................... 179
12 V Battery.................................. 186
Energy economy mode ................ 189
Changing a wiper blade ............... 190
Recovering the vehicle ................. 190
Towing a trailer ............................. 192
Fitting roof bars ............................ 193
Very cold climate screen .............. 193
Accessories .................................. 194
Electric motor ............................... 196
Diesel engine ................................ 197
Diesel weights .............................. 198
Dimensions ................................... 199
Identification markings .................. 200
VISUAL
SEARCH 276-280
Emergency or assistance ............. 201
Peugeot Connect Media ............... 205
Peugeot Connect Sound (RD5) ... 249

6
FAMILIARISATION





HYBRID4 MODE SELECTOR

AUTO Mode


"Zero emissions vehicle" operation is
provided by 100% electric drive.
This mode allows silent running to be
imposed at moderate speed (urban,
parking, …).
This mode can be activated when con-
ditions permit (in particular if the state
of charge of the high voltage battery is
high enough) and allows driving up to
around 35 mph (60 km/h).


ZEV mode
(Zero Emissions Vehicle)


When stationary and when starting
the hybrid system


This mode automatically manages the
operation of the Diesel engine and the
electric motor, separately or together,
according to the vehicle's own inherent
parameters, the driving conditions and
the driving style.

The standard mode to use
in preference for optimum
fuel consumption.

This mode is activated automatically
on starting the vehicle.
In particular, this mode will activate "zero
emissions" electric operation when the
conditions permit.

The electric motor is also used to sup-
plement the Diesel engine when mov-
ing off and changing gear and when the
front wheels do not provide suffi cient
traction.



The range depends on the
state of charge of the battery
and the driving conditions (of
the order of 1.2 miles (2 km)
in favourable conditions).

8
FAMILIARISATION





FOR ECONOMICAL DRIVING, CARING FOR THE ENVIRONMENT

Main recommendations for driving economically


Gear lever
Use the automatic
mode A
as much as
possible as this optimises gear changes
to suit the requirements.
The fuel consumption
of a vehicle varies greatly
:


- according to the driver's style of driving
(moderate, aggressive, fast, ...),

- according to the type of journeys
made (urban, main road, motorway, fl owing,
heavy traffi c, …) and the speed.


Hybrid mode selector
To optimise fuel consumption, use the
Auto
mode
of the selector whenever
possible (the mode is activated auto-
matically when starting) including for
urban journeys.

This mode optimises the use of the energy
sources (internal combustion engine and/or
electric) contrary to other modes, which are
for use in particular cases.


Stay in the "eco" zone
indicated in the
power meter: accelerate gently, drive at
steady speeds using the speed limiter
or cruise control as soon as possible.
Causes of high consumption
and checks
As with any vehicle, limit overloading,
wind resistance (windows open above
30 mph (50 km/h), roof rack, loaded or
not, …), the use of power consumers
(air conditioning, heated seats, heated
rear screen, …).
Observe the recommendations on
checks (regular check of tyre pres-
sures, correct tyre pressures, …) and
routine servicing.


Consumption history
See the impact of your style of driving
and the type of journey by reviewing
the history of your energy consumption.
Refer to the "Multifunction screens"
section.

Use the "charge"
zone: anticipate the
need to slow down by taking your foot off
the accelerator rather than braking. The
movement of the power meter needle (into
the "charge" zone), indicates the level of
energy recovery.
Drive smoothly

10
FAMILIARISATION
OPENING

Remote control key



A.
Unfolding/Folding the key.
Normal locking
(press once; fi xed lighting of
the direction indicators).
Deadlocking the vehicle
(press twice in succession;
fi xed lighting of the direction
indicators).
Complete or selective unlock-
ing of the vehicle
(rapid fl ashing of the direction
indicators). or
82 When the light is poor, detected by a sen-
sor, the remote switching on of the dipped
headlamps and sidelamps makes your
approach to the vehicle easier.
This function can be programmed via the
confi guration menu.
99
95


Fuel tank

Before refuelling, you
must
switch of the
ignition and ensure
that the Ready
lamp
is off.


1.
Open the fuel fi ller fl ap.

2.
Open and hook the fuel fi ller cap.
The type of fuel to be used is indicated
on the inner face of the fuel fi ller fl ap.
Capacity of the tank: approximately
56.5 litres.

Welcome lighting

19
FAMILIARISATION
MONITORING

Instrument panel



A.
With the ignition on, the needle should
indicate the level of fuel remaining.

B.
With the ignition on, the oil level in-
dicator should display "OIL OK"
for
a few seconds.
If the levels are not correct, top up the
levels which are low.
44


Warning lamps



1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the hybrid system active, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.
46


Switch panels

Lighting of the indicator lamp indicates
the status of the corresponding function.


A.
ECO OFF.
36
158
131
87
147
129
92

B.
Visual and audible
parking sensors.

C.
ESP OFF.

D.
Interior volumetric
protection alarm.

E.
Head-up display.

F.
Hazard warning
lamps.

G.
Central locking.
Lower


Central

HYBRID SYSTEM
28

The electronic power supervisor 4
automatically manages the operation of the
two power units (Diesel and electric) to provide the lowest consumption.
An inverter and a transformer are needed to manage the electric power.
The inverter acts on the torque of the electric motor, by regulating the current
coming from the high voltage battery pack. Its operating range is between 150 and
270 volts.
The transformer converts the 200 V of the battery pack to 12 V, to power the
vehicle's ancillary systems.

The Stop & Start system 5
allows the Diesel engine to be put into standby dur-
ing stops (traffi c lights, a stop, or in a traffi c jam, for example) or during phases of
running in all-electric mode.
The stopping and restarting of the Diesel engine is done in a way that is instanta-
neous and transparent for the driver.

The electronic gear control gearbox 6
provides, in automatic mode, signifi cant
savings in fuel consumption compared to a conventional manual gearbox, thanks
to its electronic control system.
It also offers improved driving pleasure with the possibility at any time of choosing
the gear changing mode: automatic or manual, using the paddles located behind
the steering wheel.

HYBRID SYSTEM
31

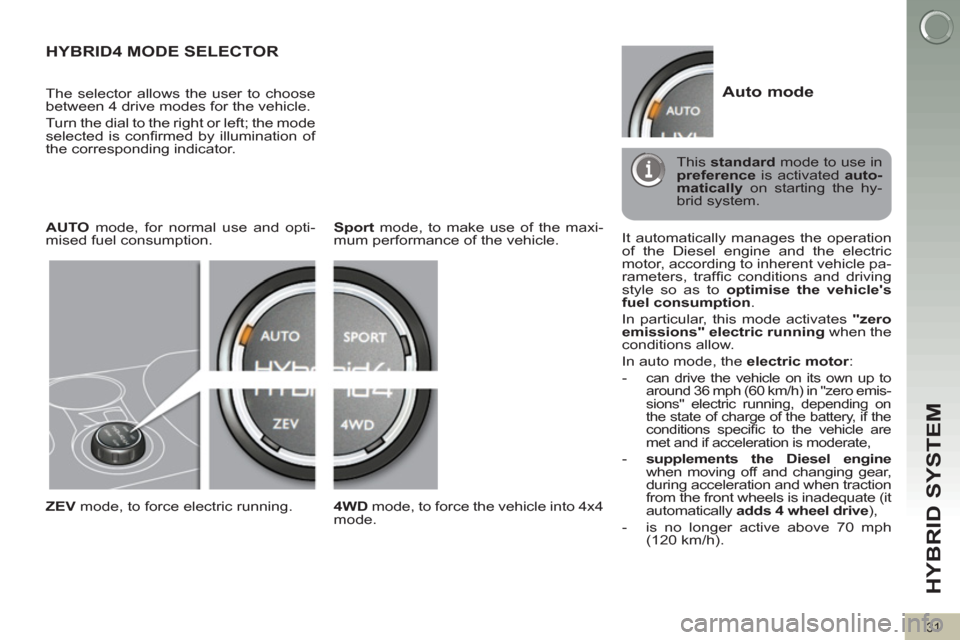

HYBRID4 MODE SELECTOR


The selector allows the user to choose
between 4 drive modes for the vehicle.
Turn the dial to the right or left; the mode
selected is confi rmed by illumination of
the corresponding indicator.


ZEV
mode, to force electric running.

Sport
mode, to make use of the maxi-
mum performance of the vehicle.

Auto mode



4WD
mode, to force the vehicle into 4x4
mode.

It automatically manages the operation
of the Diesel engine and the electric
motor, according to inherent vehicle pa-
rameters, traffi c conditions and driving
style so as to optimise the vehicle's
fuel consumption
.
In particular, this mode activates "zero
emissions" electric running
when the
conditions allow.
In auto mode, the electric motor
:


-
can drive the vehicle on its own up to
around 36 mph (60 km/h) in "zero emis-
sions" electric running, depending on
the state of charge of the battery, if the
conditions specifi c to the vehicle are
met and if acceleration is moderate,

- supplements the Diesel engine

when moving off and changing gear,
during acceleration and when traction
from the front wheels is inadequate (it
automatically adds
4 wheel drive
),

- is no longer active above 70 mph
(120 km/h).



AUTO
mode, for normal use and opti-
mised fuel consumption.
This standard
mode to use in
preference
is activated auto-
matically
on starting the hy-
brid system.
