2012 Peugeot 207 CC ECO mode

!
i
Thank you for choosing a 207 CC, a
symbol of confi dence, passion and in-
spiration.
This handbook has been designed to
enable you to make the most of your
207 CC.
On the fi rst few pages, you will fi nd a
detailed summary, followed by a quick
reference guide intended to make it
easier for you to become familiar with
your coupé-cabriolet.
All of the details specifi c to your 207 CC,
comfort, safety, driving, are then pre-
sented in this handbook, to increase
your appreciation of the vehicle help
you get the most from it.
Each model may only be fi tted with
some of the equipment mentioned in
this handbook, depending on its version
and the specifi cation for the country in
which it is sold.

Page reference:

this symbol invites you to refer to
the pages which provide details
of the function.


Key


Protection of the environment:

this symbol accompanies advice
relating to protection of the envi-
ronment.


Information:

this symbol draws your attention
to additional information for better
use of your vehicle.


Warning:

this symbol marks warnings which
it is essential to observe for your
own safety, for the safety of others
or to avoid any risk of damaging
your vehicle.

3
CONTENTS
Direction indicators 93
Emergency or assistance call 93
Hazard warning lamps 94
Horn 94
Tyre under-infl ation detection 95
Braking assistance systems 96
Trajectory control systems 97
Seat belts 98
Airbags 101■
■
■
■
■
■
■
■
■
SAFETY 93 Î 104
Parking brake 105
Manual gearbox 105
Gear effi ciency indicator 106
Automatic gearbox 107
Speed limiter 110
Cruise control 112
Parking sensors 114■
■
■
■
■
■
■
DRIVING 105 Î 11 5
Bonnet 117
Running out of fuel (Diesel) 117
Petrol engines 118
Diesel engine 119
Checking levels 120
Checks 121■
■
■
■
■
■
CHECKS 116 Î 122
Temporary puncture repair kit 123
Changing a wheel 128
Changing a bulb 132
Changing a fuse 136
Battery 141
Energy economy mode 143
Changing a wiper blade 143
Towing the vehicle 144
Towing a trailer 145
Accessories 147■
■
■
■
■
■
■
■
■
■
PRACTICAL
INFORMATION 123 Î 147
Petrol engines 148
Weights (petrol) 149
Diesel engine 150
Weights (Diesel) 151
Dimensions 152
Identifi cation markings 153■
■
■
■
■
■
TECHNICAL
D ATA 148 Î 154
AUDIO EQUIPMENT
and TELEMATICS 155 Î 210
Emergency or assistance 155Peugeot Connect Navigation (RNEG) 157
Peugeot Connect Sound (RD5) 189■
■
■
ALPHABETICAL
INDEX 215 Î 218
7
86
9
10
VISUAL
SEARCH 211 Î 214

! !
i
6
FAMILIARISATION
OPENING

Retractable roof

When washing your vehicle:


- lock the vehicle,

- avoid spraying the upper part
of the windows,

- keep the end of the high-pres-
sure nozzle at least 1 metre
from the windows and door
seals.
After washing the vehicle or fol-
lowing rain, wait until the roof has
dried before opening it. The roof is operated under the
sole responsibility of the driver.
During operation of the roof, to
avoid the risk of injury, ensure that
no one is in the vicinity of the mov-
ing parts.
You are strongly advised not to op-
erate the roof in strong winds. It is preferable to operate the roof
with the engine running.
The roof can be operated at
speeds below 6 mph (10 km/h).
It is only possible to carry out the
operation twice with the engine off,
to avoid discharging the battery.
Preliminary conditions


)
Switch on the ignition.

)
Ensure that:


- the vehicle is not in energy economy
mode (refer to the corresponding
section),

- the battery voltage is suffi cient
(switching on of the indicator lamp
on the roof control),

- the roof fuse is in good condition (re-
fer to the corresponding section),

- the electric windows are initialised
(refer to the corresponding section),

- the ambient temperature is above
-15 °C.

Precautions to be taken before
operating the roof


)
Park the vehicle on level ground.

)
Check that no object could hinder
the operation of the roof:


- nothing should be placed on the
moving rear shelf 1
or on the net 2
.

- if luggage is being carried in the
boot, it must not raise the net,

)
Ensure that the net 2
is secure.

)
Close the boot correctly.

Maintenance
Carry out a complete opening
and closing operation of the roof
at least once a month to keep it in
good working order.

–
14
FAMILIARISATION

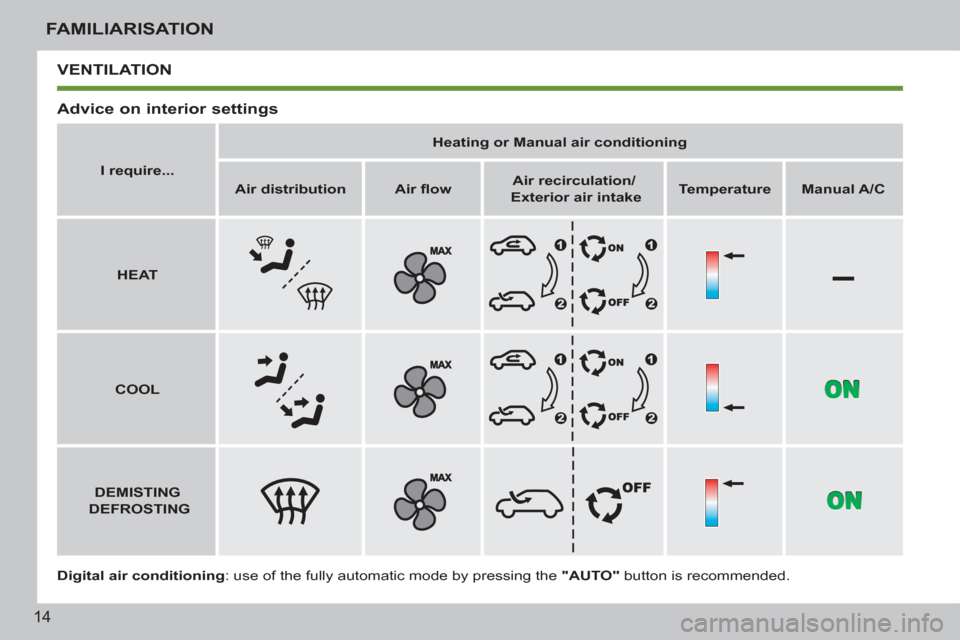

VENTILATION

Advice on interior settings


Digital air conditioning
: use of the fully automatic mode by pressing the "AUTO"
button is recommended.

I require...



Heating or Manual air conditioning




Air distribution



Air fl ow



Air recirculation/


Exterior air intake



Temperature



Manual A/C




HEAT





COOL





DEMISTING

DEFROSTING

17
FAMILIARISATION
DRIVING SAFELY

Speed limiter "LIMIT"
Instrument panel display



1.
Selecting/Switching off speed limiter
mode.

2.
Decrease the programmed value.

3.
Increase the programmed value.

4.
Speed limiter on/off.
The values must be set with the engine
running.



110
The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.

1.
Selecting/Switching off cruise con-
trol mode.

2.
Decrease the programmed value.

3.
Increase the programmed value.

4.
Off/return to cruise control.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox
(second gear on the automatic gear-
box).



112



Cruise control "CRUISE"


Cruise control

Speed limiter

1
!
INSTRUMENTS and CONTROLS
21









Indicator and warning lamps

Visual indicators informing the driver that a system is in operation (operation or
deactivation indicator lamps) or of the occurrence of a fault (warning lamp).

When the ignition is switched on
Certain warning lamps come on for a few seconds when the vehicle's ignition is
switched on.
When the engine is started, these same warning lamps should go off.

If they remain on, before moving off, refer to the information on the warning lamp concerned.


Associated warnings
The illumination of certain warning lamps may be accompanied by an audible sig-
nal and a message in the multifunction screen. The warning lamps may come on
continuously (fi xed) or fl ash.
Certain warning lamps may come
on in two different modes. Only by
relating the type of illumination to
the operating status of the vehicle
can it be ascertained whether the
situation is normal or whether a
fault has occurred.

Operation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the correspond-
ing system has come into operation.



Warning lamp



is on



Cause



Action/Observations




Left-hand
direction
indicato

r


fl ashing with
buzzer. The lighting stalk is pushed
down.


Right-hand
direction
indicator


fl ashing with
buzzer. The lighting stalk is pushed
up.


Dipped beam
headlamps


fi xed. The lighting stalk is in the
"Dipped beam headlamps"
position.


Main beam
headlamps


fi xed. The lighting stalk is pulled
towards you. Pull the stalk to return to dipped beam
headlamps.

1
i
INSTRUMENTS and CONTROLS
32

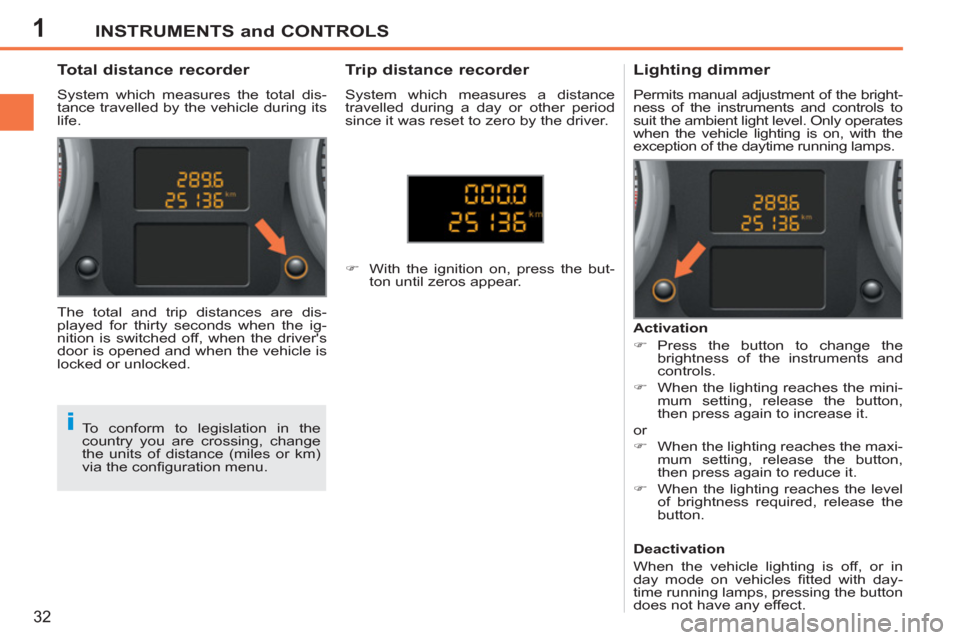

Total distance recorder

System which measures the total dis-
tance travelled by the vehicle during its
life.









Lighting dimmer

Permits manual adjustment of the bright-
ness of the instruments and controls to
suit the ambient light level. Only operates
when the vehicle lighting is on, with the
exception of the daytime running lamps.
The total and trip distances are dis-
played for thirty seconds when the ig-
nition is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.

Trip distance recorder

System which measures a distance
travelled during a day or other period
since it was reset to zero by the driver.

Activation


)
Press the button to change the
brightness of the instruments and
controls.

)
When the lighting reaches the mini-
mum setting, release the button,
then press again to increase it.
or


)
When the lighting reaches the maxi-
mum setting, release the button,
then press again to reduce it.

)
When the lighting reaches the level
of brightness required, release the
button.


Deactivation
When the vehicle lighting is off, or in
day mode on vehicles fi tted with day-
time running lamps, pressing the button
does not have any effect.


)
With the ignition on, press the but-
ton until zeros appear.


To conform to legislation in the
country you are crossing, change
the units of distance (miles or km)
via the confi guration menu.

1
!
INSTRUMENTS and CONTROLS
34

Vehicle confi guration

Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty).
Language
Once the "Language" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:


- year,

- month,

- day,

- hour,

- minutes,

- 12 or 24 hour mode.
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:


- temperature (°C or °F),

- fuel consumption (l/100 km, mpg or
km/l).


)
Once you have selected a setting,
press the "OK"
button to change its
value.

)
Wait for approximately ten sec-
onds without any action to allow
the changed data to be recorded or
press the "ESC"
button to cancel.
The screen then returns to the normal
display. Once the "Vehicle confi guration" menu
has been selected, you can activate or
deactivate the following equipment:


- directional headlamps (refer to the
"Visibility" section),

- "guide-me-home" lighting (refer to
the "Visibility" section),

For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.
