2012 NISSAN VERSA HATCHBACK fuse box

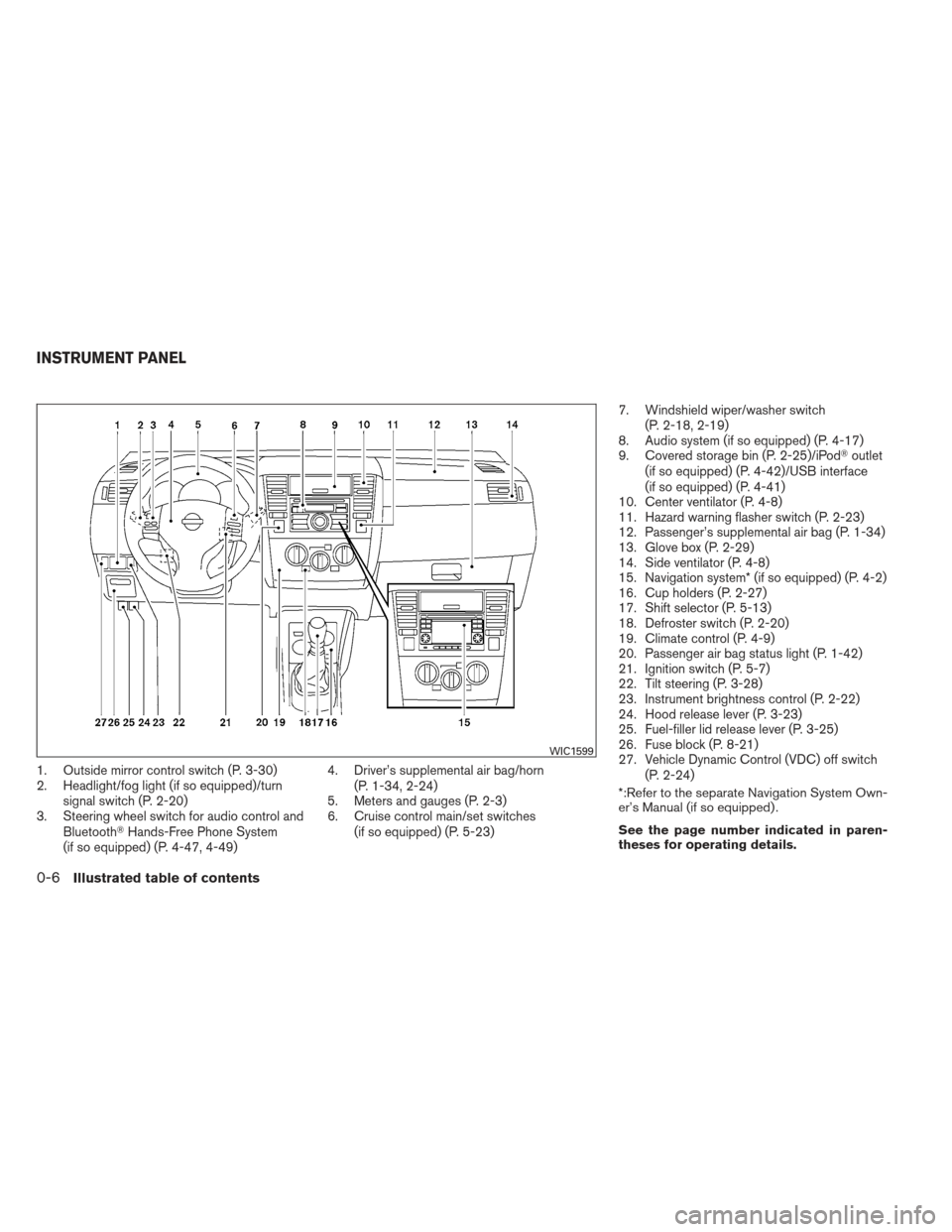

1. Outside mirror control switch (P. 3-30)
2. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-20)
3. Steering wheel switch for audio control and
Bluetooth Hands-Free Phone System
(if so equipped) (P. 4-47, 4-49) 4. Driver’s supplemental air bag/horn
(P. 1-34, 2-24)
5. Meters and gauges (P. 2-3)
6. Cruise control main/set switches
(if so equipped) (P. 5-23) 7. Windshield wiper/washer switch
(P. 2-18, 2-19)
8. Audio system (if so equipped) (P. 4-17)
9. Covered storage bin (P. 2-25)/iPod outlet
(if so equipped) (P. 4-42)/USB interface
(if so equipped) (P. 4-41)
10. Center ventilator (P. 4-8)
11. Hazard warning flasher switch (P. 2-23)
12. Passenger’s supplemental air bag (P. 1-34)
13. Glove box (P. 2-29)
14. Side ventilator (P. 4-8)
15. Navigation system* (if so equipped) (P. 4-2)
16. Cup holders (P. 2-27)
17. Shift selector (P. 5-13)
18. Defroster switch (P. 2-20)
19. Climate control (P. 4-9)
20. Passenger air bag status light (P. 1-42)
21. Ignition switch (P. 5-7)
22. Tilt steering (P. 3-28)
23. Instrument brightness control (P. 2-22)
24. Hood release lever (P. 3-23)
25. Fuel-filler lid release lever (P. 3-25)
26. Fuse block (P. 8-21)
27. Vehicle Dynamic Control (VDC) off switch
(P. 2-24)
*:Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
See the page number indicated in paren-
theses for operating details.
WIC1599
INSTRUMENT PANEL
0-6Illustrated table of contents

MR18DE

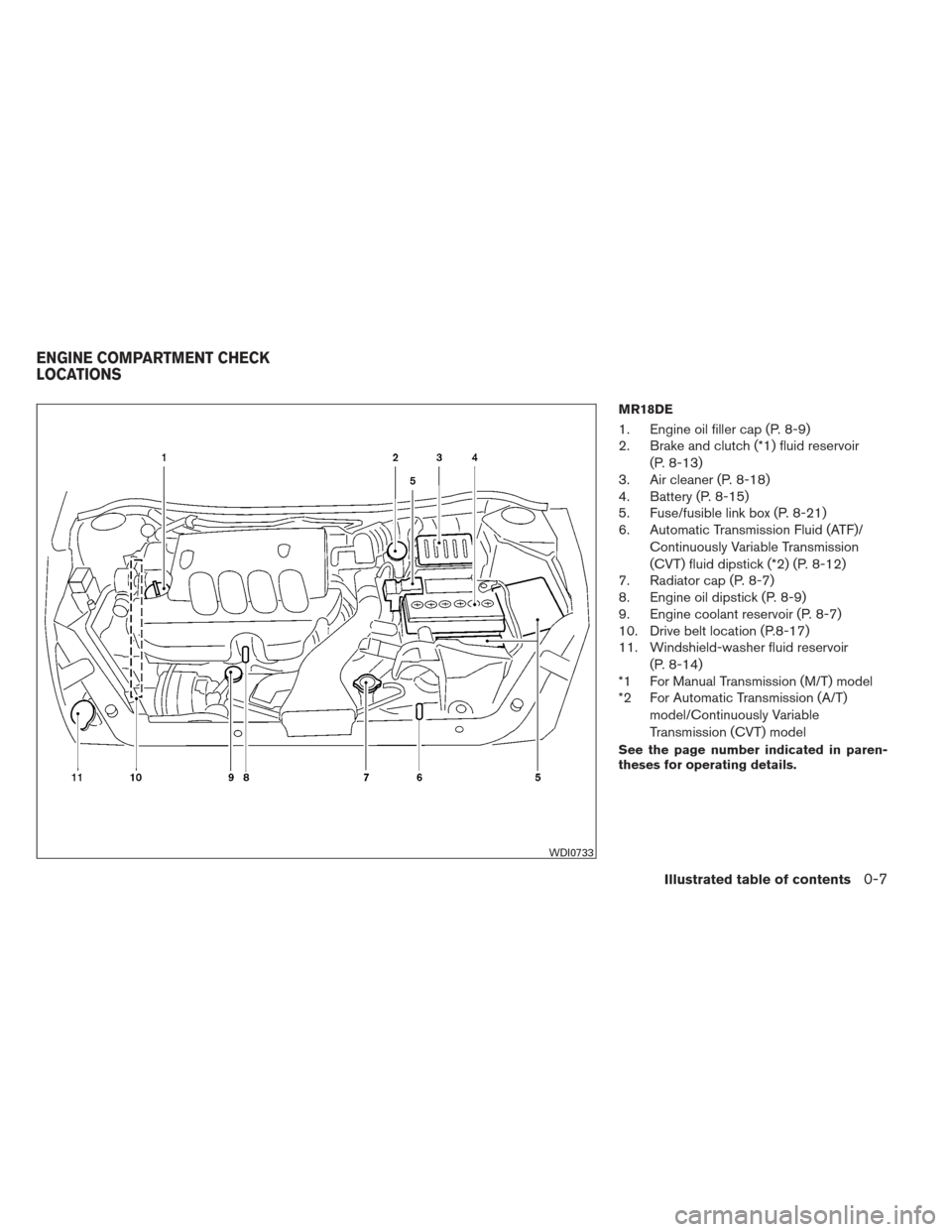

1. Engine oil filler cap (P. 8-9)
2. Brake and clutch (*1) fluid reservoir(P. 8-13)
3. Air cleaner (P. 8-18)
4. Battery (P. 8-15)
5. Fuse/fusible link box (P. 8-21)
6. Automatic Transmission Fluid (ATF)/
Continuously Variable Transmission
(CVT) fluid dipstick (*2) (P. 8-12)
7. Radiator cap (P. 8-7)
8. Engine oil dipstick (P. 8-9)
9. Engine coolant reservoir (P. 8-7)
10. Drive belt location (P.8-17)
11. Windshield-washer fluid reservoir
(P. 8-14)
*1 For Manual Transmission (M/T) model
*2 For Automatic Transmission (A/T)
model/Continuously Variable
Transmission (CVT) model
See the page number indicated in paren-
theses for operating details.
WDI0733
ENGINE COMPARTMENT CHECK
LOCATIONS
Illustrated table of contents0-7

1. Outside mirror control switch (P. 3-30)
2. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-20)
3. Steering wheel switch for audio control and
Bluetooth Hands-Free Phone System
(if so equipped) (P. 4-47, 4-49) 4. Driver’s supplemental air bag/horn
(P. 1-34, 2-24)
5. Meters and gauges (P. 2-3)
6. Cruise control main/set switches
(if so equipped) (P. 5-23) 7. Windshield wiper/washer switch (P. 2-18,
2-19)
8. Audio system (if so equipped) (P. 4-17)
9. Covered storage bin (P. 2-25)/iPod outlet
(if so equipped) (P. 4-42)/USB interface
(if so equipped) (P. 4-41)
10. Center ventilator (P. 4-8)
11. Hazard warning flasher switch (P. 2-23)
12. Passenger’s supplemental air bag (P. 1-34)
13. Glove box (P. 2-29)
14. Side ventilator (P. 4-8)
15. Navigation system* (if so equipped) (P. 4-2)
16. Cup holders (P. 2-27)
17. Shift selector (P. 5-13)
18. Defroster switch (P. 2-20)
19. Climate control (P. 4-9)
20. Passenger air bag status light (P. 1-42)
21. Ignition switch (P. 5-7)
22. Tilt steering (P. 3-28)
23. Instrument brightness control (P. 2-22)
24. Hood release lever (P. 3-23)
25. Fuel-filler lid release lever (P. 3-25)
26. Fuse block (P. 8-21)
27. Vehicle Dynamic Control (VDC) off switch
(P. 2-24)
*:Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
See the page number indicated in paren-
theses for operating details.
WIC1599
INSTRUMENT PANEL
2-2Instruments and controls

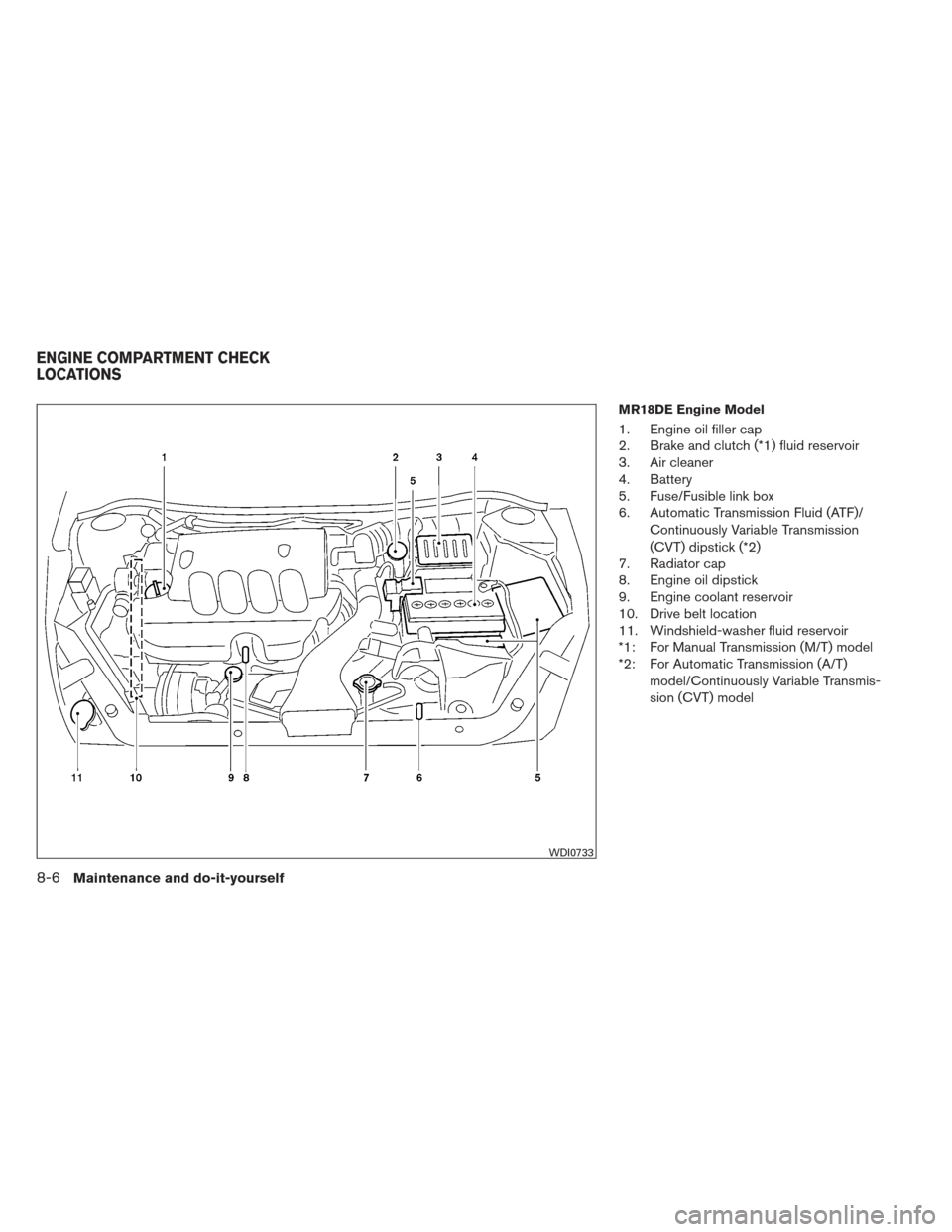

MR18DE Engine Model
1. Engine oil filler cap
2. Brake and clutch (*1) fluid reservoir
3. Air cleaner
4. Battery
5. Fuse/Fusible link box
6. Automatic Transmission Fluid (ATF)/Continuously Variable Transmission
(CVT) dipstick (*2)
7. Radiator cap
8. Engine oil dipstick
9. Engine coolant reservoir
10. Drive belt location
11. Windshield-washer fluid reservoir
*1: For Manual Transmission (M/T) model
*2: For Automatic Transmission (A/T)
model/Continuously Variable Transmis-
sion (CVT) model
WDI0733
ENGINE COMPARTMENT CHECK
LOCATIONS
8-6Maintenance and do-it-yourself

Under some driving or climate conditions, occa-
sional brake squeak, squeal or other noise may
be heard. Occasional brake noise during light to
moderate stops is normal and does not affect the
function or performance of the brake system.
Proper brake inspection intervals should
be followed.For more information regarding
brake inspections, see the appropriate mainte-
nance schedule information in the “NISSAN Ser-
vice and Maintenance Guide”.

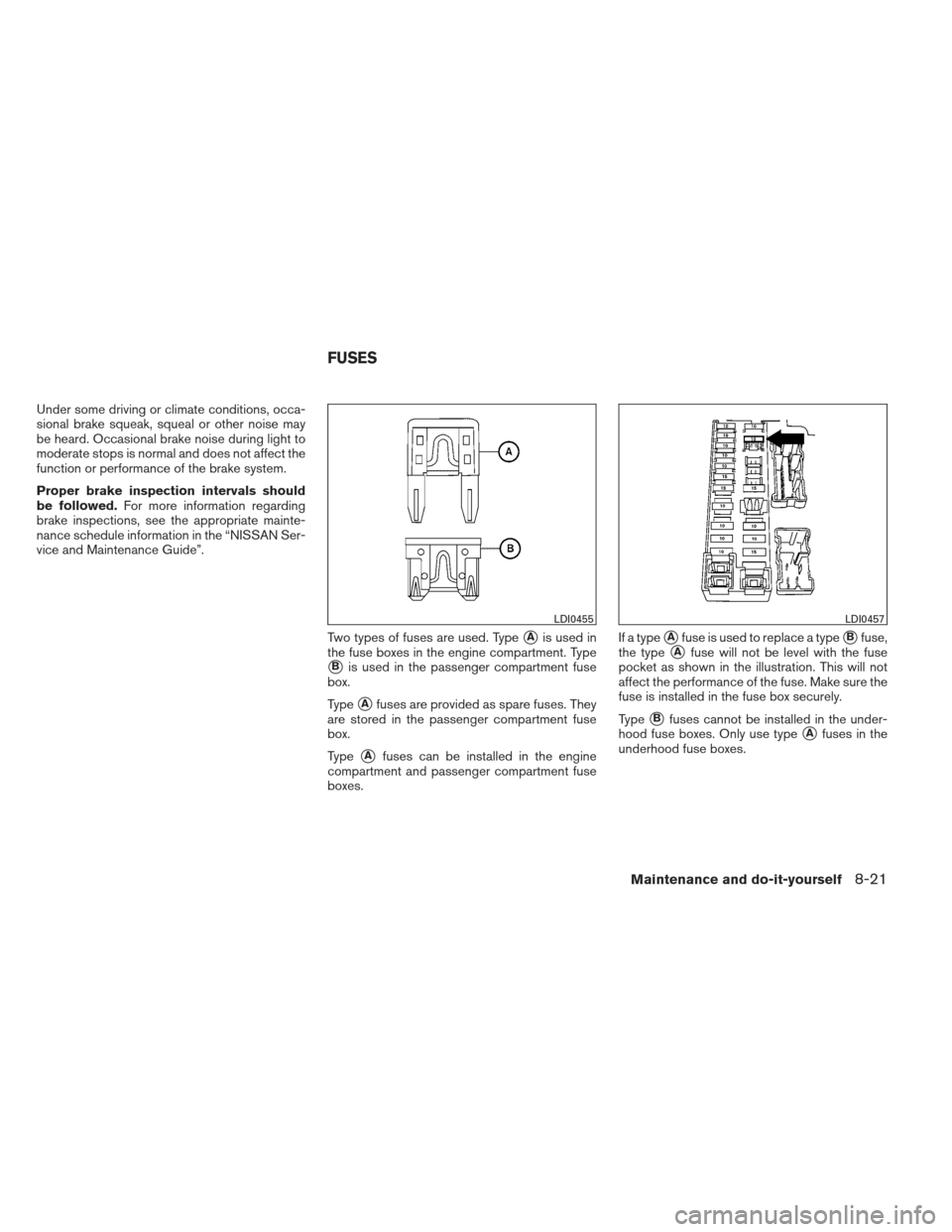

Two types of fuses are used. Type
Ais used in
the fuse boxes in the engine compartment. Type
Bis used in the passenger compartment fuse
box.
Type
Afuses are provided as spare fuses. They
are stored in the passenger compartment fuse
box.
Type
Afuses can be installed in the engine
compartment and passenger compartment fuse
boxes. If a type
Afuse is used to replace a typeBfuse,
the type
Afuse will not be level with the fuse
pocket as shown in the illustration. This will not
affect the performance of the fuse. Make sure the
fuse is installed in the fuse box securely.
Type
Bfuses cannot be installed in the under-
hood fuse boxes. Only use type
Afuses in the
underhood fuse boxes.
LDI0455LDI0457
FUSES
Maintenance and do-it-yourself8-21

ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equipment does not come on,
check for an open fuse. 1. Be sure the ignition switch and the headlight switch are OFF.
2. Open the engine hood. 3. Remove the fuse box cover by pushing the
tab
1and lifting the cover up from the right
side
2, then the left side3.
4. Remove the fuse with the fuse puller. The fuse puller is located in the center of the fuse
block in the passenger compartment.
5. If the fuse is open
A, replace it with a new
fuse
B.
6. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
dealer.
WDI0551WDI0452
8-22Maintenance and do-it-yourself

Fusible links

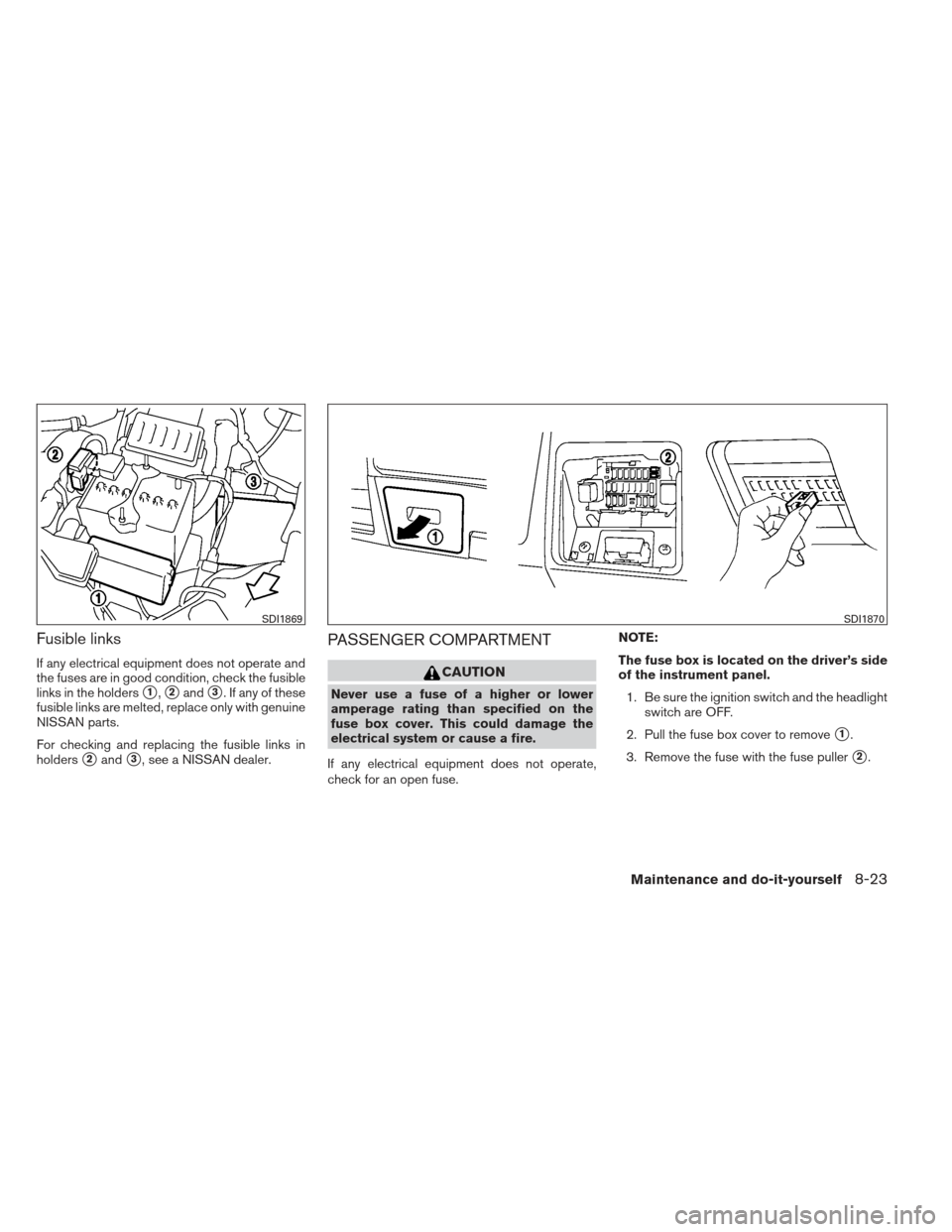

If any electrical equipment does not operate and
the fuses are in good condition, check the fusible
links in the holders
1,2and3. If any of these
fusible links are melted, replace only with genuine
NISSAN parts.
For checking and replacing the fusible links in
holders
2and3, see a NISSAN dealer.
PASSENGER COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse. NOTE:
The fuse box is located on the driver’s side
of the instrument panel.
1. Be sure the ignition switch and the headlight switch are OFF.
2. Pull the fuse box cover to remove
1.
3. Remove the fuse with the fuse puller
2.
SDI1869SDI1870
Maintenance and do-it-yourself8-23

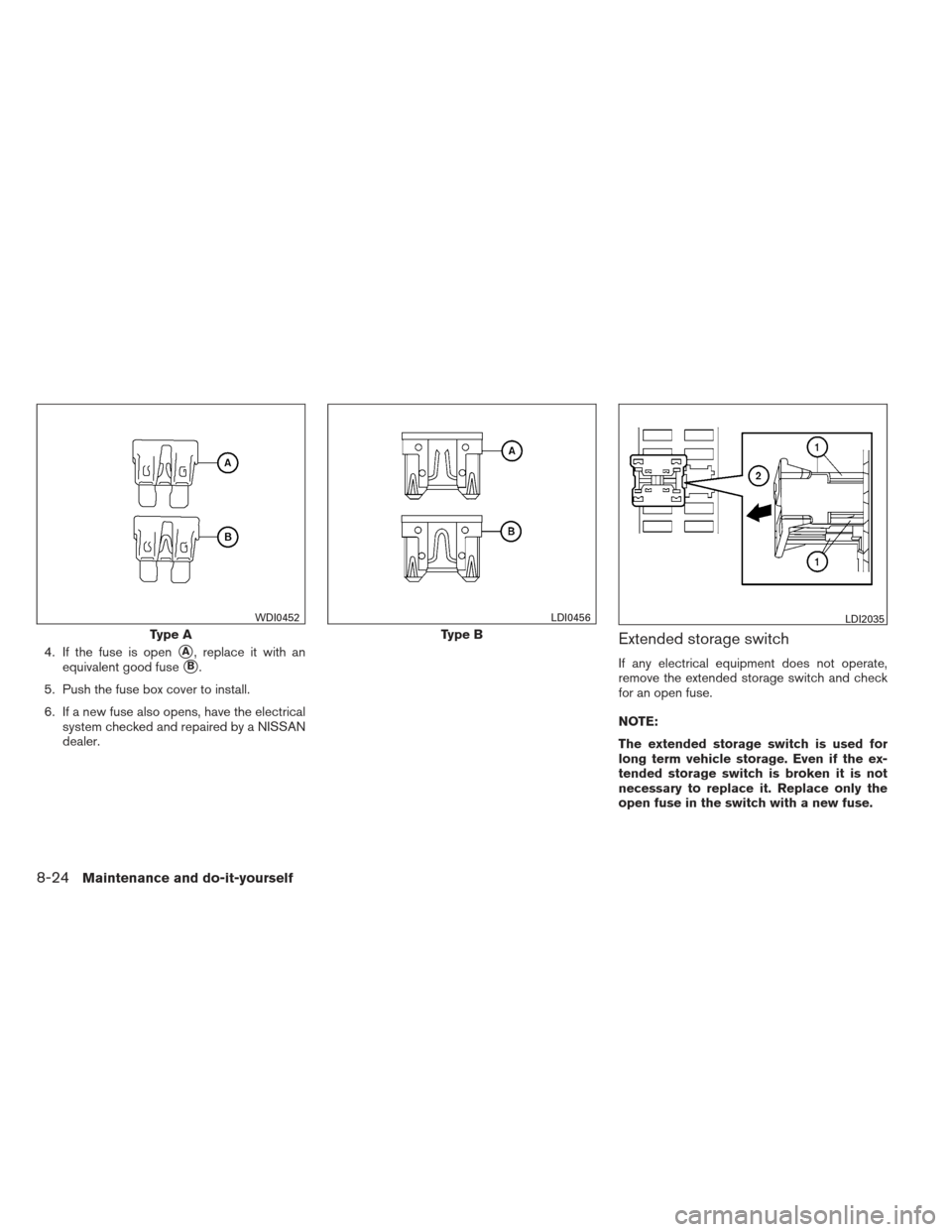

4. If the fuse is openA, replace it with an
equivalent good fuse
B.
5. Push the fuse box cover to install.
6. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
dealer.
Extended storage switch
If any electrical equipment does not operate,
remove the extended storage switch and check
for an open fuse.
NOTE:
The extended storage switch is used for
long term vehicle storage. Even if the ex-
tended storage switch is broken it is not
necessary to replace it. Replace only the
open fuse in the switch with a new fuse.
Type A
WDI0452
Type B
LDI0456LDI2035
