2012 NISSAN VERSA HATCHBACK fold seats

1 Safety—Seats, seat belts and
supplemental restraint system
Seats ............................................1-2
Front manual seat adjustment ....................1-2
Folding rear seat ...............................1-4
Head restraints .................................1-5
Seat belts ........................................1-8
Precautions on seat belt usage ...................1-8
Pregnant women .............................. 1-11
Injured persons ................................ 1-11
Three-point type seat belt with retractor ..........1-11
Seat belt extenders ............................ 1-14
Seat belt maintenance ......................... 1-14
Child safety ...................................... 1-15
Infants ........................................ 1-15
Small children ................................. 1-15
Larger children ................................ 1-16
Child restraints ................................... 1-16
Precautions on child restraints ..................1-16LATCH (Lower Anchors and Tethers for
CHildren) System
............................. 1-18
Rear-facing child restraint installation using
LATCH....................................... 1-20
Rear-facing child restraint installation using
the seat belts . . ............................... 1-23
Forward-facing child restraint installation
using LATCH. . . ............................... 1-25
Forward-facing child restraint installation
using the seat belts ............................ 1-27
Installing top tether strap .......................1-30
Booster seats ................................. 1-31
Supplemental restraint system .....................1-34
Precautions on supplemental restraint
system ....................................... 1-34
Supplemental air bag warning labels .............1-48
Supplemental air bag warning light ..............1-48

FOLDING REAR SEAT
1Remove the cargo cover from the rear seat-
back.
2Pull the knobAto fold each seatback
down.
WARNING
● Never allow anyone to ride in the cargo
area or on the rear seat when it is in the
fold-down position. Use of these areas
by passengers without proper restraints
could result in serious injury in an acci-
dent or sudden stop.
● Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or col-
lision, unsecured cargo could cause
personal injury.
● When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched posi-
tion. If they are not completely secured,
passengers may be injured in an acci-
dent or sudden stop.
Center armrest (if so equipped)
Pull the armrest down until it is horizontal.
WRS0758WRS0755
1-4Safety—Seats, seat belts and supplemental restraint system

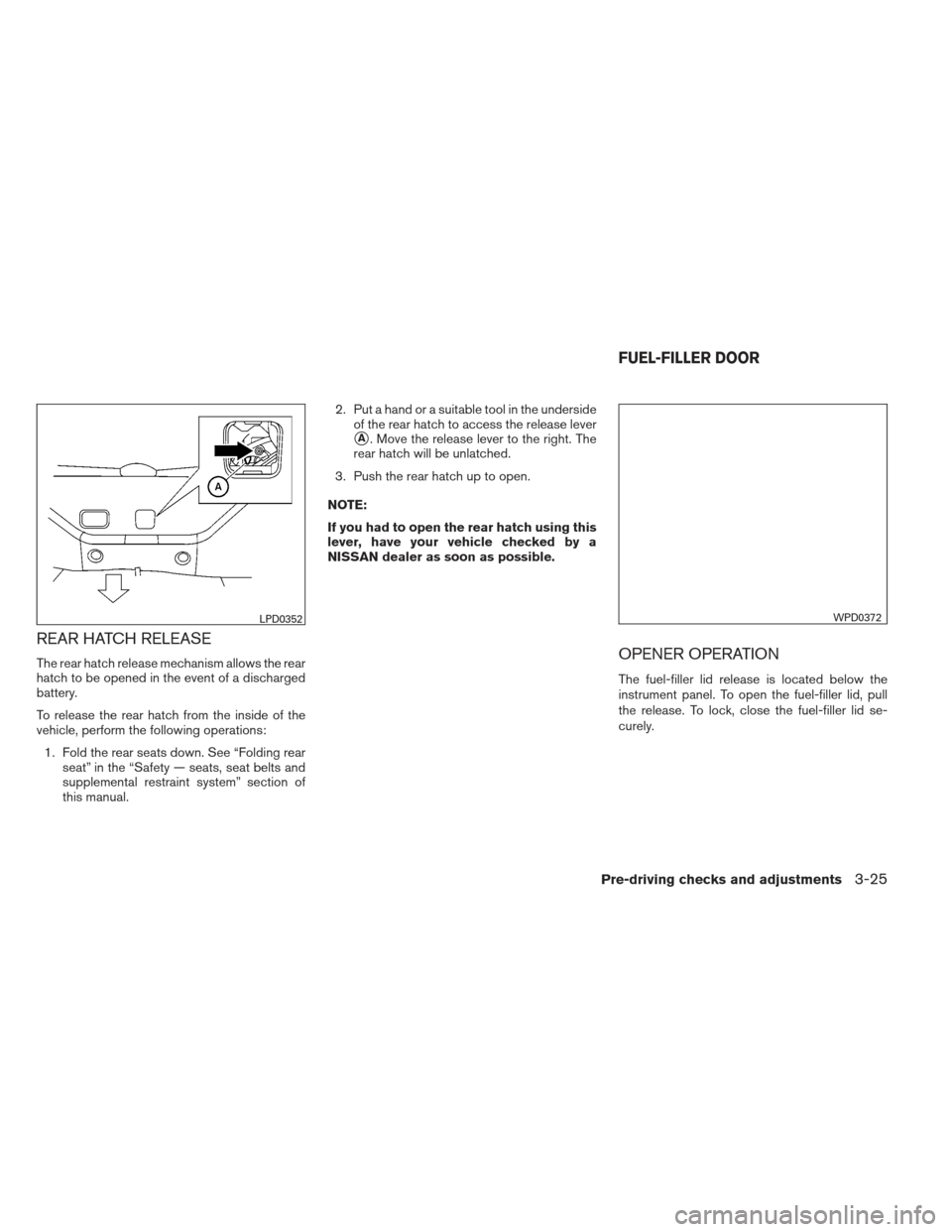

REAR HATCH RELEASE
The rear hatch release mechanism allows the rear
hatch to be opened in the event of a discharged
battery.
To release the rear hatch from the inside of the
vehicle, perform the following operations:1. Fold the rear seats down. See “Folding rear seat” in the “Safety — seats, seat belts and
supplemental restraint system” section of
this manual. 2. Put a hand or a suitable tool in the underside
of the rear hatch to access the release lever
A. Move the release lever to the right. The
rear hatch will be unlatched.
3. Push the rear hatch up to open.
NOTE:
If you had to open the rear hatch using this
lever, have your vehicle checked by a
NISSAN dealer as soon as possible.
OPENER OPERATION
The fuel-filler lid release is located below the
instrument panel. To open the fuel-filler lid, pull
the release. To lock, close the fuel-filler lid se-
curely.
LPD0352WPD0372
FUEL-FILLER DOOR
Pre-driving checks and adjustments3-25
