2012 NISSAN VERSA HATCHBACK turn signal

1. Engine hood (P. 3-23)
2. Windshield wiper and washer switch(P. 2-18)
3. Windshield (P. 8-19)
4. Moonroof (if so equipped) (P. 2-33)
5. Power windows (P. 2-31)
6. Door locks, keyfob (if so equipped) ,
NISSAN Intelligent Key ™ (if so
equipped) , keys (P. 3-4, 3-7, 3-2, 3-2)
7. Mirrors (P. 3-29)
8. Tire pressure (P. 8-32)
9. Flat tire (P. 6-2)
10. Tire chains (P. 8-39)
11. Headlight and turn signal switch
(P. 2-20)
12. Replacing bulbs (P. 8-28)
13. Fog light switch (if so equipped)
(P. 2-20)
14. Tie down hook (P. 6-12)
See the page number indicated in paren-
theses for operating details.
WII0178
EXTERIOR FRONT
Illustrated table of contents0-3

1. Outside mirror control switch (P. 3-30)
2. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-20)
3. Steering wheel switch for audio control and
Bluetooth Hands-Free Phone System
(if so equipped) (P. 4-47, 4-49) 4. Driver’s supplemental air bag/horn
(P. 1-34, 2-24)
5. Meters and gauges (P. 2-3)
6. Cruise control main/set switches
(if so equipped) (P. 5-23) 7. Windshield wiper/washer switch
(P. 2-18, 2-19)
8. Audio system (if so equipped) (P. 4-17)
9. Covered storage bin (P. 2-25)/iPod outlet
(if so equipped) (P. 4-42)/USB interface
(if so equipped) (P. 4-41)
10. Center ventilator (P. 4-8)
11. Hazard warning flasher switch (P. 2-23)
12. Passenger’s supplemental air bag (P. 1-34)
13. Glove box (P. 2-29)
14. Side ventilator (P. 4-8)
15. Navigation system* (if so equipped) (P. 4-2)
16. Cup holders (P. 2-27)
17. Shift selector (P. 5-13)
18. Defroster switch (P. 2-20)
19. Climate control (P. 4-9)
20. Passenger air bag status light (P. 1-42)
21. Ignition switch (P. 5-7)
22. Tilt steering (P. 3-28)
23. Instrument brightness control (P. 2-22)
24. Hood release lever (P. 3-23)
25. Fuel-filler lid release lever (P. 3-25)
26. Fuse block (P. 8-21)
27. Vehicle Dynamic Control (VDC) off switch
(P. 2-24)
*:Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
See the page number indicated in paren-
theses for operating details.
WIC1599
INSTRUMENT PANEL
0-6Illustrated table of contents

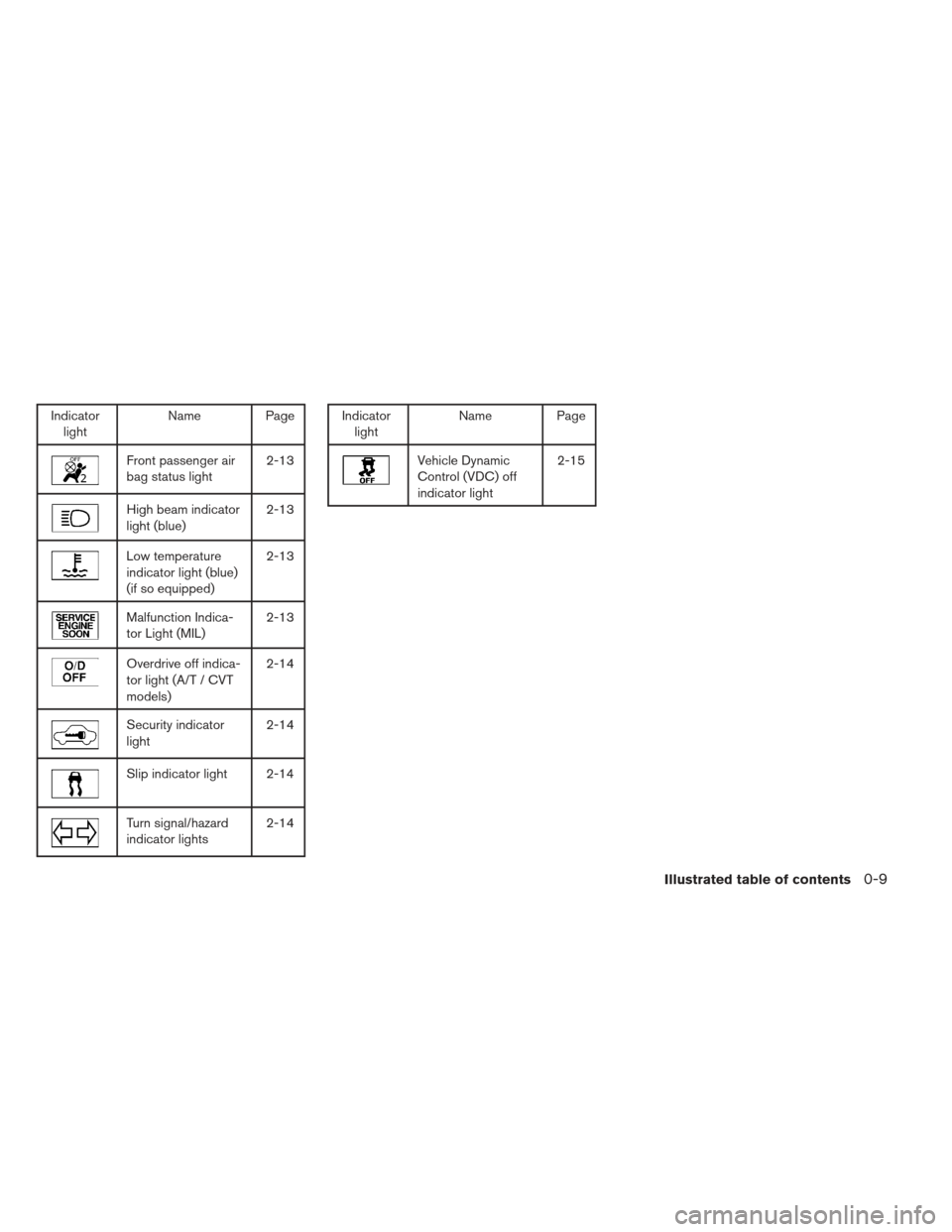

Indicatorlight Name Page
Front passenger air
bag status light 2-13
High beam indicator
light (blue)2-13
Low temperature
indicator light (blue)
(if so equipped)2-13
Malfunction Indica-
tor Light (MIL)
2-13
Overdrive off indica-
tor light (A/T / CVT
models)2-14
Security indicator
light
2-14
Slip indicator light 2-14
Turn signal/hazard
indicator lights2-14
Indicator
light Name Page
Vehicle Dynamic
Control (VDC) off
indicator light 2-15
Illustrated table of contents0-9

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-3
Speedometer and odometer . . ...................2-4
Tachometer ....................................2-5
Fuel gauge ....................................2-5
Warning/indicator lights and audible reminders .......2-7
Checking bulbs ................................2-8
Warning lights .................................2-8
Indicator lights ................................ 2-12
Audible reminders ............................. 2-15
Security systems ................................. 2-16
Vehicle security system (if so equipped) ..........2-16
NISSAN vehicle immobilizer system .............2-17
Windshield wiper and washer switch ...............2-18
Switch operation .............................. 2-18
Rear window wiper and washer switch ..............2-19
Rear window and outside mirror (if so equipped)
defroster switch .................................. 2-20
Headlight and turn signal switch. . ..................2-20
Headlight control switch ........................ 2-20
Daytime running light system (Canada only) . . ....2-21
Instrument brightness control ...................2-22Turn signal switch
............................. 2-22
Fog light switch (if so equipped) ................2-23
Hazard warning flasher switch .....................2-23
Horn ............................................ 2-24
Vehicle Dynamic Control (VDC) off switch ...........2-24
Power outlet ..................................... 2-25
Storage ......................................... 2-25
Map pockets .................................. 2-25
Storage trays ................................. 2-26
Sunglasses holder (if so equipped) ..............2-27
Cup holders . . . ............................... 2-27
Glove box .................................... 2-29
Console box (if so equipped) ...................2-29
Covered storage bin ........................... 2-29
Cargo cover (if so equipped) ...................2-29
Windows ........................................ 2-31
P
ower windows ............................... 2-31
Moonroof (if so equipped) ......................... 2-33
Automatic moonroof ........................... 2-33
Interior light ...................................... 2-35
Map lights (if so equipped) ........................2-36
Luggage compartment light ........................2-36

1. Outside mirror control switch (P. 3-30)
2. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-20)
3. Steering wheel switch for audio control and
Bluetooth Hands-Free Phone System
(if so equipped) (P. 4-47, 4-49) 4. Driver’s supplemental air bag/horn
(P. 1-34, 2-24)
5. Meters and gauges (P. 2-3)
6. Cruise control main/set switches
(if so equipped) (P. 5-23) 7. Windshield wiper/washer switch (P. 2-18,
2-19)
8. Audio system (if so equipped) (P. 4-17)
9. Covered storage bin (P. 2-25)/iPod outlet
(if so equipped) (P. 4-42)/USB interface
(if so equipped) (P. 4-41)
10. Center ventilator (P. 4-8)
11. Hazard warning flasher switch (P. 2-23)
12. Passenger’s supplemental air bag (P. 1-34)
13. Glove box (P. 2-29)
14. Side ventilator (P. 4-8)
15. Navigation system* (if so equipped) (P. 4-2)
16. Cup holders (P. 2-27)
17. Shift selector (P. 5-13)
18. Defroster switch (P. 2-20)
19. Climate control (P. 4-9)
20. Passenger air bag status light (P. 1-42)
21. Ignition switch (P. 5-7)
22. Tilt steering (P. 3-28)
23. Instrument brightness control (P. 2-22)
24. Hood release lever (P. 3-23)
25. Fuel-filler lid release lever (P. 3-25)
26. Fuse block (P. 8-21)
27. Vehicle Dynamic Control (VDC) off switch
(P. 2-24)
*:Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
See the page number indicated in paren-
theses for operating details.
WIC1599
INSTRUMENT PANEL
2-2Instruments and controls

orAnti-lock Braking System (ABS)
warning lightLow windshield-washer fluid warning light
(if so equipped)High beam indicator light (blue)
orBrake warning lightNISSAN Intelligent Key™ warning light
(if so equipped)Low temperature indicator light (blue)
(if so equipped)
Charge warning lightP position selecting warning light (for models
with NISSAN Intelligent Key™) (if so equipped)Malfunction Indicator Light (MIL)
Door open warning lightSeat belt warning light and chimeOverdrive off indicator light (A/T / CVT models)
Electric power steering warning lightSupplemental air bag warning lightSecurity indicator light
Engine oil pressure warning lightAutomatic Transmission (A/T)/Continuously
Variable Transmission (CVT) position indicator
light (if so equipped)Slip indicator light
High temperature warning light (red)Cruise main switch indicator light
(if so equipped)Turn signal/hazard indicator lights
Low fuel warning lightCruise set switch indicator light
(if so equipped)Vehicle Dynamic Control (VDC) off indicator
light
Low tire pressure warning light
(if so equipped)Front passenger air bag status light
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
Instruments and controls2-7

Cruise main switch indicatorlight (if so equipped)
The light comes on when the cruise control main
switch is pushed. The light goes out when the
main switch is pushed again. When the cruise
main switch indicator light comes on, the cruise
control system is operational.
Cruise set switch indicatorlight (if so equipped)
The light comes on while the vehicle speed is
controlled by the cruise control system. If the light
blinks while the engine is running, it may indicate
the cruise control system is not functioning prop-
erly. Have the system checked by a NISSAN
dealer.
Front passenger air bag statuslight
The front passenger air bag status light ()
will be lit and the passenger front air bag will be
OFF depending on how the front passenger seat
is being used.
For front passenger air bag status light operation,
see “Front passenger air bag and status light” in
the “Safety — Seats, seat belts and supplemental
restraint system” section of this manual.
High beam indicator light
(blue)
This blue light comes on when the headlight high
beams are on and goes out when the low beams
are selected.
The high beam indicator light also comes on
when the passing signal is activated.
Low temperature indicatorlight (blue) (if so equipped)
The low temperature indicator light illuminates
when the engine coolant temperature is low.
When the ignition switch is placed in the ON
position, the low temperature indicator light illu-
minates and then turns off after the engine cool-
ant has warmed up.
If the low temperature indicator light stays illumi-
nated after the engine has sufficiently warmed
up, it may indicate the low temperature sensor in
the engine coolant system is not functioning
properly and may need servicing. Have the sys-
tem checked, and if necessary repaired, by a
NISSAN dealer promptly.
Malfunction Indicator Light(MIL)
If this indicator light comes on steady or blinks
while the engine is running, it may indicate a
potential emission control malfunction.
The Malfunction Indicator Light may also come
on steady if the fuel-filler cap is loose or missing,
or if the vehicle runs out of fuel. Check to make
sure the fuel-filler cap is installed and closed
tightly, and that the vehicle has at least 3 gallons
(11.4 liters) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light comes on steady for 20
seconds and then blinks for 10 seconds when
the engine is not running, it indicates that the
vehicle is not ready for an emission control sys-
tem inspection/maintenance test. See “Readi-
ness for inspection/maintenance (I/M) test” in the
“Technical and consumer information” section of
this manual.
Instruments and controls2-13

Operation
The Malfunction Indicator Light will come on in
one of two ways:● Malfunction Indicator Light on steady — An
emission control system malfunction has
been detected. Check the fuel-filler cap. If
the LOOSE FUEL CAP warning message is
displayed in the odometer, and the fuel-filler
cap is loose or missing, tighten or install the
cap and continue to drive the vehicle.
The
light should turn off after a few
driving trips. If the
light does not turn
off after a few driving trips, have the vehicle
inspected by a NISSAN dealer. You do not
need to have your vehicle towed to the
dealer.
● Malfunction Indicator Light blinking — An
engine misfire has been detected which may
damage the emission control system. To re-
duce or avoid emission control system dam-
age:
– do not drive at speeds above 45 MPH (72 km/h) .
– avoid hard acceleration or deceleration.
– avoid steep uphill grades.
– if possible, reduce the amount of cargo being hauled. The Malfunction Indicator Light may stop blinking
and come on steady. Have the vehicle inspected
by a NISSAN dealer. You do not need to have
your vehicle towed to the dealer.
CAUTION
Continued vehicle operation without hav-
ing the emission control system checked
and repaired as necessary could lead to
poor driveability, reduced fuel economy,
and possible damage to the emission con-
trol system.
Overdrive off indicator light
(A/T / CVT models)
The overdrive off indicator light illuminates when
the overdrive off mode is selected.
For additional information, see “Driving the ve-
hicle” in the “Starting and driving” section of this
manual.
Security indicator light
For vehicles without Intelligent Key: This light
blinks whenever the ignition switch is placed in
the LOCK, OFF or ACC position. For vehicles with Intelligent Key: This light blinks
when the ignition switch is placed in the LOCK
position with the key removed from the ignition
switch.
The blinking security indicator light indicates that
the security systems equipped on the vehicle are
operational.
For additional information, see “Security sys-
tems” later in this section.
Slip indicator light
This indicator will blink when the VDC system or
the traction control system is operating, thus
alerting that the vehicle is nearing its traction
limits. The road surface may be slippery.
Turn signal/hazard indicator
lights
The appropriate light flashes when the turn signal
switch is activated.
Both lights flash when the hazard switch is turned
on.
2-14Instruments and controls
