●If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always follow all recommended procedures.
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated. Canadian law requires the
top tether strap on forward-facing child
restraints be secured to the designated an-
chor point on the vehicle.
LATCH (Lower Anchors and Tethers
for CHildren) SYSTEM
Your vehicle is equipped with special anchor
points that are used with LATCH (Lower Anchors
and Tethers for CHildren) system compatible
child restraints. This system may also be referred
to as the ISOFIX or ISOFIX compatible system.
With this system, you do not have to use a vehicle
seat belt to secure the child restraint.
LATCH lower anchor
WARNING
Failure to follow the warnings and instruc-
tions for proper use and installation of
child restraints could result in serious in-
jury or death of a child or other passen-
gers in a sudden stop or collision:
– Attach LATCH system compatible child restraints only at the locations
shown in the illustration.
– Do not secure a child restraint in the center rear seating position using
the LATCH lower anchors. The child
restraint will not be secured properly.
– Inspect the lower anchors by insert- ing your fingers into the lower anchor
area. Feel to make sure there are no
obstructions over the anchors such
as seat belt webbing or seat cushion
material. The child restraint will not
be secured properly if the lower an-
chors are obstructed.

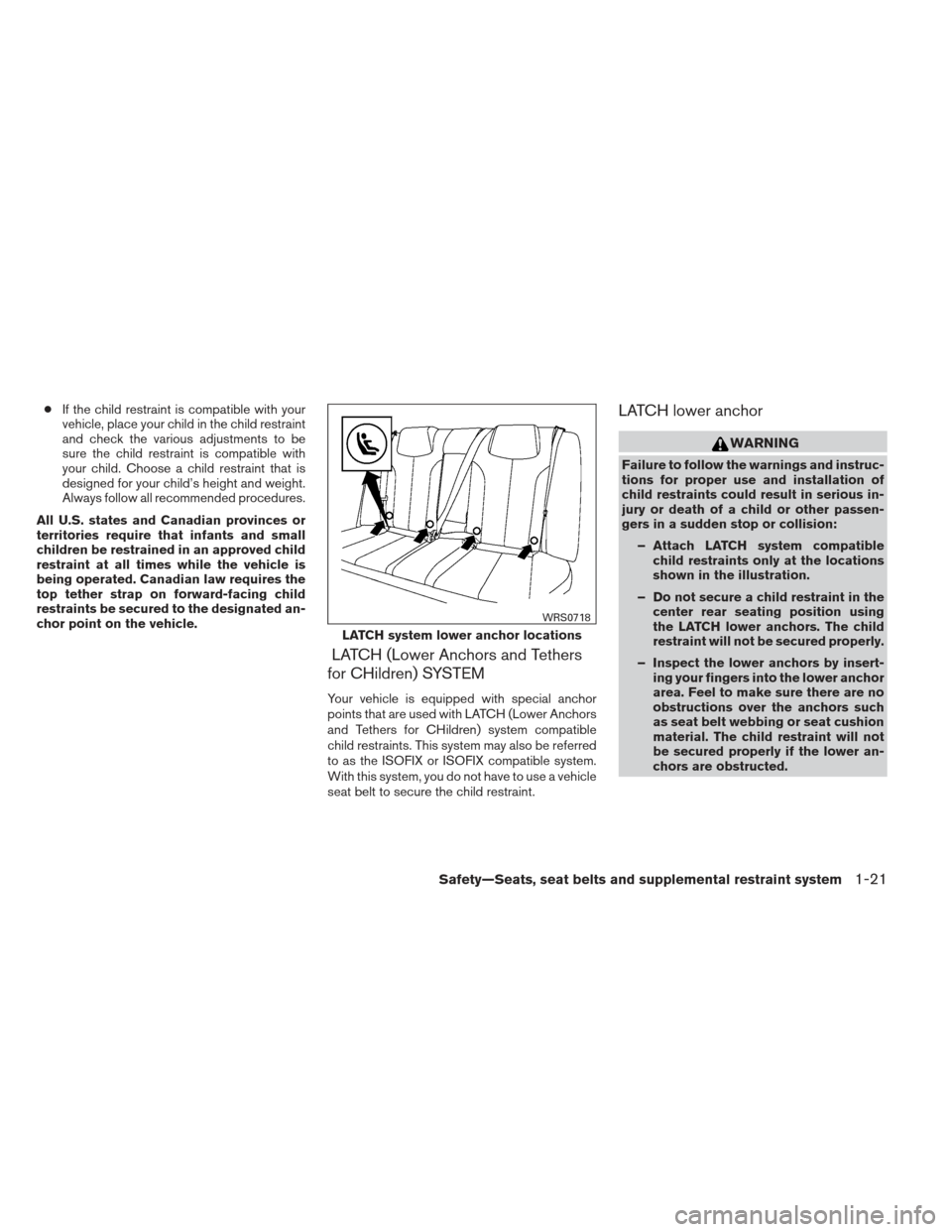

LATCH system lower anchor locations
WRS0718
Safety—Seats, seat belts and supplemental restraint system1-21
Power steering fluid.............8-12
Windshield-washerfluid...........8-14
F.M.V.S.S. certification label ...........9-10
Foglightswitch .................2-34
Foldingrearseat..................1-5
Front air bag system
(See supplemental restraint system) ......1-44
Frontseats.....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-20
Fuel-filler door and cap ...........3-21
Fuel gauge ...................2-6
Fueloctanerating...............9-4
Fuel recommendation .............9-3
Loosefuelcapwarning........2-25,3-21
Fuses.......................8-21
Fusiblelinks ...................8-22
G
Garage door opener, HomeLink Universal
Transceiver....................2-54
Gascap .....................3-21
Gauge Engine coolant temperature gauge .....2-5
Fuel gauge ...................2-6
Odometer ...................2-4
Speedometer .................2-4
Tachometer ..................2-5
Trip odometer .................2-4
Generalmaintenance...............8-2
Glovebox.....................2-42
Gloveboxlock..................2-42 Groceryhooks..................2-43
H
Hands-free phone system,
Bluetooth ...............4- 115, 4-129
Hazard warning flasher switch .........2-34
Headlight and turn signal switch ........2-29
Headlight control switch ............2-30
Headlights ....................8-26
Heated seats ...............2-35,2-37
Heated steering wheel .............2-37
Heater Heater and air conditioner
controls................4-42,4-45
Heater operation ...........4-43,4-46
HomeLink Universal Transceiver ........2-54
Hood release ...................3-18
Horn .......................2-35
I
Ignition Switch Push-Button Ignition Switch .........5-7
Image viewer ...................4-32
Immobilizer system .........2-26,3-3,5-10
Important vehicle information label .......9-10
In-cabin microfilter ................8-18
Increasing fuel economy .............5-20
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders)....................2-10
Inside automatic anti-glare mirror ........3-26
Instrument brightness control ..........2-33Instrument panel
...............0-6,2-2
Instrument panel dimmer switch ........2-33
Intelligent Key system Key operating range ..............3-9
Key operation ................3-10
Mechanical key ................3-3
Remote keyless entry operation.......3-13
Troubleshooting guide ............3-17
Warning signals ...............3-17
I
nteriorlight....................2-51
Interior trunk lid release .............3-20
iPod Player................4-91,4-93
ISOFIX child restraints .............1-21
J
Jump starting ...................6-7
K
Keyfob battery replacement ...........8-25
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-13
Keys, For Intelligent Key system .........3-2
L
Labels Air conditioner specification label .....9-11
C.M.V.S.S. certification label ........9-10
Emission control information label .....9-10
Engine serial number ............9-10
10-3
