2012 NISSAN ALTIMA COUPE Navigation Manual

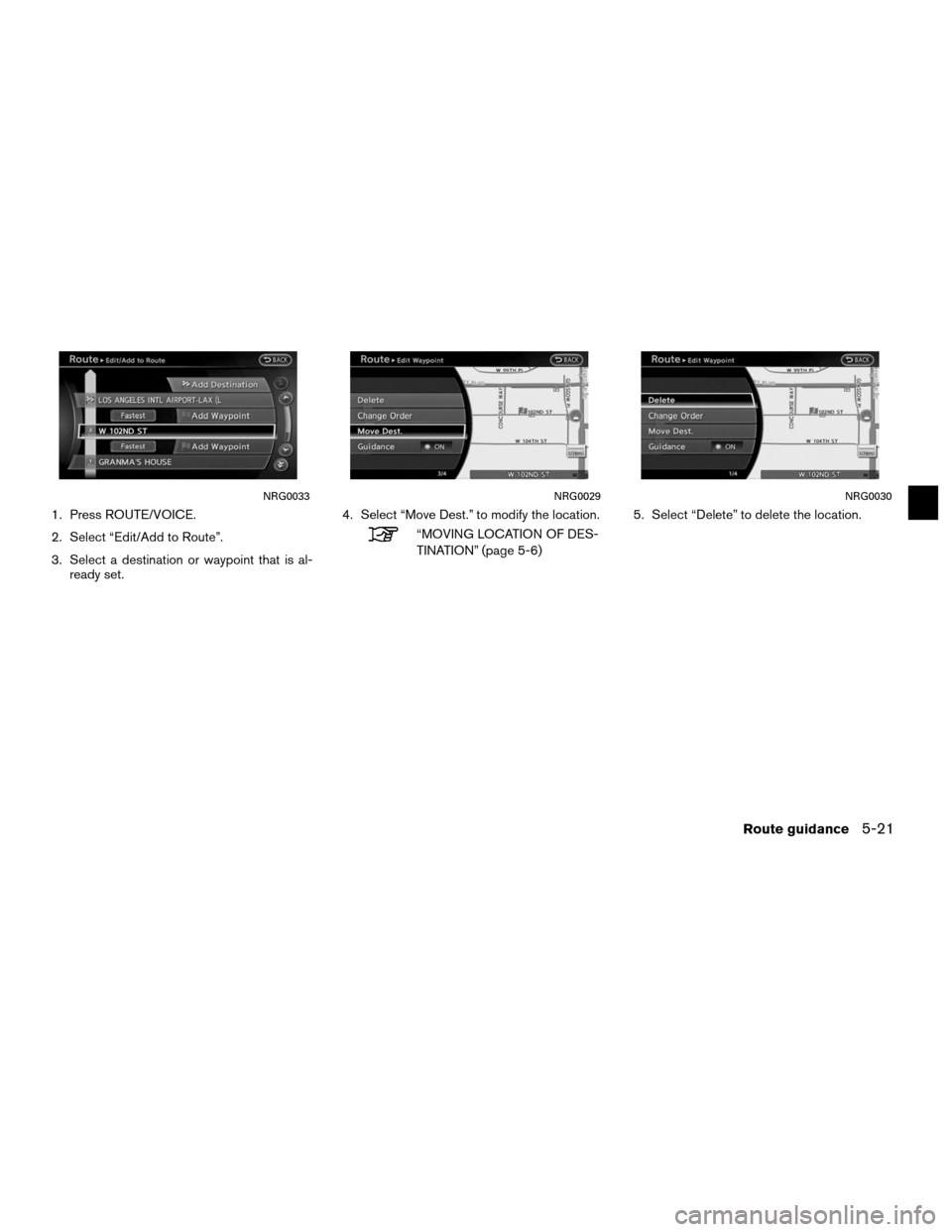

1. Press ROUTE/VOICE.
2. Select “Edit/Add to Route”.
3. Select a destination or waypoint that is al-ready set. 4. Select “Move Dest.” to modify the location.
“MOVING LOCATION OF DES-
TINATION” (page 5-6)
5. Select “Delete” to delete the location.
NRG0033NRG0029NRG0030
Route guidance5-21

6. A confirmation message is displayed. Con-firm the contents of the message, highlight
“Yes”. The destination or waypoint is de-
leted from the route. Return to the “Edit
Route” screen. 7. By selecting “Calculate” the system will re-
calculate the routes. After the route search
is completed, the display will automatically
return to the present location screen.
INFO:
● If the destination is deleted, the final waypoint
of the route becomes the destination.
● Even if the map screen is touched, the same
map screen as when “Move Dest.” is selected
is displayed.
Changing the order of a destination or
waypoint
The order of a destination and waypoints that are
already set can be changed. 1. Press ROUTE/VOICE.
2. Select “Edit/Add to Route”.
3. Select a destination or waypoint that is al-
ready set.
NRG0031NRG0032NRG0034
5-22Route guidance

4. Select “Change Order”. A list of the desti-nation and waypoints is displayed. 5. Select a preferred destination or waypoint
to replace the previously selected destina-
tion or waypoint. 6. A confirmation message is displayed and
the order of the destination or waypoint is
changed.
NRG0035NRG0036NRG0037
Route guidance5-23

7. By selecting “Calculate” the system will re-calculate the routes. After the route search
is completed, the display will automatically
return to the present location screen.
Changing route calculation conditions
Each section of the route between waypoints
can have different route calculation conditions.
After setting these conditions, the entire route
can be recalculated. 1. Press ROUTE/VOICE.
2. Select “Edit/Add to Route”.
3. Select the preferred section of the route to
the destination or waypoint. 4. Select the preferred condition.
Available conditions:
: “Fastest Route”
: “Minimize Freeway”
: “Shortest Route”
NRG0038NRG0039NRG0040
5-24Route guidance

5. The system automatically recalculates aroute according to the conditions set.
Return to the “Edit/Add to Route” screen. 6. By selecting “Calculate” the system will re-
calculate the routes. After the route search
is completed, the display will automatically
return to the present location screen.
INFO:
● The recalculated route may not be the short-
est route because the system prioritizes easy-
to-drive roads for safety reasons.
● If the route conditions are set from “Route
Settings”, all sections in the route are subject
to the same route conditions. This applies
even if different route conditions are set for
different sections in “Edit Route”.
CONFIRMING A ROUTE
When the suggested route is displayed after
calculation, the route information can be con-
firmed or the suggested route simulated.
Basic operation
1. Press ROUTE/VOICE.
2. Select “Route Info”.
NRG0041NRG0042NRG0043
Route guidance5-25

3. Select the preferred item.
Available items:
● “Turn List”:
Displays the details of the suggested route.
“Using turn list” (page 5-26)
● “Preview”:
The system will trace the planned route going
forward or in reverse.
“Using route preview”
(page 5-27)
● “Simulation”:
Simulate the suggested route. This function
provides a detailed image of the route with
voice guidance.
“Confirming by simulation”
(page 5-27) ●
“Store Route”:
A calculated route can be stored. A maximum
of 5 routes can be stored. Stored routes can
be easily retrieved and set as the suggested
route.
“STORING A ROUTE”
(page 6-7)
● “Map Scroll”:
Displays a map screen where the location of
the destination can be confirmed. Even if the
map screen is touched, the same map screen
as when “Map Scroll” is selected is displayed.
Using turn list
1. Select “Turn List”.
2. The information (e.g., intersections) can be confirmed on the route to the destination by
scrolling the screen using the up and down
arrow keys.
3. Press MAP to return to the current location map screen.
NRG0044NRG0045
5-26Route guidance

Using route preview
1. Select “Preview”.
2. Select the preferred key
Moves forward in the direction of
the destination.
Moves backward in the direction of
the starting point.
/Pauses the route preview.
3. Press MAP to return to the current locationmap screen.
INFO:
During route preview, the map scale can be
changed by pressing ZOOM IN or ZOOM OUT.
While the map scale is being changed, the route
preview is temporarily stopped.
Confirming by simulation
1. Select “Simulation”.
2. Select the preferred key
: Pauses the simulation.
: Resumes the simulation.
: Ends the simulation.
3. Press MAP to return to the current location map screen.
INFO:
During simulation, the map scale can be
changed by pressing ZOOM IN or ZOOM OUT.
While the map scale is being changed, the simu-
lation is temporarily stopped.
GUIDANCE SETTINGS
Various guidance settings can be set.
Basic operation
1. Press SETTING.
2. Select “Navigation”.
3. Select “Guidance Settings”.
NRG0046NRG0047NRG0081
Route guidance5-27

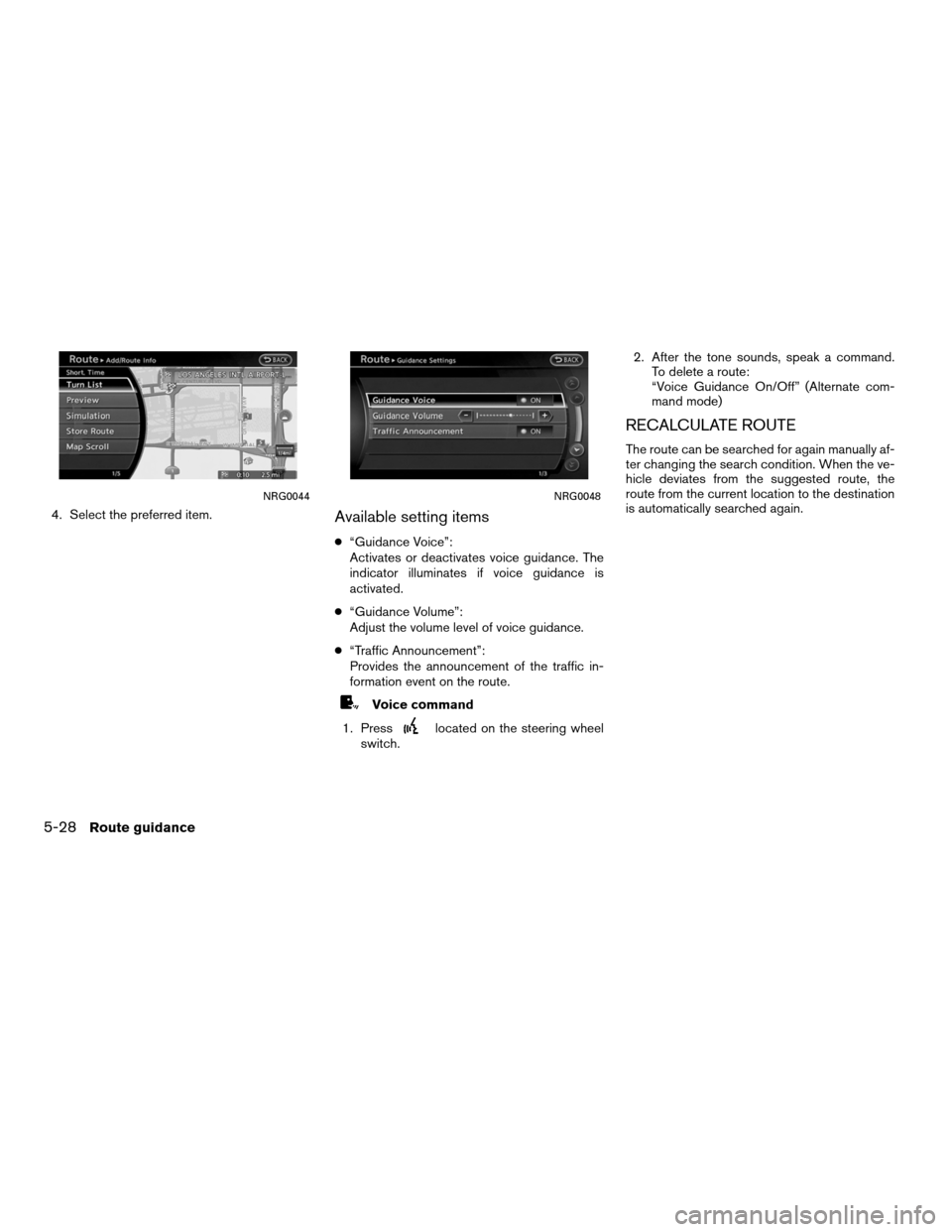

4. Select the preferred item.Available setting items
●“Guidance Voice”:
Activates or deactivates voice guidance. The
indicator illuminates if voice guidance is
activated.
● “Guidance Volume”:
Adjust the volume level of voice guidance.
● “Traffic Announcement”:
Provides the announcement of the traffic in-
formation event on the route.
Voice command
1. Press
located on the steering wheel
switch. 2. After the tone sounds, speak a command.
To delete a route:
“Voice Guidance On/Off” (Alternate com-
mand mode)
RECALCULATE ROUTE
The route can be searched for again manually af-
ter changing the search condition. When the ve-
hicle deviates from the suggested route, the
route from the current location to the destination
is automatically searched again.
NRG0044NRG0048
5-28Route guidance
