2012 NISSAN 370Z COUPE keyless entry

0-4Illustrated table of contents
SSI0594
1. Hood (P.3-16)
2. Headlight and turn signal— Operation (P.2-31)
— Bulb replacement (P.8-27)
3. Windshield wiper and washer — Operation (P.2-29)
— Maintenance (P.8-20) 4. Power windows (P.2-44)
5. Outside mirrors (P.3-38)
6. Recovery hook (P.6-21)
7. License plate installation (P.9-14)
8. Tires
— Wheels and tires (P.8-31, P.9-9)
— Flat tire (P.6-2) — Tire Pressure Monitoring System (TPMS)
(P.2-12, P.5-3)
9. Doors — Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-6)
— Remote keyless entry system (P.3-13)
EXTERIOR FRONT

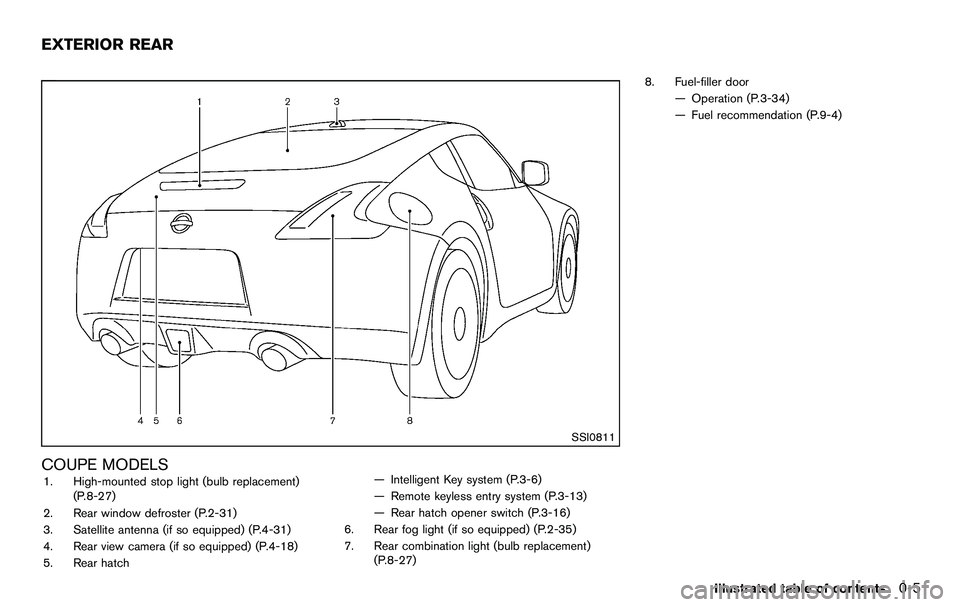

SSI0811
COUPE MODELS1. High-mounted stop light (bulb replacement)(P.8-27)
2. Rear window defroster (P.2-31)
3. Satellite antenna (if so equipped) (P.4-31)
4. Rear view camera (if so equipped) (P.4-18)
5. Rear hatch — Intelligent Key system (P.3-6)
— Remote keyless entry system (P.3-13)
— Rear hatch opener switch (P.3-16)
6. Rear fog light (if so equipped) (P.2-35)
7. Rear combination light (bulb replacement) (P.8-27) 8. Fuel-filler door
— Operation (P.3-34)
— Fuel recommendation (P.9-4)
Illustrated table of contents0-5
EXTERIOR REAR

0-6Illustrated table of contents

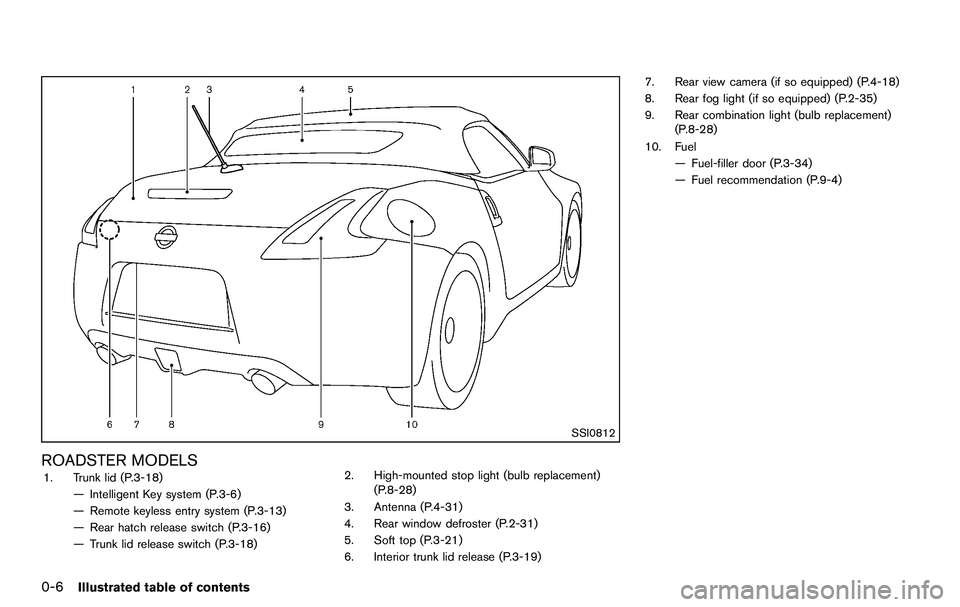

SSI0812
ROADSTER MODELS1. Trunk lid (P.3-18)— Intelligent Key system (P.3-6)
— Remote keyless entry system (P.3-13)
— Rear hatch release switch (P.3-16)
— Trunk lid release switch (P.3-18) 2. High-mounted stop light (bulb replacement)
(P.8-28)
3. Antenna (P.4-31)
4. Rear window defroster (P.2-31)
5. Soft top (P.3-21)
6. Interior trunk lid release (P.3-19) 7. Rear view camera (if so equipped) (P.4-18)
8. Rear fog light (if so equipped) (P.2-35)
9. Rear combination light (bulb replacement)
(P.8-28)
10. Fuel — Fuel-filler door (P.3-34)
— Fuel recommendation (P.9-4)

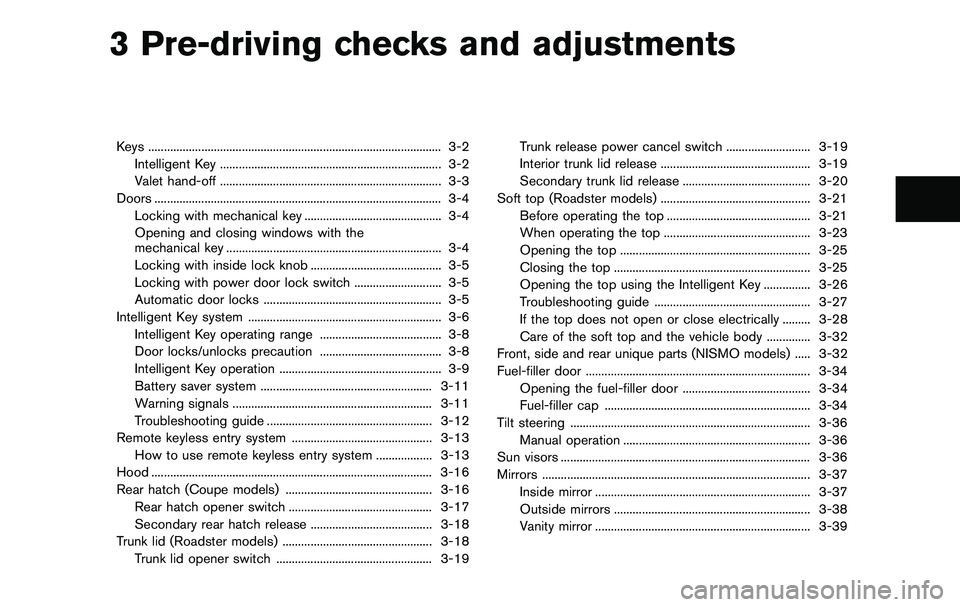

3 Pre-driving checks and adjustments
Keys ........................................................................\
...................... 3-2Intelligent Key ....................................................................... 3-2
Valet hand-off ....................................................................... 3-3
Doors ........................................................................\
.................... 3-4 Locking with mechanical key ............................................ 3-4
Opening and closing windows with the
mechanical key ..................................................................... 3-4
Locking with inside lock knob .......................................... 3-5
Locking with power door lock switch ............................ 3-5
Automatic door locks ......................................................... 3-5
Intelligent Key system .............................................................. 3-6 Intelligent Key operating range ....................................... 3-8
Door locks/unlocks precaution ....................................... 3-8
Intelligent Key operation .................................................... 3-9
Battery saver system ....................................................... 3-11
Warning signals ................................................................ 3-11
Troubleshooting guide ..................................................... 3-12
Remote keyless entry system ............................................. 3-13 How to use remote keyless entry system .................. 3-13
Hood ........................................................................\
.................. 3-16
Rear hatch (Coupe models) ............................................... 3-16 Rear hatch opener switch .............................................. 3-17
Secondary rear hatch release ....................................... 3-18
Trunk lid (Roadster models) ................................................ 3-18 Trunk lid opener switch .................................................. 3-19 Trunk release power cancel switch ........................... 3-19
Interior trunk lid release ................................................ 3-19
Secondary trunk lid release ......................................... 3-20
Soft top (Roadster models) ................................................ 3-21 Before operating the top .............................................. 3-21
When operating the top ............................................... 3-23
Opening the top ............................................................. 3-25
Closing the top ............................................................... 3-25
Opening the top using the Intelligent Key ............... 3-26
Troubleshooting guide .................................................. 3-27
If the top does not open or close electrically ......... 3-28
Care of the soft top and the vehicle body .............. 3-32
Front, side and rear unique parts (NISMO models) ..... 3-32
Fuel-filler door ........................................................................\
3-34 Opening the fuel-filler door ......................................... 3-34
Fuel-filler cap .................................................................. 3-34
Tilt steering ........................................................................\
..... 3-36 Manual operation ............................................................ 3-36
Sun visors ........................................................................\
........ 3-36
Mirrors ........................................................................\
.............. 3-37
Inside mirror ..................................................................... 3-37
Outside mirrors ............................................................... 3-38
Vanity mirror ..................................................................... 3-39

3-4Pre-driving checks and adjustments
WARNING
.Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping
to prevent persons from being
thrown from the vehicle. This also
helps keep children and others from
unintentionally opening the doors,
and will help keep out intruders.
. Before opening any door, always
look for and avoid oncoming traffic.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents.
SPA2565
LOCKING WITH MECHANICAL KEY
The power door lock system allows you to lock
or unlock all doors simultaneously using the
mechanical key.
.Turning the driver’s door key cylinder to the
front of the vehicle
*1will lock all doors.
. Turning the driver’s door key cylinder once
to the rear of the vehicle
*2will unlock the
driver’s door. After returning the key to the
neutral position
*3, turning it to the rear
again within 60 seconds will unlock all
doors.
. You can switch the lock system to the mode
that allows you to open all the doors when
the key is turned once. (See “How to use SETTING button” (P.4-11).)
OPENING AND CLOSING WINDOWS
WITH THE MECHANICAL KEY
The driver’s door key operation also allows you
to open and close the window that is equipped
with the automatic open/close function. (See
“Power windows” (P.2-44).)
To open the window, turn the driver’s door key
cylinder to the rear of the vehicle for
longer
than 1 second. The door is unlocked and the
window keeps opening while turning the key.
This function can also be performed by pushing
and holding the UNLOCK button on the
Intelligent Key. (See “Remote keyless entry
system” (P.3-13) .)
To close the window, turn the driver’s door key
cylinder to the front of the vehicle for longer
than 1 second. The door is locked and the
window keeps closing while turning the key.
DOORS

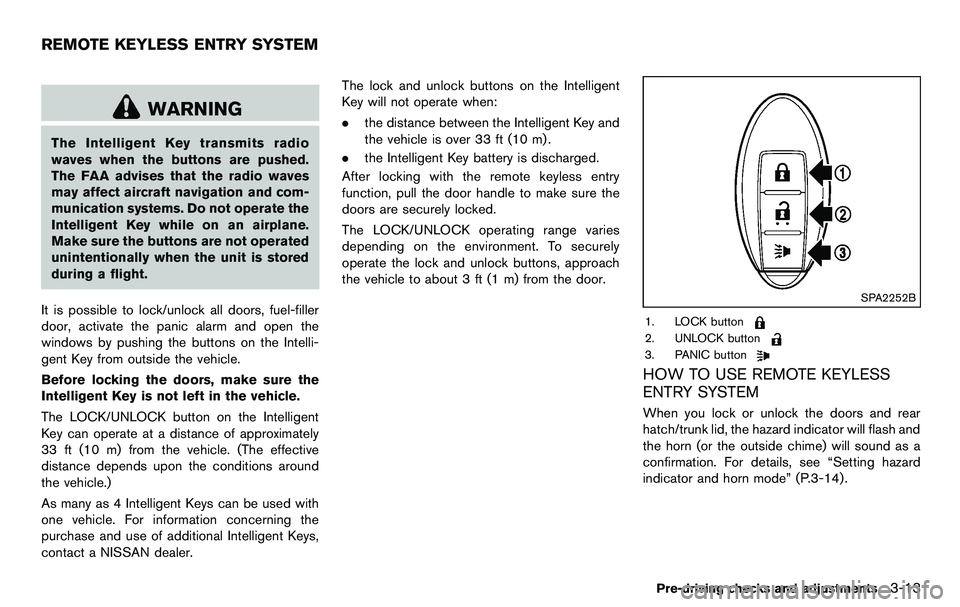

WARNING
The Intelligent Key transmits radio
waves when the buttons are pushed.
The FAA advises that the radio waves
may affect aircraft navigation and com-
munication systems. Do not operate the
Intelligent Key while on an airplane.
Make sure the buttons are not operated
unintentionally when the unit is stored
during a flight.
It is possible to lock/unlock all doors, fuel-filler
door, activate the panic alarm and open the
windows by pushing the buttons on the Intelli-
gent Key from outside the vehicle.
Before locking the doors, make sure the
Intelligent Key is not left in the vehicle.
The LOCK/UNLOCK button on the Intelligent
Key can operate at a distance of approximately
33 ft (10 m) from the vehicle. (The effective
distance depends upon the conditions around
the vehicle.)
As many as 4 Intelligent Keys can be used with
one vehicle. For information concerning the
purchase and use of additional Intelligent Keys,
contact a NISSAN dealer. The lock and unlock buttons on the Intelligent
Key will not operate when:
.
the distance between the Intelligent Key and
the vehicle is over 33 ft (10 m) .
. the Intelligent Key battery is discharged.
After locking with the remote keyless entry
function, pull the door handle to make sure the
doors are securely locked.
The LOCK/UNLOCK operating range varies
depending on the environment. To securely
operate the lock and unlock buttons, approach
the vehicle to about 3 ft (1 m) from the door.
SPA2252B
1. LOCK button
2. UNLOCK button
3. PANIC button
HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
When you lock or unlock the doors and rear
hatch/trunk lid, the hazard indicator will flash and
the horn (or the outside chime) will sound as a
confirmation. For details, see “Setting hazard
indicator and horn mode” (P.3-14) .
Pre-driving checks and adjustments3-13
REMOTE KEYLESS ENTRY SYSTEM

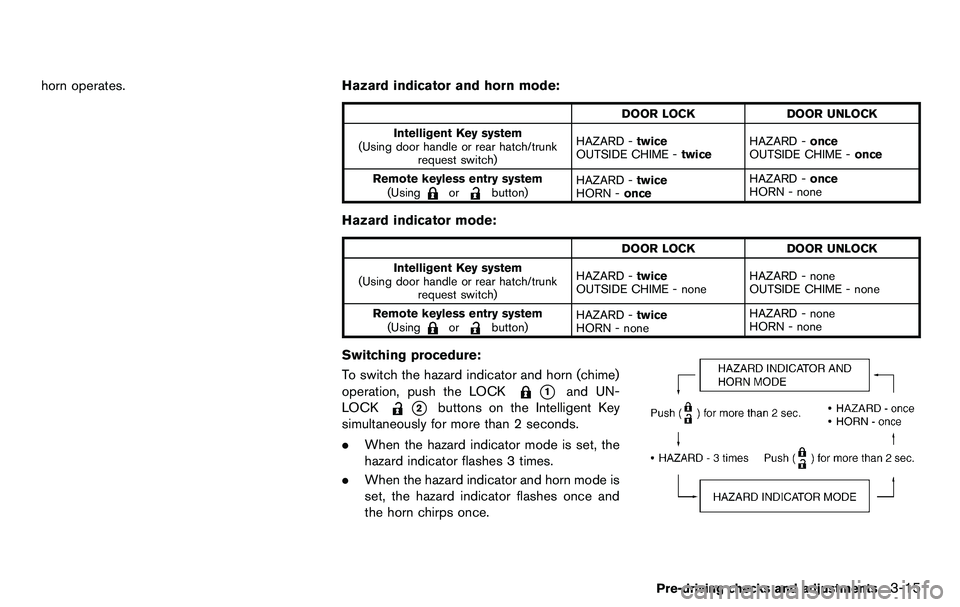

horn operates.Hazard indicator and horn mode:
DOOR LOCKDOOR UNLOCK
Intelligent Key system
(Using door handle or rear hatch/trunk request switch) HAZARD -
twice
OUTSIDE CHIME - twiceHAZARD -
once
OUTSIDE CHIME - once
Remote keyless entry system (Using
orbutton) HAZARD -
twice
HORN - once HAZARD -
once
HORN - none
Hazard indicator mode:
DOOR LOCK DOOR UNLOCK
Intelligent Key system
(Using door handle or rear hatch/trunk request switch) HAZARD -
twice
OUTSIDE CHIME - none HAZARD - none
OUTSIDE CHIME - none
Remote keyless entry system (Using
orbutton) HAZARD -
twice
HORN - none HAZARD - none
HORN - none
Switching procedure:
To switch the hazard indicator and horn (chime)
operation, push the LOCK
*1and UN-
LOCK
*2buttons on the Intelligent Key
simultaneously for more than 2 seconds.
. When the hazard indicator mode is set, the
hazard indicator flashes 3 times.
. When the hazard indicator and horn mode is
set, the hazard indicator flashes once and
the horn chirps once.
Pre-driving checks and adjustments3-15

G
Garage door opener, HomeLink®
Universal Transceiver.................................................. 2-49
Gas cap......................................................................... 3-34
Gauge .............................................................................. 2-5 Engine coolant temperature gauge .................... 2-7
Fuel gauge................................................................ 2-7
Odometer.................................................................. 2-6
Speedometer............................................................ 2-6
Tachometer ............................................................... 2-6
Trip computer........................................................ 2-22
General maintenance ................................................... 8-3
Glove box...................................................................... 2-41
H
Hands-free phone system, Bluetooth®
(models with navigation system)............................. 4-81
Hands-free phone system, Bluetooth®
(models without navigation system) ....................... 4-91
Hatch, Rear hatch....................................................... 3-16
Hazard warning flasher switch................................. 2-35
Head restraints .............................................................. 1-5
Headlights Bulb replacement................................................. 8-29
Headlight switch................................................... 2-32
Xenon headlights.................................................. 2-31
Heated seats................................................................ 2-36
Heater Engine block heater............................................. 5-32
Heater and air conditioner operation.............. 4-24
HomeLink
®Universal Transceiver ........................... 2-49
Hood release................................................................ 3-16
Horn................................................................................ 2-36
I
Ignition switch (Push-button) ........................................................... 5-8
Manual transmission models............................. 5-16
Immobilizer system...................................................... 2-28
In-cabin microfilter ...................................................... 4-30
Indicator lights.............................................................. 2-14
INFO button.................................................................... 4-8
Inside mirror.................................................................. 3-37
Inspection/maintenance (I/M) test .......................... 9-23
Instrument brightness control .................................. 2-34
Instrument panel............................................................ 2-4
Instrument pocket ....................................................... 2-40
Intelligent Key................................................................. 3-2
Intelligent Key battery discharge indicator............ 2-19
Intelligent Key removal indicator.............................. 2-18
Intelligent Key system .................................................. 3-6 Battery replacement ............................................ 8-25
Intelligent Key system warning light................ 2-11
Key operating range ............................................... 3-8
Key operation ........................................................... 3-9
Warning signals.................................................... 3-11
Interior light control switch ....................................... 2-47
Interior light replacement........................................... 8-29
Interior lights................................................................. 2-46
Interior trunk lid release............................................. 3-19
iPod
®player operation............................................... 4-68
J
Jump starting................................................................ 6-14
K
Keyless entry (See remote keyless
entry system)................................................................ 3-13
Keys.................................................................................. 3-2 For Intelligent Key system..................................... 3-6
L
LabelsAir bag warning labels........................................ 1-40
Air conditioner specification label.................... 9-13
Emission control information label................... 9-12
Engine serial number........................................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label ........ 9-12
Tire and Loading information label ....... 8-32, 9-13
Vehicle identification number (VIN) ................. 9-11
License plate, Installing front license plate .......... 9-14
Light Air bag warning light........................................... 1-41
Bulb replacement................................................. 8-27
Cargo area courtesy light .................................. 2-48
Cargo light............................................................. 2-48
Fog light switch.................................................... 2-35
Headlight switch................................................... 2-32
Headlights bulb replacement............................ 8-29
Indicator lights....................................................... 2-14
Interior light control switch ................................ 2-47
Interior lights.......................................................... 2-46
Map lights .............................................................. 2-46
Replacement.......................................................... 8-27
Trunk light............................................................... 2-49
Vanity mirror lights ............................................... 2-48
Warning/indicator lights and
audible reminders................................................. 2-10
Xenon headlights.................................................. 2-31
10-3
