Vehicle care and maintenance
7-37

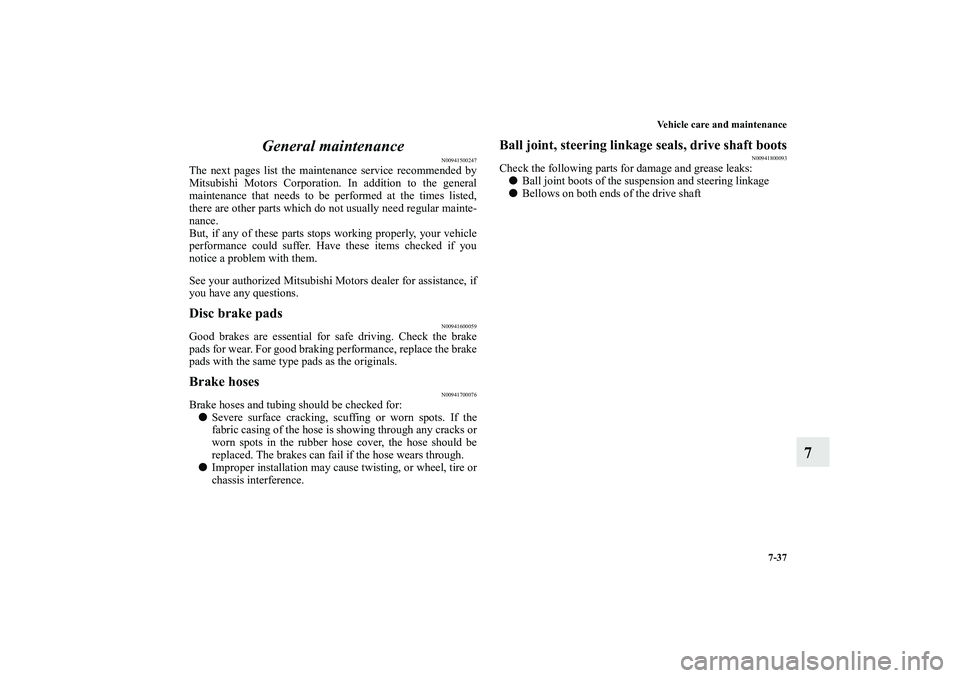

7 General maintenance
N00941500247
The next pages list the maintenance service recommended by
Mitsubishi Motors Corporation. In addition to the general
maintenance that needs to be performed at the times listed,
there are other parts which do not usually need regular mainte-
nance.
But, if any of these parts stops working properly, your vehicle
performance could suffer. Have these items checked if you
notice a problem with them.
See your authorized Mitsubishi Motors dealer for assistance, if
you have any questions.Disc brake pads
N00941600059
Good brakes are essential for safe driving. Check the brake
pads for wear. For good braking performance, replace the brake
pads with the same type pads as the originals.Brake hoses
N00941700076
Brake hoses and tubing should be checked for:
Severe surface cracking, scuffing or worn spots. If the
fabric casing of the hose is showing through any cracks or
worn spots in the rubber hose cover, the hose should be
replaced. The brakes can fail if the hose wears through.
Improper installation may cause twisting, or wheel, tire or
chassis interference.
Ball joint, steering linkage seals, drive shaft boots
N00941800093
Check the following parts for damage and grease leaks:
Ball joint boots of the suspension and steering linkage
Bellows on both ends of the drive shaft
BK0138000US.book 37 ページ ２０１１年４月１３日 水曜日 午前１１時１７分

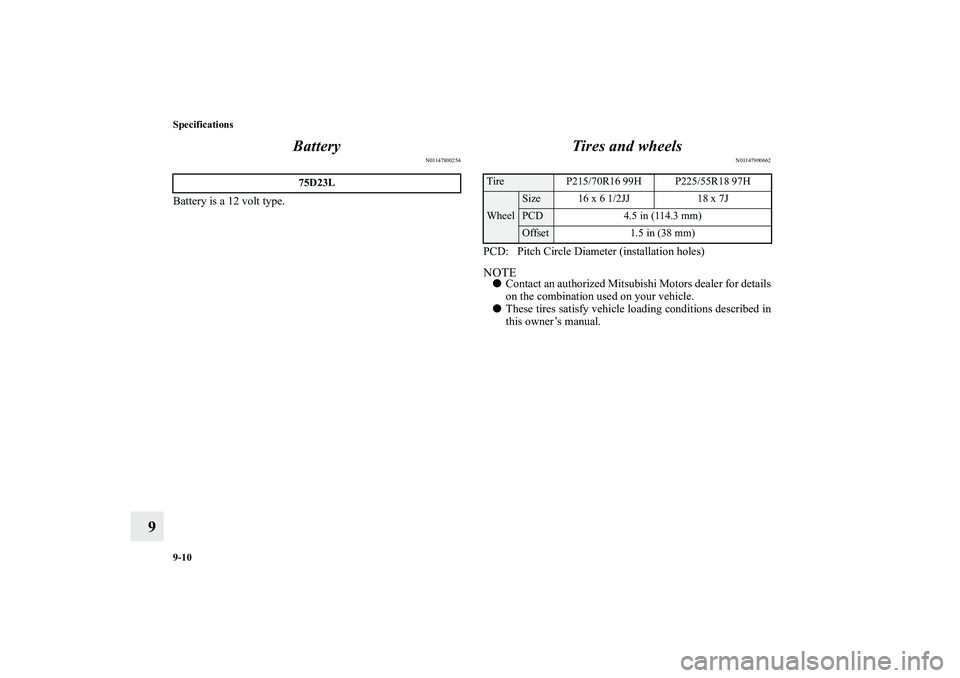

9-10 Specifications
9Battery
N01147800254
Battery is a 12 volt type.
Tires and wheels
N01147900662
PCD: Pitch Circle Diameter (installation holes)NOTEContact an authorized Mitsubishi Motors dealer for details
on the combination used on your vehicle.
These tires satisfy vehicle loading conditions described in
this owner’s manual.
75D23L
Tire P215/70R16 99H P225/55R18 97HWheel
Size 16 x 6 1/2JJ 18 x 7JPCD 4.5 in (114.3 mm)Offset 1.5 in (38 mm)
BK0138000US.book 10 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
