2012 MITSUBISHI LANCER display

Editing the Route (Itinerary) 4-7
Route
4 Touch [Yes]
eng_a123
5 Touch [Start]
eng_a124Guidance starts for the changed route.
Option
Settings related to the route can be
performed.

1 Touch [Option] in the itinerary list
screen
(page 4-4)
eng_a604
eng_a605The route options screen is displayed.
The remaining operations are the same as from step 3
of
“Route Options” (page 11-12).
\b \b
\f \

 \b \b
\b\f


Start Demo 4-8
Start Demo
The set route can be viewed with a demo.

1 Display the Navi Menu, and touch
[Navigation Tools]
eng_a004-2The navigation tools screen is displayed
2 Touch [Start Demo]
eng_a672
eng_a649The demo is started.
Stop DemoStopping the demo that is operating.
1 Display the Navigation Tools
screen during the demo

2 Touch [Stop Demo]
eng_a673The demo is stopped.
\b \b
\f \

 \b \b
\b\f


Deleting the Route 4-9
Route
Deleting the Route
Deleting a created route.

1 Touch [Route] on the current
location screen
eng_a645The route menu is displayed.
2 Touch [Delete Route]
eng_a500-2
3 Touch [Yes]
eng_a126
The route is deleted.
\b \b
\f \

 \b \b
\b
\f

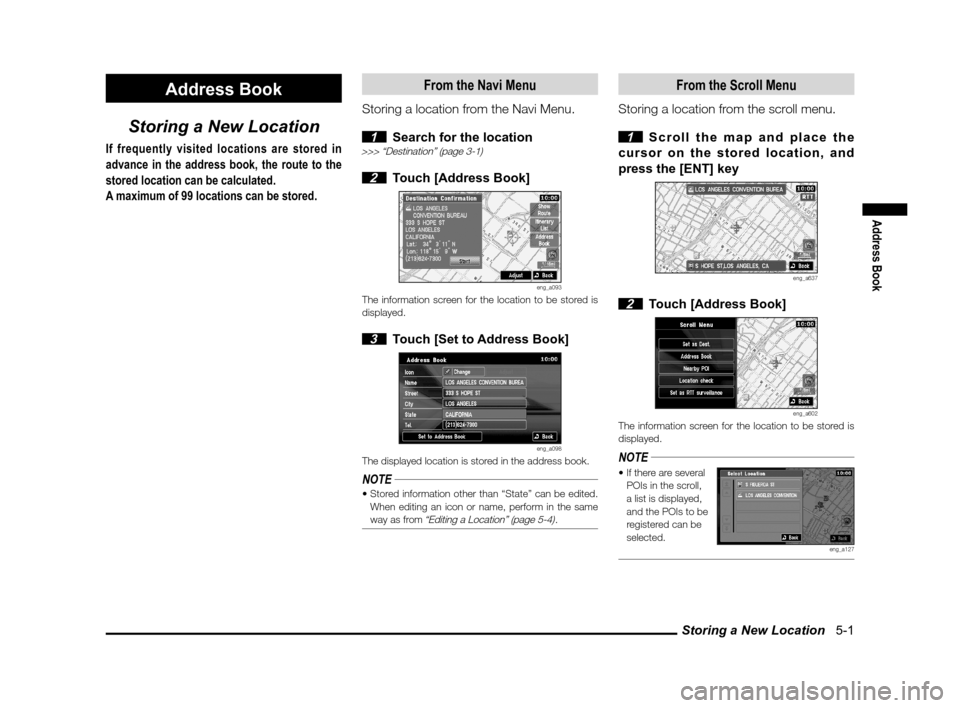

Storing a New Location 5-1
Address Book
Address Book
Storing a New Location
If frequently visited locations are stored in
advance in the address book, the route to the
stored location can be calculated.
A maximum of 99 locations can be stored.
From the Navi Menu
Storing a location from the Navi Menu.

1 Search for the location>>> “Destination” (page 3-1)
2 Touch [Address Book]
eng_a093The information screen for the location to be stored is
displayed.
3 Touch [Set to Address Book]
eng_a098The displayed location is stored in the address book.
NOTE When editing an icon or name, perform in the same
way as from
“Editing a Location” (page 5-4).
From the Scroll Menu
Storing a location from the scroll menu.

1 Scroll the map and place the
cursor on the stored location, and
press the [ENT] key
eng_a637
2 Touch [Address Book]
eng_a602The information screen for the location to be stored is
displayed.
NOTE

POIs in the scroll,
a list is displayed,
and the POIs to be
registered can be
selected.
eng_a127
\b \b
\f \


 \b
\b
\f

Storing a New Location 5-2
3 Touch [Set to Address Book]
eng_a098The displayed location is stored in the address book.
NOTE
When editing an icon or name, perform in the same
way as from
“Editing a Location” (page 5-4).
To Customize/Modify Address
The screen displays information about the
stored location.
Icon A n i con can be selected from 24
different types to use as a mark for the
stored location when it is set.
>>> “Icons” (page 5-3)
[Adjust] A stored location can be changed to a
different location.If location was stored
from “Scroll Menu”
(page 2-3), editing
cannot be performed.
Name The name of a stored location can be
input. The name input here is displayed
on the map.
Street The name of a street can be input.
City The name of a city can be input.
State The name of the state of the currently
stored location is displayed. This cannot
be edited.
Tel. A telephone number can be input.
NOTE “Editing a Location” (page 5-4) for details on
editing information.
When Storing Your Home
Storing the home location.

1 Display the Navi Menu and touch
[Go Home]
eng_a502-2
2 Touch [Yes]
eng_a037
3 Touch [New] of “Home Location”
eng_a128-1
\b \b
\f \

  \b
\b
\f

Editing a Location 5-4
Editing a Location
The information about stored locations in the
address book can be edited or deleted.

1 Display the Navi Menu, and touch
[Navigation Settings]
eng_a502-2
2 Touch [Personal]
eng_a606
eng_a128-1The personal settings screen is displayed.
NOTE
location to store. Store using the same operations as
“Storing a New Location” (page 5-1).
Editing
Editing information about a stored
location.

1 Touch [Edit] of “Address Book”
in the Personal Settings screen

2 Touch the stored location to change
eng_a132
NOTETouch [Icon] to order the locations in icon sequence.
Refer to “Icons” (page 5-3) for details on the icon
priority.
alphabetical sequence.
newest at the top.
3 Touch the item to change
eng_a133
NOTE to “To Customize/Modify Address” (page 5-2)
for details on the items to change.
4 Touch [Set] after changing the
item
eng_a134Repeat steps 3 and 4 until all the desired items have
been changed.
NOTE
[Set] is not available
for “Icon”.
The change is set
by touching the
icon button.
eng_a135
\b \b
\f \

 \b \b
\b
\f

Editing a Location 5-5
Address Book
5 Touch [Set to Address Book]
eng_a136The information change is completed.
Deleting
Deleting a stored location.

1 Touch [Delete] of “Address
Book” in the Personal Settings screen

2 Touch the stored location to delete
eng_a137
NOTE
displayed with a black highlight.
Touch a location again to remove it from the deletion target.

same time.
3 Touch [Done]
eng_a138
4 Touch [Yes]
eng_a139The selected stored locations are deleted.
\b \b
\f \

   \b
\b
 \f

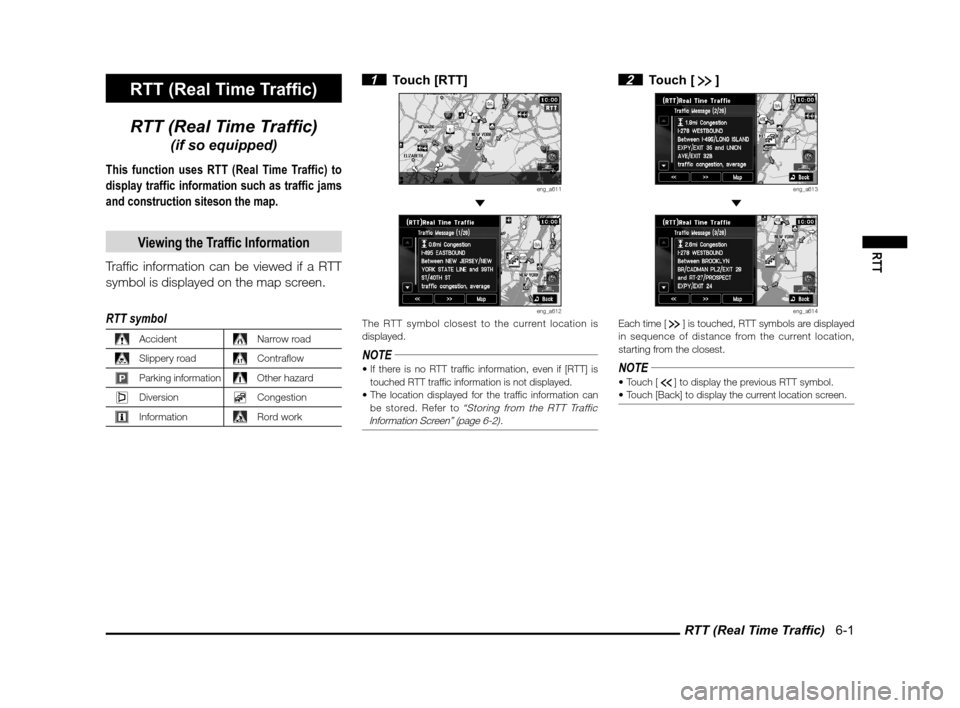

RTT (Real Time Traffi c) 6-1
RTT
RTT (Real Time Traffi c)
RTT (Real Time Traffi c)
(if so equipped)
This function uses RTT (Real Time Traffic) to
display traffic information such as traffic jams
and construction siteson the map.
Viewing the Traffic Information
Traf c information can be viewed if a RTT
symbol is displayed on the map screen.
RTT symbol
AccidentNarrow road
Slippery roadContra ow
Parking informationOther hazard
DiversionCongestion
InformationRord work
1 Touch [RTT]
eng_a611
eng_a612The RTT symbol closest to the current location is
displayed.
NOTEIf there is no RTT traf c information, even if [RTT] is
touched RTT traf c information is not displayed.
The location displayed for the traf c information can
be stored. Refer to “Storing from the RTT Traffic
Information Screen” (page 6-2).
2 Touch [ ]
eng_a613
eng_a614Each time [ ] is touched, RTT symbols are displayed
in sequence of distance from the current location,
starting from the closest.
NOTE ] to display the previous RTT symbol.

\b \b
\f \


 \b
\b
 \f
