2012 MITSUBISHI LANCER navigation system

Navigation System Basic Operation Reference Guide 1-1
IntroductionIntroduction
Navigation System
Basic Operation Reference Guide
1 Storing the Home Location>>> “When Storing Your Home” (page 5-2)
2 Searching for the DestinationUse one of the methods below to decide the
destination
• Searching from the Map Screen>>> “Destination Setting for Scrolled Position” (page 2-8)>>> “Destination Setting” (page 3-12)
• Searching from the Address>>> “From Address/Intersection” (page 3-2)
• Searching from the Points of Interest (POI)
Name
>>> “Points of Interest (POI) Name” (page 3-5)
3 Arriving at the Destination
4 Going HomeGo back to the stored home location.>>> “Go Home” (page 3-7)
5 Deleting the Route>>> “Deleting the Route” (page 4-9)
Adding a Way PointAdd a way point to be visited on the way to the
destination.
>>> “Adding a Way Point” (page 4-6)
Deciding Locations to StoreDestinations and way points can be easily selected if
frequently visited locations are stored.
>>> “Storing a New Location” (page 5-1)
>>> “Editing a Location” (page 5-4)
Viewing the RouteThe route to the destination can be viewed.>>> “View Route” (page 4-1)
Deciding the Route Search ConditionsThe route search for the destination can be changed.>>> “Showing the Route (3 Routes)” (page 4-4)
\b \b
\f \



 \b
\b \f

Table of Contents 1-2
Table of contents
Introduction
Navigation System
Basic Operation Reference Guide ------ 1-1
Outline of the System -------------------------- 1-6
Parts Name and Functions ------------------- 1-7
Roles of the Panel Operations Keys --------------- 1-7
Role of the Steering Switch --------------------------- 1-7
GPS Measurement ------------------------------ 1-8
Error in the Current Location ------------- 1-10
Route Calculation ----------------------------- 1-12
Gracenote® music recognition service ------ 1-13
EndUser License Agreement ----------------------- 1-13
Basic Operation
Starting the MMCS ------------------------------ 2-1
Operation Instructions ---------------------------------- 2-2
Lists --------------------------------------------------------- 2-2
Menu Screens (Three Menus) --------------- 2-3
Scroll Menu ----------------------------------------------- 2-3
Navi Menu ------------------------------------------------- 2-3
Route Menu ----------------------------------------------- 2-4
Map Screen ---------------------------------------- 2-5
Current Location Screen ------------------------------ 2-5
Changing the Map Display ------------------- 2-6
Displaying the Current Location Screen ----------- 2-6
Changing the Scale ------------------------------------- 2-6
Changing Map Orientation ---------------------------- 2-7
Scrolling the Map ------------------------------- 2-8
Destination Setting for Scrolled Position ---------- 2-8
Viewing the car location ------------------------------- 2-8
Intersection Guidance ----------------------- 2-10
Guidance Map ----------------------------------------- 2-10
Turn List ------------------------------------------------- 2-10
Arrow Guide -------------------------------------------- 2-11
Listening to the Voice Guide -------------- 2-12
How to Enter Text ----------------------------- 2-13
Entering a letter ---------------------------------------- 2-13
Entering a Symbol ------------------------------------ 2-13
Deleting Text -------------------------------------------- 2-13
Switching between Upper Case and Lower Case --- 2-14
Completing the input --------------------------------- 2-14
Voice Operation -------------------------------- 2-15
To use the voice operation -------------------------- 2-15
Destination
Basic Method --------------------------------------------- 3-1
Advanced Search --------------------------------------- 3-1
Basic Method ------------------------------------- 3-2
From Address/Intersection ---------------------------- 3-2
Points of Interest (POI) Name ------------------------ 3-5
Previous 20 ----------------------------------------------- 3-7
Address Book -------------------------------------------- 3-7
Go Home -------------------------------------------------- 3-7
Advanced Search ------------------------------- 3-8
Nearby POI ----------------------------------------------- 3-8
POI along Route ----------------------------------------- 3-9
POI by Dest./Way Point ------------------------------- 3-9
POI along a Street ------------------------------------ 3-10
POI by Freeway --------------------------------------- 3-10
Map Point ----------------------------------------------- 3-11
Return Trip ---------------------------------------------- 3-11 Latitude/Longitude ------------------------------------ 3-11
Destination Setting --------------------------- 3-12
Setting as Destination -------------------------------- 3-12
Setting as Way Point --------------------------------- 3-12
Storing the Location ---------------------------------- 3-13
Route
View Route ---------------------------------------- 4-1
Route Option Icon --------------------------------------- 4-1
Remaining ------------------------------------------------- 4-2
Preview ---------------------------------------------------- 4-2
Route Outline --------------------------------------------- 4-2
Detour ----------------------------------------------- 4-3
Detour Distance ----------------------------------------- 4-3
Avoid Street ----------------------------------------------- 4-3
Editing the Route (Itinerary) ----------------- 4-4
Showing the Route (3 Routes) ----------------------- 4-4
Re-ordering ----------------------------------------------- 4-5
Adding a Way Point ------------------------------------- 4-6
Deleting ---------------------------------------------------- 4-6
Option ------------------------------------------------------ 4-7
Start Demo ---------------------------------------- 4-8
Deleting the Route ------------------------------ 4-9
\b \b
\f \


 \b
\b
\f

Starting the MMCS 2-1
Basic Operation
Basic Operation
Starting the MMCS
WARNING
Do not operate the Mitsubishi Multi Communication
System (MMCS) while driving.
Always concentrate on your driving rst. Keep your eyes and mind on the road. If distracted while
driving, you could cause an accident.

When operating the MMCS, do not park with the
engine running in a closed or poorly ventilated
area. Carbon monoxide gas, which is odorless and
extremely poisonous, can build up and cause serious
injury or death.
1 Turn “ON” the ignition switch
eng_244
eng_a002The opening screen is displayed.

If any function other than AUDIO was used last time,
go to Step 2.
NOTE(page 10-1) have
been set, when the date matches the settings, the
set icon is displayed on screen.

(page 10-9) has been set,
when the maintenance distance has been exceeded
or the maintenance timing has been exceeded, a
telop will be displayed in the opening screen.
2 Touch the desired language
eng_a600
NOTE sides can be changed by performing operations on
either the MMCS side or the meter side.
of the meter side and the MMCS side can be set
separately.
3 Touch [OK] After a moment, the display is changed to the
navigation screen.
NOTEnavigation screen is displayed rather than the screen
last used.
\b \b
\f \


 \b
\b \f

Starting the MMCS 2-2
Operation Instructions
With this navigation system, operations
can be performed by pressing the panel
keys or touching the screen buttons.
Operate the screen by touching lightly with
a ngertip.
mb447
WARNING

operations or concentrate on the screen. Failure to
pay attention to the road ahead may cause traf c
accidents. Have a front seat passenger perform
the operations, or stop the car in a safe location
before operating.
NOTEit with hard, sharp objects, as this may cause
malfunction.
The Screens in this ManualThe screens described in this manual are for
explanation. They may be different from actual
screens, and their operation may also be different.
Lists
This section explains the list operation
buttons when a list has been displayed.
Scrolls forward through a list one line at
a time.
Scrolls forward through a list one page
at a time.
Scrolls back through a list one line at a
time.
Scrolls back through a list one page at
a time.
\b \b
\f \

  \b
\b \f

Music Server 8-1
Music Server
Music Server
Music Server
The music server can play and record CD
tracks. It is part of the MMCS hard drive device
(HDD).
NOTE
another vehicle's navigation/audio system, and the
HDD itself cannot be replaced.

Tracks that have been recorded to the HDD cannot
be reproduced in another medium (CD-R, MD, etc.)
Display Contents
eng_338
1) Playlist Number/Playlist Name
The number and name of the playlist currently being played is displayed.
2) Track Number and Track Name
The number and name of the track currently being played is displayed.
3) Cursor
Displays the item currently selected.
4) [
]
T
ouch this button to move the cursor to the track
currently being played.
5) [
]
Touch this button to display the Sub Menu.
6) [ Playlist], [Playlist ]
Touch these buttons to move down and up the
playlists.
7) [
Track], [Track ]
Touch these buttons to move down and up the
tracks. Touch and hold to rewind or fast-forward a
track. 8) Number/Title
Group lists: Group number and group name
Playlists: Playlist number and playlist name
Track lists: Track number and track name
9) List Button
Touch this button to display the group list, playlist,
and track list.
10) Cursor Position
Group lists: Cursor position and total number of groups
Playlists: Cursor position and total number of playlists
Track lists: Cursor position and total number of tracks
11) Playback Mode
The currently selected playback mode is displayed.
12) Playback Time
The playback time for the track currently being played is displayed.
13) Artist Name
The name of the artist whose track (playlist) is currently being played is displayed.
4) 2)
1)
3)
6) 7) 8) 9)
10) 11 ) 13)
12)
5)
\b \b
\f \


 \b \b


Other Info 10-15
Information
Other Info
System information and information about the
current location can be viewed.
Support Info
System information for this navigation
system can be viewed.

1 Press the [INFO] key, and touch
[Support Info]
eng_a665
eng_a607The support info screen is displayed.
SW Version The software version of the system is displayed.
MAP Version
The map data version is displayed.
CDDB Version The database version of the title
information is displayed.
About version updates
containing the new map data. A screen for selecting
whether or not data should be automatically updated
will appear.
procedures on the screen.
instruction manual included with the MAP Update
DVD (sold separately). (Contact an authorized
Mitsubishi Motors dealer for assistance.)Vehicle Position
The name of the current location, latitude
and longitude, and the number of GPS
satellites being received can be viewed.

1 Press the [INFO] key, and touch
[Vehicle Position]
eng_a665
eng_a160The vehicle screen is displayed.
NOTE
top of the map.
vehicle direction at the top of the map.

Touch [ ], [ ], [ ] and [ ] to view the sky maps
by rotating or changing the angle.
\b \b
\f \



 \b \b

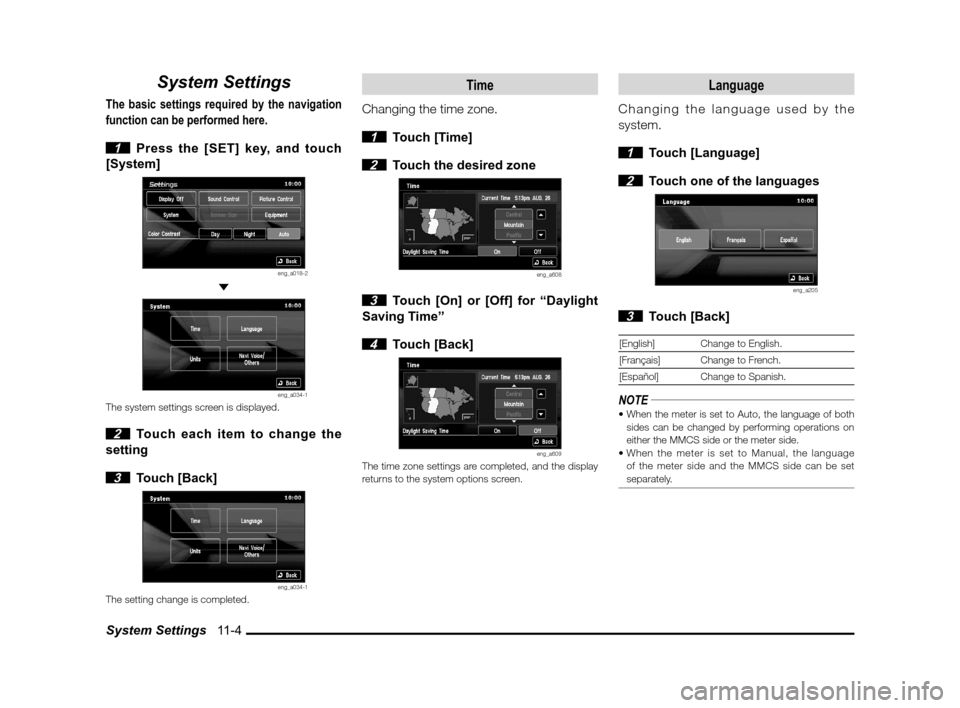

System Settings 11-4
System Settings
The basic settings required by the navigation
function can be performed here.

1 Press the [SET] key, and touch
[System]
eng_a018-2
eng_a034-1The system settings screen is displayed.
2 Touch each item to change the
setting

3 Touch [Back]
eng_a034-1The setting change is completed.
Time
Changing the time zone.

1 Touch [Time]

2 Touch the desired zone
eng_a608
3 Touch [On] or [Off] for “Daylight
Saving Time”

4 Touch [Back]
eng_a609The time zone settings are completed, and the display
returns to the system options screen.
Language
Changing the language used by the
system.

1 Touch [Language]

2 Touch one of the languages
eng_a205
3 Touch [Back]
[English] Change to English.
[Français] Change to French.
[Español] Change to Spanish.
NOTE sides can be changed by performing operations on
either the MMCS side or the meter side.
of the meter side and the MMCS side can be set
separately.
\b \b
\f \



\b \b \b
\f

END-USER LICENSE AGREEMENT 11-20
END-USER LICENSE AGREEMENT
END-USER TERMS
The Map data Disc (“Data”) is provided for your personal, intern\
al use
only and not for resale. It is protected by copyright, and is subject to\
the
following terms and conditions which are agreed to by you, on the one
hand, and NAVTEQ North America, LLC (“NT”) and its licensors (including
their licensors and suppliers) on the other hand.
The Data for areas of Canada includes information taken with permission \
from
Canadian authorities, including: © Her Majesty the Queen in Right of \
Canada, ©
Queen’s Printer for Ontario,
© Canada Post Corporation, GeoBase®.
TERMS AND CONDITIONS
Personal Use Only. You agree to use this Data for the solely personal,
non-commercial purposes for which you were licensed, and not for service\

bureau, time-sharing or other similar purposes. Accordingly, but subject
to the restrictions set forth in the following paragraphs, you may copy \
this
Data only as necessary for your personal use to (i) view it, and (ii)\
save
it, provided that you do not remove any copyright notices that appear an\
d
do not modify the Data in any way. You agree not to otherwise reproduce,
copy, modify, decompile, disassemble or reverse engineer any portion of
this Data, and may not transfer or distribute it in any form, for any pu\
rpose,
except to the extent permitted by mandatory laws. You may transfer the
Data and all accompanying materials on a permanent basis if you retain
no copies and the recipient agrees to these End-User Terms. Multi-disc
sets may not be transferred on a divided basis.
Restrictions. Except where you have been specifically licensed to do
so by NT and without limiting the preceding paragraph, you may not (a)
use this Data with any products, systems, or applications installed or
otherwise connected to or in communication with vehicles capable of
vehicle navigation, positioning, dispatch, real time route guidance, fl eet
management or similar applications; or (b) with or in communication wi\
th
any positioning devices or any mobile or wireless-connected electronic
or computer devices, including without limitation cellular phones, palmt\
op
and handheld computers, pagers, and personal digital assistants or PDAs.\
Warning. The map data may contain inaccurate or incomplete information
due to the passage of time, changing circumstances, sources used and
the nature of collecting comprehensive geographic data, any of which may\

lead to incorrect results.
No Warranty. This Data is provided to you “as is,” and you agree to use
it at your own risk. NT and its licensors (and their licensors and suppliers)
make no guarantees, representations or warranties of any kind, express
or implied, arising by law or otherwise, including but not limited to, c\
ontent,
quality, accuracy, completeness, effectiveness, reliability, fitness for a
particular purpose, usefulness, use or results to be obtained from this
Data, or that the Data or server will be uninterrupted or error-free. Disclaimer of Warranty:
NT AND ITS LICENSORS (INCLUDING
THEIR LICENSORS AND SUPPLIERS) DISCLAIM ANY WARRANTIES,
EXPRESS OR IMPLIED, OF QUALITY, PERFORMANCE,
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR
NON-INFRINGEMENT. Some States, Territories and Countries do not
allow certain warranty exclusions, so to that extent the above exclusion\

may not apply to you.
Disclaimer of Liability: NT AND ITS LICENSORS (INCLUDING THEIR
LICENSORS AND SUPPLIERS) SHALL NOT BE LIABLE TO YOU IN
RESPECT OF ANY CLAIM, DEMAND OR ACTION, IRRESPECTIVE
OF THE NATURE OF THE CAUSE OF THE CLAIM, DEMAND OR
ACTION ALLEGING ANY LOSS, INJURY OR DAMAGES, DIRECT OR
INDIRECT, WHICH MAY RESULT FROM THE USE OR POSSESSION
OF THE INFORMATION; OR FOR ANY LOSS OF PROFIT, REVENUE,
CONTRACTS OR SAVINGS, OR ANY OTHER DIRECT, INDIRECT,
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING
OUT OF YOUR USE OF OR INABILITY TO USE THIS INFORMATION,
ANY DEFECT IN THE INFORMATION, OR THE BREACH OF THESE
TERMS OR CONDITIONS, WHETHER IN AN ACTION IN CONTRACT
OR TORT OR BASED ON A WARRANTY, EVEN IF NT OR ITS
LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. Some States, Territories and Countries do not allow certain
liability exclusions or damages limitations, so to that extent the above\
may
not apply to you.
Export Control. You agree not to export from anywhere any part of the
Data provided to you or any direct product thereof except in compliance \
with, and with all licenses and approvals required under, applicable export
laws, rules and regulations.
Entire Agreement. These terms and conditions constitute the entire
agreement between NT (and its licensors, including their licensors and
suppliers) and you pertaining to the subject matter hereof, and superse\
des
in their entirety any and all written or oral agreements previously exis\
ting
between us with respect to such subject matter.
Governing Law. The above terms and conditions shall be governed by the
laws of the Illinois, without giving effect to (i) its con fl ict of laws provisions,
or (ii) the United Nations Convention for Contracts for the Internatio\
nal
Sale of Goods, which is explicitly excluded. You agree to submit to the
jurisdiction of Illinois for any and all disputes, claims and actions ar\
ising
from or in connection with the Data provided to you hereunder.
Government End Users. If the Data is being acquired by or on behalf of
the United States government or any other entity seeking or applying rig\
hts
similar to those customarily claimed by the United States government,
(i) for acquisitions conducted by the Department of Defense, the Data
is licensed with “Limited Rights” in accordance with the rights se\
t forth
at DFARS 252.227-7013(b)(3), TECHNICAL DATA-NONCOMMERCIAL
ITEMS, and Data delivered or otherwise furnished with “Limited Rights\
”
shall be marked with the following “Limited Rights Notice” set for\
th at
DFARS 252.227-7013(f)(3), and shall be treated in accordance with such\

Notice:
LIMITED RIGHTS
CONTRACTOR (MANUFACTURER/SUPPLIER) NAME: NAVTEQ North America, LLC
CONTRACTOR (MANUFACTURER/SUPPLIER) ADDRESS:
222 Merchandise Mart Plaza, Suite 900, Chicago, Illinois 60654.
The Government's rights to use, modify, reproduce, release, perform, display, or disclose
these technical data are restricted by paragraph (b)(3) of the Right\
s in Technical Data-
Noncommercial Items clause contained in the above identi fi ed contract. Any reproduction
of technical data or portions thereof marked with this legend must also \
reproduce the
markings. Any person, other than the Government, who has been provided access to
such data, must promptly notify the above named Contractor.
and; (ii) for civilian agency acquisitions, the Data is licensed in ac\
cordance
with the rights set forth at FAR 52.227-14(g)(1), RIGHTS IN DATA-
GENERAL (Protection of limited rights data and computer software).
In the event that the Contracting Offi cer requires the delivery of limited
rights Data that has been withheld or would otherwise be withholdable
in accordance with FAR 52.227-14(g)(1), the Data is licensed with
“Limited Rights” as set forth in the following “Limited Rights \
Notice” at
FAR 52.227-14(g)(2) (Alternate II), which shall be af fi xed to the Data and
the Data shall be treated in accordance with such Notice (which shall b\
e
marked on any reproduction of these data, in whole or in part):
LIMITED RIGHTS NOTICE (JUNE 1987)
These data may be reproduced and used by the Government with the express\
limitation
that they will not, without written permission of the Contractor, be used for purposes of
manufacture nor disclosed outside the Government; except that the Govern\
ment may
disclose these data outside the Government for the following purposes, i\
f any, provided
that the Government makes such disclosure subject to prohibition against\
further use
and disclosure:
There are no additional purposes permitting disclosure of such Data.
The manufacturer/supplier of the Data is NAVTEQ North America, LLC, 222 Merchandise
Mart Plaza, Suite 900, Chicago, Illinois 60654.
If the Contracting Offi cer refuses to use either of the licenses provided in (i)
or (ii), herein, the Contracting Offi cer must notify NAVTEQ North America,
LLC prior to seeking additional or alternative rights in the Data.
\b \b
\f \



 \b \b
\f
