ForewordE09200103936
Thank you for selecting an ASX as your new vehicle.
This owner’s manual will add to your understanding and full enjoyment of
the many fine features of this vehicle.
It contains information prepared to acquaint you with the proper way to oper-
ate and maintain your vehicle for the utmost in driving pleasure.

MITSUBISHI MOTORS Europe B.V. reserves the right to make changes in
design and specifications and/or to make additions to or improvements in
this product without obligation to install them on products previously manu-
factured.
It is an absolute requirement for the driver to strictly observe all laws and reg-
ulations concerning vehicles.

This owner’s manual has been written in compliance with such laws and reg-
ulations, but some of the contents may become contradictory with later amend-
ment of the laws and regulations.

Please leave this owner’s manual in this vehicle at time of resale. The next
owner will appreciate having access to the information contained in this own-
er’s manual.

Repairs to your vehicle:
Vehicles in the warranty period:
All warranty repairs must be carried out by a MITSUBISHI MOTORS Au-
thorized Service Point.

Vehicles outside the warranty period:
Where the vehicle is repaired is at the discretion of the owner.
Throughout this owner’s manual the words WARNING and CAUTION ap-
pear.
These serve as reminders to be especially careful. Failure to follow instruc-
tions could result in personal injury or damage to your vehicle.WARNING
indicates a strong possibility of severe personal injury or death if in-
structions are not followed.
CAUTION
means hazards or unsafe practices that could cause minor personal in-
jury or damage to your vehicle.
You will see another important symbol:
NOTE:gives helpful information.*:indicates optional equipment.
It may differ according to the sales classification; refer
to the sales catalogue.
Abbreviations used in this owner’s manual:
LHD: Left-Hand Drive
RHD: Right-Hand Drive
M/T: Manual Transmission
CVT: Continuously Variable Transmission
The symbol used on the vehicles:
: See owner’s manual
Information for station service E09300102594
Fuel
Fuel tank capacity2WD models63 litres4WD models60 litres
Fuel requirements
Petrol-powered vehicles
Unleaded petrol octane number (EN228)1600 models, 1800 models
95 RON or higher
2000 models
90 RON or higher
Diesel-powered vehicles Cetane number (EN590)51 or higher
Refer to the “General information” section for the fuel selection.Engine oilRefer to the “Maintenance” section for the selection of engine oil.Tyre inflation pressureRefer to the “Maintenance” section for the tyre inflation pressure.CAUTIONl Your vehicle is designed to use only diesel fuel that meets the EN590 standard.
Use of any other type of diesel fuel can adversely affect the engine.
© 2011 Mitsubishi Motors Corporation12
OGWE12E1
BLC11.000746

Instruments and controls
E00100106164 1. Combination headlamps and dipper switch p. 3-44
Turn-signal lever p. 3-49
Front fog lamp switch* p. 3-50
Rear fog lamp switch p. 3-50
Headlamp washer switch* p. 3-55
2.
Instruments p. 3-02
3. Shift paddles* p. 4-27
4. Windscreen wiper and washer switch p. 3-51 Rear window wiper and washer switch p. 3-55
5. Engine switch* p. 1-12
6. Cruise control switch* p. 4-44
7. Ignition switch* p. 4-12
8. Supplemental restraint system - driver’s knee airbag* p. 2-28
9. Supplemental restraint system - airbag (for driver’s seat) p. 2-24, 2-28
Horn switch p. 3-57
10. Bluetooth® 2.0 interface* p. 5-41
11. Tilt & Telescopic steering lever p. 4-08
12. Steering wheel audio remote control switches* p. 5-33
13. Sonar switch* p. 4-50
14. Active stability control (ASC) OFF switch* p. 4-42
15. Headlamp levelling switch* p. 3-48
16. Auto Stop & Go (AS&G) OFF switch* p. 4-22 OverviewLHD12
34
5
6
7
8
9
10
11
12
13
14
15
16
OGWE12E1

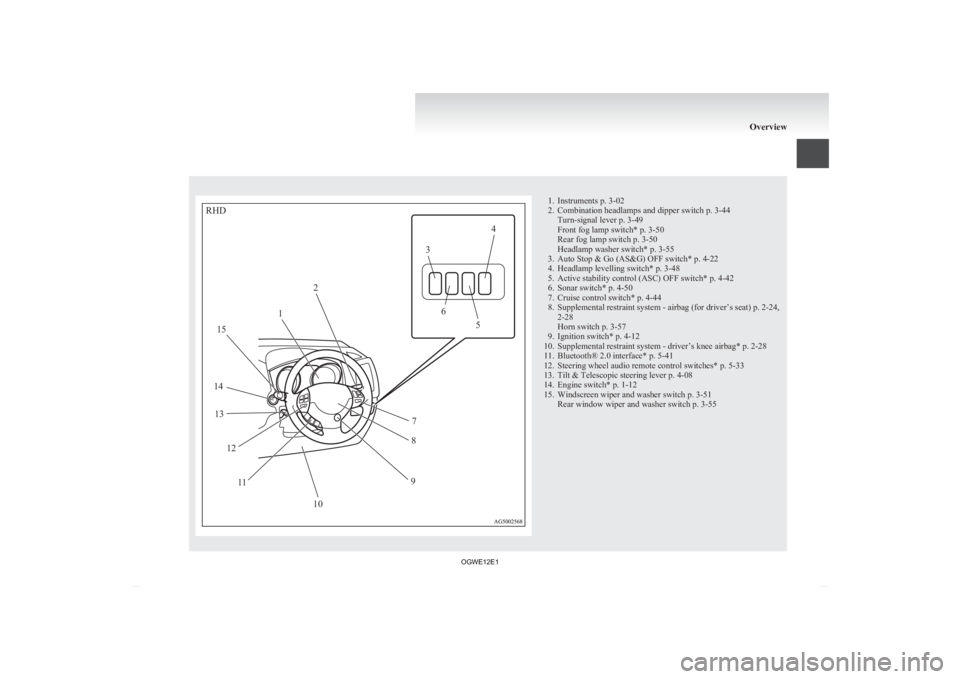

1. Instruments p. 3-02
2.
Combination headlamps and dipper switch p. 3-44Turn-signal lever p. 3-49
Front fog lamp switch* p. 3-50
Rear fog lamp switch p. 3-50
Headlamp washer switch* p. 3-55
3. Auto Stop & Go (AS&G) OFF switch* p. 4-22
4. Headlamp levelling switch* p. 3-48
5. Active stability control (ASC) OFF switch* p. 4-42
6. Sonar switch* p. 4-50
7. Cruise control switch* p. 4-44
8. Supplemental restraint system - airbag (for driver’s seat) p. 2-24, 2-28
Horn switch p. 3-57
9. Ignition switch* p. 4-12
10. Supplemental restraint system - driver’s knee airbag* p. 2-28
11. Bluetooth® 2.0 interface* p. 5-41
12. Steering wheel audio remote control switches* p. 5-33
13. Tilt & Telescopic steering lever p. 4-08
14. Engine switch* p. 1-12
15. Windscreen wiper and washer switch p. 3-51 Rear window wiper and washer switch p. 3-55 OverviewRHD12 3
4
5
6
7
8
9
10
11
12
13
14 15
OGWE12E1

Fuel selection
................................................................................... 02
Filling the fuel tank .......................................................................... 03
Installation of accessories ................................................................ 04
Modification/alterations to the electrical or fuel systems ................05
Genuine parts................................................................................... 05
Safety and disposal information for used engine oil ........................05
Disposal information for used batteries ...........................................06
Auto Stop & Go (AS&G) system*.................................................. 06General information
OGWE12E1

Fuel selection
E00200102529Recom-
mended
fuel
Petrol-powered vehicles
Unleaded petrol octane num-
ber (EN228) 1600 models, 1800 models95 RON or higher
2000 models 90 RON or higher
Diesel-powered vehicles Cetane number (EN590)51 or higher CAUTION
l
For
petrol-powered vehicles, the use of lea-
ded fuel can result in serious damage to
the engine and catalytic converter. Do not
use leaded fuel.
l Diesel-powered vehicles are designed to
use only diesel fuel that meets the EN590
standard.
Use of any other type of diesel fuel (bio
diesel, methylester, etc.) would adversely
affect the engine’s performance and dura-
bility. NOTE
l Petrol-powered

vehicles have the knock con-
trol system so that you can use unleaded pet-
rol 90 RON as an emergent measure in case
unleaded petrol 95 RON or higher is not avail-
able on journey, etc.
In such a case, you don’t need to adjust the
engine specially. In case of using unleaded
petrol 90 RON, the engine performance level
is reduced.
l Due to the separation of paraffin, the fluidity
of the fuel decreases considerably as the tem-
perature falls.
Because of this fact there are two kinds of
fuel: “summer” and “winter”.
This must be considered in winter use.
Select either of the two kinds of fuel in ac-
cordance with ambient temperature.
Above -5 °C: “Summer” diesel
Below -5 °C: “Winter” diesel
When travelling abroad, find out in advance
about the fuels served in local service stations.
l Repeatedly driving short distances at low
speeds can cause deposits to form in the fuel
system and engine, resulting in poor starting
and poor acceleration. If these problems oc-
cur, you are advised to add a detergent addi-
tive to the gasoline when you refuel the vehi-
cle. The additive will remove the deposits,
thereby returning the engine to a normal con-
dition. Be sure to use a genuine
MITSUBISHI FUEL SYSTEM CLEANER.
Using an unsuitable additive could make the
engine malfunction. For details, please con-
tact a MITSUBISHI MOTORS Authorized
Service Point. l
Poor quality petrol can cause problems such
as difficult starting, stalling, engine noise
and hesitation. If you experience these prob-
lems, try another brand and/or grade of petrol.
If the check engine warning lamp flashes,
have the system checked as soon as possible
at a MITSUBISHI MOTORS Authorized
Service Point.
E10 type petrol E00203200022
The petrol engines are compatible with E10
type
petrol (containing 10 % ethanol) conforming to Eu-
ropean standards EN 228. CAUTION
l
Do not use more than
10 % concentration
of ethanol (grain alcohol) by volume.
Use of more than 10 % concentration
may lead to damage to your vehicle fuel
system, engine, engine sensors and ex-
haust system. General information
02
OGWE12E1

Filling the fuel tank
E00200202432WARNING
l When handling fuel, comply with the safe-
ty regulations displayed by garages and
filling stations.
l Gasoline is highly flammable and explo-
sive. You could be burned or seriously in-
jured when handling it. When refueling
your vehicle, always turn the engine off
and keep away from flames, sparks, and
smoking materials. Always handle fuel in
well-ventilated outdoor areas.
l Before removing the fuel cap, be sure to
get rid of your body’s static electricity by
touching a metal part of the car or the
fuel pump. Any static electricity on your
body could create a spark that ignites
fuel vapour.
l Perform the whole refueling process
(opening the fuel tank filler door, remov-
ing the fuel cap, etc.) by yourself. Do not
let any other person come near the fuel
tank filler. If you allowed a person to
help you and that person was carrying
static electricity, fuel vapour could be ig-
nited.
l Do not move away from the fuel tank fill-
er until refueling is finished. If you
moved away and did something else (for
example, sitting on a seat) part-way
through the refueling process, you could
pick up a fresh charge of static electricity.
l If the tank cap must be replaced, use only
a MITSUBISHI MOTORS original part. Fuel tank capacity
2WD models: 63 litres
4WD models: 60 litres
Refueling
1.

Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear left side of your vehicle.
Open the fuel tank filler door by pulling the
release lever located on the side of the driv-
er’s seat. 3. Remove the fuel cap.Open the fuel tank filler tube by slowly turn-
ing the cap anticlockwise.
1- Remove
2-

Close
4. While filling with fuel, hang the fuel cap cord on the hook located on the inside of the
fuel tank filler door. General information
03 LHD RHD
OGWE12E1

Modification/alterations to the
electrical or fuel systems E00200400368
MITSUBISHI MOTORS CORPORATION
has al-
ways manufactured safe, high quality vehicles. In
order to maintain this safety and quality, it is impor-
tant that any accessory that is to be fitted, or any
modifications carried out which involve the electri-
cal or fuel systems, should be carried out in accord-
ance with MITSUBISHI guidelines. CAUTION
l
If
the wires interfere with the vehicle
body or improper installation methods
are used (protective fuses not included,
etc.), electronic devices may be adversely
affected, resulting in a fire or other acci-
dent. Genuine parts
E00200500499
MITSUBISHI MOTORS

has gone to great lengths
to bring you a superbly crafted automobile offering
the highest quality and dependability.
Use MITSUBISHI MOTORS Genuine Parts, de-
signed and manufactured to maintain your
MITSUBISHI MOTORS automobile at top per-
formance. MITSUBISHI MOTORS Genuine Parts
are identified by this mark and are available at all
MITSUBISHI MOTORS Authorized Service
Points. Safety and disposal information
for used engine oil E00200600155 WARNING
l Prolonged
and repeated contact may
cause serious skin disorders, including
dermatitis and cancer.
l Avoid contact with the skin as far as pos-
sible and wash thoroughly after any con-
tact.
l Keep used engine oils out of reach of chil-
dren.
Protect the environment
It
is illegal to pollute drains, water courses and soil.
Use authorized waste collection facilities, includ-
ing civic amenity sites and garages providing facili-
ties for disposal of used oil and used oil filters. If in
doubt, contact your local authority for advice on dis-
posal. General information
05
OGWE12E1

Disposal information for used
batteries E00201300032 Your vehicle contains batteries
and/or accumulators.
Do
not mix with general house-
hold waste.
For proper treatment, recovery
and recycling of used batteries,
please take them to applicable col-
lection points, in accordance
with your national legislation
and the Directives 2006/66/EC.
By disposing of these batteries
correctly, you will help to save
valuable resources and prevent
any potential negative effects on
human health and the environ-
ment which could otherwise
arise from inappropriate waste
handling. Auto Stop & Go (AS&G) system*
E00201500021
This paragraph summarizes the major items of the
Auto
Stop & Go (AS&G) system such as the char-
acteristics, operating procedures, etc. For details,
refer to “Auto Stop & Go (AS&G) system” on
page 4-18.
The

Auto Stop & Go (AS&G) system reduces the
emission of exhaust gases and increases fuel effi-
ciency.
The Auto Stop & Go (AS&G) system automatical-
ly stops and restarts the engine without the use of
the ignition switch or the engine switch when the
vehicle is stopped, such as at traffic lights or in a
traffic jam.
Activation E00201600051
The Auto Stop & Go (AS&G) system is automati-
cally activated when the ignition switch is turned to
the

“ON” position or the operation mode is put in
ON. Deactivation
E00201700065
You

can deactivate the system by pressing the “Au-
to Stop & Go (AS&G) OFF” switch. Then the “ ”
display/indicator will turn on. Auto stop
E00201800066
1. Stop the vehicle. General information
06
OGWE12E1
