Page 400 of 405

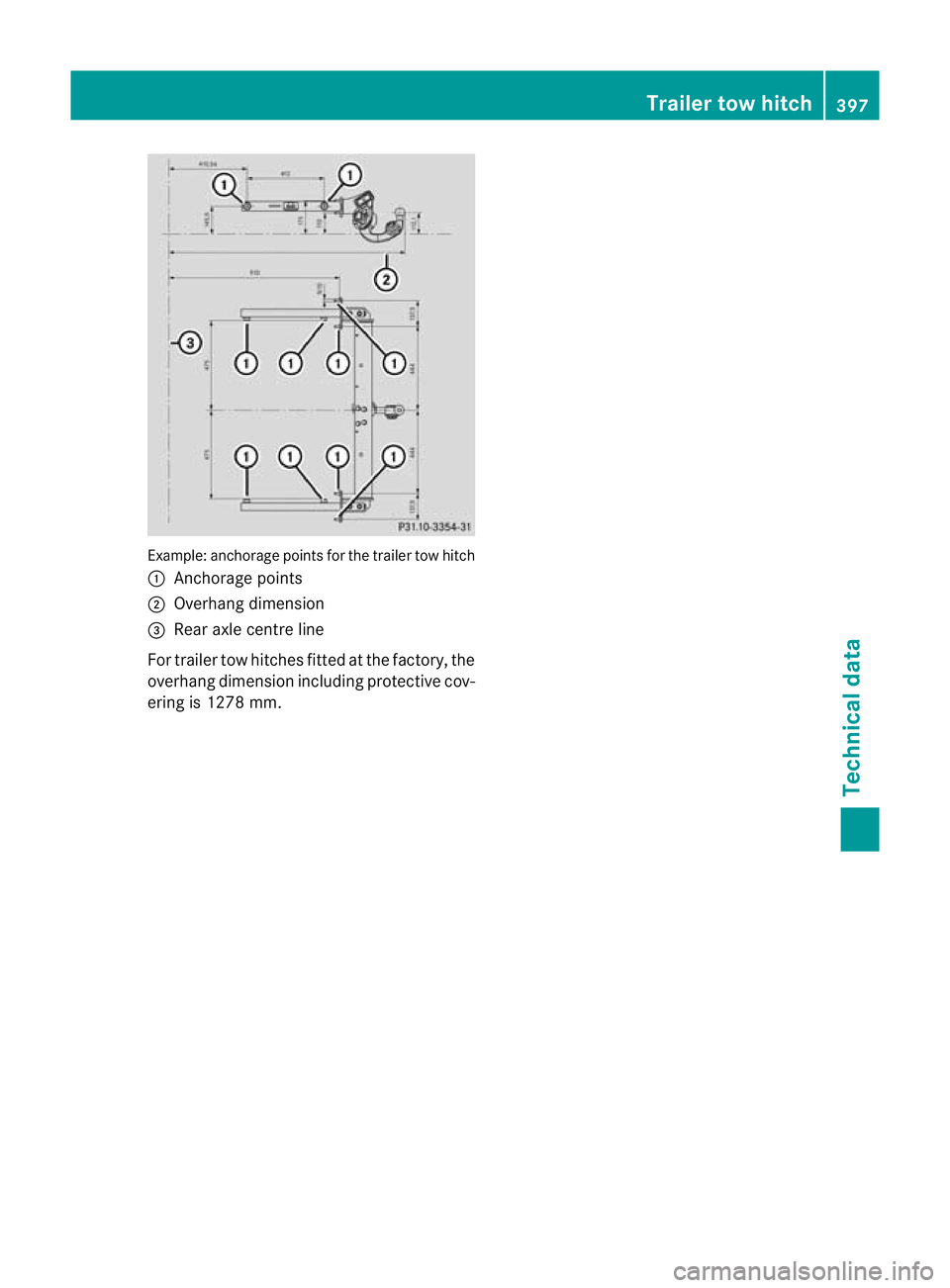

Example: anchorage points for the trailer tow hitch
:
Anchorage points
; Overhang dimension
= Rear axle centre line
For traile rtow hitches fitted at the factory, the
overhang dimension including protective cov-
ering is 1278 mm. Trailer tow hitch
397Technical data Z
Page 401 of 405

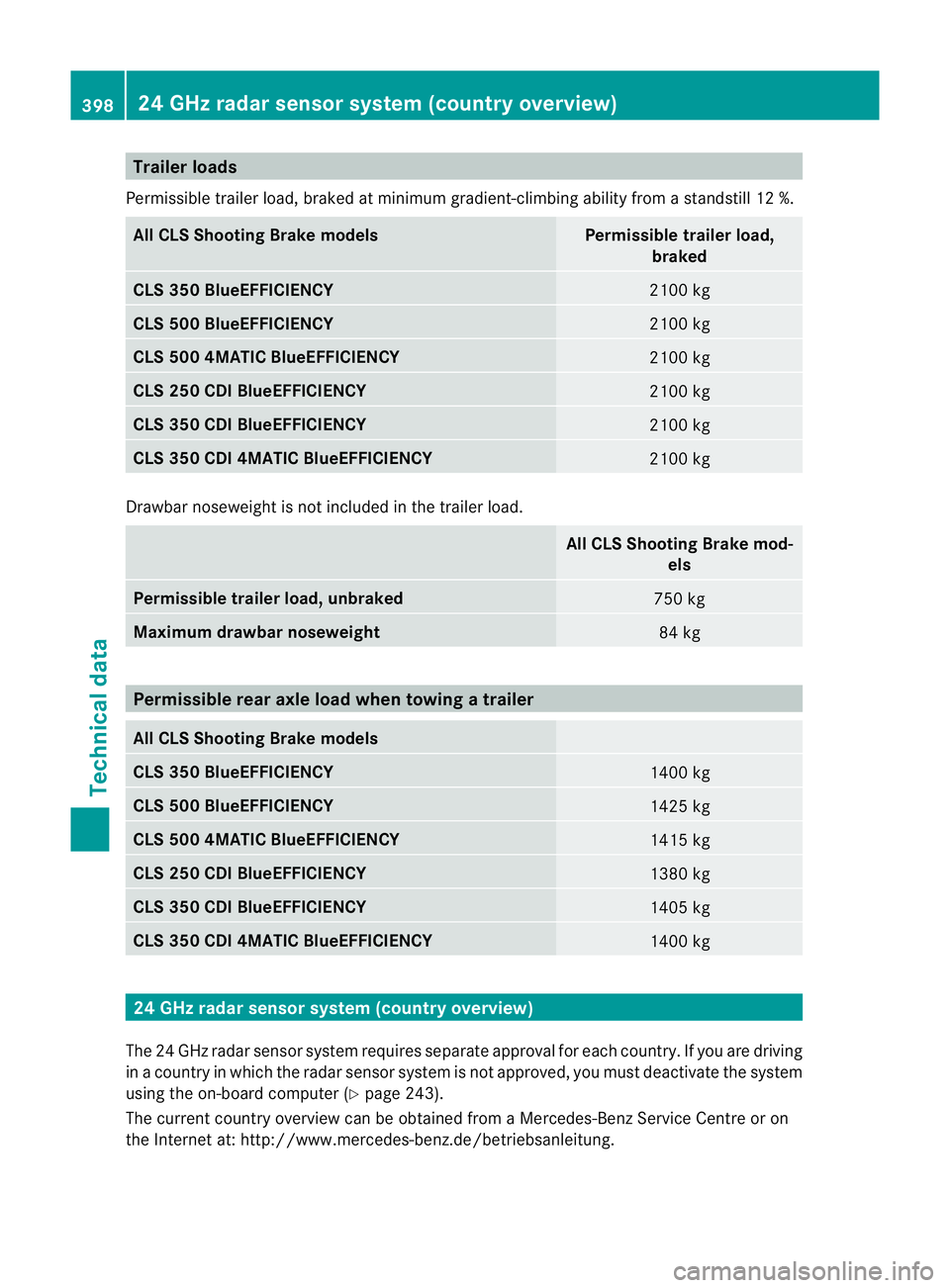

Trailer loads
Permissible trailer load, braked at minimu mgradient-climbing ability from a standstill 12 %. All CLS Shooting Brake models Permissible trailer load,
braked CLS 350 BlueEFFICIENCY
2100 kg
CLS 500 BlueEFFICIENCY
2100 kg
CLS 500 4MATIC BlueEFFICIENCY
2100 kg
CLS 250 CDI BlueEFFICIENCY
2100 kg
CLS 350 CDI BlueEFFICIENCY
2100 kg
CLS 350 CDI 4MATIC BlueEFFICIENCY
2100 kg
Drawbar noseweight is not included in the trailer load.
All CLS Shooting Brake mod-
els Permissible trailer load, unbraked
750 kg
Maximum drawbar noseweight
84 kg
Permissible rear axle load when towing
atrailer All CLS Shooting Brake models
CLS 350 BlueEFFICIENCY
1400 kg
CLS 500 BlueEFFICIENCY
1425 kg
CLS 500 4MATIC BlueEFFICIENCY
1415 kg
CLS 250 CDI BlueEFFICIENCY
1380 kg
CLS 350 CDI BlueEFFICIENCY
1405 kg
CLS 350 CDI 4MATIC BlueEFFICIENCY
1400 kg
24 GHz radar sensor system (country overview)
The 24 GH zradar sensor system requires separate approval for each country. If you are driving
in a country in whic hthe radar sensor system is not approved, you must deactivate the system
using the on-board computer (Y page 243).
The current country overview can be obtained from a Mercedes-Benz Service Centre or on
the Internet at: http://www.mercedes-benz.de/betriebsanleitung. 398
24 GHz radar sensor system (country overview)Technical data
Page 402 of 405

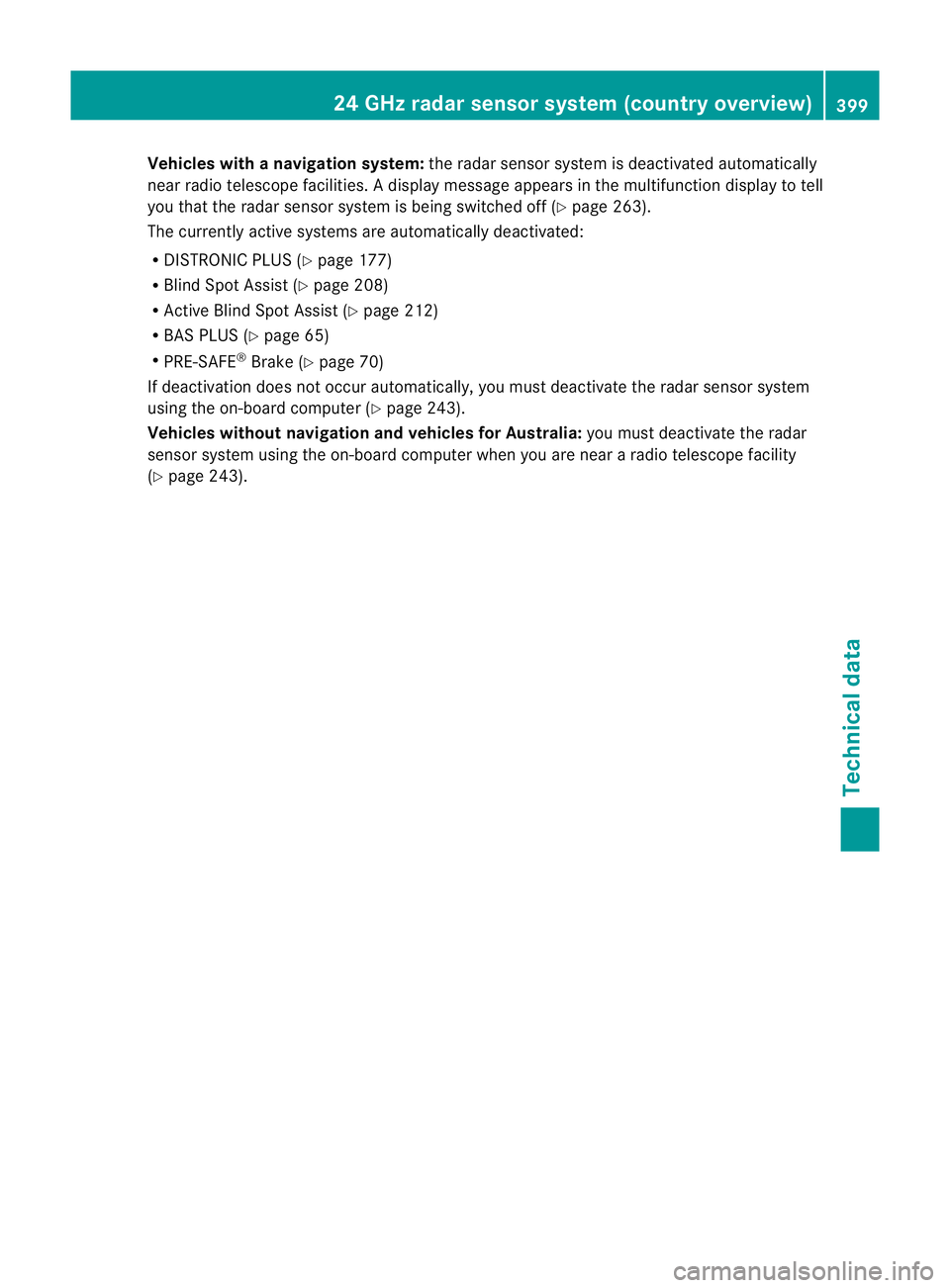

Vehicles with
anavigation system: the radar sensor system is deactivated automatically
near radio telescope facilities. Adisplay message appears in the multifunction display to tell
you that the radar sensor system is being switched off (Y page 263).
The currently active systems are automatically deactivated:
R DISTRONIC PLUS (Y page 177)
R Blind Spot Assist (Y page 208)
R Active Blind Spot Assist (Y page 212)
R BAS PLUS (Y page 65)
R PRE-SAFE ®
Brake (Y page 70)
If deactivation does not occur automatically, you must deactivate the radar sensor system
using the on-board computer (Y page 243).
Vehicles withou tnavigation and vehicles for Australia: you must deactivate the radar
sensor system using the on-board computer whe nyou are near a radio telescope facility
(Y page 243). 24 GHz radar sensor system (country overview)
399Technical data Z
