2012 MAZDA MODEL 3 HATCHBACK Owners Manual (in English)

Black plate (440,1)
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
4. Reinstall the cover and make sure that it is securely installed.
8-58
Maintenance and Care
Owner Maintenance
Mazda3_8BY7-EC-11F_Edition1 Page440
Friday, June 17 2011 2:57 PM
Form No.8BY7-EC-11F

Black plate (441,1)
qFuse Panel Description
Fuse block (Engine compartment)
32 33 34 35
36 37 38 39
54
1 2 3 678
1312 14 15 16
22
11109
212019
23 24 25
29 30 3127
28
26
17 18
DESCRIPTION
FUSE
RATING PROTECTED COMPONENT
1 DCDC
*1――
FA N 2*240 A Cooling faní
2 ENG MAIN 40 A Engine control system
3 BTN 1 50 A For protection of various circuits
4 A/C MAG 7.5 A Air conditioner
5 H/L HI 20 A Headlight high beam
6 FOG 15 A Fog lights
í
7 H/L WASH ――
8 SUNROOF 15 A Moonroofí
9 HEATER*140 A Air conditioner
F.DEF RH*2――
10 EVVT*120 A Engine control system
F.DEF LH*2――
11 FAN 1 40 A Cooling faní
12 ROOM 15 A Overhead lights
13 TCM 15 A Transaxle control systemí
14DSC 20 A Dynamic Stability Control systemí
Maintenance and Care
Owner Maintenance
8-59íSome models.
Mazda3_8BY7-EC-11F_Edition1 Page441
Friday, June 17 2011 2:57 PM
Form No.8BY7-EC-11F

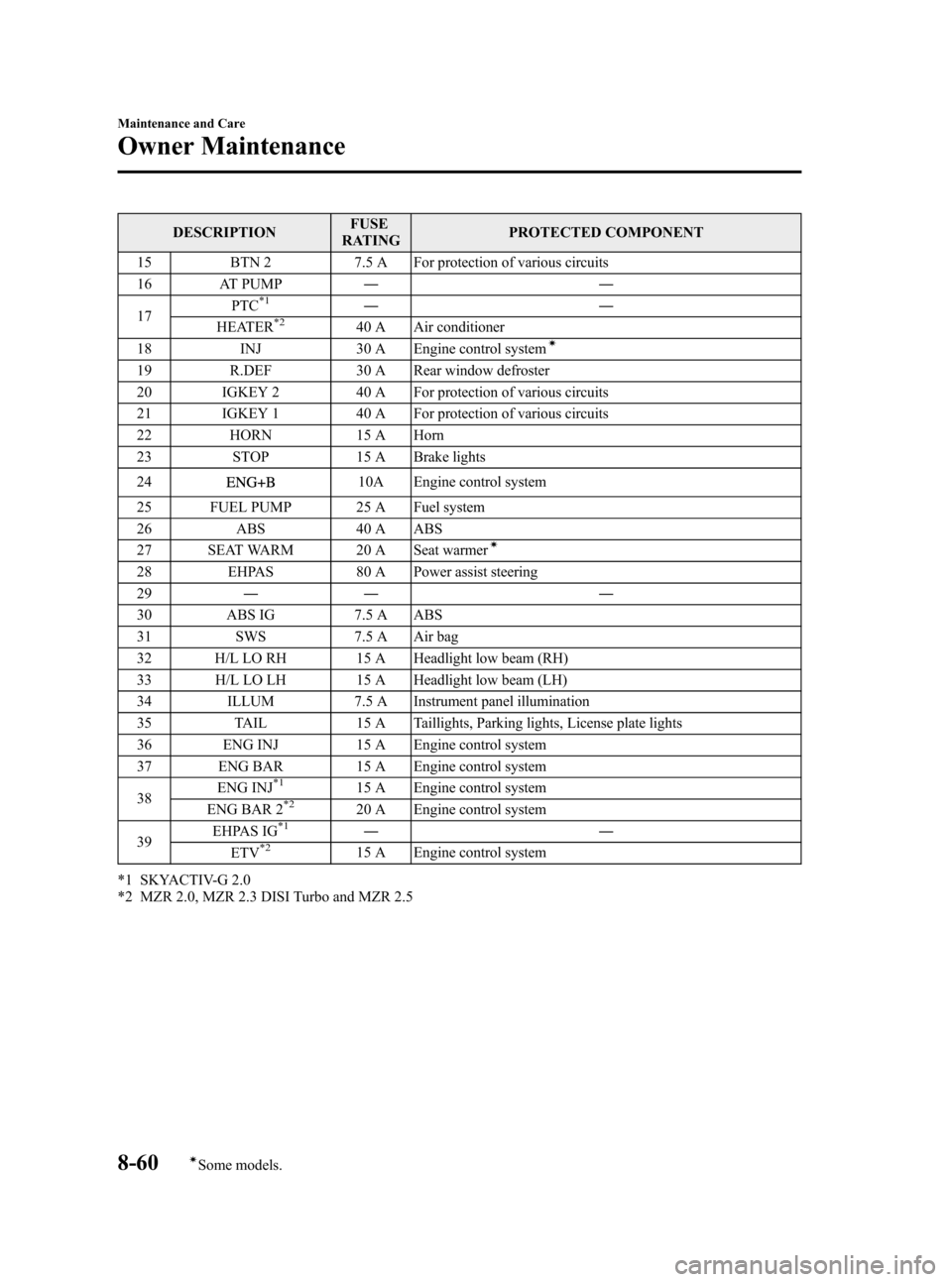

Black plate (442,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
15 BTN 2 7.5 A For protection of various circuits
16 AT PUMP ――
17 PTC
*1――
HEATER*240 A Air conditioner
18 INJ 30 A Engine control systemí
19 R.DEF 30 A Rear window defroster
20 IGKEY 2 40 A For protection of various circuits
21 IGKEY 1 40 A For protection of various circuits
22 HORN 15 A Horn
23 STOP 15 A Brake lights
24
10A Engine control system
25 FUEL PUMP 25 A Fuel system
26 ABS 40 A ABS
27 SEAT WARM 20 A Seat warmer
í
28 EHPAS 80 A Power assist steering
29 ―― ―
30 ABS IG 7.5 A ABS
31 SWS 7.5 A Air bag
32 H/L LO RH 15 A Headlight low beam (RH)
33 H/L LO LH 15 A Headlight low beam (LH)
34 ILLUM 7.5 A Instrument panel illumination
35 TAIL 15 A Taillights, Parking lights, License plate lights
36 ENG INJ 15 A Engine control system
37 ENG BAR 15 A Engine control system
38 ENG INJ
*115 A Engine control system
ENG BAR 2*220 A Engine control system
39 EHPAS IG*1――
ETV*215 A Engine control system
*1 SKYACTIV-G 2.0
*2 MZR 2.0, MZR 2.3 DISI Turbo and MZR 2.5
8-60
Maintenance and Care
íSome models.
Owner Maintenance
Mazda3_8BY7-EC-11F_Edition1 Page442
Friday, June 17 2011 2:57 PM
Form No.8BY7-EC-11F

Black plate (443,1)
Fuse block (Passenger's side)
1 4 7 101316195 8 11 14 17 20
6 9 12 15 18 2128 30
22 24 26
29 31
23 25 27 32 33 34
2
3
DESCRIPTION
FUSE
RATING PROTECTED COMPONENT
1 BOSE ――
2 P SEAT 30 A Power seat
í
3P.WIND 30 A Power window
4 D.LOCK 25 A Power door lock
5 ―― ―
6 ―― ―
7 ESCL ――
8 SAS 15 A Air bag
9 ―― ―
10 HAZARD 15 A Hazard warning flashers, Turn signal lights 11 METER 15 A Instrument cluster
12 OUTLET 15 A Accessory sockets
13 R.WIPER 15 A Rear window wiper and washer
í
14CIGAR 15 A Accessory sockets
15 ROOM2 ――
16 HEATER 10 A Air conditioner
17 MIRROR 10 A Power control mirror
18 ST SIG 10 A Engine control system
19 ―― ―
Maintenance and Care
Owner Maintenance
8-61íSome models.
Mazda3_8BY7-EC-11F_Edition1 Page443
Friday, June 17 2011 2:57 PM
Form No.8BY7-EC-11F

Black plate (444,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
20 AUDIO 7.5 A Audio system
21 M.DEF 7.5 A Mirror defroster
í
22AFS 7.5 A Adaptive Front-Lighting Systemí
23―― ―
24 ENG 20 A Engine control system
25 ―― ―
26 METER2 ――
27 ―― ―
28 AUDIO2 ――
29 ―― ―
30 P.WIND 25 A Power window
31 ―― ―
32 F.WIPER 25 A Front window wiper and washer
33 BOSE 2 25 A Bose
®Sound System-equipped modelí
34 ―― ―
8-62
Maintenance and Care
íSome models.
Owner Maintenance
Mazda3_8BY7-EC-11F_Edition1 Page444
Friday, June 17 2011 2:57 PM
Form No.8BY7-EC-11F

Black plate (445,1)

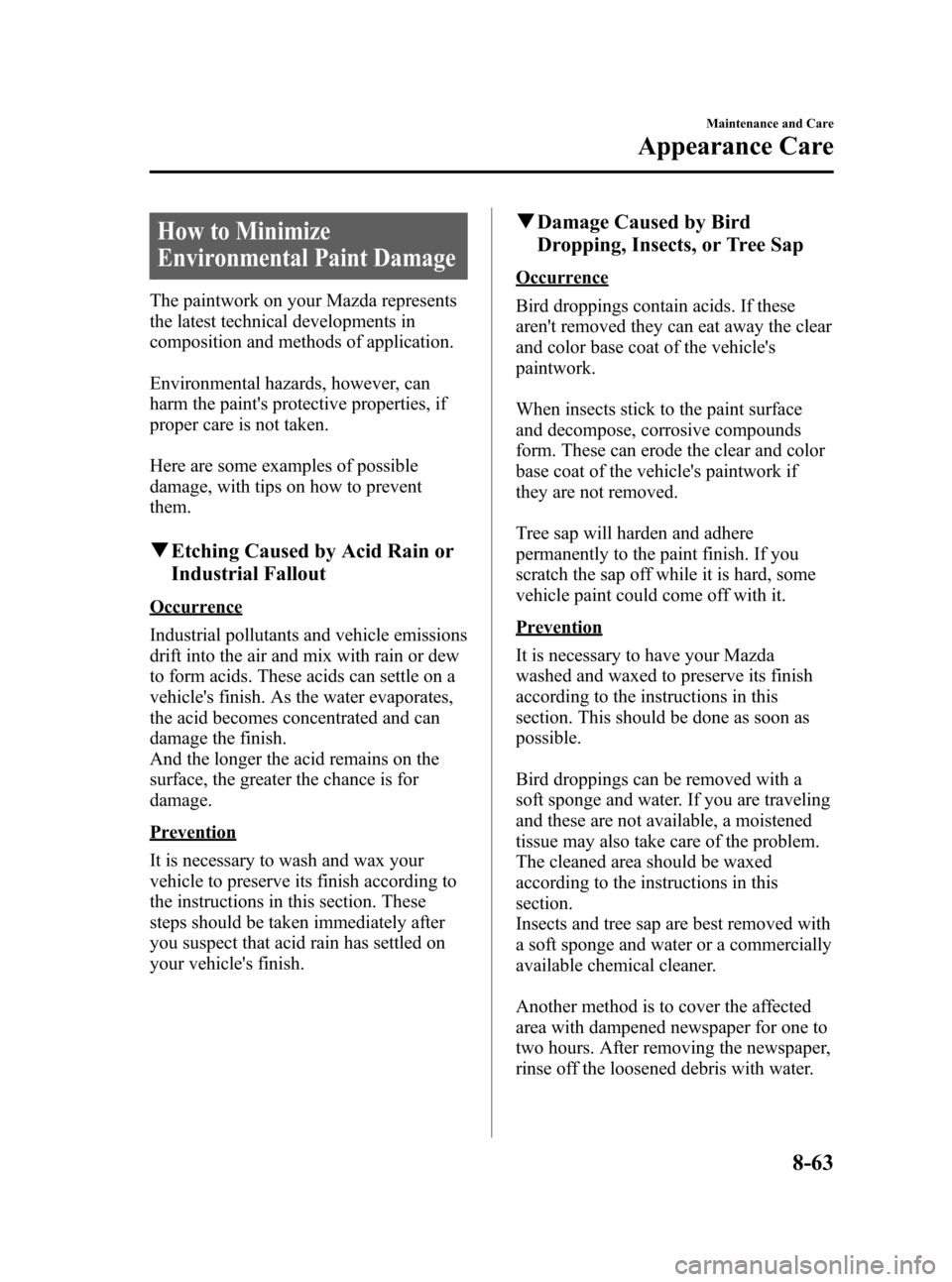

How to Minimize
Environmental Paint Damage
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.
Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.
Here are some examples of possible
damage, with tips on how to prevent
them.
qEtching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you suspect that acid rain has settled on
your vehicle's finish.
qDamage Caused by Bird
Dropping, Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these
aren't removed they can eat away the clear
and color base coat of the vehicle's
paintwork.
When insects stick to the paint surface
and decompose, corrosive compounds
form. These can erode the clear and color
base coat of the vehicle's paintwork if
they are not removed.
Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda
washed and waxed to preserve its finish
according to the instructions in this
section. This should be done as soon as
possible.
Bird droppings can be removed with a
soft sponge and water. If you are traveling
and these are not available, a moistened
tissue may also take care of the problem.
The cleaned area should be waxed
according to the instructions in this
section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.
Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.
Maintenance and Care
Appearance Care
8-63
Mazda3_8BY7-EC-11F_Edition1 Page445
Friday, June 17 2011 2:57 PM
Form No.8BY7-EC-11F

Black plate (446,1)
qWater Marks
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these
minerals settles on the vehicle and
evaporates, the minerals will concentrate
and harden to form white rings. The rings
can damage your vehicle's finish.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you find water marks on your vehicle's
finish.
qPaint Chipping
Occurrence
Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.
How to avoid paint chipping
Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel. NOTE
lThe paint chipping zone varies with the
speed of the vehicle. For example, when
traveling at 90 km/h (56 mph), the paint
chipping zone is 50 m (164 ft).
lIn low temperatures a vehicle's finish
hardens. This increases the chance of paint
chipping.
lChipped paint can lead to rust forming on
your Mazda. Before this happens, repair the
damage by using Mazda touch-up paint
according to the instructions in this section.
Failure to repair the affected area could
lead to serious rusting and expensive
repairs.
8-64
Maintenance and Care
Appearance Care
Mazda3_8BY7-EC-11F_Edition1 Page446
Friday, June 17 2011 2:57 PM
Form No.8BY7-EC-11F

Black plate (447,1)
Exterior Care
Followalllabel and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
q Maintaining the Finish
Washing
CAUTION
Ø When the wiper lever is in the
AUTO position and the ignition is
switched ON, the wipers may
move automatically in the
following cases:
ØIf the windshield above the rain
sensor is touched or wiped with
a cloth.
ØIf the windshield is struck with
a hand or other object from
either outside or inside the
vehicle.
Keep hands and scrapers clear of
the windshield when the wiper
lever is in the AUTO position and
the ignition is switched ON as
fingers could be pinched or the
wipers and wiper blades damaged
when the wipers activate
automatically.
If you are going to clean the
windshield, be sure the wipers are
turned off completely ―this is
particularly important when
clearing ice and snow ―when it is
most likely that the engine is left
running.
Ø Do not spray water in the engine
compartment. Otherwise, it could
result in engine-starting problems
or damage to electrical parts. To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.
Scratches occur on the paint surface
when:
lThe vehicle is washed without first
rinsing off dirt and other foreign
matter.
lThe vehicle is washed with a rough,
dry, or dirty cloth.
lThe vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.
lCleansers or wax containing abrasives
are used.
NOTE
lMazda is not responsible for scratches
caused by automatic car washes or
improper washing.
lScratches are more noticeable on vehicles
with darker paint finishes.
To minimize scratches on the vehicle's
paint finish:
lRinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.
lUse plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
lRub gently when washing or drying the
vehicle.
lTake your vehicle only to a car wash
that keeps its brushes well maintained.
lDo not use abrasive cleansers or wax
that contain abrasives.
Maintenance and Care
Appearance Care
8-65
