2012 MAZDA MODEL 3 HATCHBACK Owners Manual (in English)

Black plate (376,1)
1. Remove the battery cover from its frontside.
Battery cover
CAUTION
ØDo not use a tool which applies
excessive force such as a
screwdriver or pliers.
If excessive force is applied to the
clips, they could be damaged.
To prevent damaging the battery
cover, remove the battery cover
using the following procedure.
1 Detach the clip facing the side of the vehicle first and pull it outward
with your finger approx. 4 mm (0.2
in). Then, lift the cover slightly to
clear the lock.
Clip
2 Detach the clip facing the vehicle interior first and pull it outward
with your finger approx. 4 mm (0.2
in). Then, lift the cover slightly to
clear the lock.
Clip
3 Pull out the battery cover being
careful not to allow it to contact
the cowl grille.
Battery cover
Cowl grille
2. Make sure the booster battery is 12 Vand that its negative terminal is
grounded.
3. If the booster battery is in another vehicle, don't allow both vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles.
7-22
In Case of an Emergency
Emergency Starting
Mazda3_8BY7-EC-11F_Edition1 Page376
Friday, June 17 2011 2:57 PM
Form No.8BY7-EC-11F

Black plate (377,1)
4. Connect the jumper cables in the exactsequence as in the illustration.
lConnect one end of a cable to the
positive terminal on the discharged
battery (1).
lAttach the other end to the positive
terminal on the booster battery (2).
lConnect one end of the other cable
to the negative terminal of the
booster battery (3).
lConnect the other end to the ground
point indicated in the illustration
away from the discharged battery
(4).
5. Start the engine of the booster vehicle and run it a few minutes. Then start the
engine of the other vehicle.
6. When finished, carefully disconnect the cables in the reverse order described in
the illustration.
7. Install the battery cover.
CAUTION
Ø Do not use a tool which applies
excessive force such as a
screwdriver or pliers.
If excessive force is applied to the
clips, they could be damaged.
To prevent damaging the battery
cover, install the battery cover
using the following procedure.
1 Being careful not to contact the cowl grille, insert the tabs on the
one end of the battery cover into
the holes of the battery tray and
engage the tabs. SKYACTIV-G 2.0
Cowl grille
Ta b
Hole
MZR 2.0, MZR 2.3 DISI Turbo and
MZR 2.5
Cowl grille Tabs
Holes
2 Attach the clips on both sides ofthe battery cover.
Clips
In Case of an Emergency
Emergency Starting
7-23
Mazda3_8BY7-EC-11F_Edition1 Page377
Friday, June 17 2011 2:57 PM
Form No.8BY7-EC-11F

Black plate (378,1)
NOTE
Verify that the covers are securely installed.Push-Starting
Do not push-start your Mazda.
WARNING
Never tow a vehicle to start it:Towing a vehicle to start it is
dangerous. The vehicle being towed
could surge forward when its engine
starts, causing the two vehicles to
collide. The occupants could be
injured.
CAUTION
Do not push-start a vehicle that has
a manual transaxle. It can damage
the emission control system.
NOTE
You can't start a vehicle with an automatic
transaxle by pushing it.
7-24
In Case of an Emergency
Emergency Starting
Mazda3_8BY7-EC-11F_Edition1 Page378
Friday, June 17 2011 2:57 PM
Form No.8BY7-EC-11F

Black plate (379,1)
Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
drive wheels (front wheels) off the
ground. If excessive damage or other
conditions prevent this, use wheel dollies.
Wheel dollies
When towing with the rear wheels on the
ground, release the parking brake.
CAUTION
Do not tow the vehicle pointed
backward with driving wheels on the
ground. This may cause internal
damage to the transaxle.
CAUTION
Do not tow with sling-type
equipment. This could damage your
vehicle. Use wheel-lift or flatbed
equipment.
In Case of an Emergency
Emergency Towing
7-25
Mazda3_8BY7-EC-11F_Edition1 Page379
Friday, June 17 2011 2:57 PM
Form No.8BY7-EC-11F

Black plate (380,1)

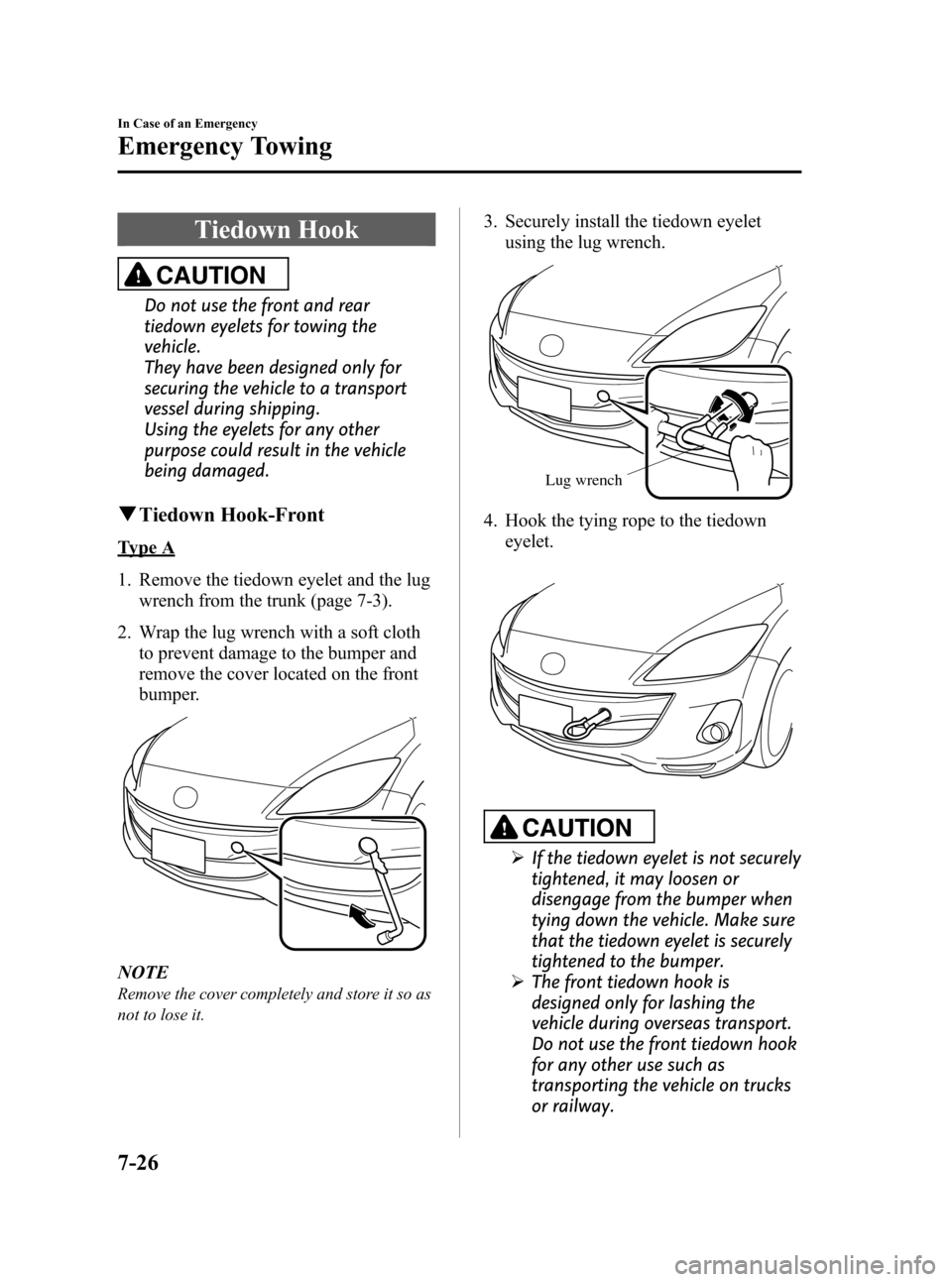

Tiedown Hook
CAUTION
Do not use the front and rear
tiedown eyelets for towing the
vehicle.
They have been designed only for
securing the vehicle to a transport
vessel during shipping.
Using the eyelets for any other
purpose could result in the vehicle
being damaged.
qTiedown Hook-Front
Type A
1. Remove the tiedown eyelet and the lug
wrench from the trunk (page 7-3).
2. Wrap the lug wrench with a soft cloth to prevent damage to the bumper and
remove the cover located on the front
bumper.
NOTE
Remove the cover completely and store it so as
not to lose it.
3. Securely install the tiedown eyeletusing the lug wrench.
Lug wrench
4. Hook the tying rope to the tiedown
eyelet.
CAUTION
ØIf the tiedown eyelet is not securely
tightened, it may loosen or
disengage from the bumper when
tying down the vehicle. Make sure
that the tiedown eyelet is securely
tightened to the bumper.
Ø The front tiedown hook is
designed only for lashing the
vehicle during overseas transport.
Do not use the front tiedown hook
for any other use such as
transporting the vehicle on trucks
or railway.
7-26
In Case of an Emergency
Emergency Towing
Mazda3_8BY7-EC-11F_Edition1 Page380
Friday, June 17 2011 2:57 PM
Form No.8BY7-EC-11F

Black plate (381,1)
Type B
1. Remove the tiedown eyelet from thetrunk (page 7-3).
2. Remove the cover.
NOTE
Remove the cover completely and store it so as
not to lose it.
3. Securely install the tiedown eyelet using the lug wrench.
Lug wrench
4. Hook the tying rope to the tiedowneyelet.
CAUTION
ØIf the tiedown eyelet is not securely
tightened, it may loosen or
disengage from the bumper when
tying down the vehicle. Make sure
that the tiedown eyelet is securely
tightened to the bumper.
Ø The front tiedown hook is
designed only for lashing the
vehicle during overseas transport.
Do not use the front tiedown hook
for any other use such as
transporting the vehicle on trucks
or railway.
In Case of an Emergency
Emergency Towing
7-27
Mazda3_8BY7-EC-11F_Edition1 Page381
Friday, June 17 2011 2:57 PM
Form No.8BY7-EC-11F

Black plate (382,1)
qTiedown Hook-Rear
Tiedown hook
CAUTION
The rear tiedown hook is designed
only for lashing the vehicle during
overseas transport. Do not use the
rear tiedown hook for any other use
such as transporting the vehicle on
trucks or railway.
Recreational Towing
An example of “recreational towing ”is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
“ Towing Description ”(page 7-25) and
“ Tiedown Hook ”(page 7-26) and
carefully follow the instructions.
7-28
In Case of an Emergency
Emergency Towing
Mazda3_8BY7-EC-11F_Edition1 Page382
Friday, June 17 2011 2:57 PM
Form No.8BY7-EC-11F

Black plate (383,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3 Scheduled Maintenance (USA, Canada, and Puerto Rico) ....... 8-3
Scheduled Maintenance (Mexico) ............................................. 8-8
Owner Maintenance ................................................................... 8-15 Owner Maintenance Schedule ................................................ 8-15
Owner Maintenance Precautions ............................................. 8-16
Engine Compartment Overview .............................................. 8-17
Engine Oil ............................................................................... 8-19
Engine Coolant ....................................................................... 8-22
Brake/Clutch Fluid .................................................................. 8-24
Power Steering Fluid ............................................................... 8-25
Automatic Transaxle Fluid (ATF)
í........................................ 8-26
Washer Fluid ........................................................................... 8-27
Body Lubrication .................................................................... 8-28
Wiper Blades ........................................................................... 8-29
Battery ..................................................................................... 8-33
Tires ........................................................................................ 8-37
Light Bulbs ............................................................................. 8-44
Fuses ....................................................................................... 8-56
Appearance Care ........................................................................ 8-63 How to Minimize Environmental Paint Damage .................... 8-63
Exterior Care ........................................................................... 8-65
Interior Care ............................................................................ 8-69
8-1íSome models.
